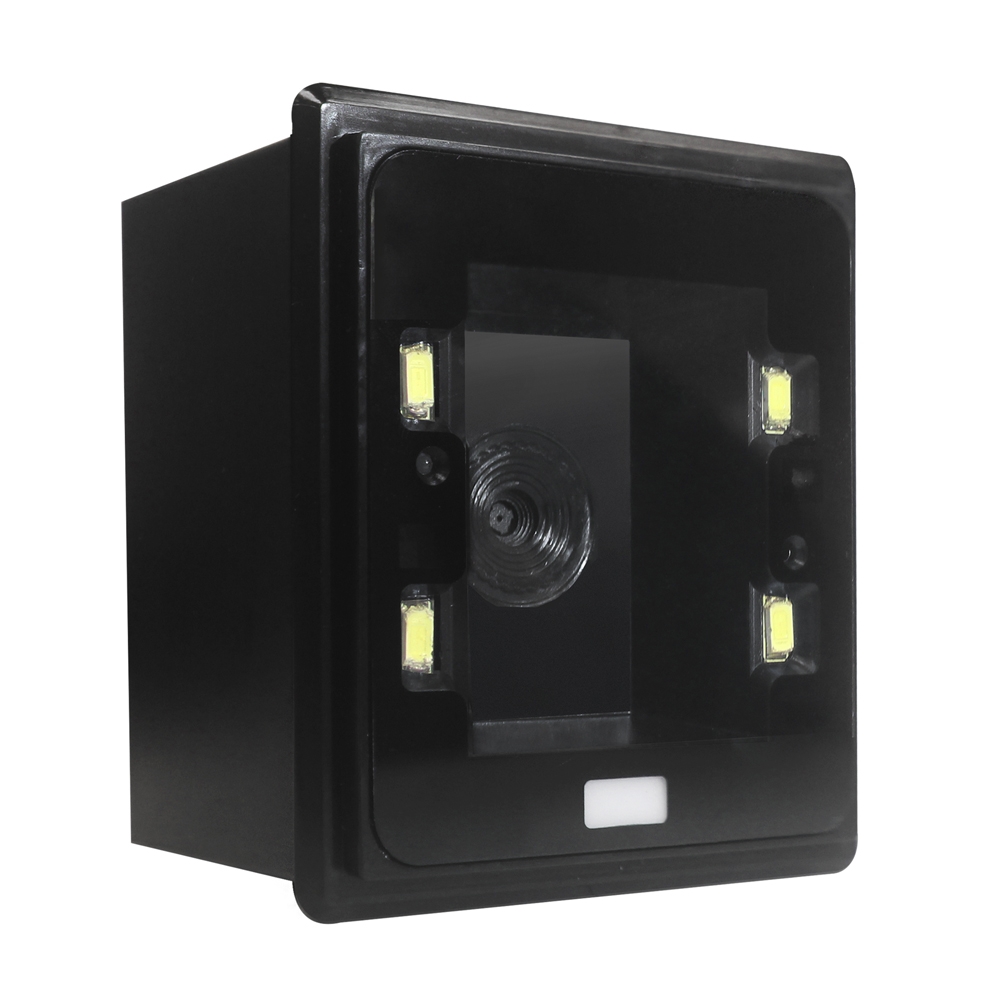

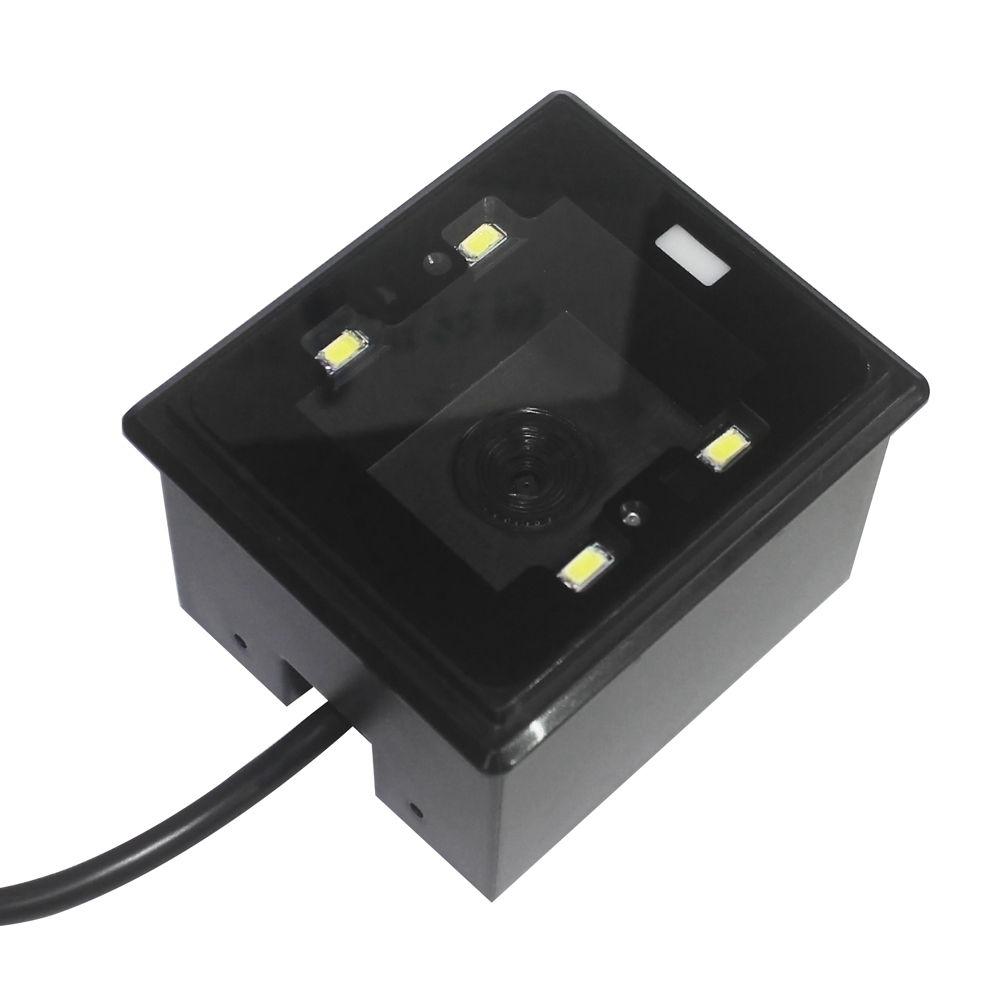

EVAWGIB DL-X922T QR Code Scanning Module Embedded Scanning Head, Interface: RS232

Product Description

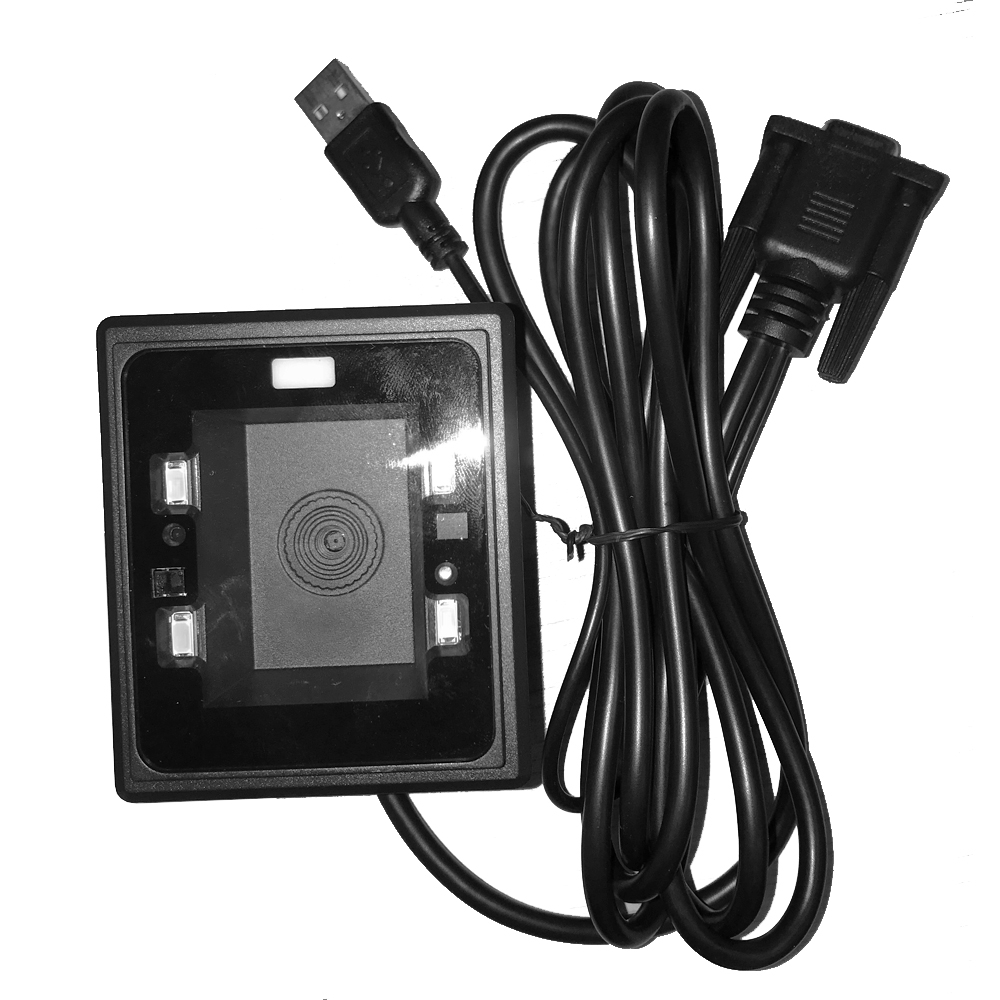

1. Quickly identify one-dimensional code and two-dimensional code on the screen 2. No need for plug-ins, plug and play, wide applicability 3. Embedded compact body, easy to install 4. Integrated design of body and data line, compatible with various systems 5. Recognition code system: - 1D codes: Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5, Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBar (RSS), (RSS-14, RSS-Limited, RSS-Expand) - QR code: PDF417, QR, Data Matrix, Micro QR 6. Data interface: USB/RS232 7. Prompt mode: buzzer and LED indication 8. Working voltage: 5V 9. Scanning rate: 1200 times/second 10. Image sensor: 640x480 CMOS 11. Weight: about 98 grams for USB cable, about 123 grams for RS232 cable 12. Size: about 7.84x6.72x3.78cm

Specifications

SKU

TBD0602358302

Category

Office & School Supplies › Barcode Scanner & Coder › Barcode Scanner

Weight

0.204 kg

Delivery

Standard delivery
