EVESKY 460WS Desktop Computer ATX Power Supply Rated Power 270W Non-Active PFC With 12cm Fan

Product Description

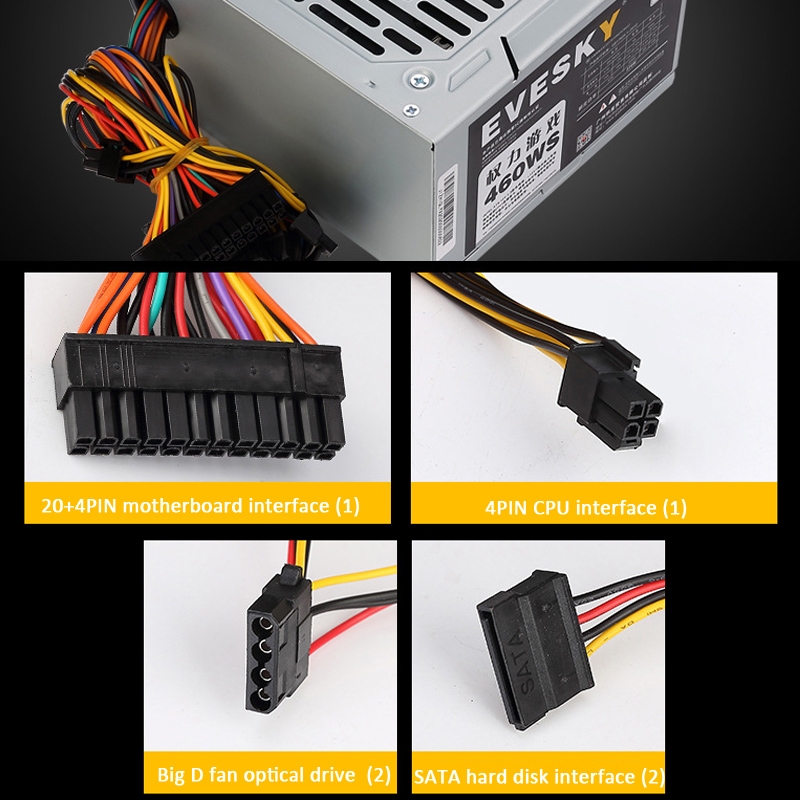

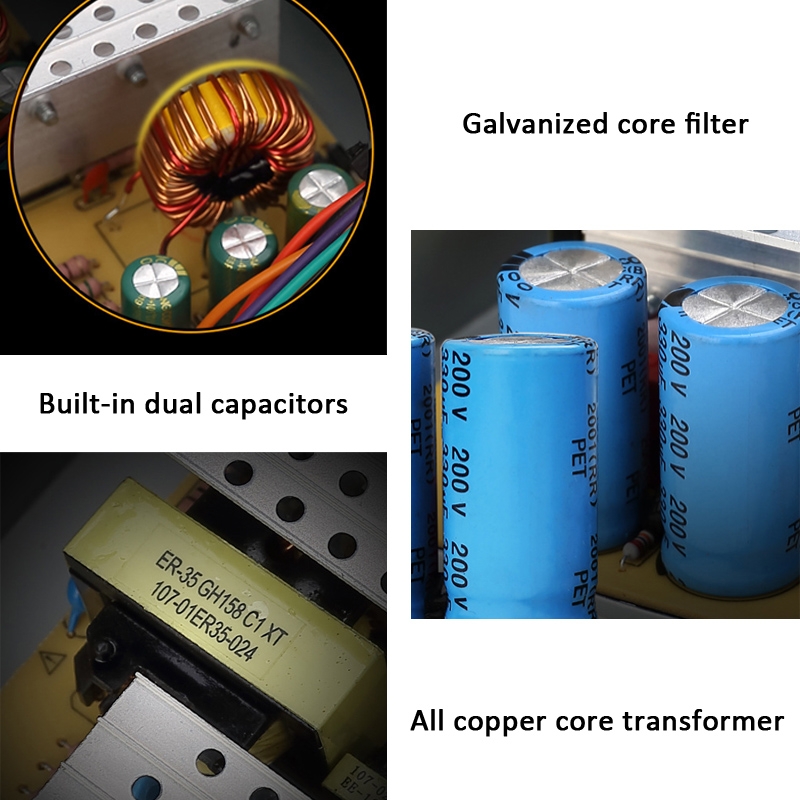

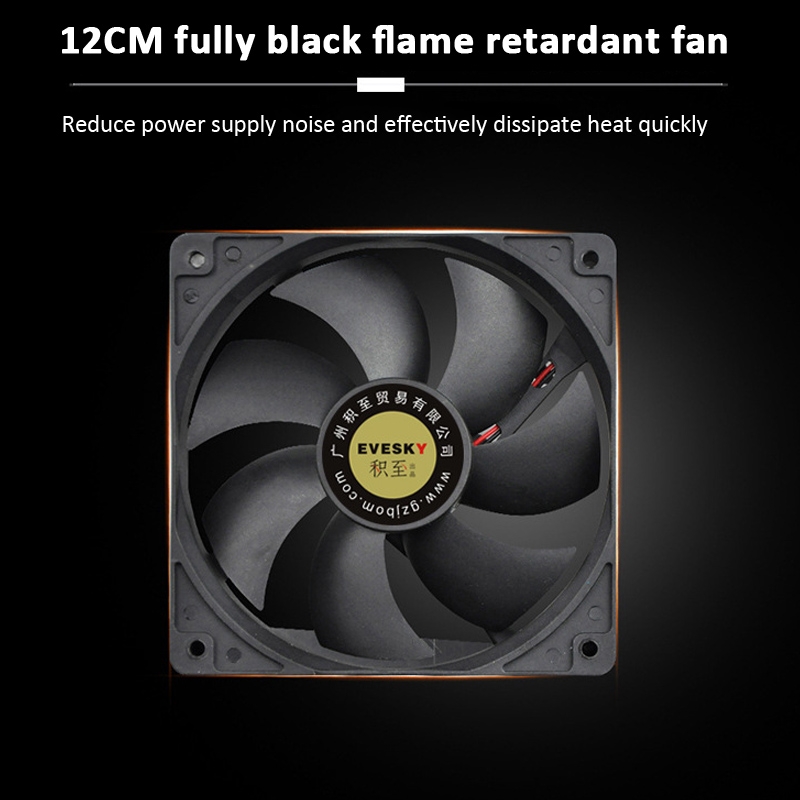

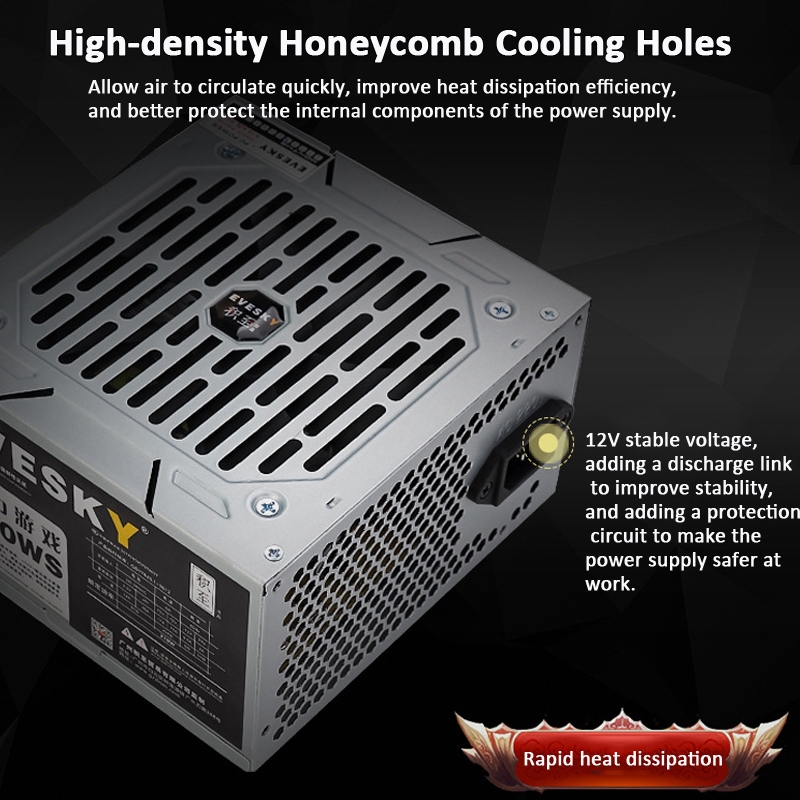

1. 6 protection functions: overcurrent/overvoltage/undervoltage/overtemperature/overpower/short circuit 2. Built-in energy-saving control chip, low power consumption in standby, energy-saving and environmentally friendly 3. Adopt vortex fan blade frame and high-density honeycomb heat dissipation holes to circulate air quickly, improve heat dissipation efficiency, and better protect the internal components of the power supply. 4. 12V stable voltage, adding a discharge link to improve stability, and adding a protection circuit to make the power supply safer at work. 5. Supports back wiring and multiple interface configurations 6. 12CM fully black flame-retardant fan, reducing power supply noise and effectively dissipating heat quickly 7. All-copper core transformer: It adopts the current mainstream DC ERL-35 all-copper core main transformer in the market. It is designed with all-copper surround inside and has no false standard. It can work with efficient current exchange while maintaining voltage stability. Fan parameters: 1. Size: L120×W120×H25mm 2. Bearing: hydraulic 3. Rated current: 0.18Amp 4. Cooling method: air cooling 5. Fan speed: 900-1700RPM+/-10% 6. Rated voltage: 12V Power parameters: 1. Rated power: 270W 2. Fan: 12CM hydraulic black double frame 3. PFC: Non-active PFC 4. Efficiency: 80% 5. Input voltage: 220-240VAC 6. Support wide format: support 7. Support temperature control: Yes 8. Peak: 460W 9. Power cord length: 1.5m 10. Main power interface: --20+4PIN interface (1pc) --4PIN CPU interface (1pc) --D type 4PIN interface (2pcs) --SATA interface (2pcs)

Specifications

SKU

TBD06042415

Category

Computer & Networking › Computer Components › PC Power Supplies

Weight

1.004 kg

Delivery

Standard delivery
