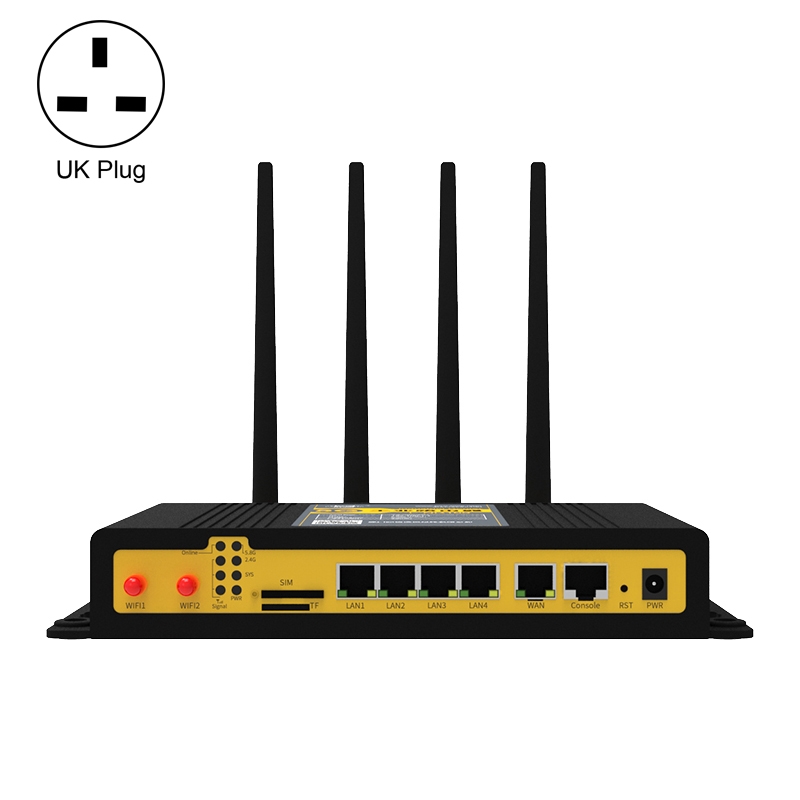

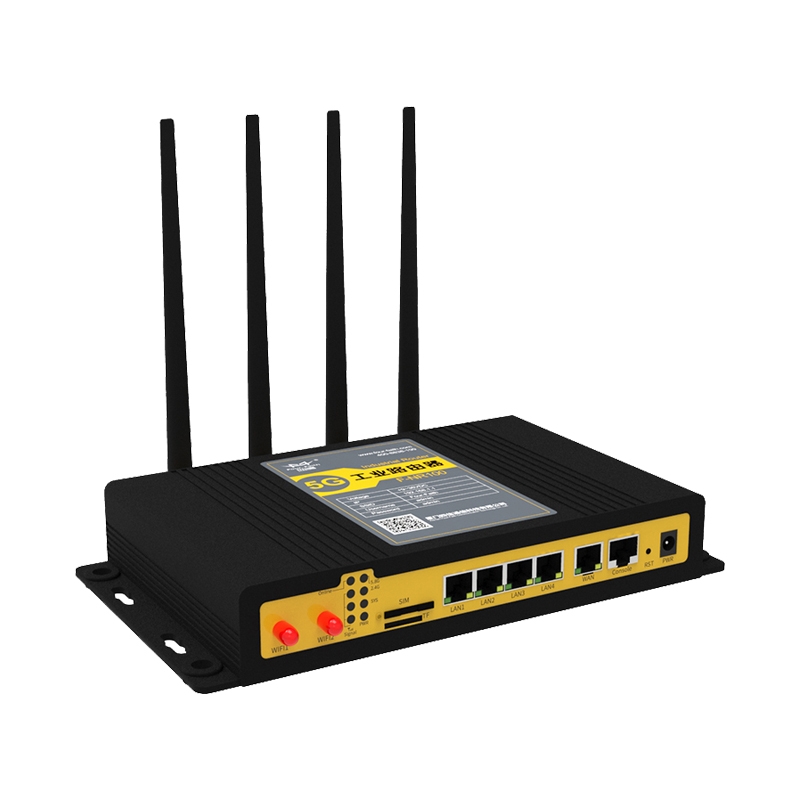

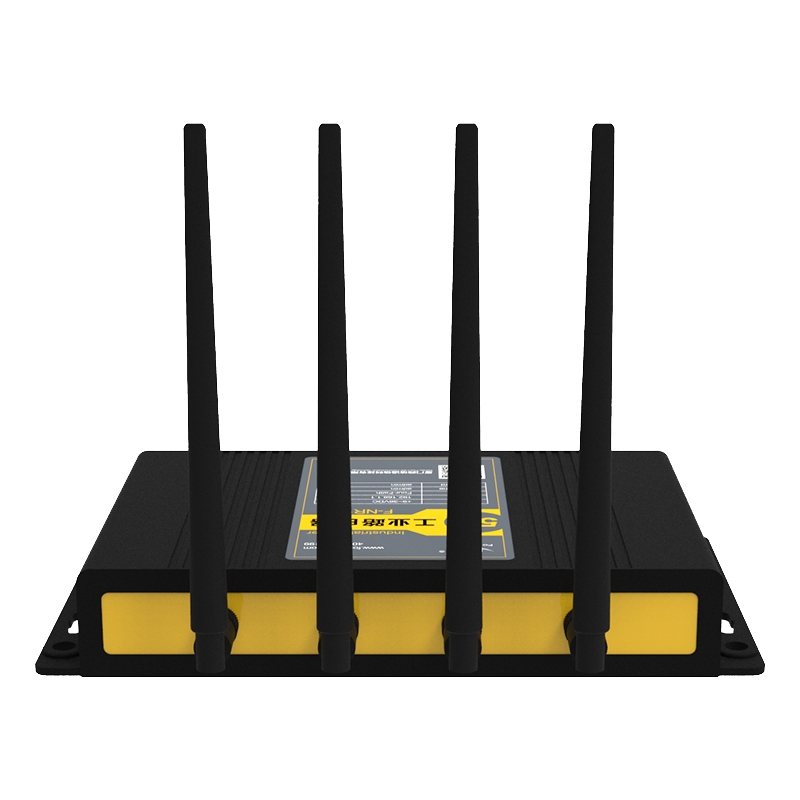

F-NR100 1000Mbps 5G 5-ports Single-card Industrial WiFi Wireless Router with 4 Antennas, UK Plug

Product Description

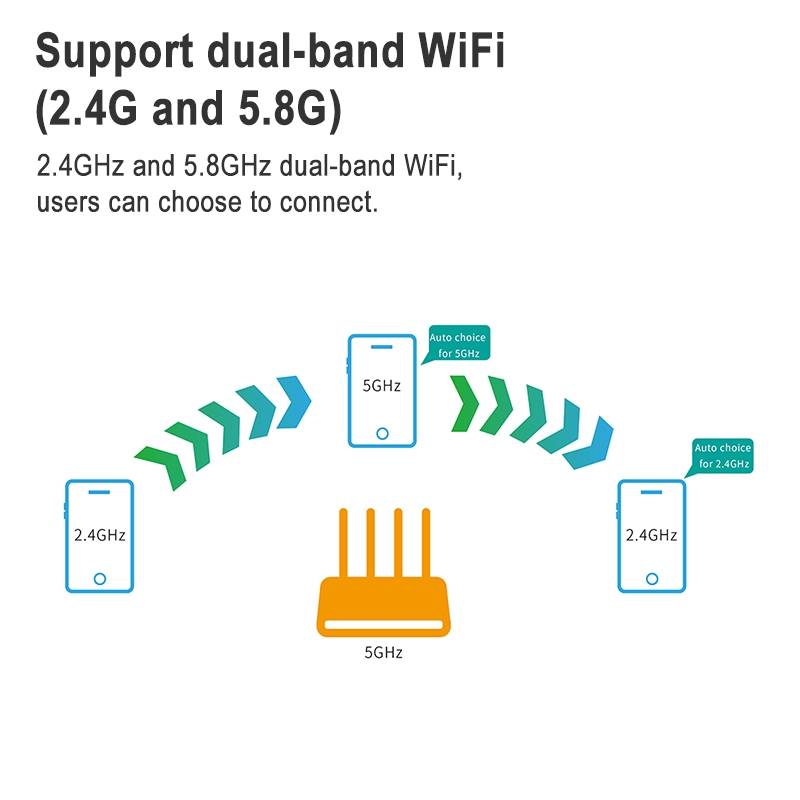

Wireless Parameters: 1. Wireless module: industrial-grade wireless module 2. Frequency band: -5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79 -LTE: B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/B12(17)/B13/B14/B20/B25/B26/B28/B29/B30/B38/ B39/B40/B41/B42/B43/B46/B48/B71 3. Theoretical broadband: 5G MR, downlink rate 3.4Gbps, uplink rate 350Mbps; LTE Cat20, downlink rate 2.0Gbps, uplink rate 150Mbps; HSPA+, downlink rate 42Mbps, uplink rate 5.76Mbps 4. Transmitting power: less than 23dBm 5. Receiving sensitivity: less than -97dBm WiFi Wireless Parameters: 1. Standards and frequency bands: support IEEE802.11b/g/n, 2.4G, support AP mode, Station mode (optional); support IEEE802.11 ac, 5.8G, support AP mode, Station mode (optional) 2. Theoretical broadband: IEEE802.11b/g, speed up to 54Mbps; IEEE802.11n, speed up to 150Mbps; IEEE802.11ac, speed up to 390Mbps 3. Security encryption: support WEP, WPA, WPA2 and other encryption methods 4. Transmitting power: 26dBm (11b), 21.5dBm (11g), 20dBm (11n), 16dBm (11ac) 5. Receiving sensitivity: less than -72dBm, 54Mpbs Hardware System: 1. CPU: Industrial-grade 32-bit communication processor 2. FLASH: Nor flash 16MB (expandable to 64Mb), nand flash 128MB 3. DDR3: 512M Interface Type: 1. WAN interface: 1 10/100/1000M Ethernet port (RJ45 socket), adaptive MDI/MDIX, built-in 1.5KV electromagnetic isolation protection 2. LAN interface: 4 10/100/1000M Ethernet ports (RJ45 socket), adaptive MDI/MDIX, built-in 1.5KV electromagnetic isolation protection 3. Serial port: 1 RS232 serial port, built-in 15KV ESD protection 4. Serial port parameters: -Data bits: 5, 6, 7, 8 bits -Stop bits: 1, 1.5 (optional), 2 bits -Check: no check, even check, odd check, SPACE (optional) and MARK check (optional) -Serial port rate: 2400-115200bits/s

Specifications

SKU

WR0031UK

Category

Computer & Networking › Router & Modem & Switch › Wireless Routers

Weight

2.12 kg

Delivery

Standard delivery
