FCAR F506 Heavy Diesel Truck Diagnostic Tool

Product Description

1. Support SAE J185OPWM, SAE J1850 VPW, ISO 14230-4, ISO 9141-2, ISO 15765-4, SAE J1708, SAE J1939, OBDII 2. Ability to read and clear fault codes of major truck systems, including engine, airbag, transmission, ECU/BCU, VCS, ABS, SRS, EBS, DCU, AT, clutch system/brake system/instrument system/battery system/inverter system/hybrid power system/brake system, etc. 3. Real-time sensor data flow using graphical display 4. Adjustable screen with OBD 16, Deutsch 6/9 pin Y type 2 connector 5. Bilingual interface: support English, Spanish 6. Fast response time and provides access to key truck computer information 7. Read codes and analyze sensor data using definitions 8. Common functions: read ECU information, read and erase fault codes, read live data, read freeze frames, graph live data, screenshot function 9. 3.5-inch TFT color screen, rugged 10. Power supply: Type-C interface charging

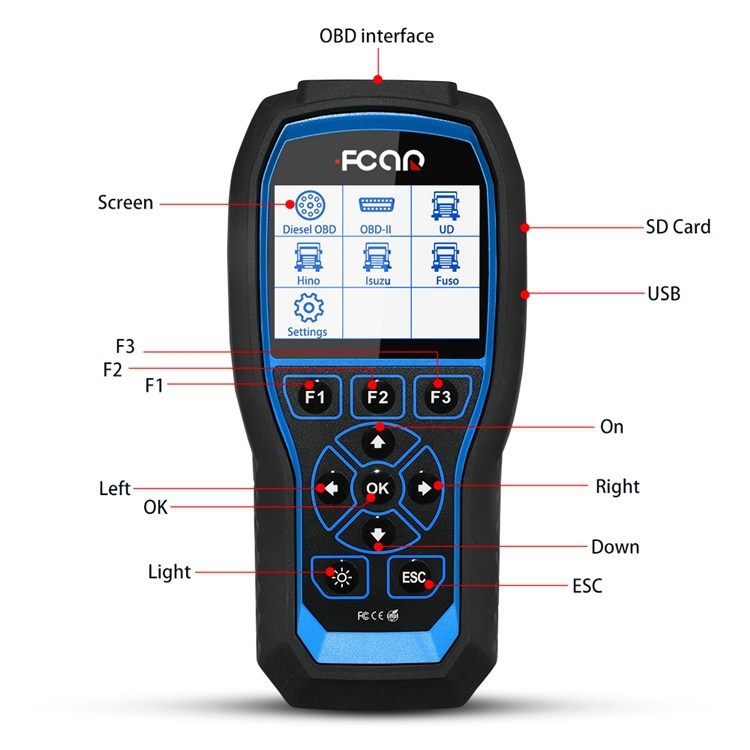

Specifications

SKU

TBD06031637

Category

In Car › Diagnostic Scan Tools › Code Readers & Scan Tools

Weight

0.454 kg

Delivery

Standard delivery
