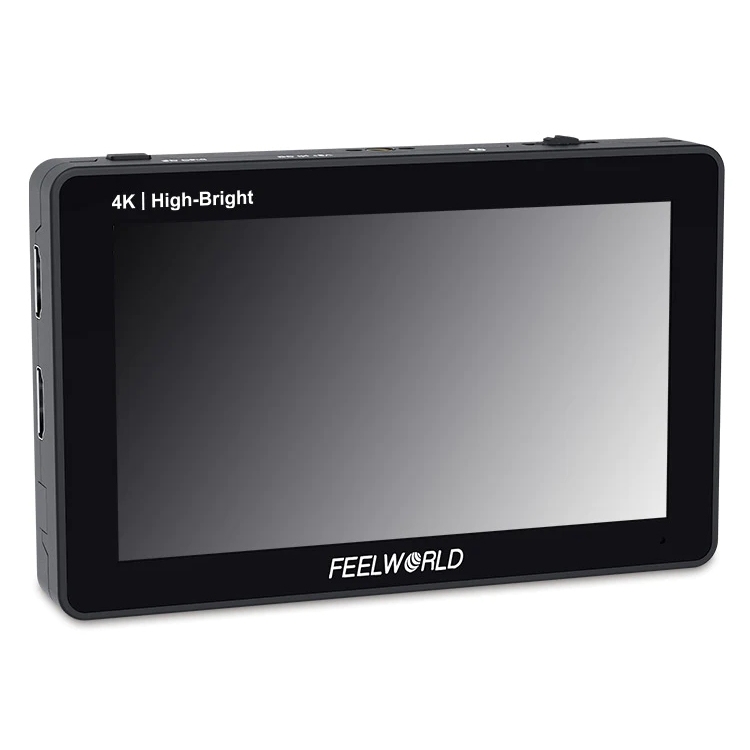

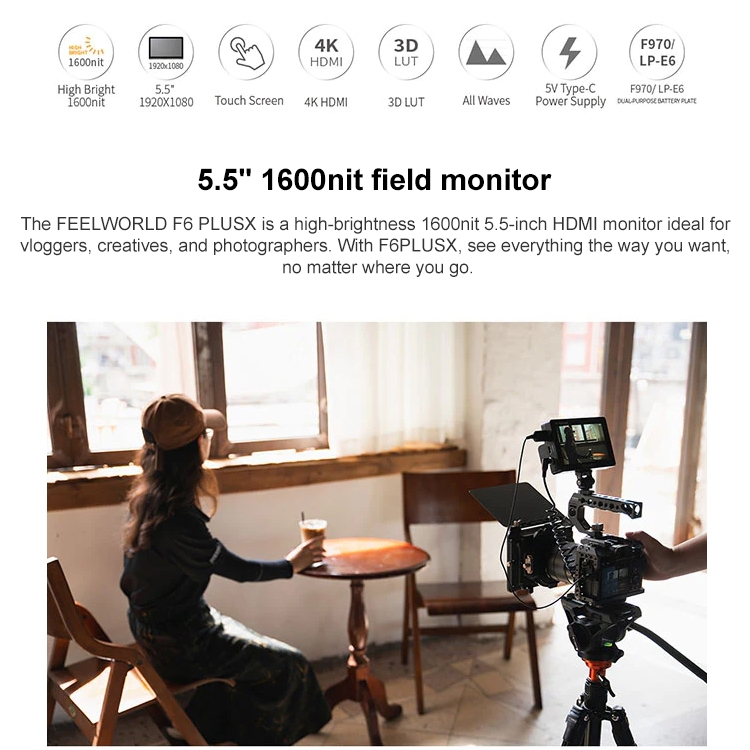

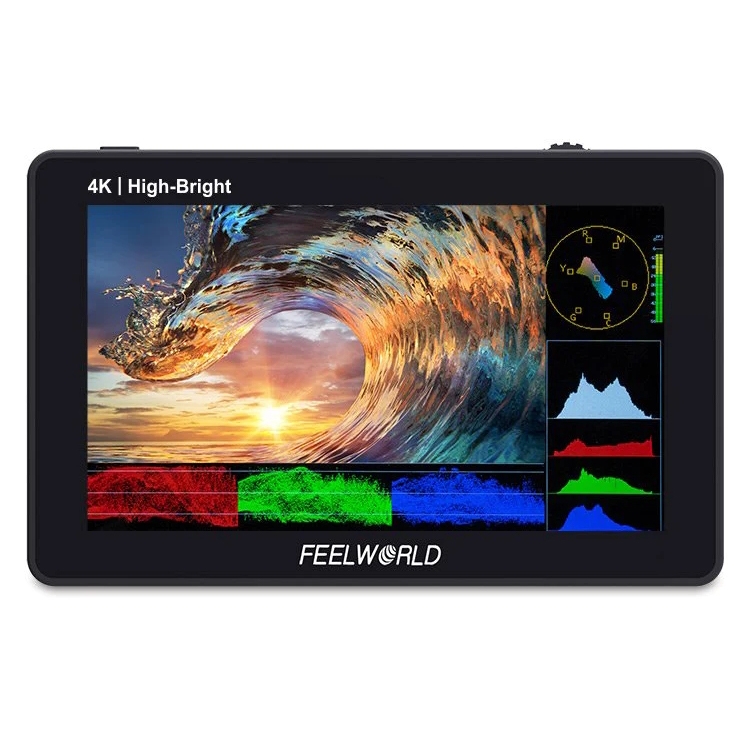

FEELWORLD F6 PLUSX 5.5 inch High Bright 1600nit Touch Screen DSLR Camera Field Monitor IPS FHD1920x1080 4K HDMI(Black)

Product Description

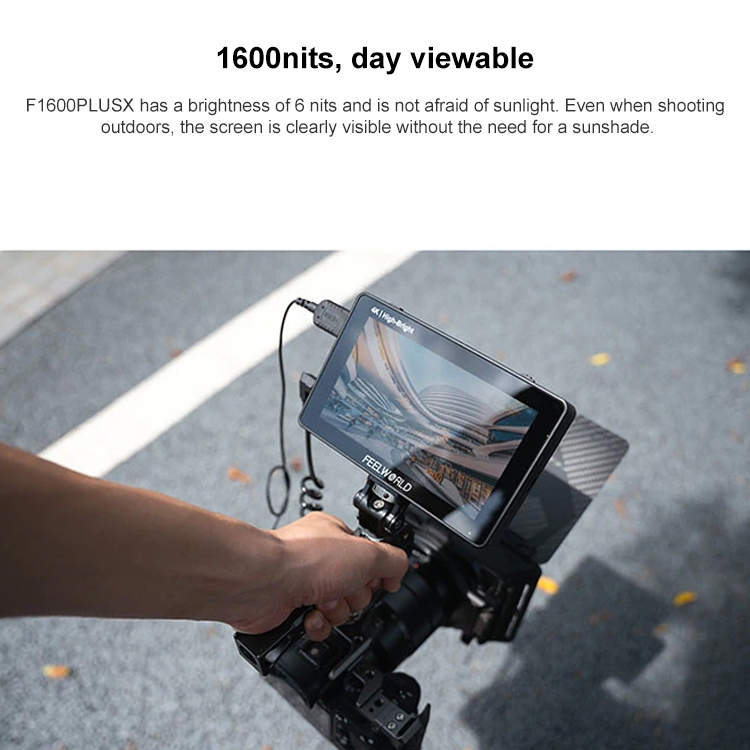

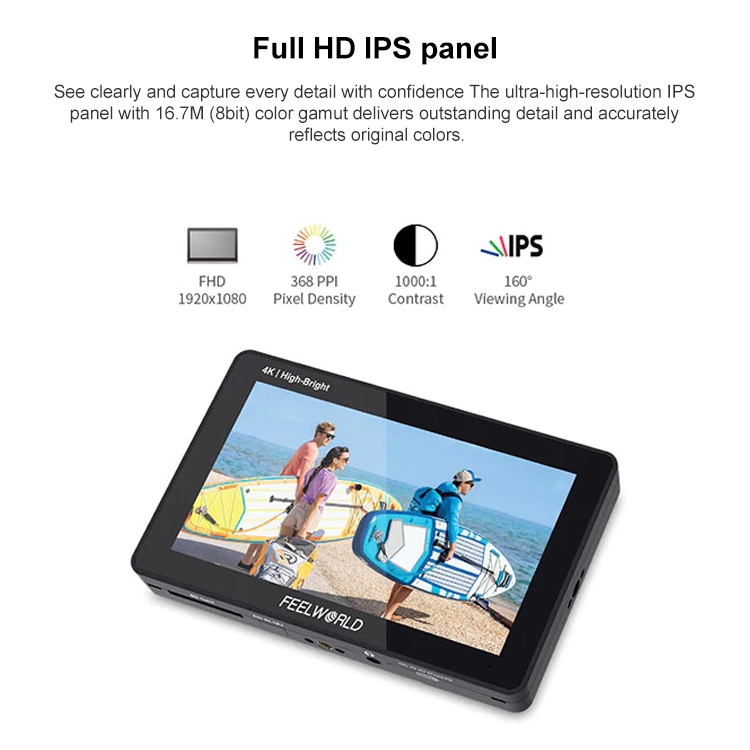

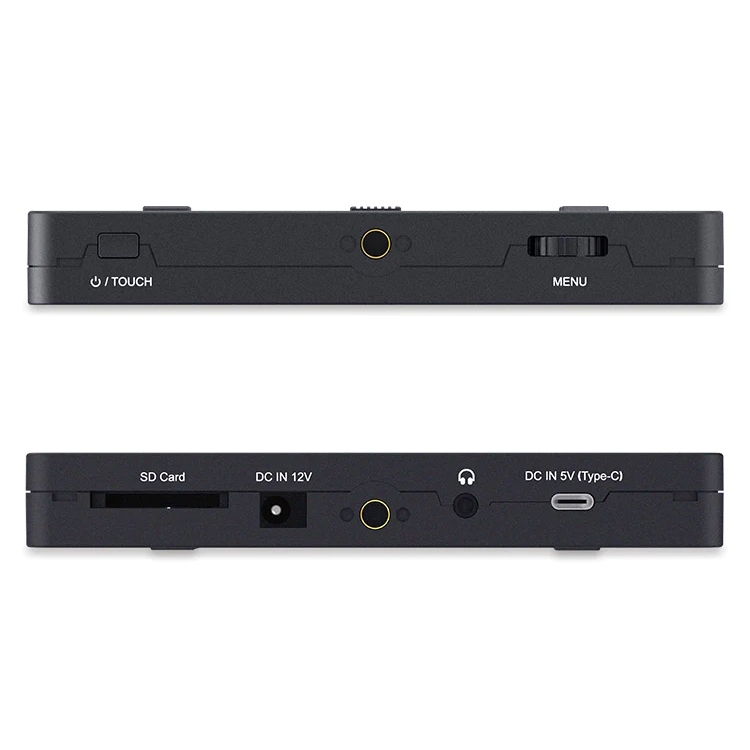

Display Spec. 1. Model: F6 PLUSX 2. Screen Size: 5.5 inch Touch Screen 3. Resolution: 1920x1080 pixels 4. Pixel Pitch: 0.069 (H) x 0.069 (V) mm 5. Aspect Ratio: 16:9 6. Brightness: 1600cd/m 7. Contrast Ratio: 1000:1 8. Backlight: LED 9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree / 80 degree (U/D) Input 1. 1 x HDMI: HDMI 2. 1 x Type C: 5V Type-C (Note: please use 5V/2A or more than 2A Type-C power supply) 3. 1 x SD Card Slot: Use for LUT file import/firmware update Output 1. 1 X HDMI: HDMI 2. 1 X DC Output: DC Output Audio - Audio: 3.5mm Stereo Headphone HDMI Input/ Output Support Format 1. 480i/576i/480p/576p 2. 1080i (60/59.94/50) 3. 720p (60/59.94/50/30/29/25/24/23.98) 4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) 5. 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz) General 1. Input Voltage: DC7 ~ 24V 2. Power Consumption: Greater than 10W 3. Power Connector: DC 4. Working Temperature: -20 degree C~55 degree C 5. Storage Temperature: -30 degree C~6 5degree C 6. Install Way: 1/4 thread points (top, bottom, right) 7. Unit Size: 148Lx93Hx20D (mm) 8. Unit Weight: 235g Advanced Features 1. Support 3D LUT Log to Rec.709, user 3D LUT Upload 2. Support Touch Menu 3. All Waves 4. Waveform (RGB, YUV, Y) 5. Vector 6. Brightness Histogram 7. Support screenshot,image overylay 8. Peaking Focus Assist (red, green,blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable) 9. False Colors 10. Zebra Exposure (10%~100% adjustable) 11. Check Field (Red, Green, Blue, Mono) 12. Scan Mode (Under Scan, Over Scan) 13. Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag) 14. Flip H/ Flip V (All open, H/V flip) 15. Image Freeze 16. Nine Grid 17. Center Marker 18. Safety Frames ( 80%, 85%, 90%, 93%, 96%, 2.35:1) 19. Marker Color (Red, Green, Blue, Black, White, Gray) 20. Ratio Marker ( 4:3、13:9、14:9、15:9、16:9、1.85:1、2.35:1) 21. Color Temperature Adjustment 22. Zoom (2X、4X、9X、16X) 23. Aspect Ratio(Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) 24. Pixel to Pixel Packing List: 1. Monitor x 1 2. Micro HDMI Cable x 1 3. Tilt Arm x 1 4. Sunshade x 1 5. TYPE-C to USB x 1 6. Disassemble Wrench x 1 7. Manual x 1

Specifications

SKU

EDA005657801A

Category

Camera Accessories › Micro Film › On-camera Monitors

Weight

0.692 kg

Delivery

Standard delivery
