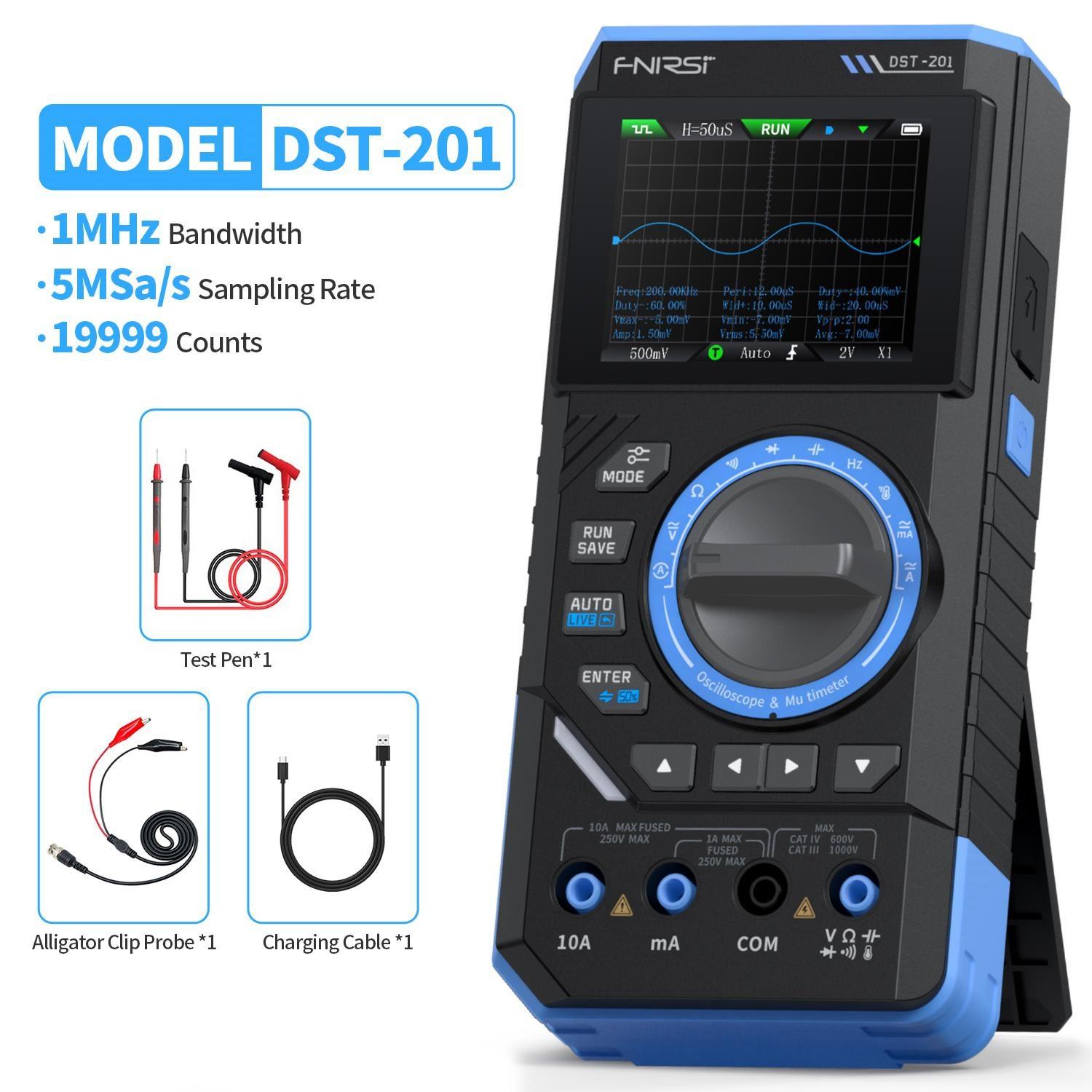

    FNIRSI DST201 3 in 1 Digital Multimeter Oscilloscope(Black Blue)

    SKU: EDA008352501A

    SAR 293.02

    Price excludes VAT. Shipping is calculated at checkout.

    Standard Delivery

    Imported through standard delivery.

    Product Description

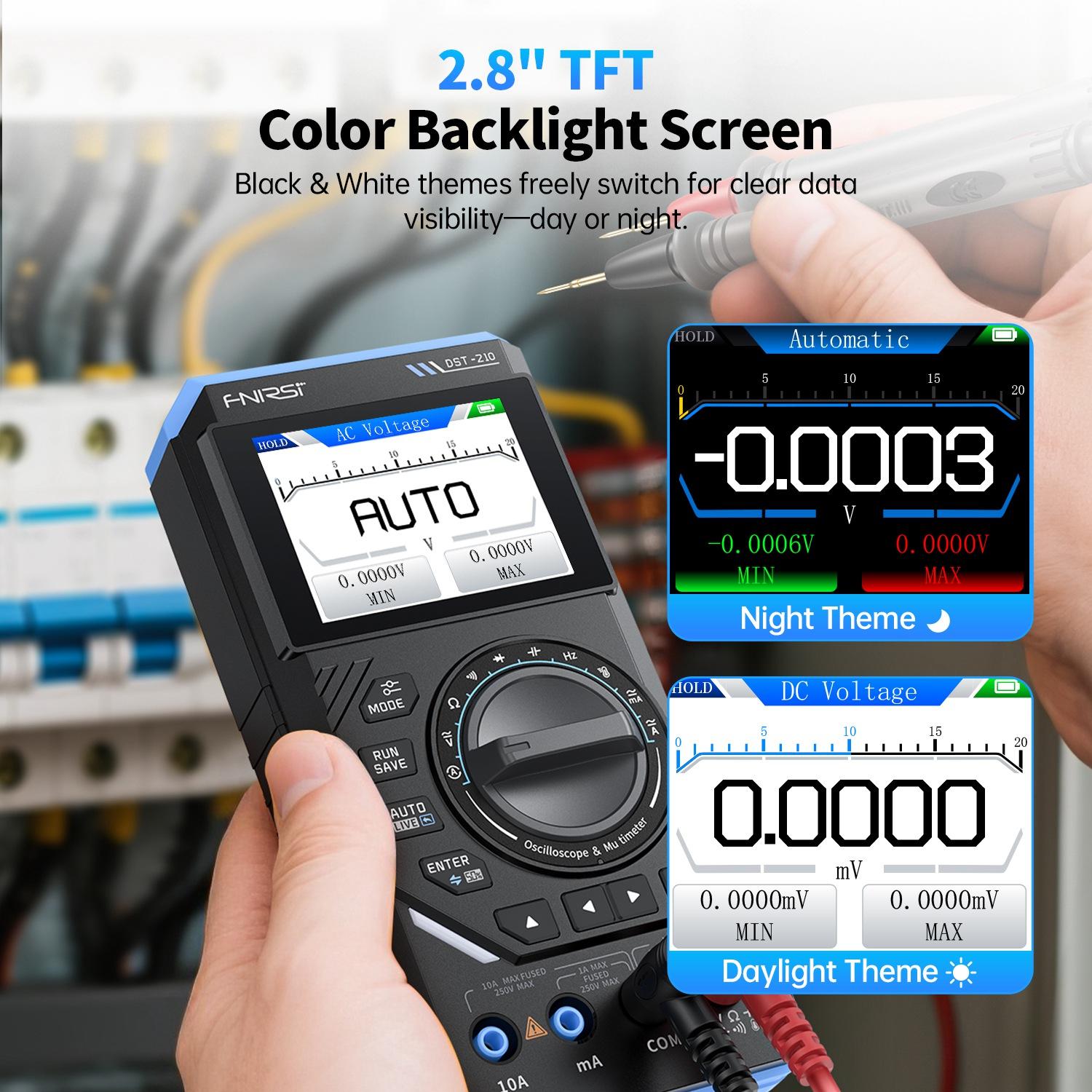

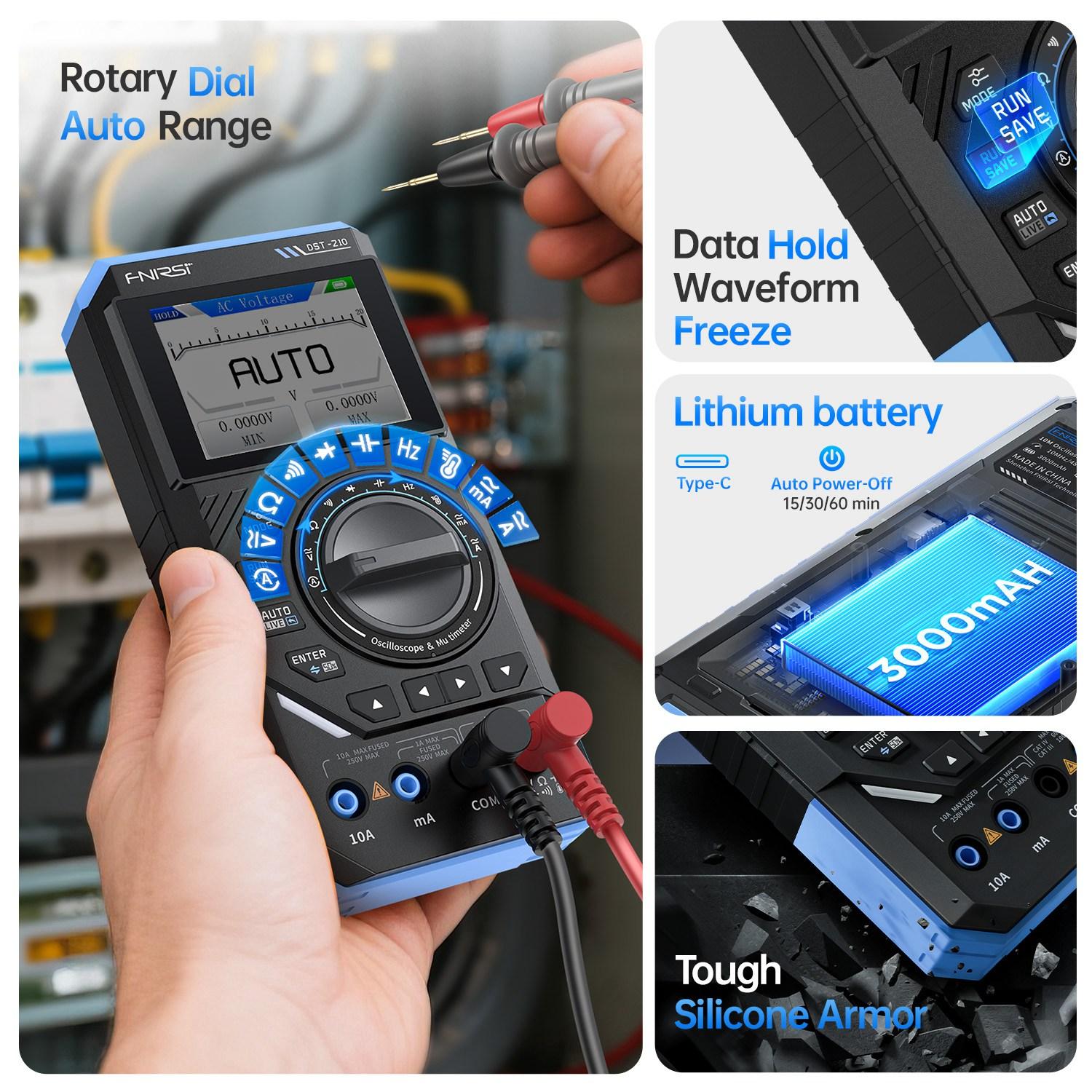

    1. Screen size: 2.8 inches 2. Screen material: TFT color screen 3. Backlight: adjustable backlight brightness 4. Charging power: 5V/1A 5. Battery capacity: 3000mAh 6. DC voltage: 1.9999V/19.99V/1000V 7. Real-time sampling rate: 5MSa/second 8. Analog bandwidth: 1MHz 9. Input impedance: 1M 10. Test voltage range: 80vpp-800vpp 11. Vertical sensitivity: 10mV/div-10V/div 12. Vertical displacement: adjustable with indicator 13. Horizontal time base: 500ns-20s 14. Trigger mode: Auto/Normal/Single 15. Output waveform: 0-10KHz 16. Square duty cycle: 0-100%, square and sawtooth adjustable

    Specifications

    SKU
    EDA008352501A
    Category
    Consumer Electronics › Test Equipment › Digital Multimeter
    Weight
    0.624 kg
    Delivery
    Standard delivery
