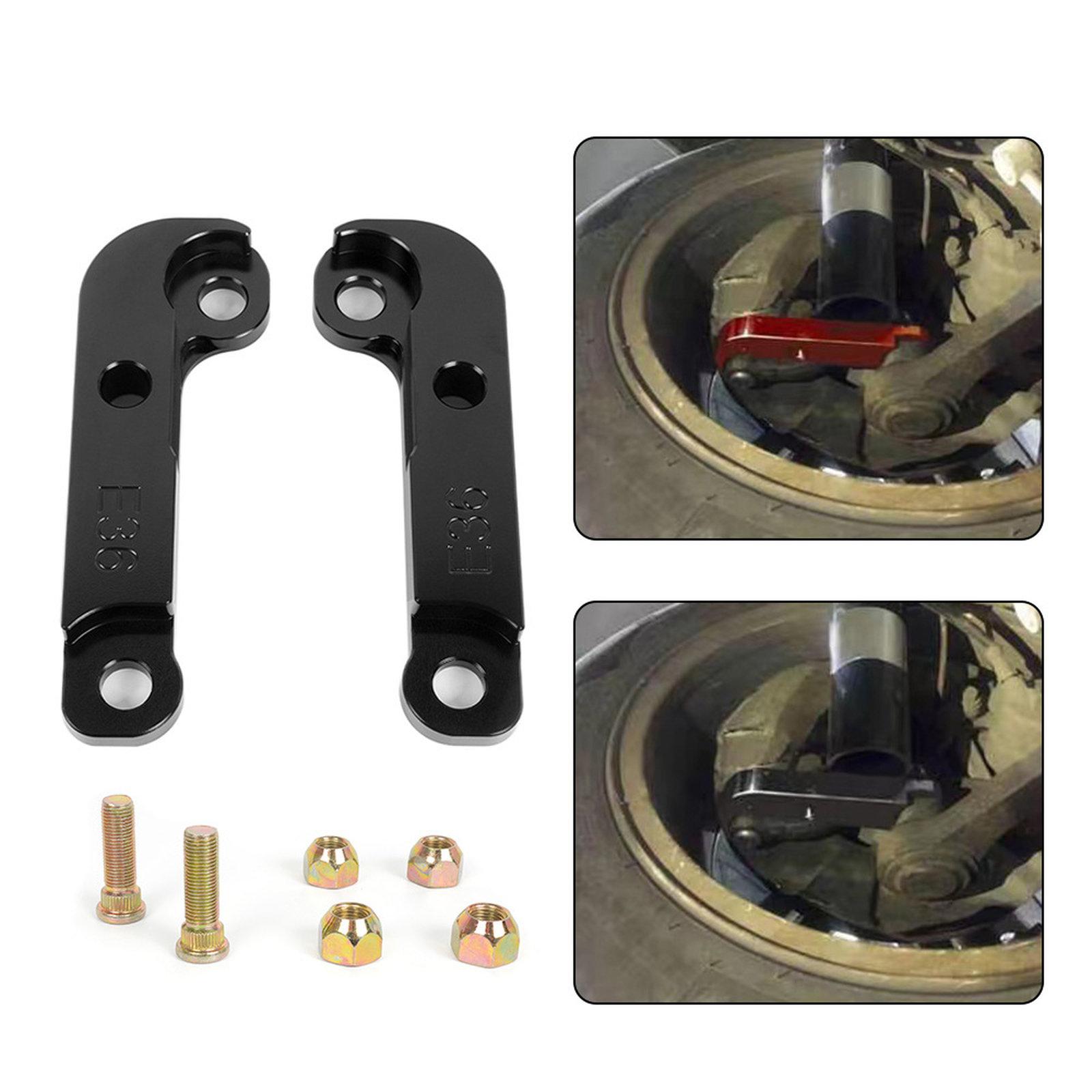

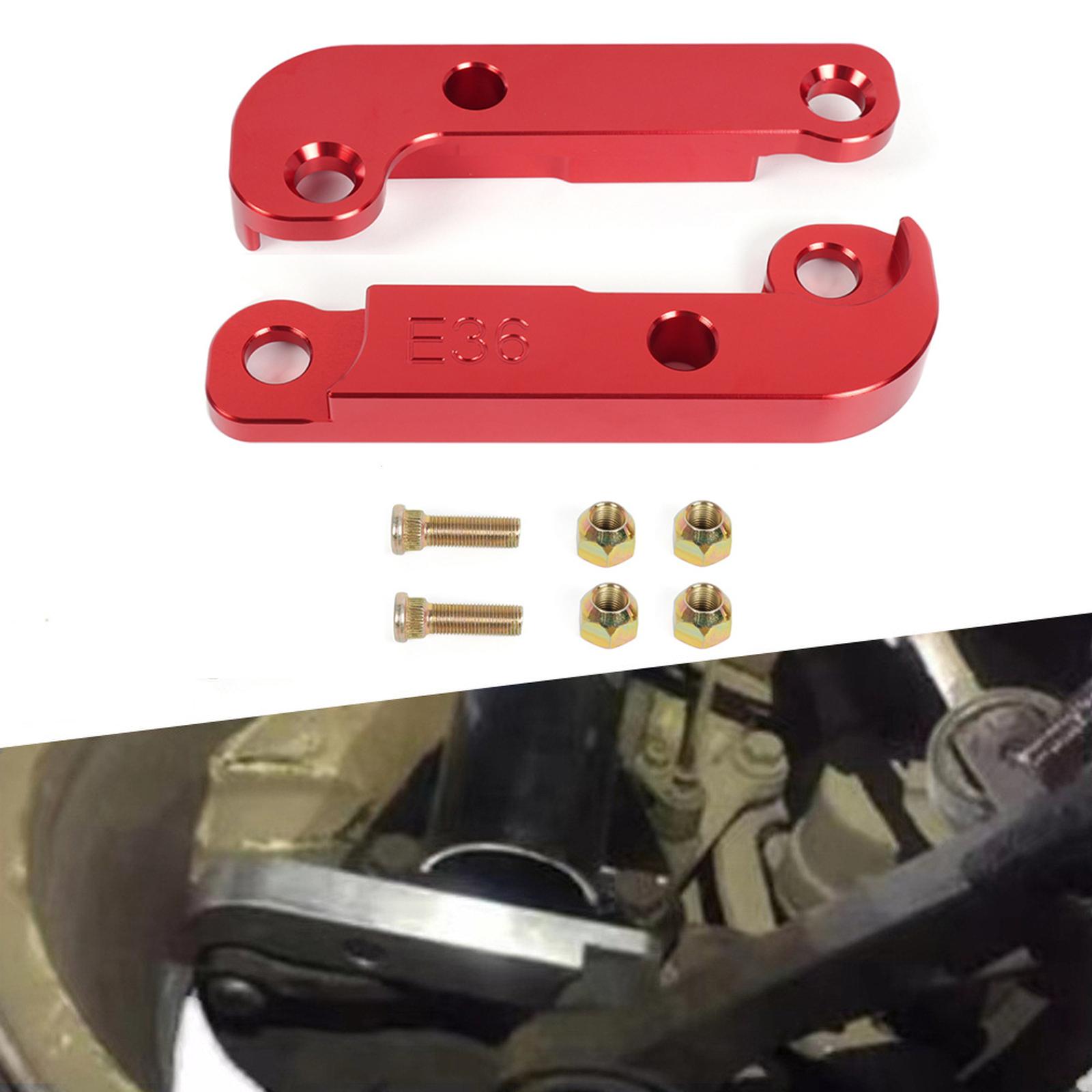

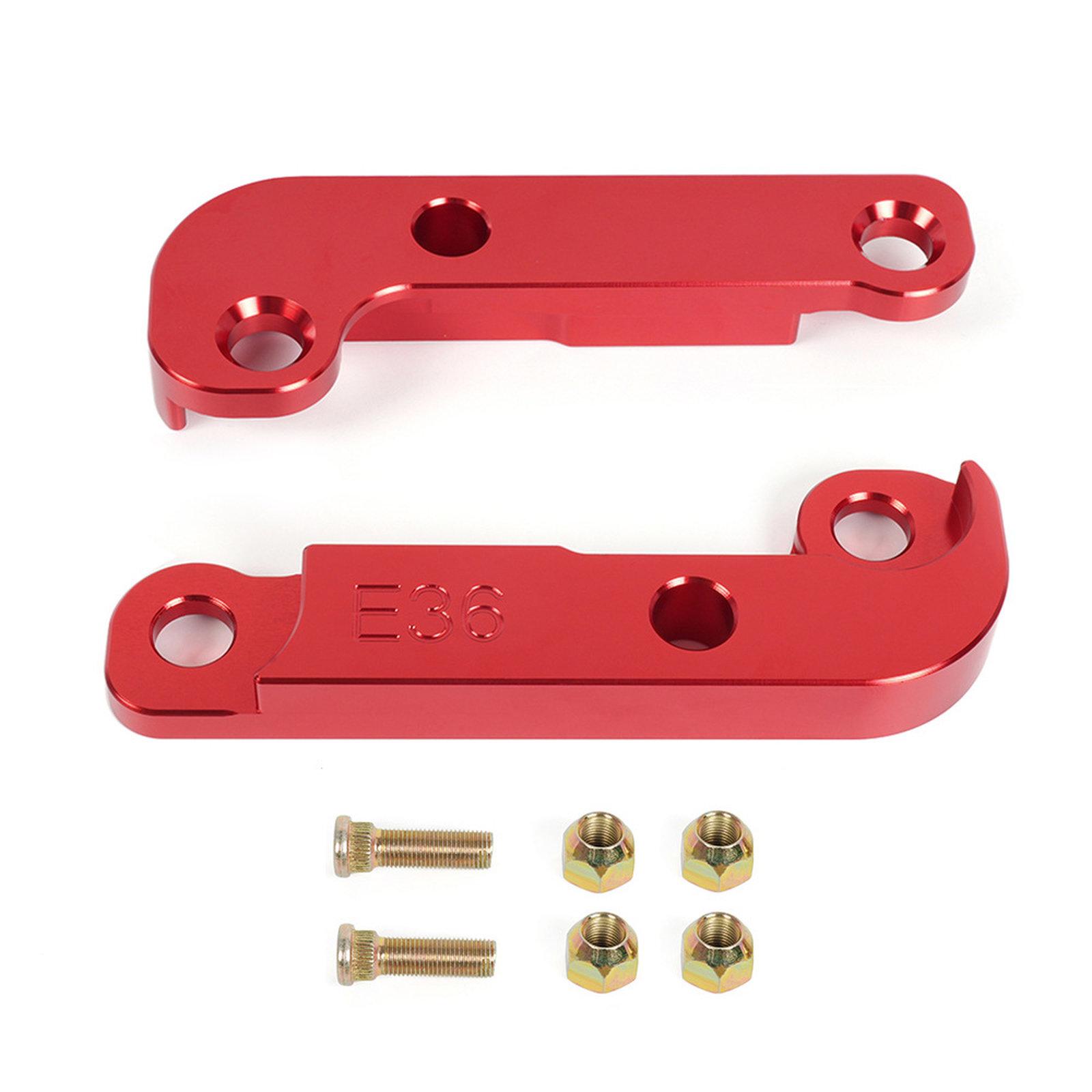

For BMW E36 Aluminum Alloy Steering Lock Retrofit Adapter(Red)

Product Description

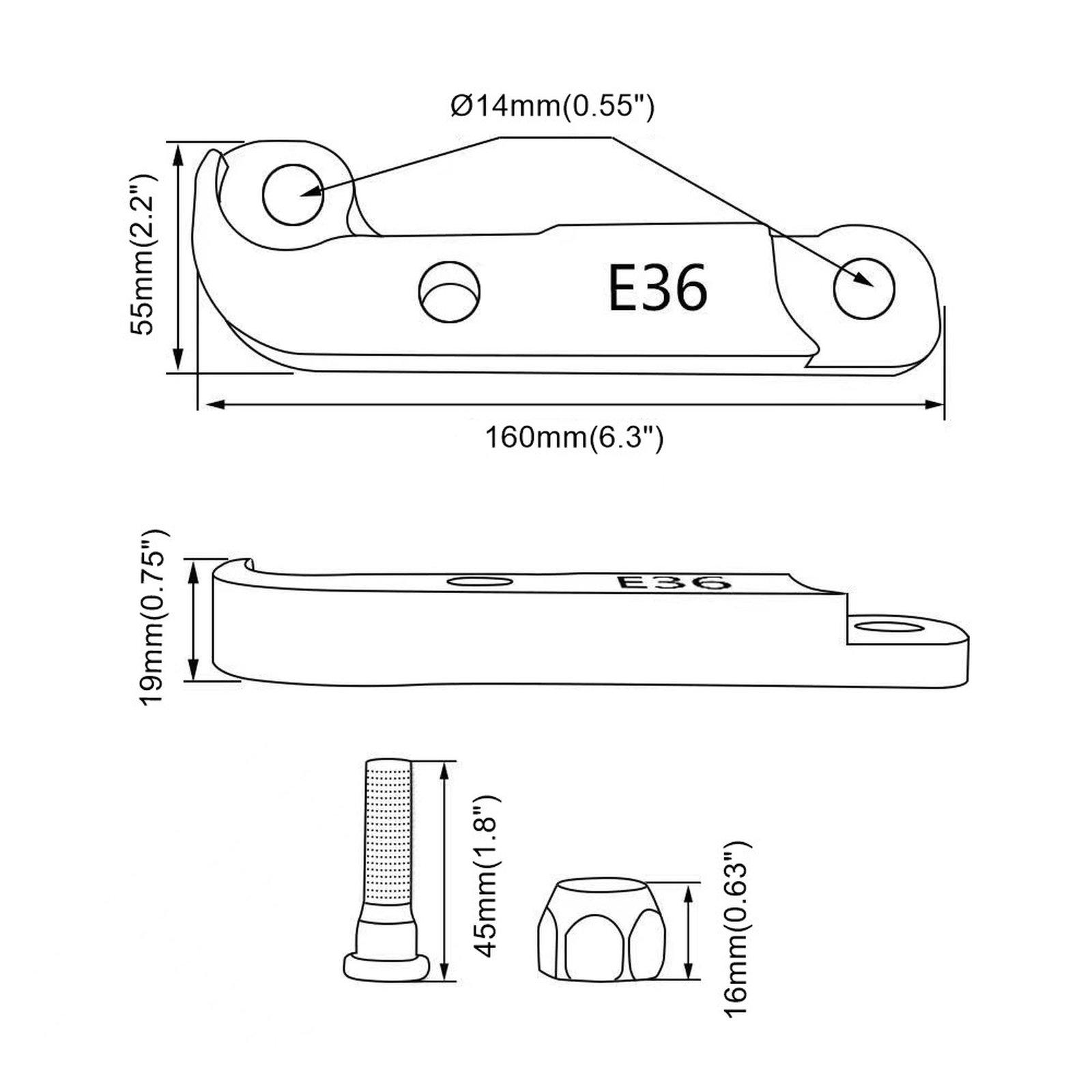

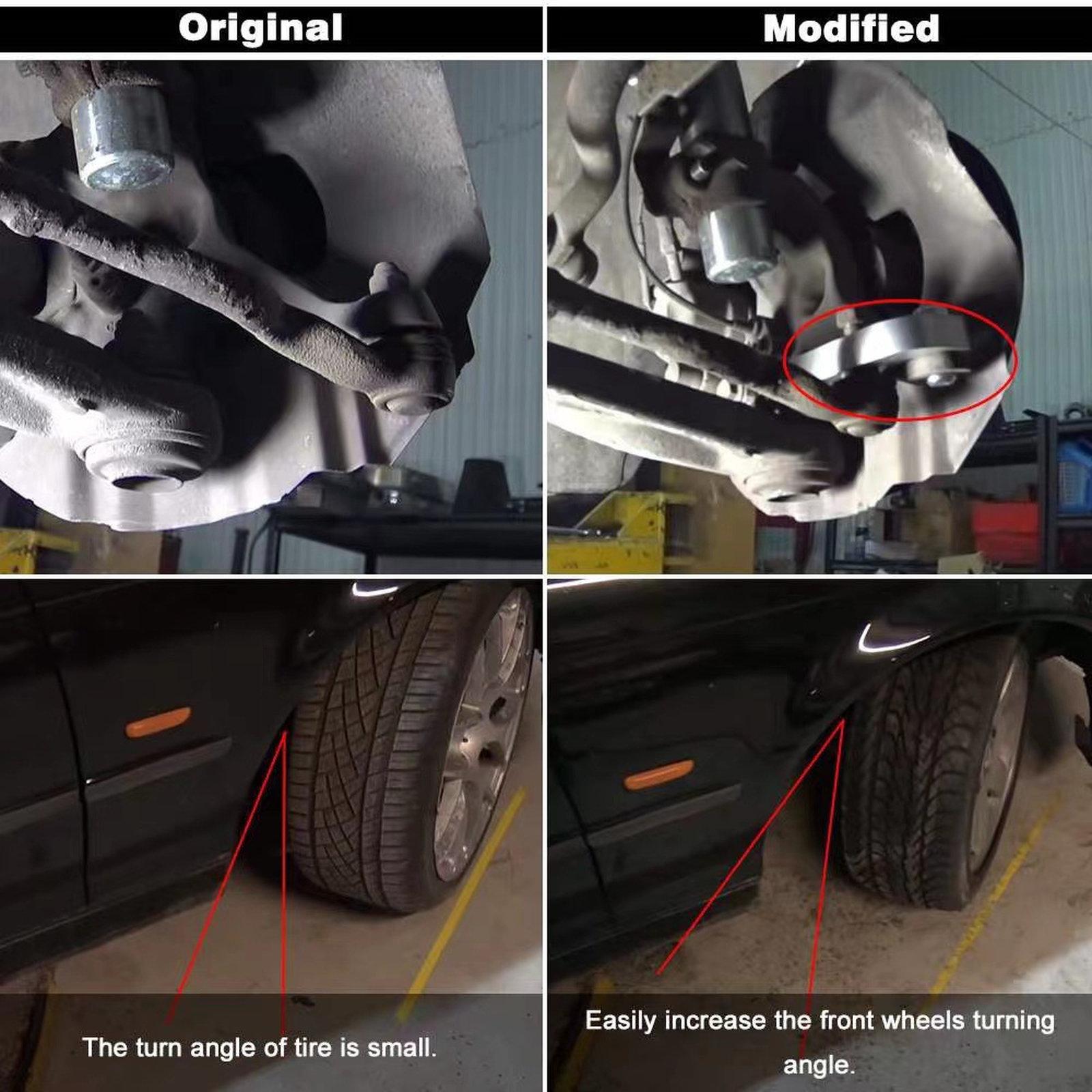

1. This adapter is installed between the steering knuckle and the control arm/tie rod. By changing the geometric lever position of the tie rod pulling the steering knuckle, it can significantly increase the front wheel steering angle while maintaining the original steering gear travel. 2. This product is commonly used in drifting or racing modified vehicles requiring a larger front wheel steering angle. The adapter surface is anodized, providing wear and corrosion resistance. The body is also clearly marked with the E36 model number. 3. It comes with dedicated mounting bolts and flange locking nuts to ensure a stable connection under high vibration and stress conditions, reducing the risk of loosening. 4. Adapter total length: 160mm (6.3") 5. Adapter width: 55mm (2.2") 6. Body thickness: 19mm (0.75") 7. Fixing hole diameter at both ends: 14mm (0.55") 8. Matching bolt length: 45mm (1.8") 9. Matching locking nut height: 16mm (0.63")

Specifications

SKU

TBD0607033401B

Category

In Car › Repair Tools › Hand Tool Sets

Weight

0.62 kg

Delivery

Standard delivery
