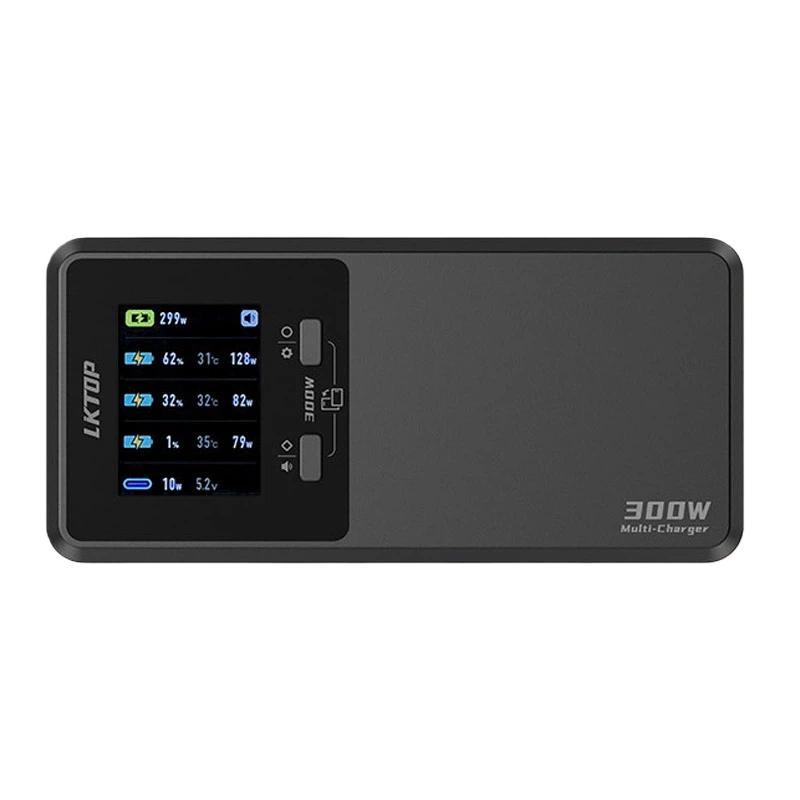

For DJI Matrice 4D / 4TD LKTOP UC363 Digital Display 3-Channel Charging Manager 300W Battery Fast Charger US Plug

Product Description

1. Operating temperature: 5°C–40°C 2. AC input voltage: 100V–240V, 4A, 50Hz/60Hz 3. MR30 (O1/O2/O3) output: 5V–27V, 0.2–10A, 270W max (actual output power subject to battery capacity) 4. USB-C output: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 5A; PPS: 5V-21V 3A 5. Package list: main unit x 1, AC power cord x 1, M4D series battery charging cable x 3, 100W dual-C port cable x 1, user manual x 1 6. S: about 15.2 x 7.1 x 5.8cm 7. Weight: about 510g Features: 1. 300W high-power output supports simultaneous fast charging of 3 batteries, enabling rapid drone takeoff and continuous operation. Operate confidently in all environments with all-day, all-scenario capability 2. Four charging modes: 60% storage, 95% fast charge, 100% full charge, and 100% comfort mode to meet diverse charging needs 3. Simultaneous fast charging for three batteries replenishes drone power rapidly while USB-C ports charge accessories like remote controllers and action cameras 4. In 100% full charge mode (10%-100%): First battery about 45 min, second about 75 min, third about 90 min 5. The C1 port supports up to 100W power output, doubling as a 100W power adapter for laptops and smartphones during critical moments—no long waits for emergency charging 6. Built-in high-efficiency cooling fan with optimized airflow design. Active cooling dissipates heat during rapid charging, ensuring worry-free operation even under high temperatures 7. Large LCD screen displays charging parameters, mode selection, battery status, and detailed specifications at a glance 8. Features 3 battery output ports + 1 USB-C output port. Battery output ports adapt to different device models, meeting diverse charging needs for drone enthusiasts 9. Six-fold protection: over-temperature, over-voltage, over-current, short-circuit, under-voltage, and over-power protection

Specifications

SKU

TBD0603020101

Category

DJI & Insta360 Accessories › Other DJI Accessories › Other

Weight

0.704 kg

Delivery

Standard delivery
