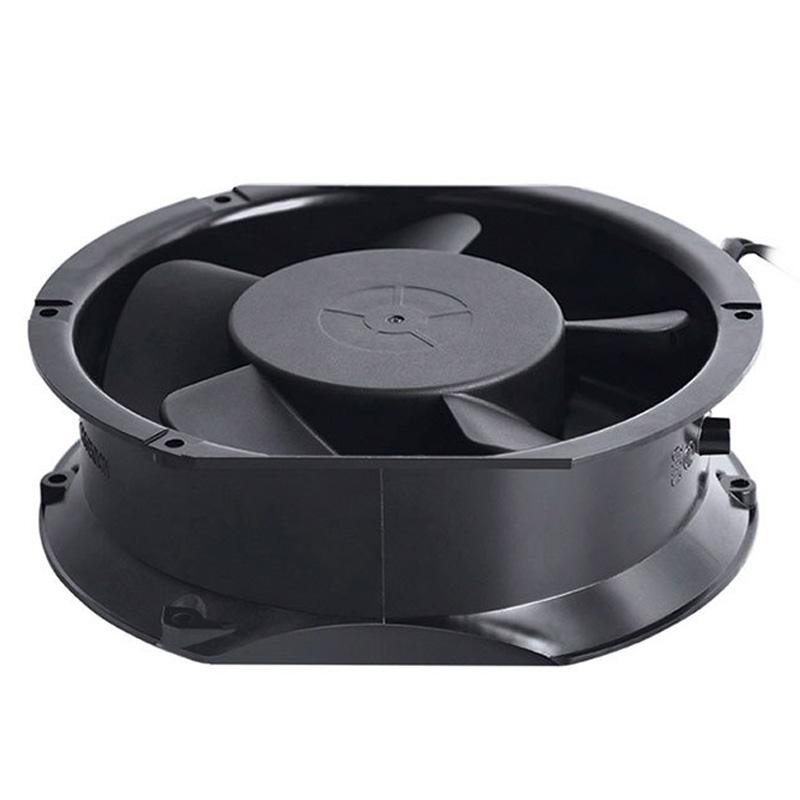

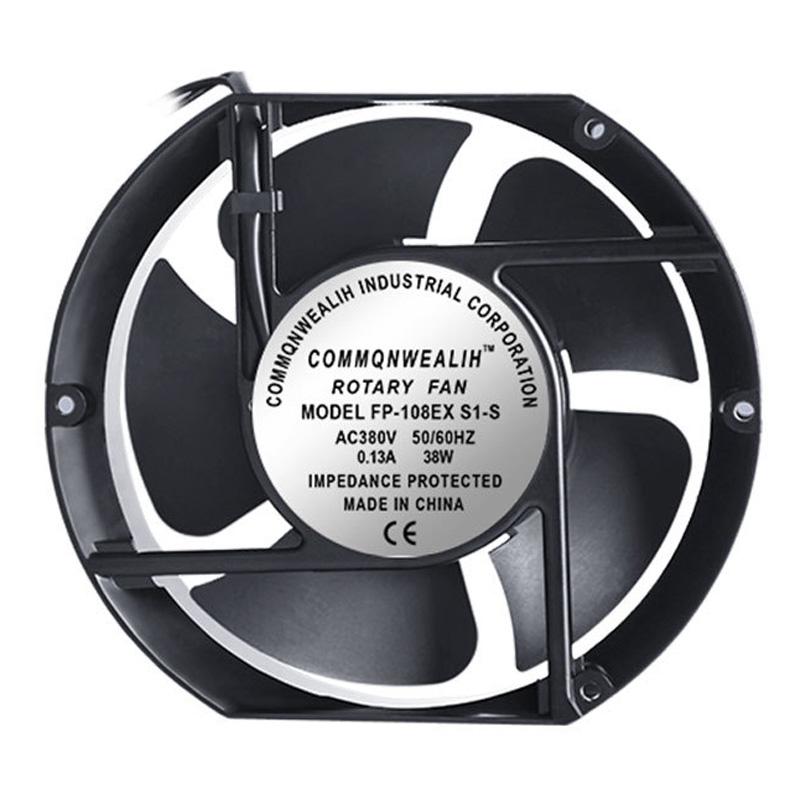

FP-108EX-S1-S 38W Axial Flow Fan Industrial AC Charging Pile & Electric Control Box Cooling Fan, Spec: 380V

Product Description

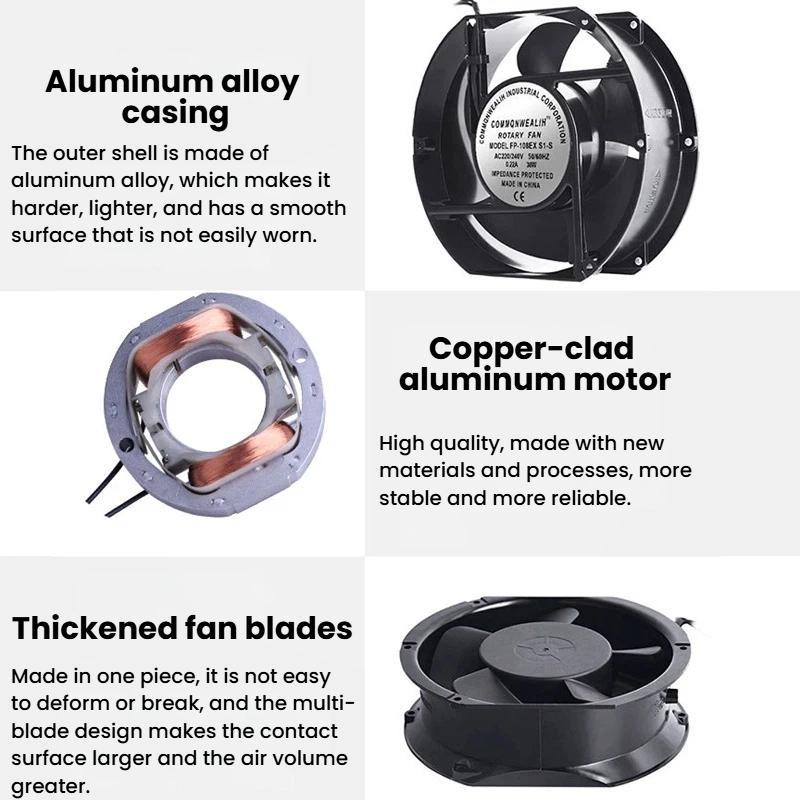

1. The outer shell is made of aluminum alloy, which is harder, lighter in weight, and has a smooth surface that is less prone to wear 2. Copper-clad aluminum motor, stable and with higher reliability 3. Thickened fan blades, formed in one piece, less likely to deform or break, multi-leaf design results in a larger contact surface and greater air volume 4. Can be applied to power supply equipment, servers, power supplies, cabinets, security equipment, household appliances, etc 5. Oil-filled bearings, using lubricating oil in the sleeve to reduce friction loss, low noise and low cost Parameters 1. Motor power: 38W 2. Rotational speed: 2600r/min 3. Current: - FP-108EX-S2-S 220V: 0.22A - FP-108EX-S1-S 110V: 0.45A - FP-108EX-S3-S 380V: 0.13A 4. Bearing type: oil-filled 5. Number of fan blades: 5 6. Materials: aluminum, PBT 7. Size: about 17.2 x 15 x 5.1 cm 8. Weight: about 800g

Specifications

SKU

TBD0606508303

Category

Computer & Networking › Computer Components › Fan Cooling

Weight

0.864 kg
