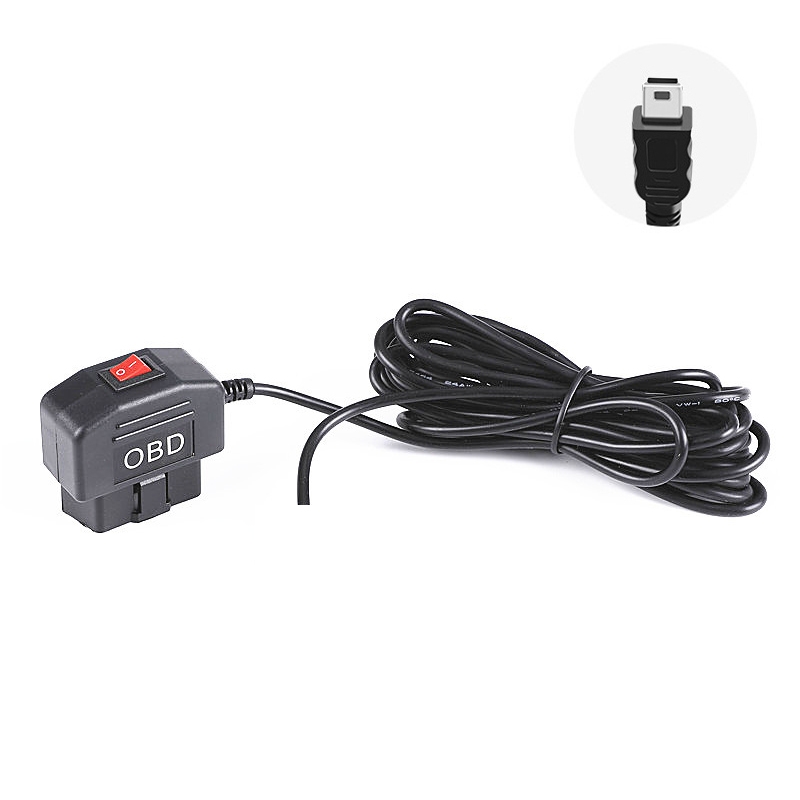

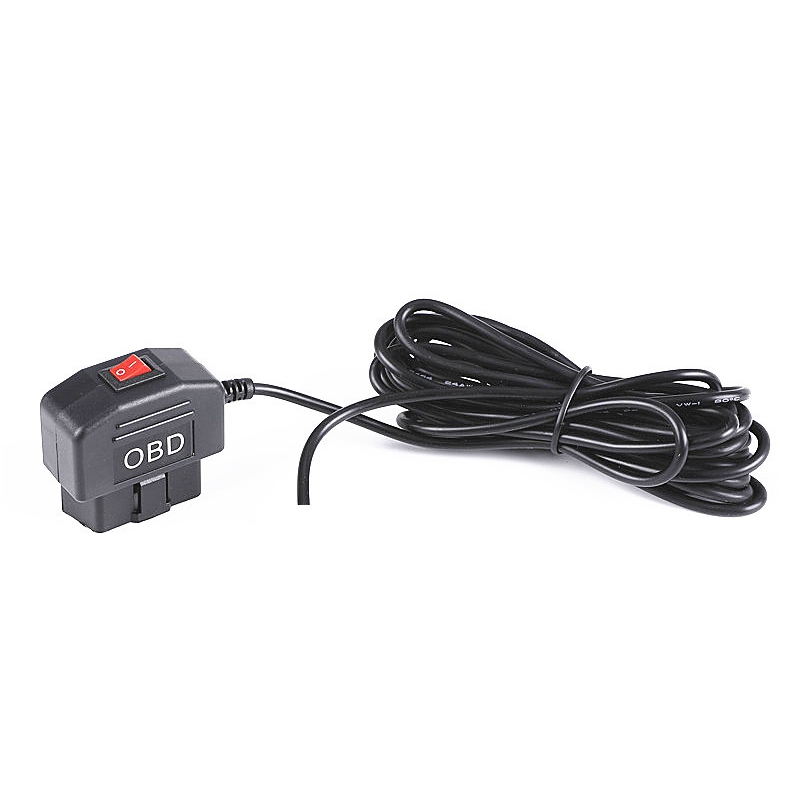

H508 OBD Car Charger Driving Recorder Power Cord 12/24V To 5V With Switch Low Pressure Protection Line, Specification: Mini Straight

Product Description

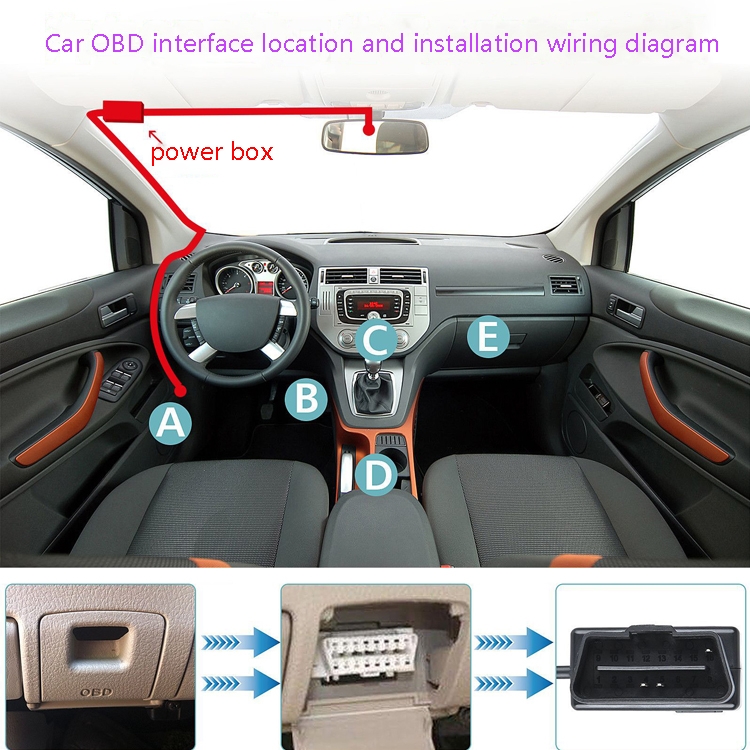

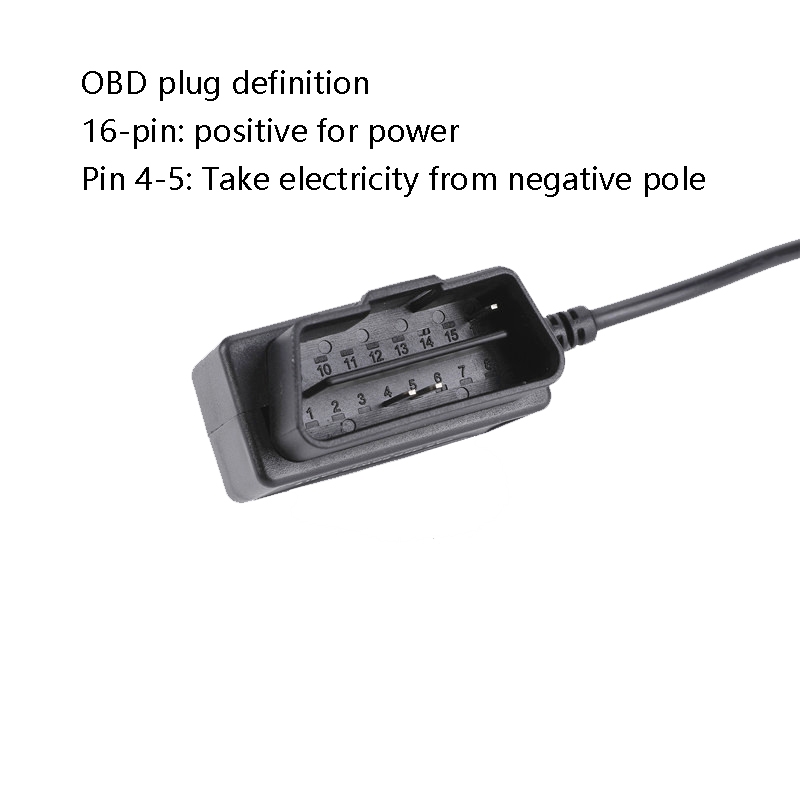

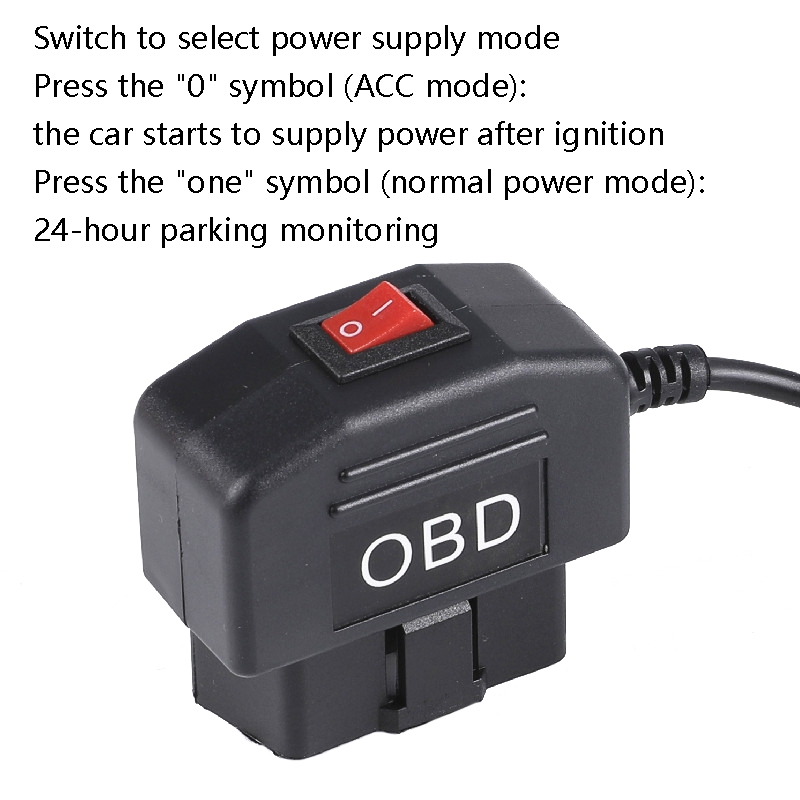

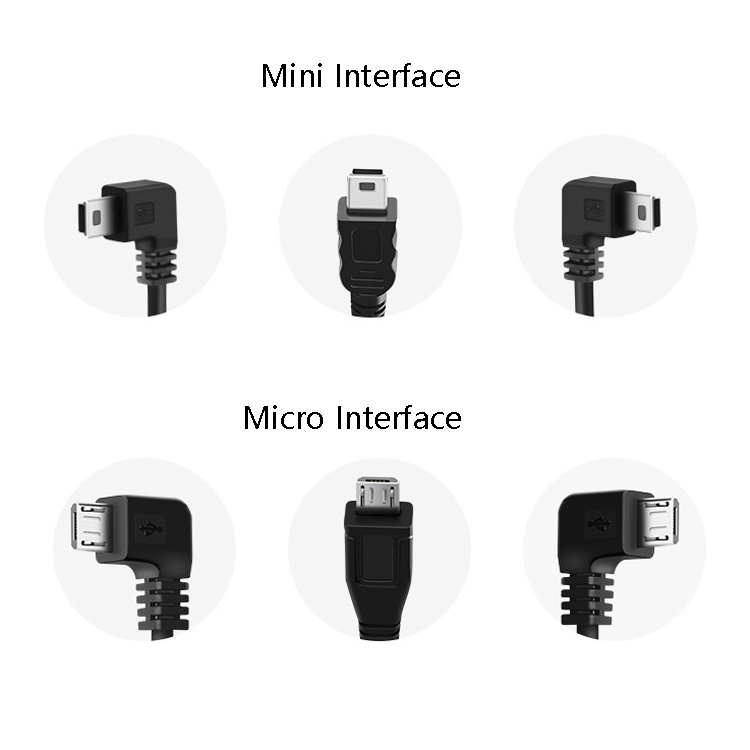

1. Material: ABS 2. Input voltage: DC 12-36V 3. Output: DC 5V/3000mA, DC 12V/1500mA 4. Output interface: MINI/MICRO 5. OBD connector: 16-pin (positive) /4-5-pin (negative) 6. Scope of application: vehicle charging cable, driving recorder step-down cable, time-lapse video ACC power cable 7. Power supply mode: -ACC mode: when the car is on fire, the power cord will start to output power; when the car is turned off, the power cord will automatically stop power supply and turn off the output after 5 minutes -Normal power mode: 24 hours uninterrupted power supply from the power cord 8. Low-voltage protection: The power cord has a built-in MCU program control chip, which can accurately detect the battery power of the car in real time. When the battery power of the car is lower than 11.8V (12V car) or 23.6V (24V car), the power line will automatically start low-voltage protection. Turn off the output in seconds 9. Size: wire diameter is about 3.5mm, wire length is about 3.5m 10. Weight: about 98.9 grams (including packaging)

Specifications

SKU

TBD0601603801

Category

In Car › Diagnostic Scan Tools › Cables & Connectors

Weight

0.124 kg

Delivery

Standard delivery
