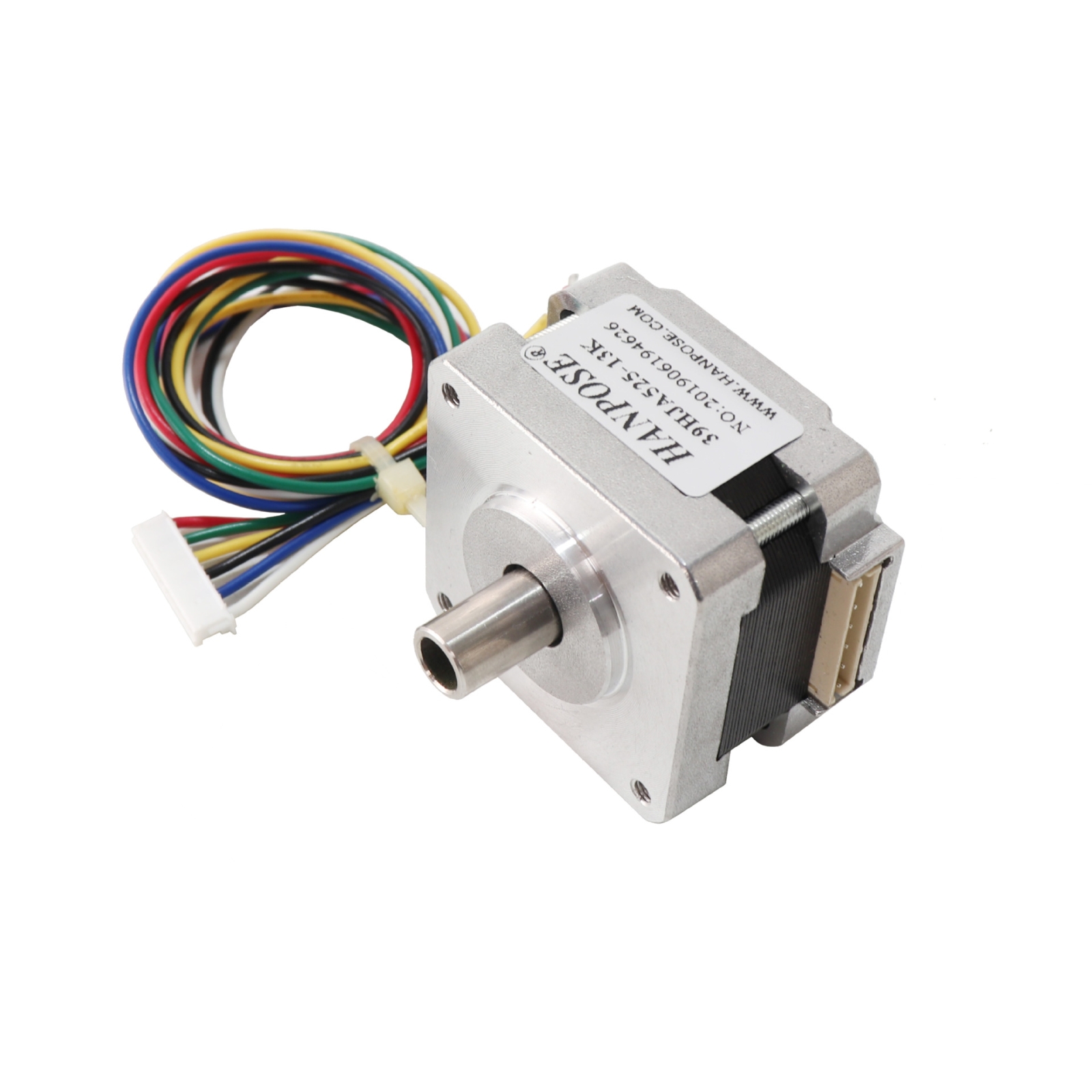

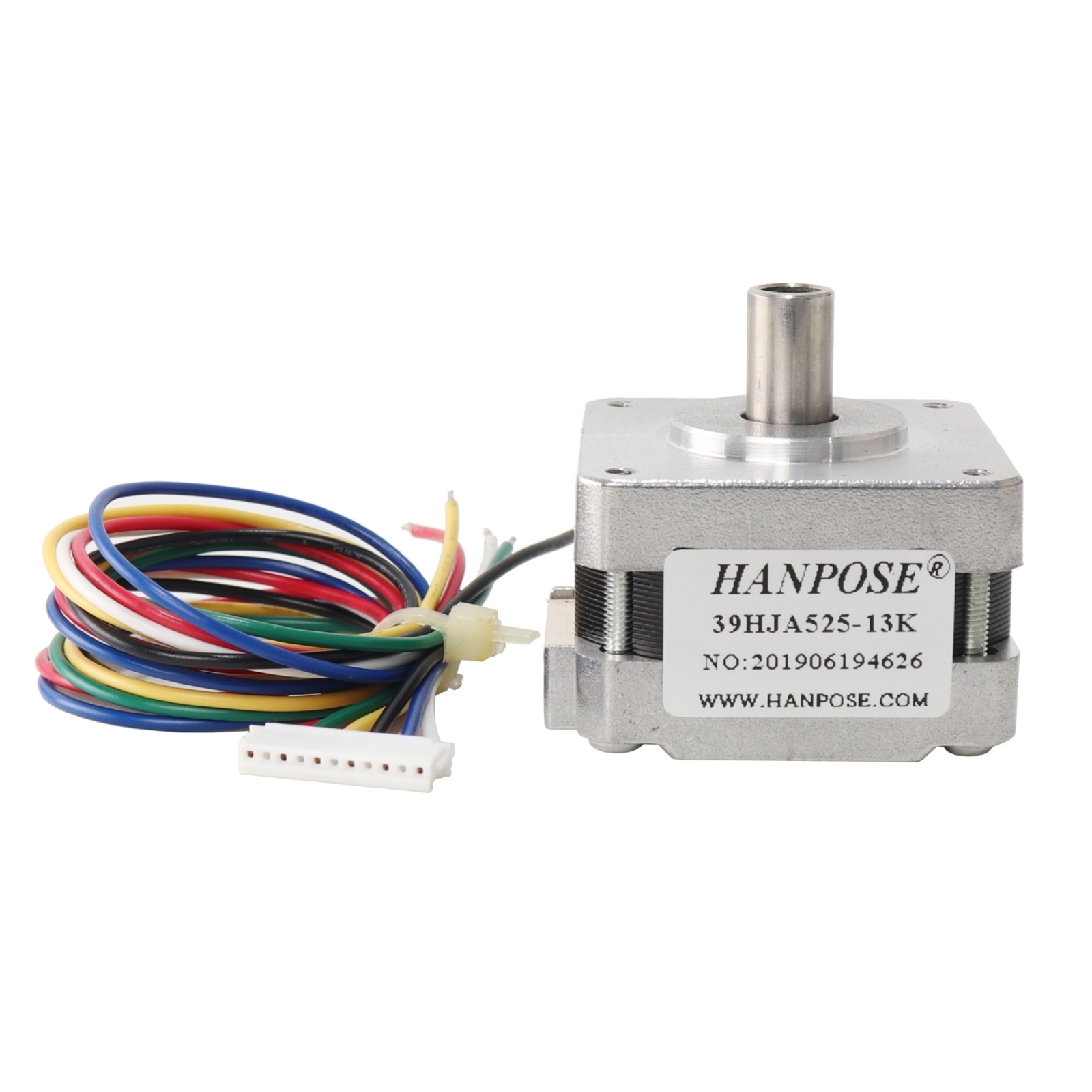

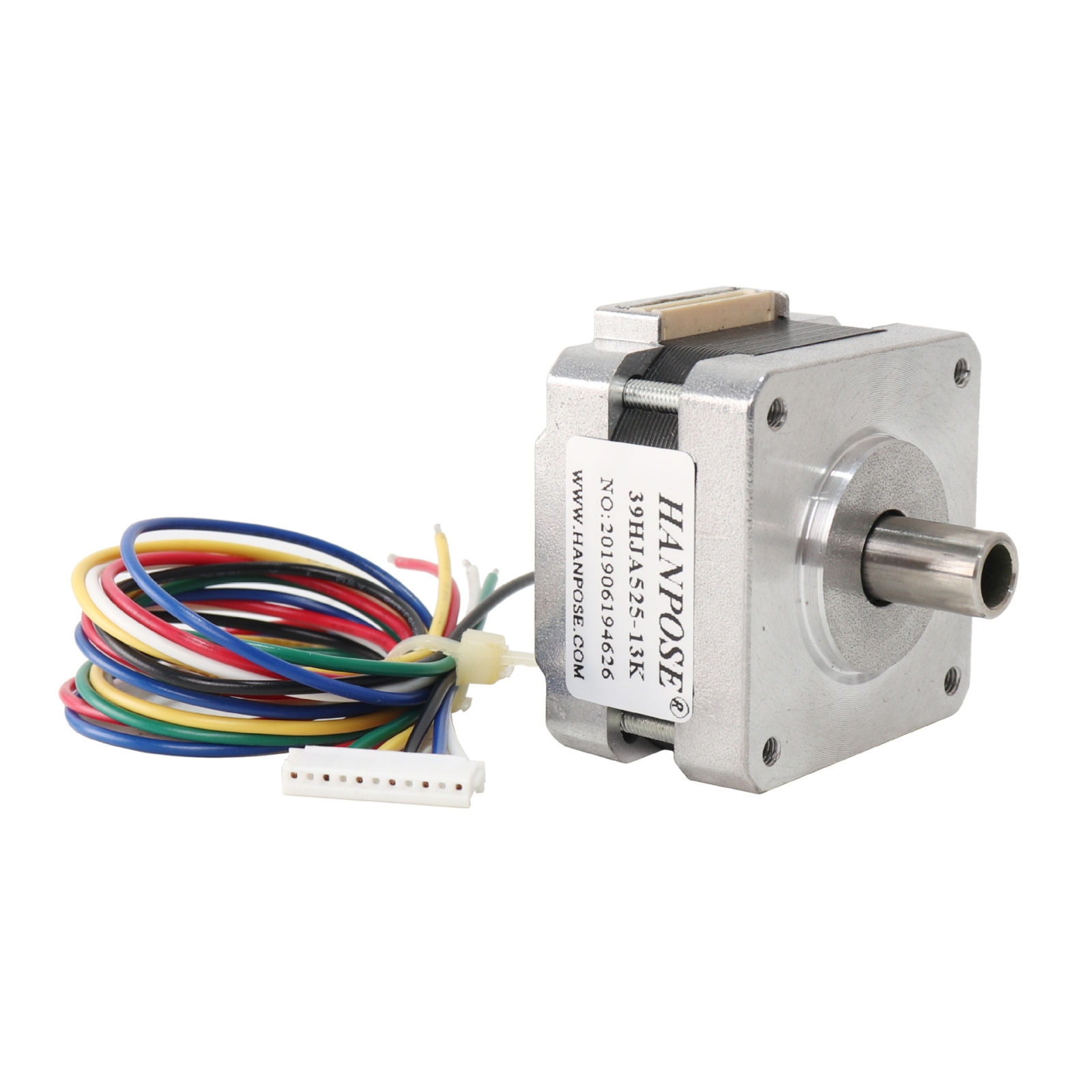

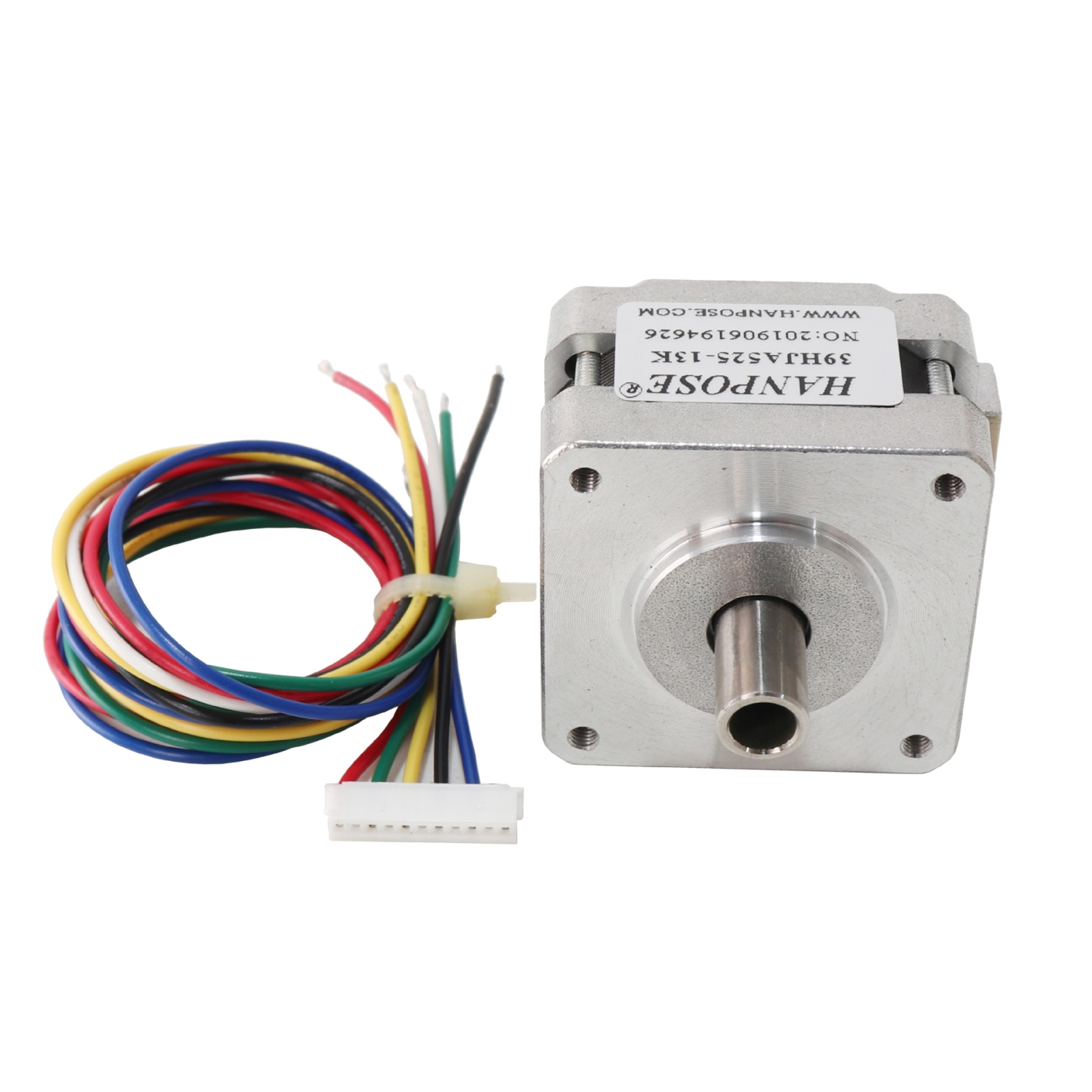

HANPOSE 39HGA525-13K 0.8A 0.2NM Induction Light Stepper Motor

Product Description

1. Step accuracy: +5% (full step, no load) 2. Step angle: 1.8 degrees 3. Temperature rise: 80 degrees Celsius Max 4. Ambient temperature: -20--+50 degrees Celsius 5. Insulation resistance: 100M Ω min. 500VDC 6. Withstand voltage: 500VAC for 1 minute 7. Radial clearance: 0.06 Max. (450g-load) 8. Axial clearance: 0.08 max. (450g-load) 9. Radial pressure MAX: 28N (20mm From the flange) 10. Axial pressure MAX: 10N

Specifications

SKU

TBD06040816

Category

Office & School Supplies › 3D Printer Machines › Parts

Weight

0.144 kg

Delivery

Standard delivery
