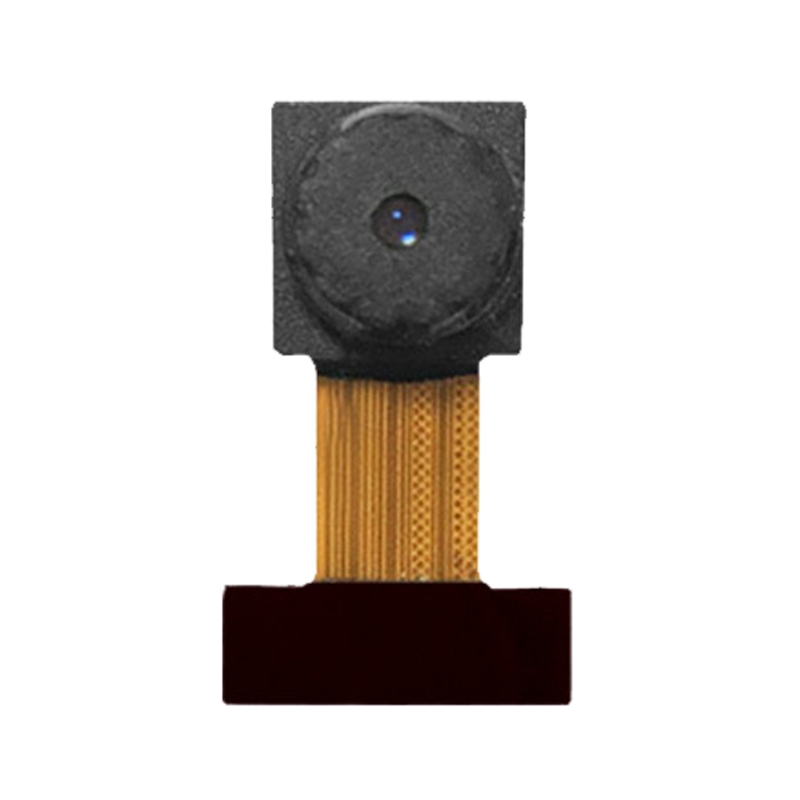

HDF3M-811 OV2640 DVP 24Pin Phone Built-in Compression Camera Module

Product Description

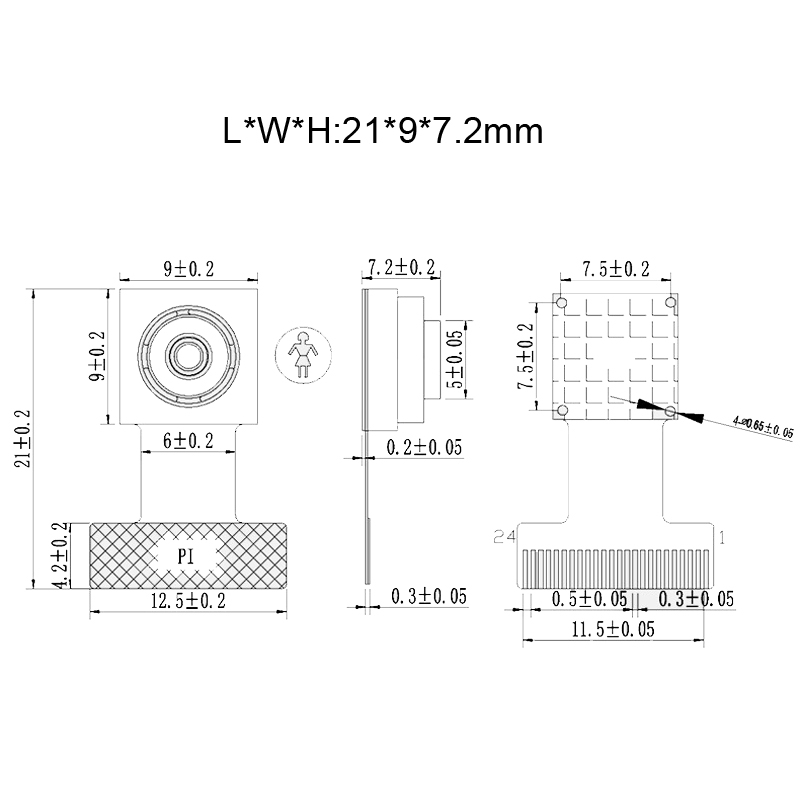

1. 2 megapixel, UXGA (1632x1232), support dynamic, with JPEG picture compression 2. Can be used for cell phones, map transfer, PC multimedia, toys, digital cameras, scanning and other devices 3. Low light operation, high sensitivity, embedded portable applications, low operating voltage 4. Body material: FPC 5. Pixels: 2 megapixels (1632x1232) 6. Light-sensitive chip: OV2640 (1/4 inch) CMOS 7. Output format: YUV(422/420)/YCbcr422, RGB565/555, 8-bit compressed data, 8/10-bit original RGB data 8. Frame rate: UXGA/SXGA: 15fps; SVGA: 30 fps; CIF: 60 fps 9. Interface: DVP 10. System support: Android, Windows, Linux 11. Size: about 21 x 9 x 7.2mm

Specifications

SKU

TBD06032392

Category

Consumer Electronics › DIY Parts & Components › Module

Weight

0.024 kg

Delivery

Standard delivery
