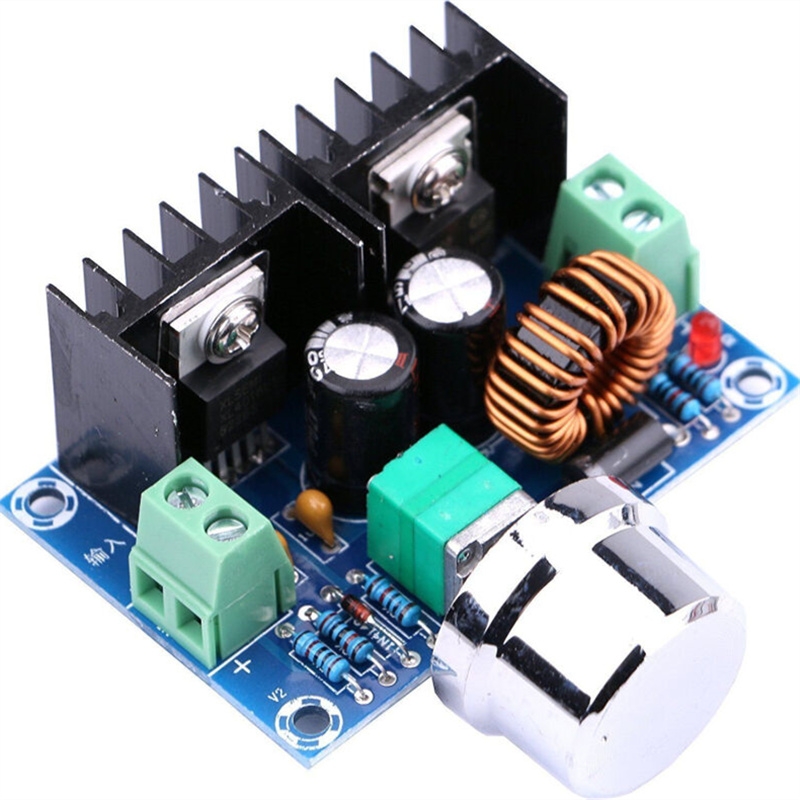

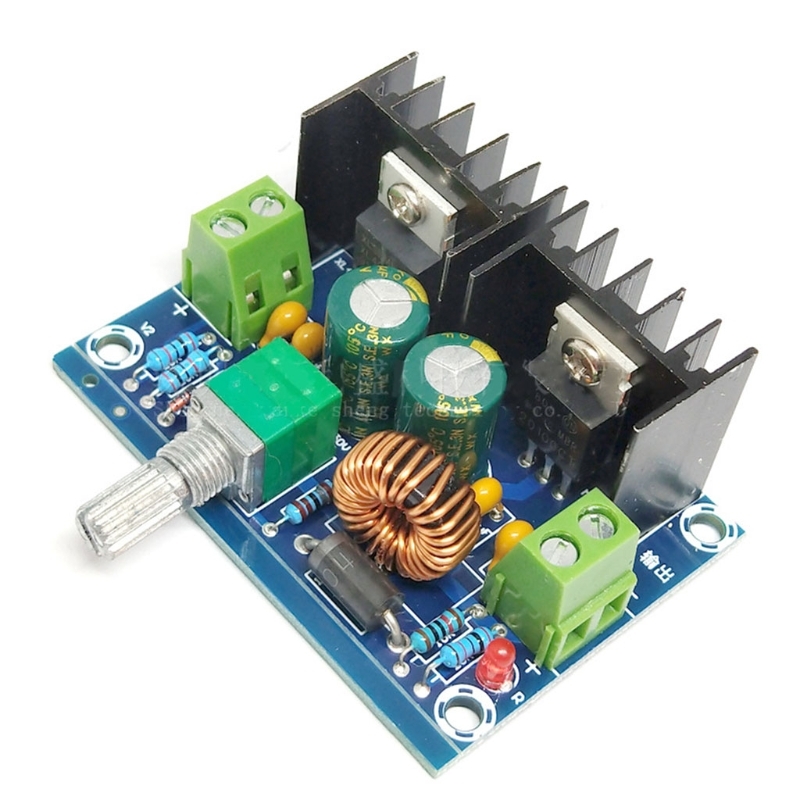

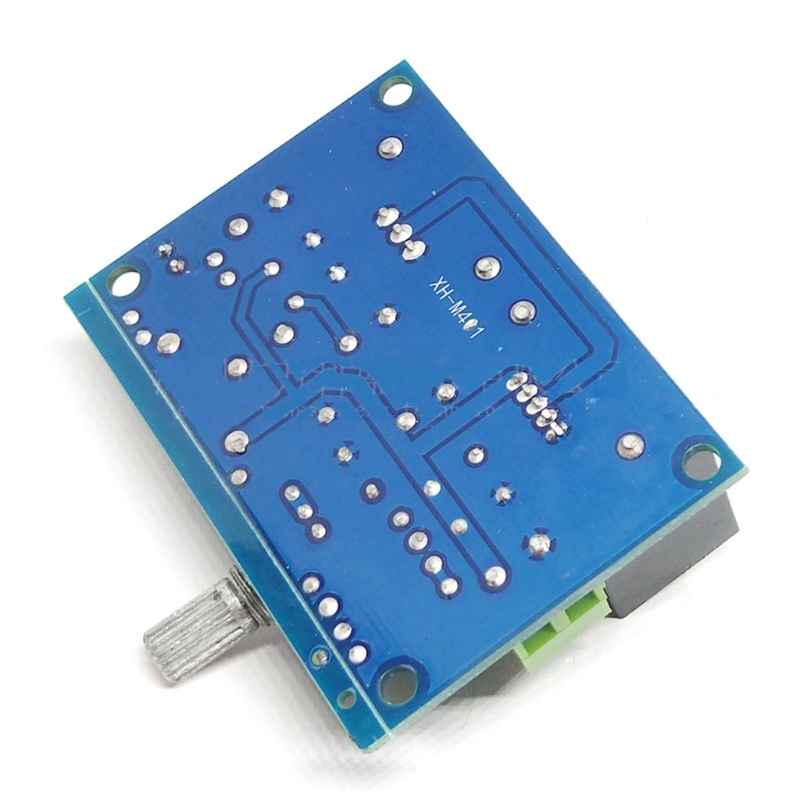

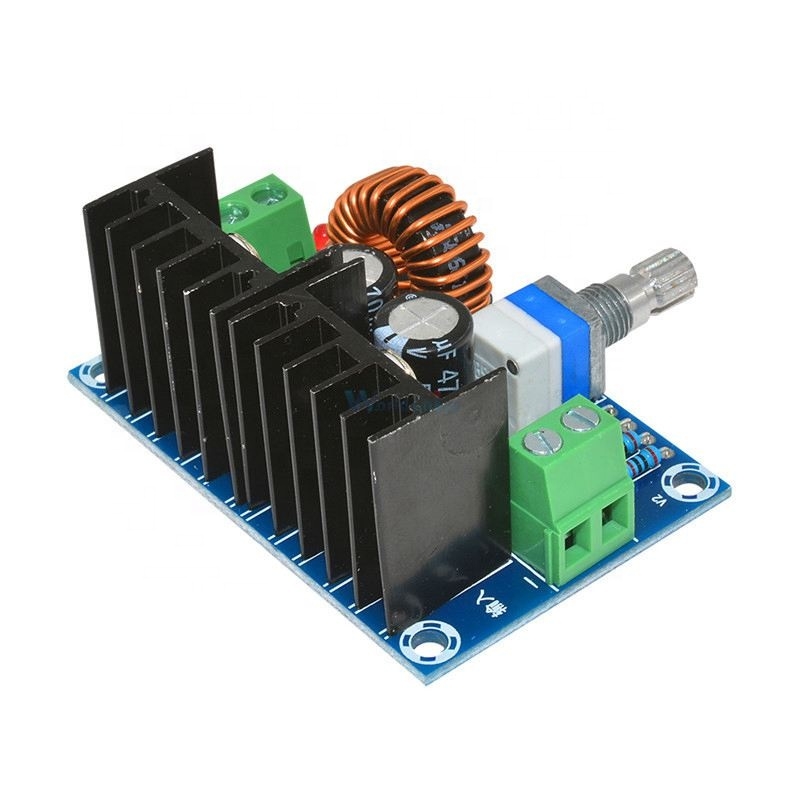

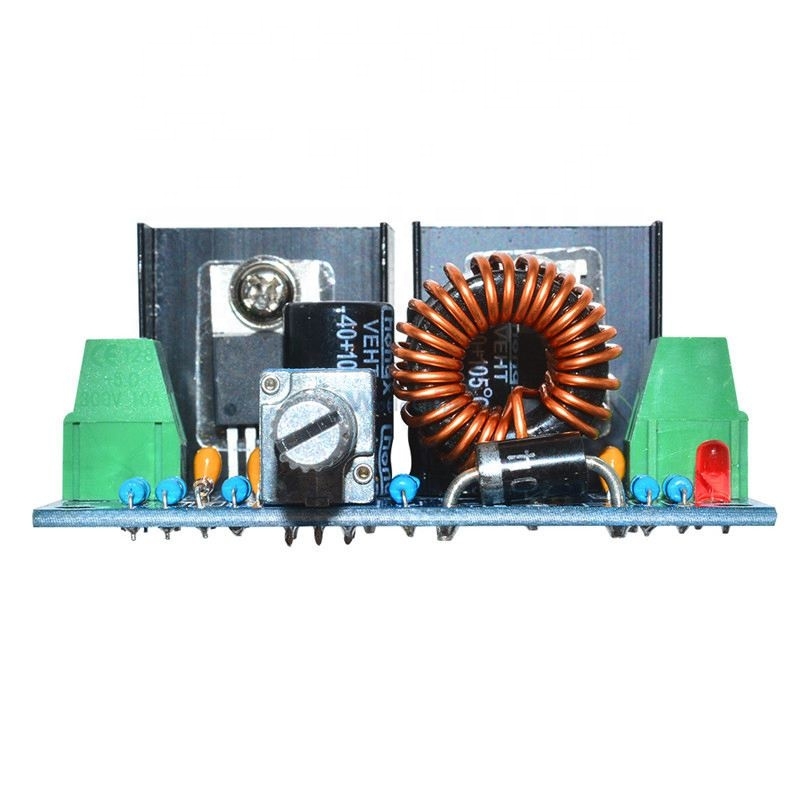

HW-439 DC-DC Step Down Buck Converter Power Supply Module XL4016E1 4-40V to 1.25-36V 8A 200W Voltage Regulator

Product Description

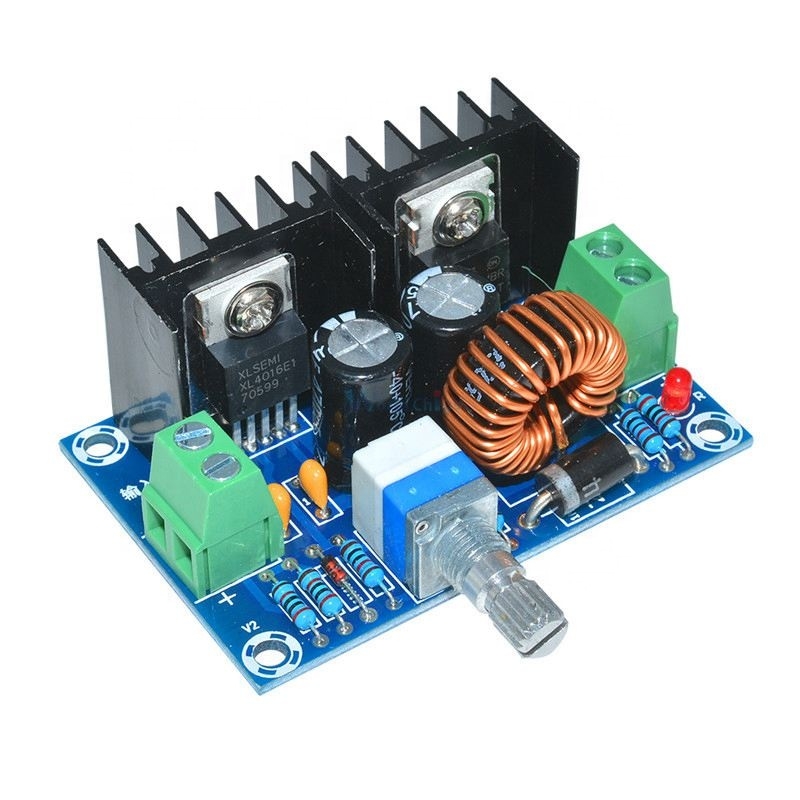

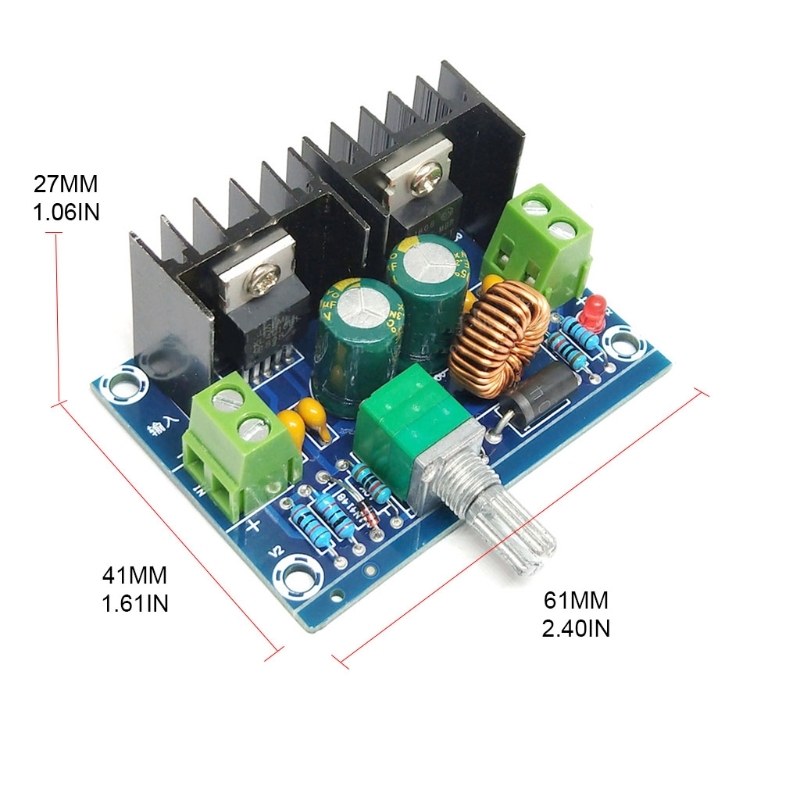

1. Using XL4016 switch voltage regulator chip, with MBR20100 dual rectifier, the input voltage can reach 40V and output 1.25~36V continuously adjustable 2. 180KHz fixed frequency PWE step-down (step-down) DC/DC converter 3. High efficiency and up to 8A load driving capacity 4. Low ripple and excellent line and load regulation ability 5. Built-in frequency compensation and fixed frequency oscillator 6. Built-in over-current and short-circuit protection functions 7. Built-in thermal shutdown function, output protection function, output overvoltage protection 8. Voltage regulation method: PWM modulation 9. Chip model: XL4016E1 10. Type: DC/DC power supply module 11. Input voltage: DC4-40v 12. Output range: DC1.25-36v 13. Rated current: 8A 14. Rated power: 200w 15. Conversion efficiency: 94% 16. Switching efficiency: 180Khz 17. Size: 61x41x27mm

Specifications

SKU

TBD05722751

Category

Consumer Electronics › Electronics Module › Other Accessories

Weight

0.044 kg
