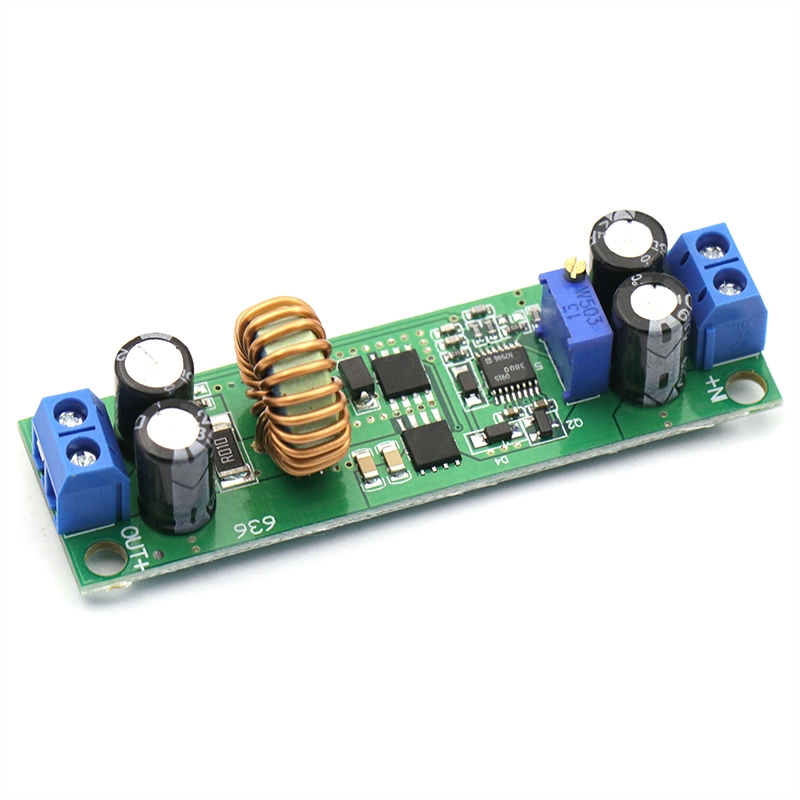

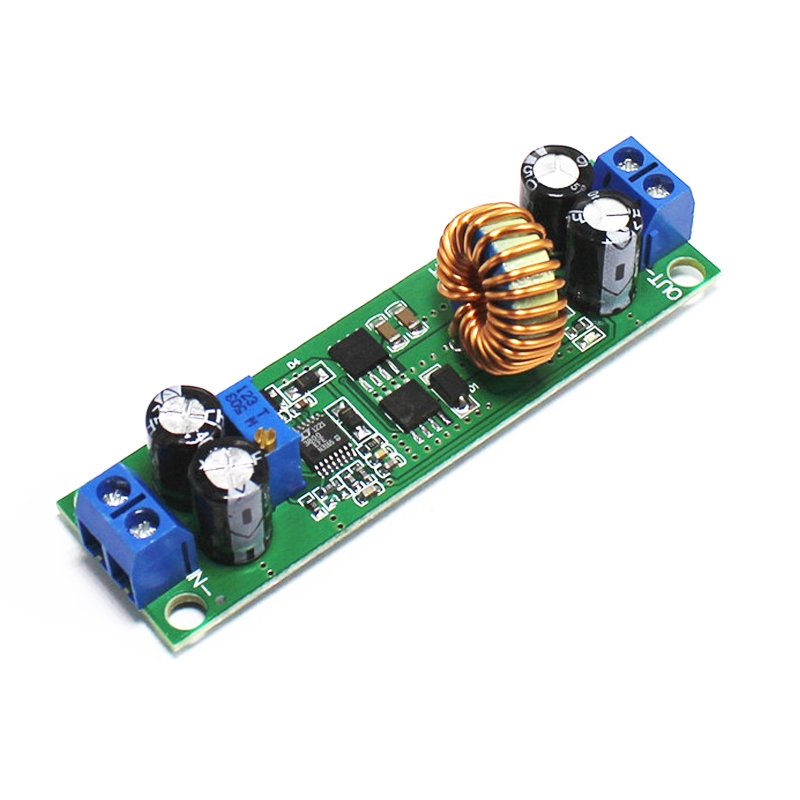

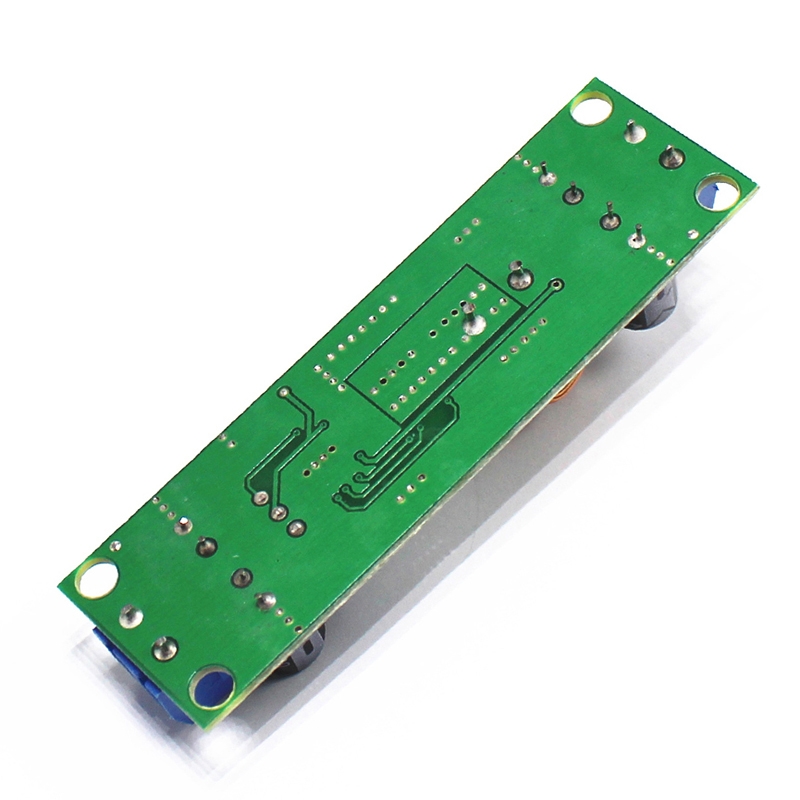

HW-636 Adjustable Synchronous Antihypertensive Module Car Charging Regulated Power Supply

Product Description

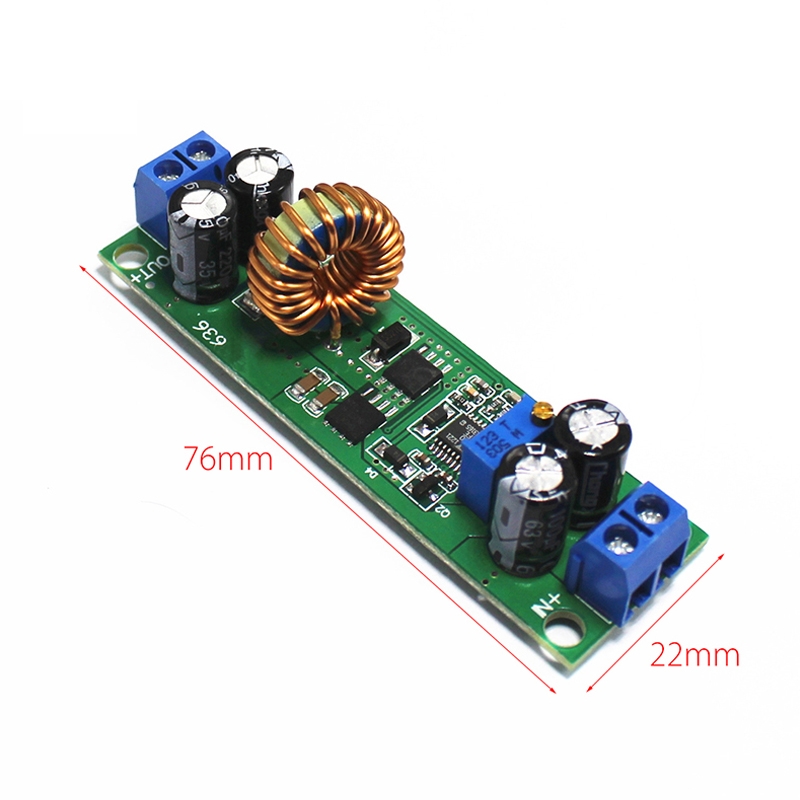

1. After power on, the blue indicator light of the module lights up 2. Efficiency: up to 97% 3. Working temperature: -40 to 85 degrees Celsius 4. Working current: less than 10A 5. Output voltage: DC1.25-30V adjustable 6. Input voltage: DC6.5-48V 7. Output power: less than 100w 8. Type: DC/DC power module 9. Wiring mode: the terminal is free of welding, IN is input, OUT is output 10. Load capacity: within 5A of long-distance running, strengthen heat dissipation above 5A 11. Purpose: Vehicle-mounted charging stabilized power supply 12. Note: Do not use high voltage, high current, hot swap for a long time, pay attention to strengthening heat dissipation 13. Dimensions: 75 x 21 x 16mm

Specifications

SKU

TBD05722403

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.064 kg

Delivery

Standard delivery
