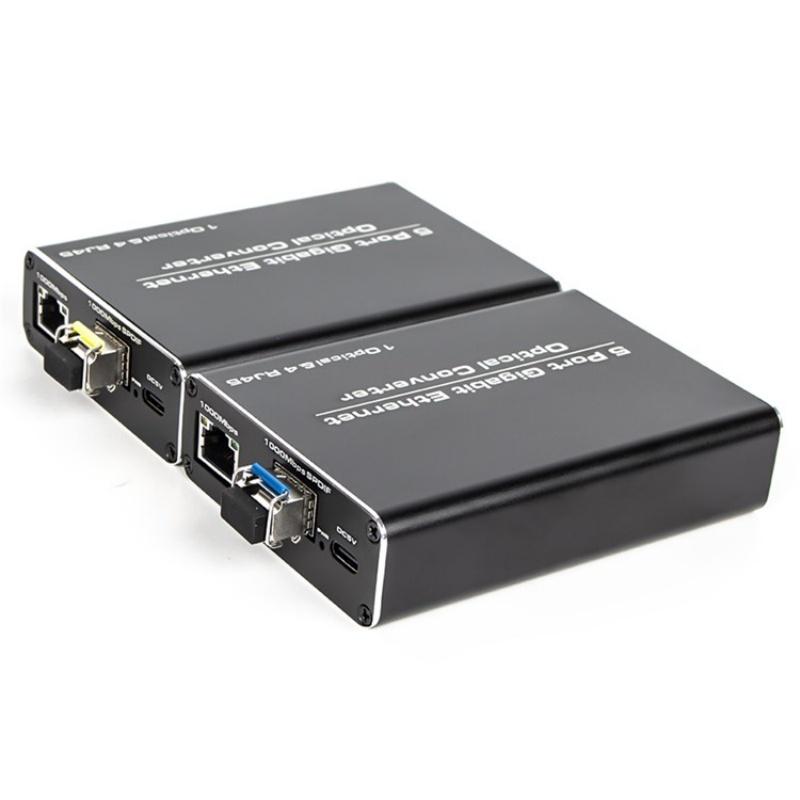

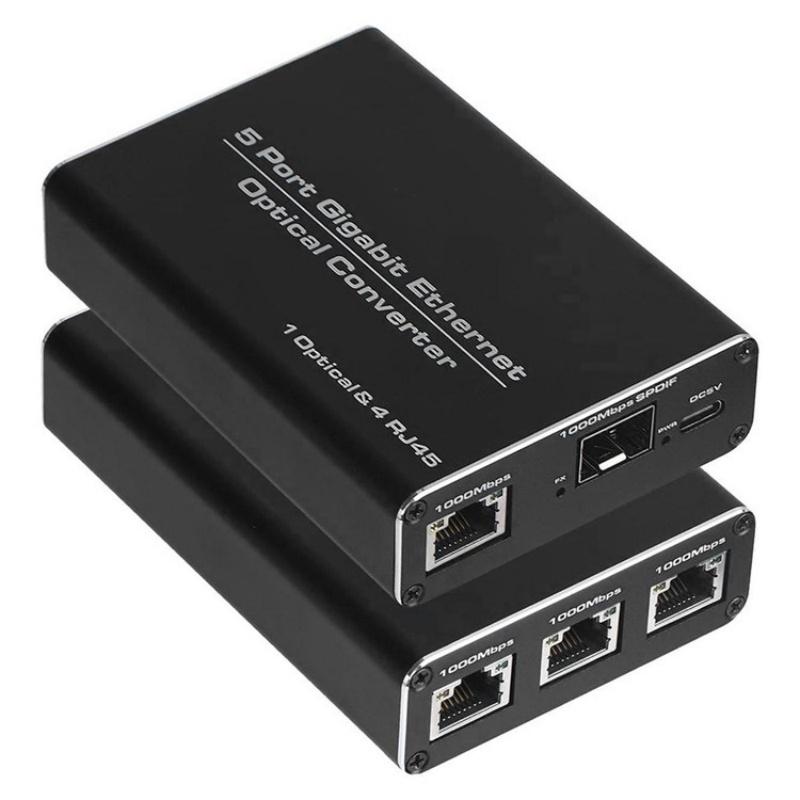

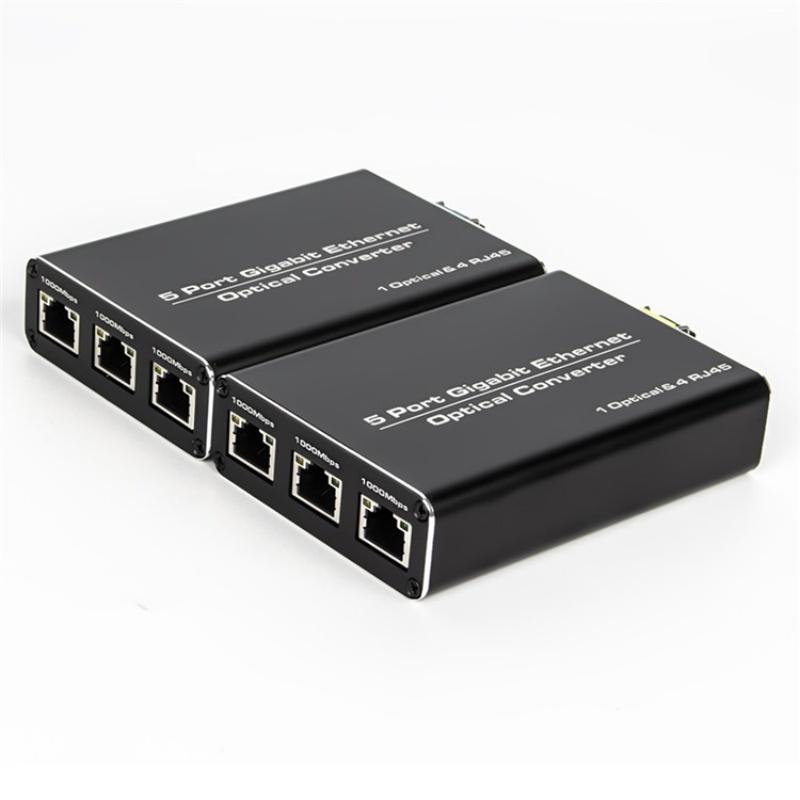

HW6 With TX / RX 1.25G Single Mode Single Fiber Transmission Adapter

Product Description

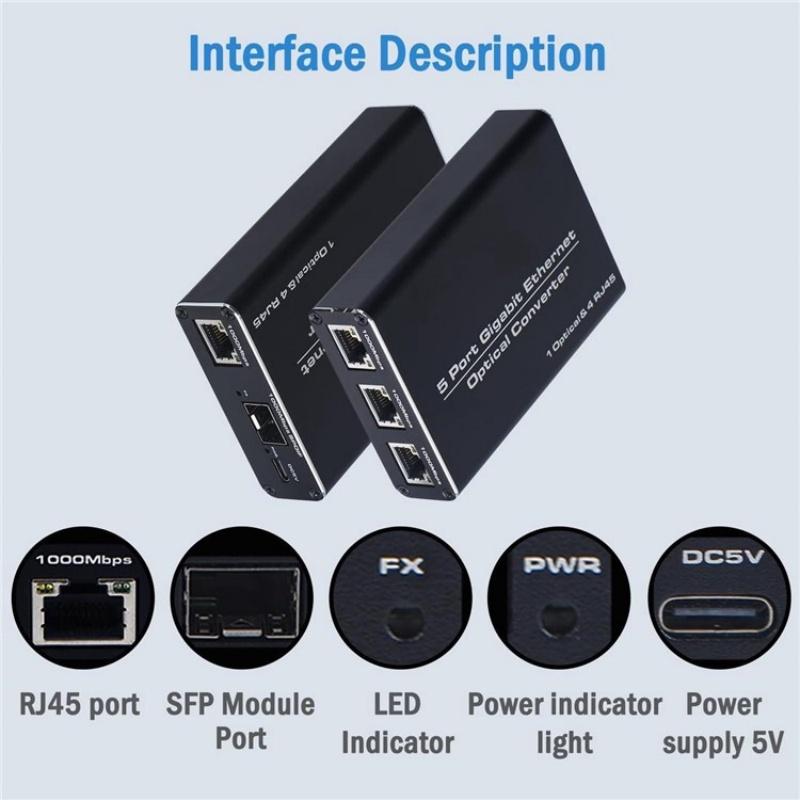

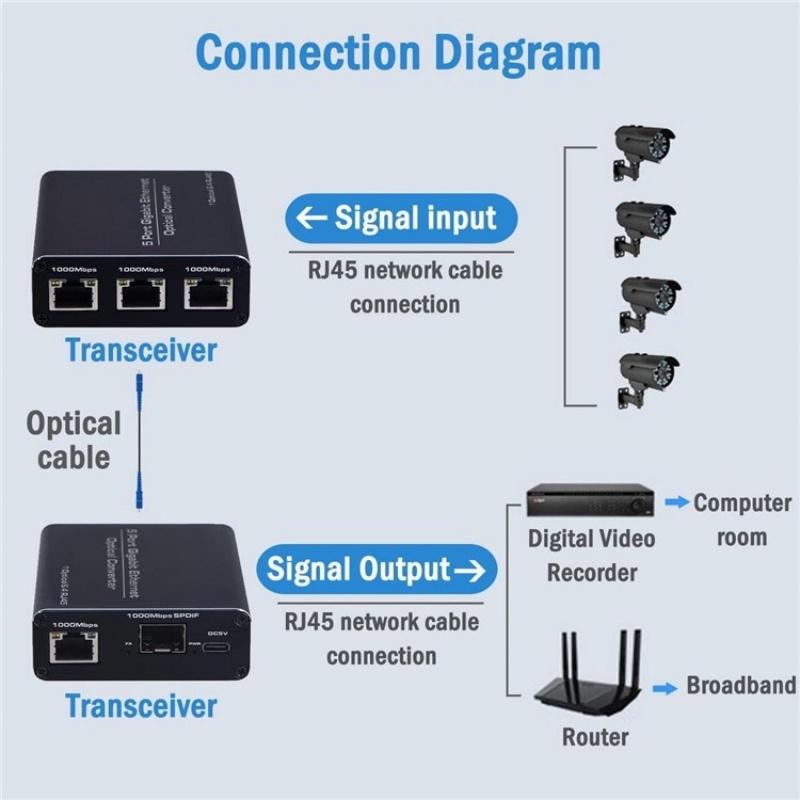

1.Versatile Connectivity:1 Optical to 4 Electrical ports configuration, enabling connection of up to 4 electrical devices through a single fiber optic line. 2.Long-Distance Transmission:Utilizes wavelength division multiplexing technology for single-mode single-fiber transmission up to 20 kilometers. 3.High-Speed Performance:Supports gigabit transmission with 1.25Gbps SC fiber optic interface and 1000Mbps Ethernet interface for efficient data and video signal transmission. 4.Bi-Directional Communication:Employs 1550nm transmitting and 1310nm receiving wavelengths for simultaneous data transmission and reception through a single fiber. 5.Wide Compatibility:Adheres to IEEE 802.3, 802.3U, 802.3ab, 802.3Z, and 802.3x standards, ensuring broad network compatibility. 6.Robust Design:Operates in extreme temperatures from -40 to 70 degree centigrade, suitable for various environmental conditions. Specifications: 1.Model: HW6 2.Interface: 1 1.25Gbps fiber interface, 4 100Mbps/1000Mbps adaptive RJ45 ports 3.Transmission wavelength: TX: 1310nm, RX: 1550nm 4.Power supply: 5V/0.5A 5.Packet forwarding rate: 7Mpps 6.Indicator light: Optical port and electrical port Link/Act, PWR 7.Average transmitted optical power: -9~-1dBm 8.Receiver sensitivity: -22dBm 9.Data transmission rate per port: 2Gbps full-duplex 10.MAC address depth: 2K 11.Interface: 1 1.25GbpsSC fiber interface, 1 100Mbps/1000Mbps adaptive RJ45 port 12.Transmission wavelength: TX:1550nm, RX:1310nm 13.Power supply: DC5V 0.6A 14.Packet forwarding rate: 3Mpps

Specifications

SKU

SYA0028391

Category

Computer & Networking › Optical Series › Adapter

Weight

0.304 kg

Delivery

Standard delivery
