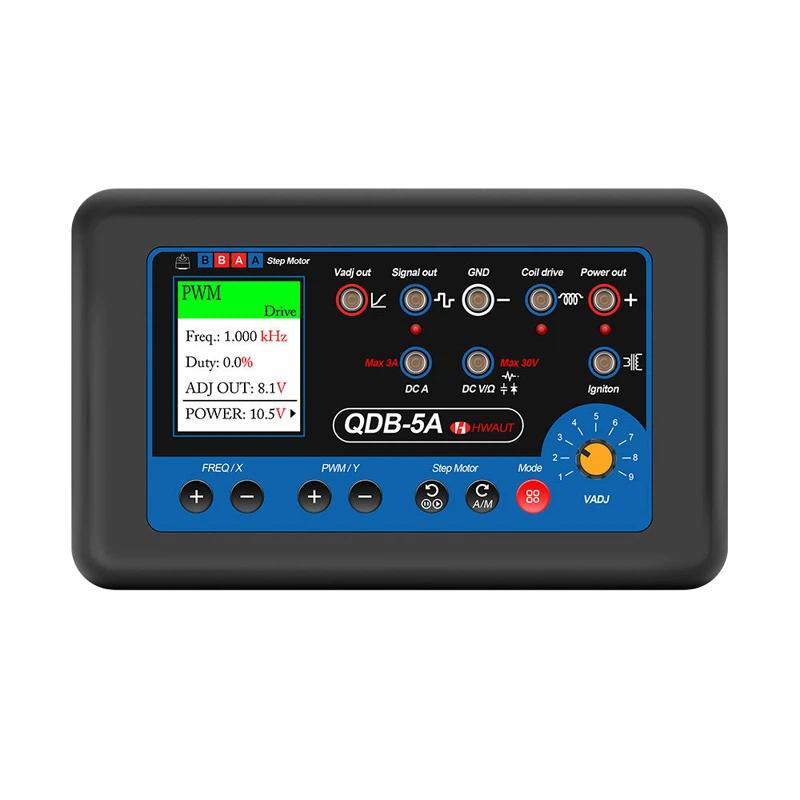

HWAUT QDB-5A Automotive Actuator Drive Detector Oscilloscope

Product Description

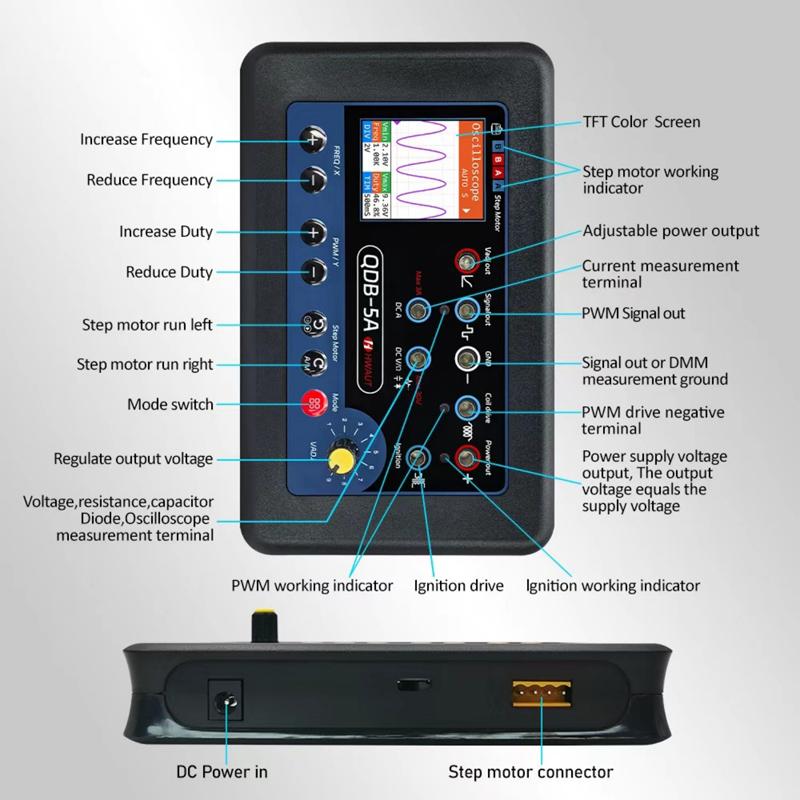

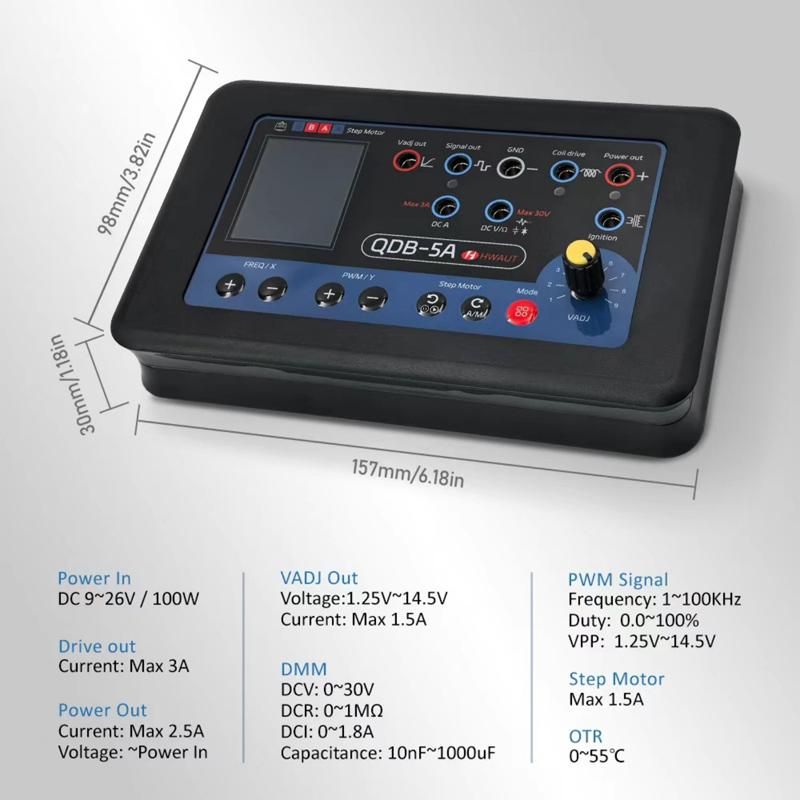

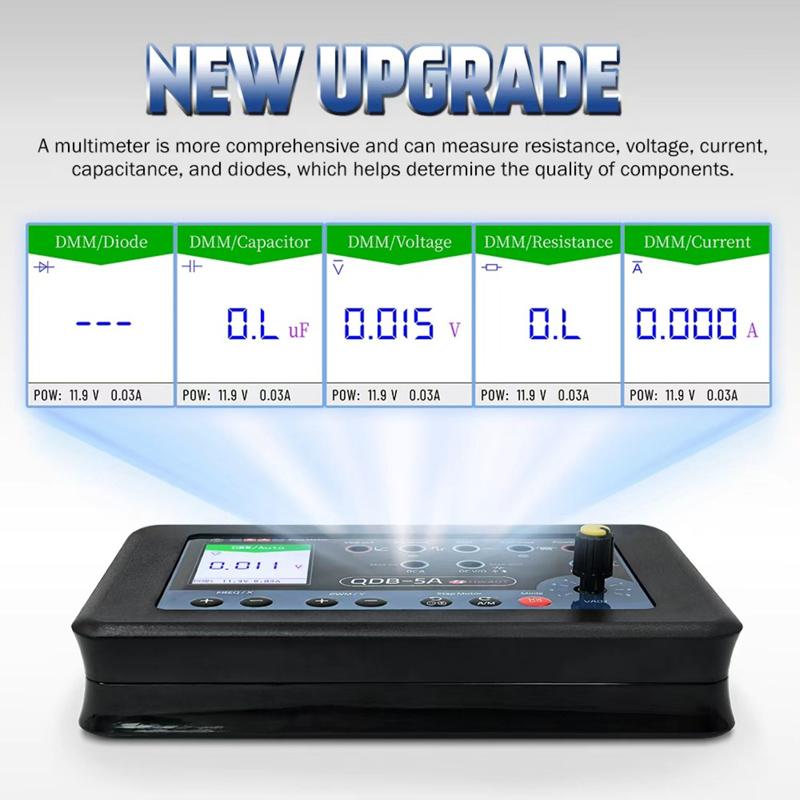

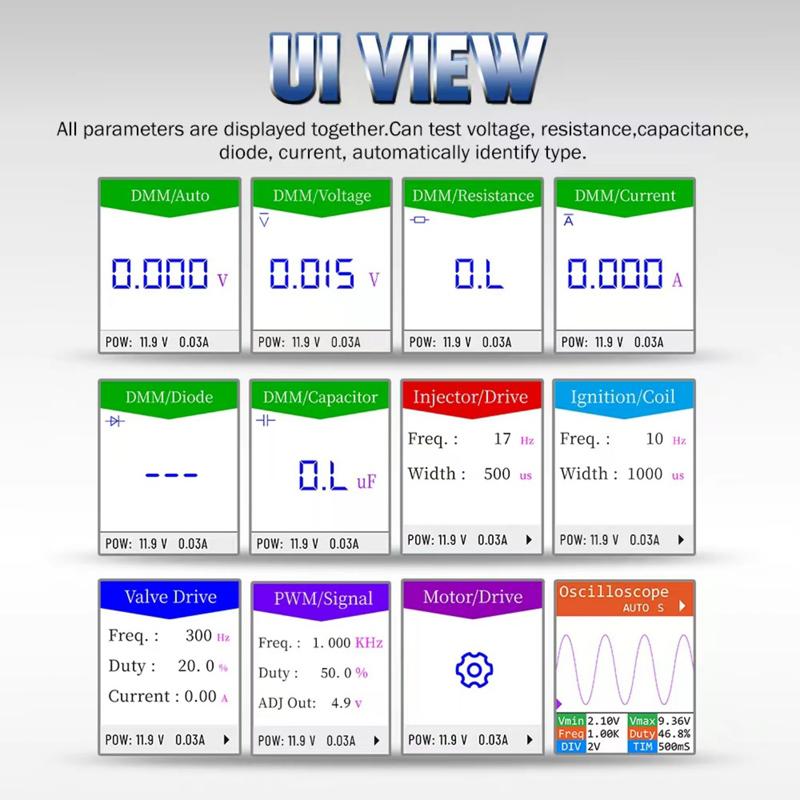

1. Drive test ignition coil: including independent ignition, coil type, and module type 2. Driving test fuel injector: including 12V fuel injectors for gasoline vehicles and 12V/24V fuel injectors for diesel vehicles 3. Drive and test various duty cycle-controlled solenoid valves and fuel metering valves 4. Drive and test various duty cycle-controlled motors, urea pump motors, etc 5. Drive and test idle stepping motors, instrument stepping motors, headlight follow-up steering stepping motors, etc 6. Hall signal output frequency, amplitude, and duty cycle can be adjusted to simulate various duty cycle sensors, such as air conditioning pressure sensors (duty cycle type), air flow meters (duty cycle type), etc 7. Oscilloscope function, allowing for intuitive viewing of circuit signal waveforms, facilitating quick location of wiring and electronic control faults Parameters 1. Power input: DC 8-28V 2. Output power: 0-2.5A 3. VADJ output: 0-1.5A 4. Digital multimeter: DC 0-30V/0-1M 5. Pulse width modulation: 1-100KHz/0-100% 6. Stepper motor: maximum 15A 7. Size: about 15.7 x 9.8 x 3cm

Specifications

SKU

TBD06067992

Category

In Car › Diagnostic Scan Tools › Code Readers & Scan Tools

Weight

0.394 kg
