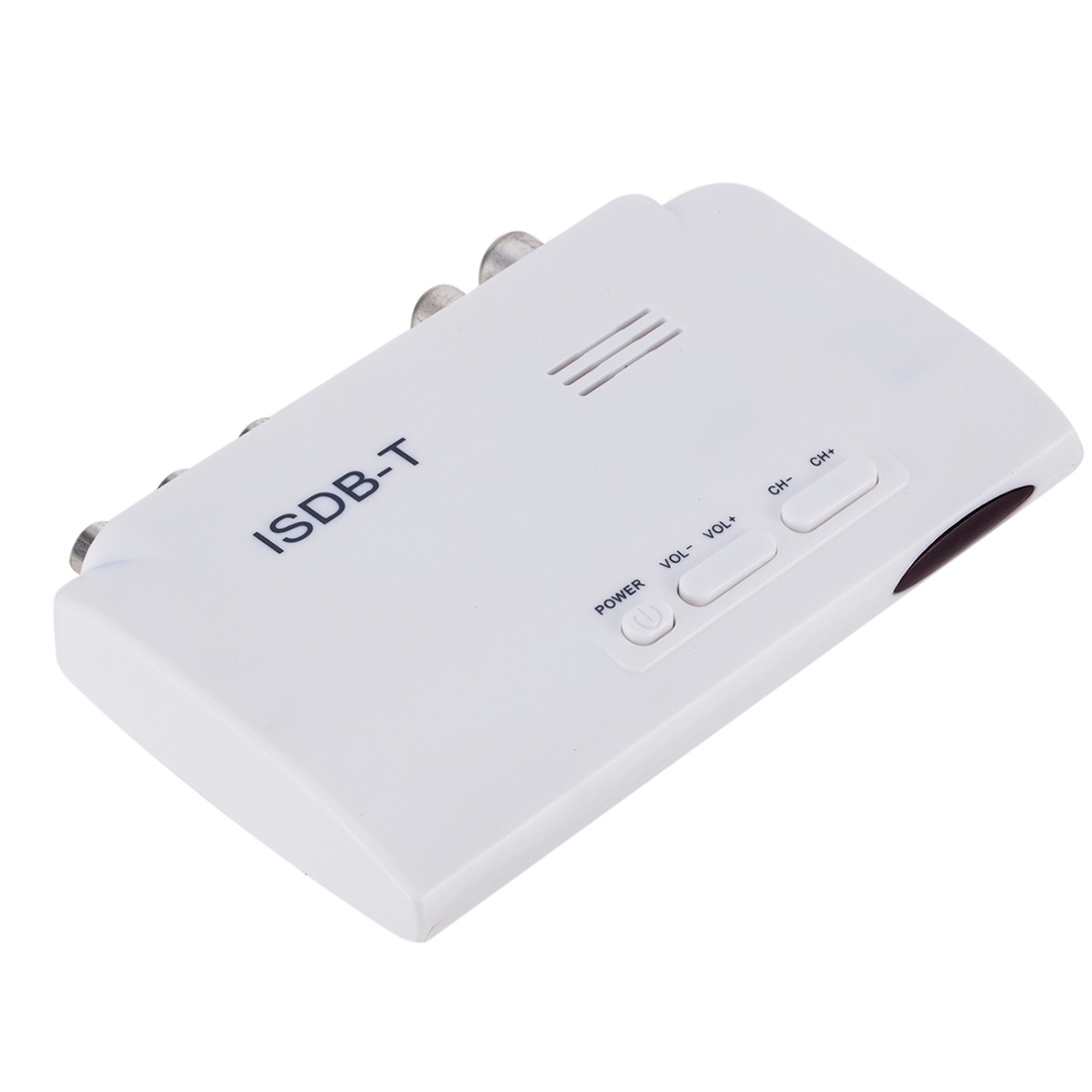

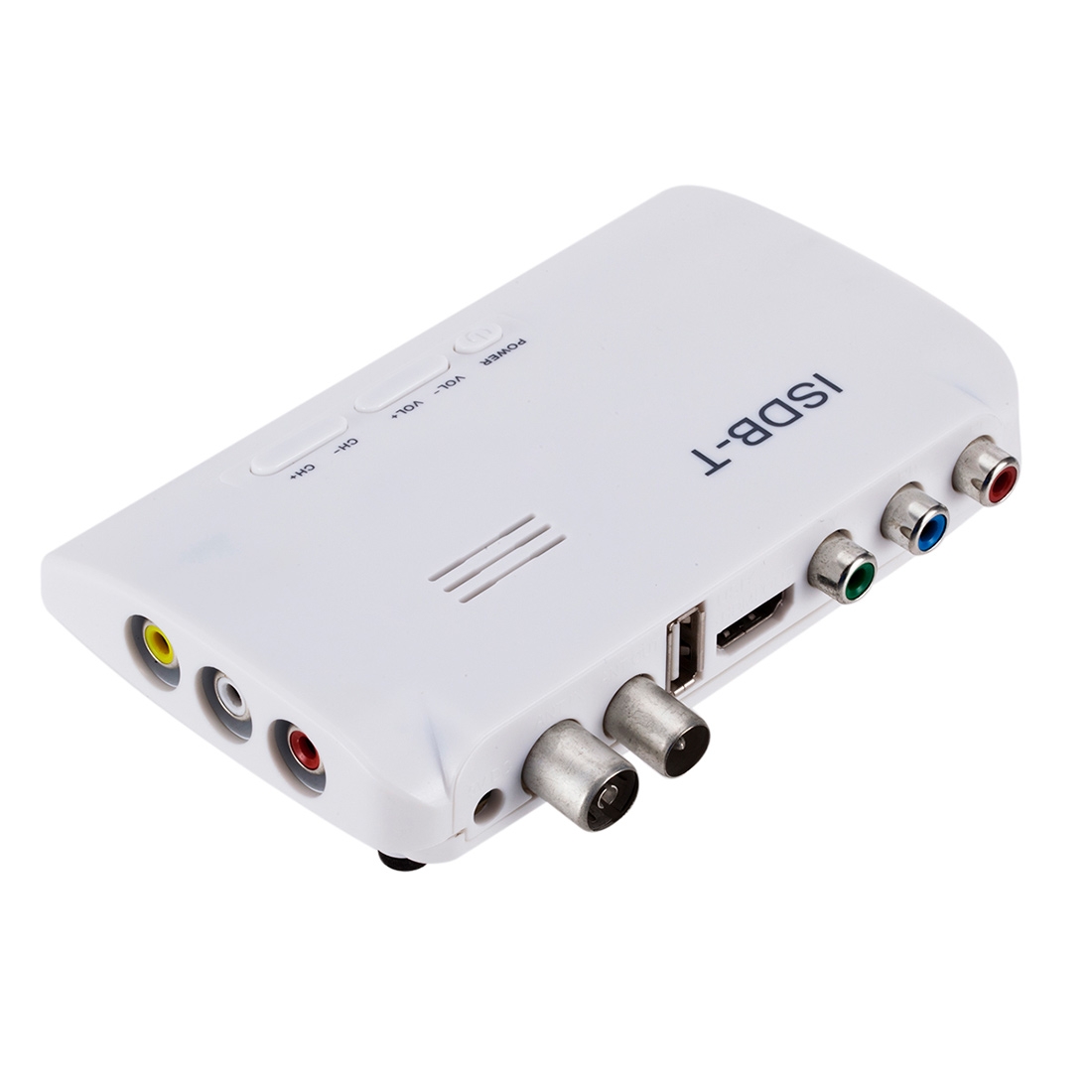

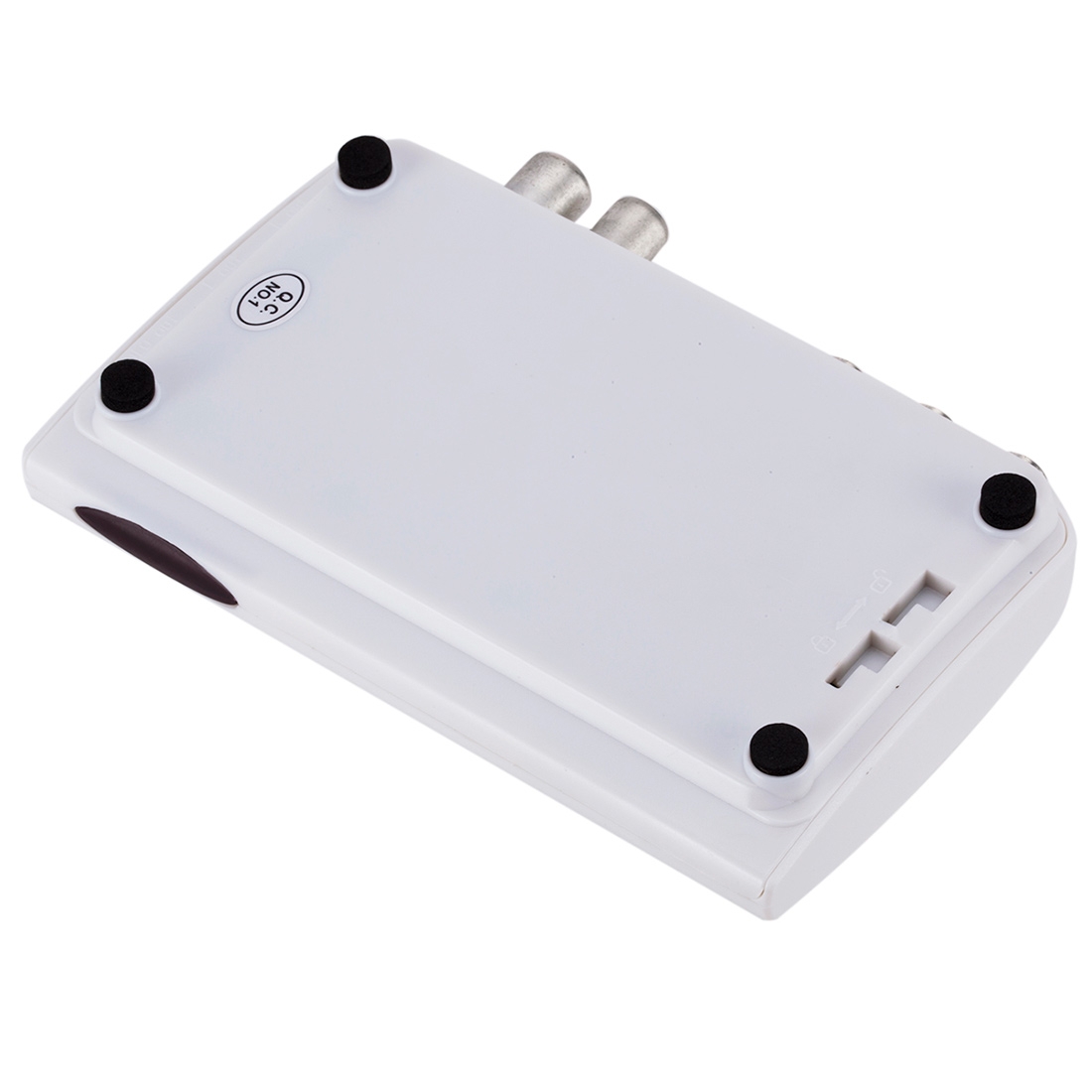

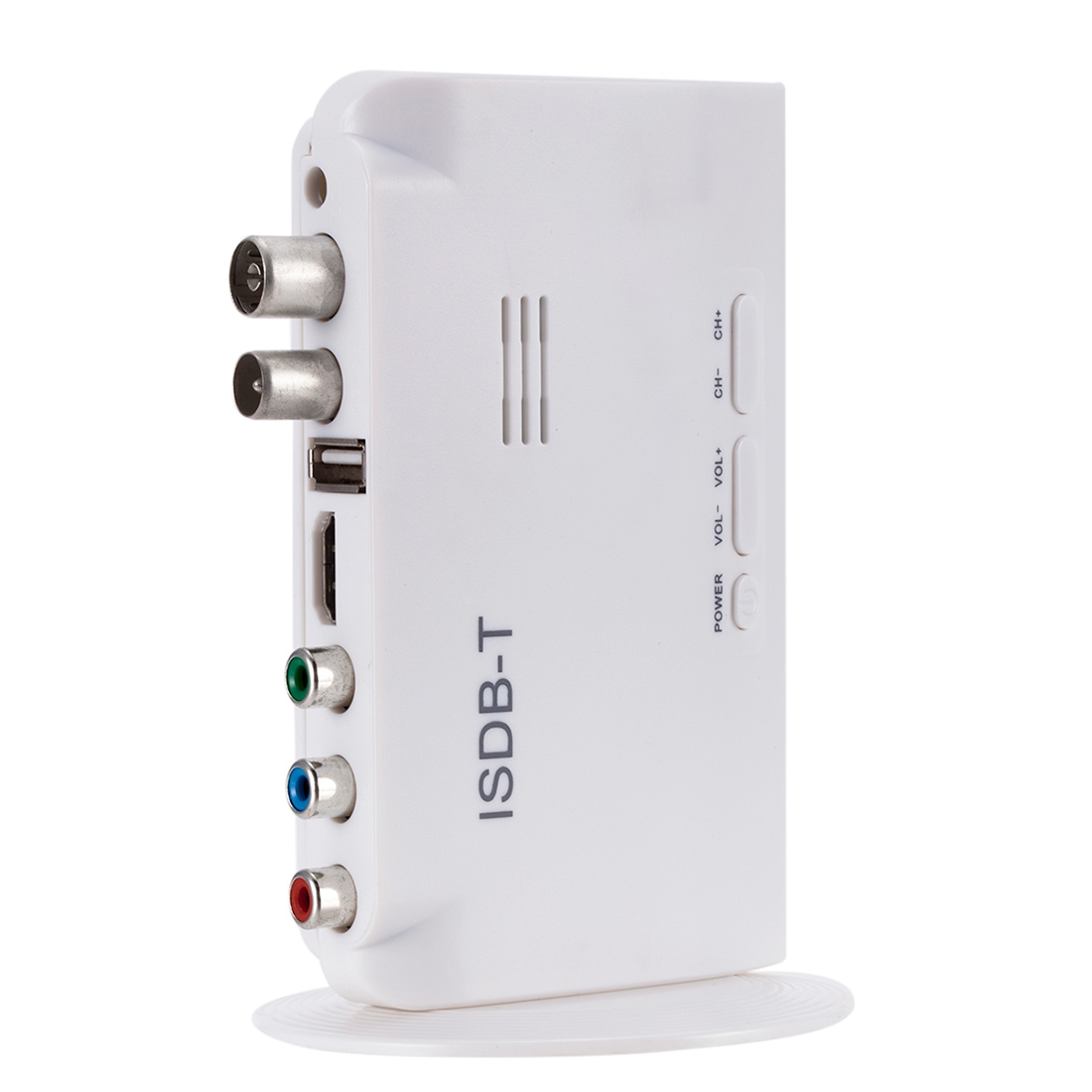

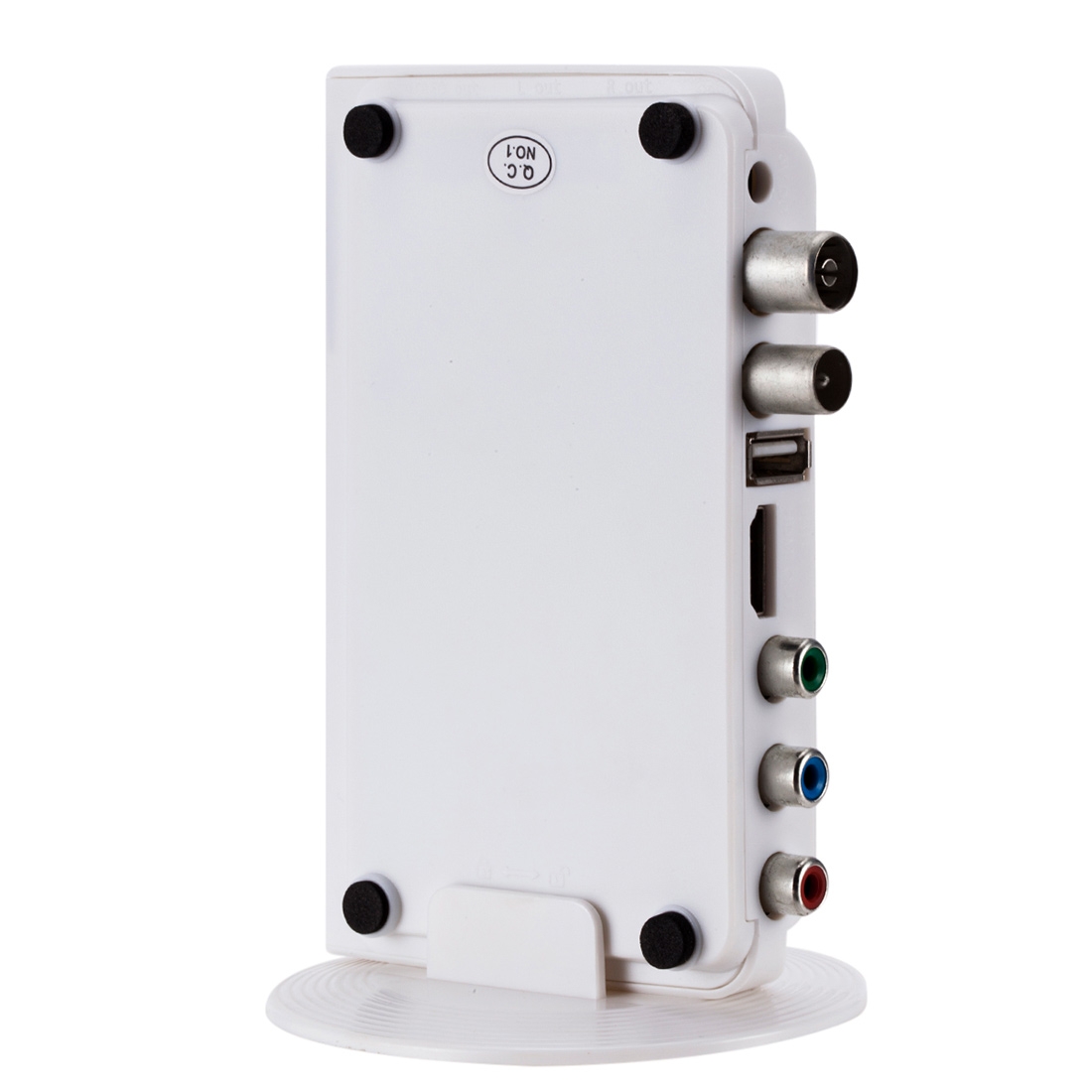

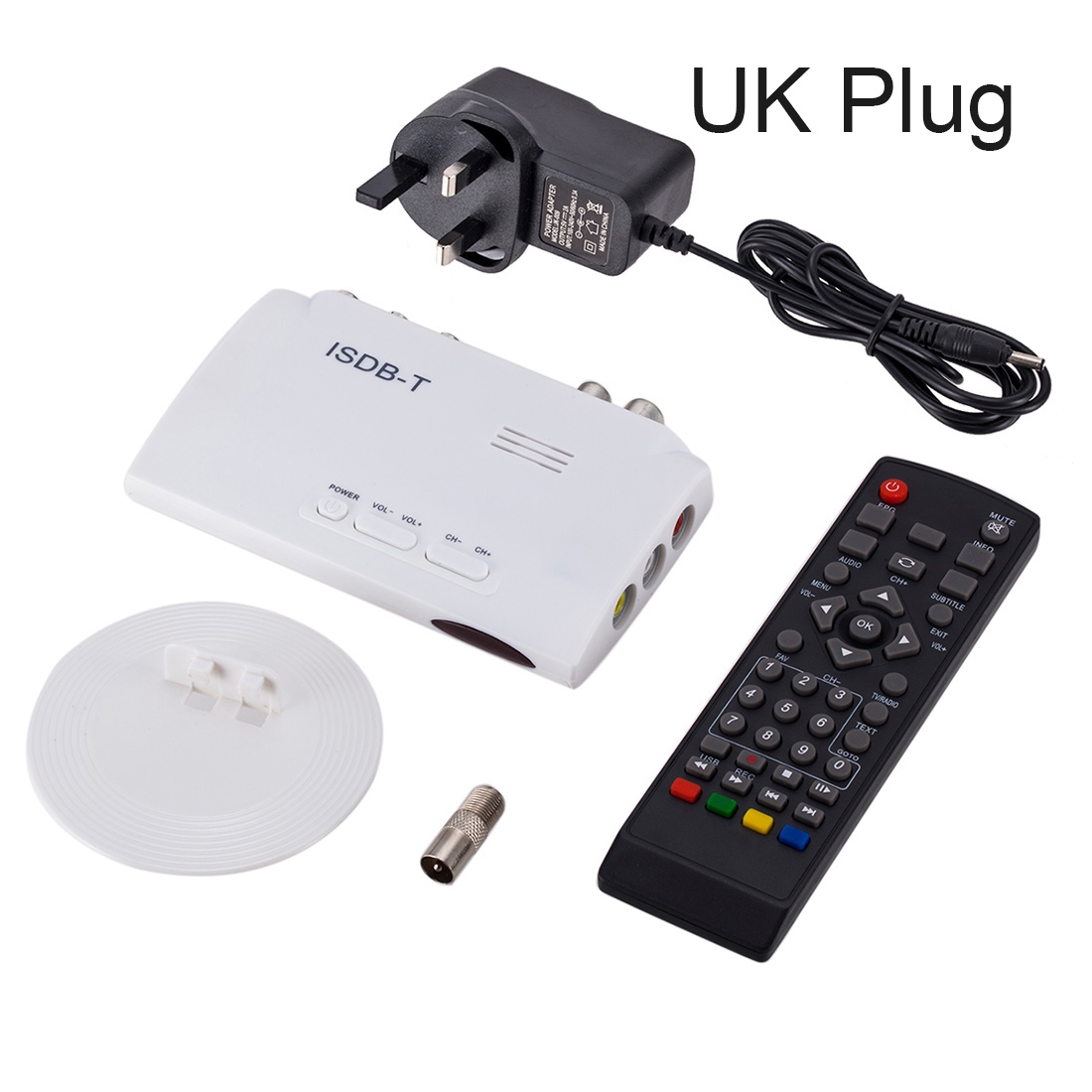

ISDB-T 1080P Digital Satellite Receiver DVB Digital Video TV Tuner Receiver Sets Top Box+5dBi Antenna with Remote Control(White)

Product Description

1. Input RF frequency: VHF: 177.143 ~ 213.143MHz: UHF 473.143 ~ 803.143MHz. Supports 7-day EPG capabilities, VBI teletext, USB 2.0 for PVR, TIMESHIFT, software upgrades and media file playback, as well as Full HD 1080P HDMI video support.However, AC-3 (Dolby Digital Plus) decoding is not supported 2. ISDB-T countries (countries and regions using ISDB-T International) Brazil, Botswana, Peru, Philippines, Argentina, Maldives, Chile, Sri Lanka, Venezuela, Ecuador, Paraguay, Costa Rica, Bolivia, Nicaragua, Uruguay, Belize, Honduras, Guatemala Hardware 1. CPU: MSTAR-MSD7805 (128-pin) MIPS 34Kf @ 600MHz 2. Memory: 32X16Mbit DDR2: frequency 1066 3. Flash: 32M bytes 4. Demodulator type: ISDB SOC chipset 5. Mixer: Rafael R836 6. Front Panel: USB 2.0 Embedded One Host, Front panel with 4 LED display Red LED standby, green LED lock Panel KEY, POWER, CH +, CH- 7. Rear panel: Tuner RF input connector EC type IEC169-2 female 8. Tuner RF Loop Connector IEC Type IEC169-24 Male HDMI V1.3 / V1.4 RCA CVBS AL AR Connector x1 Ypbpr RCAx1 Coaxial x1 Power AC100 ~ 240V 50Hz / 60Hz 9. demodulation Ground Receiver Standard: ISDB-T broadcast (paragraphs 1, 3, and 13) Input RF frequency: VHF: 177.143 ~ 213.143MHz: UHF 473.143 ~ 803.143MHz. Bandwidth: 6MHz Demodulation: QPSK / 16QAM / 64QAM / QPSK or DQPSK FEC: 1 / 2,2 / 3,3 / 4,5 / 6,7 / 8 Automatic Guard interval: 1/4, 1/8, 1/16, 1/32 FFT mode: 2K / 8K / 32K Input level: -83 - -5dBm Software function 1. Supports all ISDB-T broadcasts (paragraphs 1, 3 and 13), MPEG-2 / MPEG-4 AVC / H.264 HD / SD video, in line with DiVX 2. Support 3D interface 3. Support for Teletext / Subtitle / Multilingual 4. 7 day EPG support, VBI teletext 16: 9 Pan G-Scan, 4: 3 Mailbox, 4: 3 Pan G-Scan, 4: 3 Full, 16: 9 Wide Scratch 5. USB 2.0 for PVR, TIMESHIFT, software upgrades and media file playback 6. Video output resolution: 480i / 576i / 480p / 576p / 720p / 1080i / 1080P Decoder 1. Video decoder Complies with: MPEG-4 part10 / MPEG-2 ISO / IEC 13818 MPEG-4 Simple / Master / Advanced Profile @ LEVEL3 (10Mbps) MPEG-2 Main Profile # Primary (15Mbps) H.264 MP # L3 (10Mbps) .H.264 HP L4.1 (25Mbps) 2.Audio decoder MPEG-1, MPEG-2 (Layer I / II), MP3, AAC-LC, WMA AC-3 (Dolby Digital) decoding is not supported Powerful multimedia features 3.Media Codecs: avi mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts, etc. 4. Audio Codecs: WMA, MP3, AAC (.wma, .mp3, m4a) Photo codecs: JPEG, BMP, PNG

Specifications

SKU

TT0045W

Category

Consumer Electronics › TV Receivers › Set Top Box & Accessories

Weight

0.278 kg

Delivery

Standard delivery
