Landa Tianrui LDTR-WG0155 Mini USB Nano 3.0 Atmega328P Development Board Parts for Arduino

Product Description

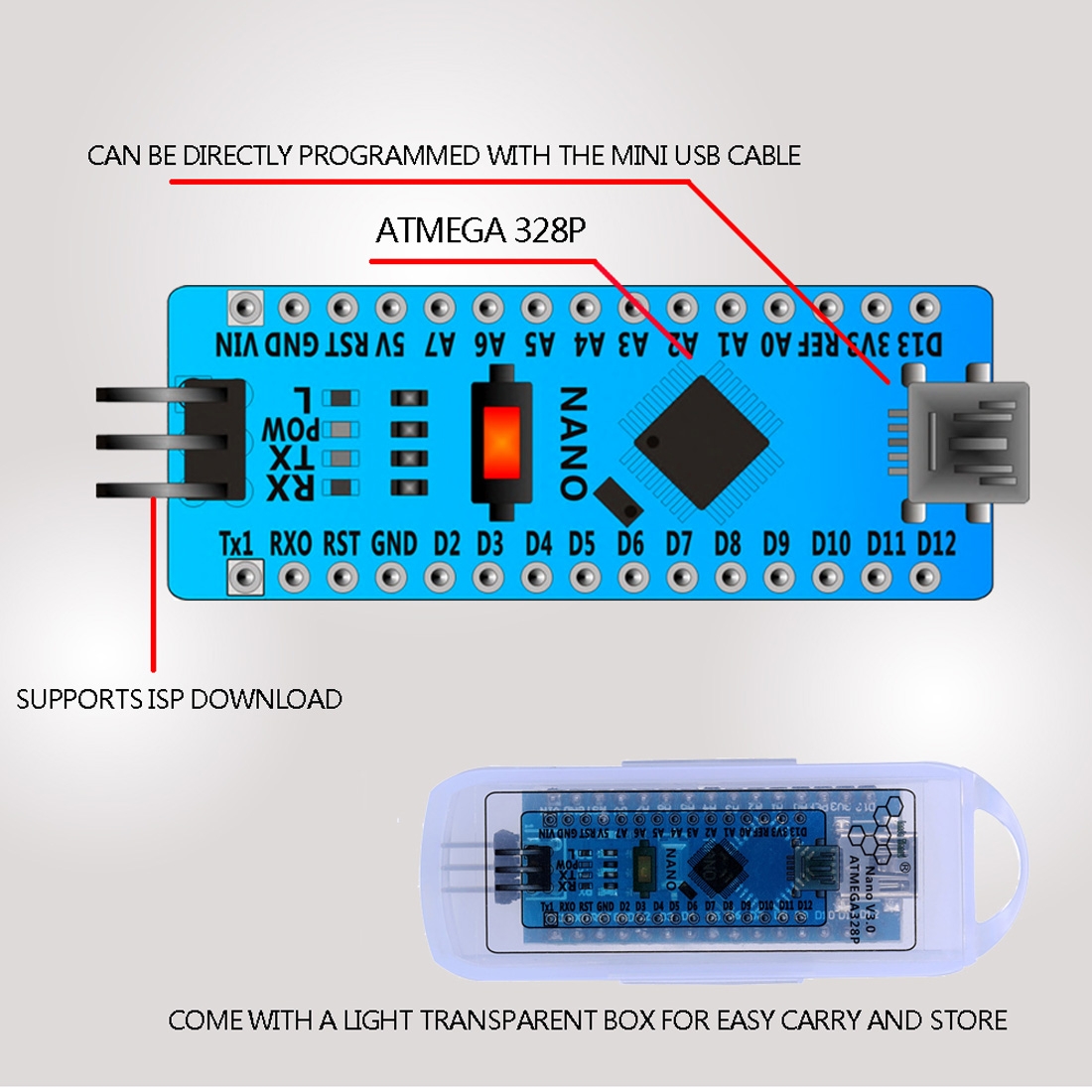

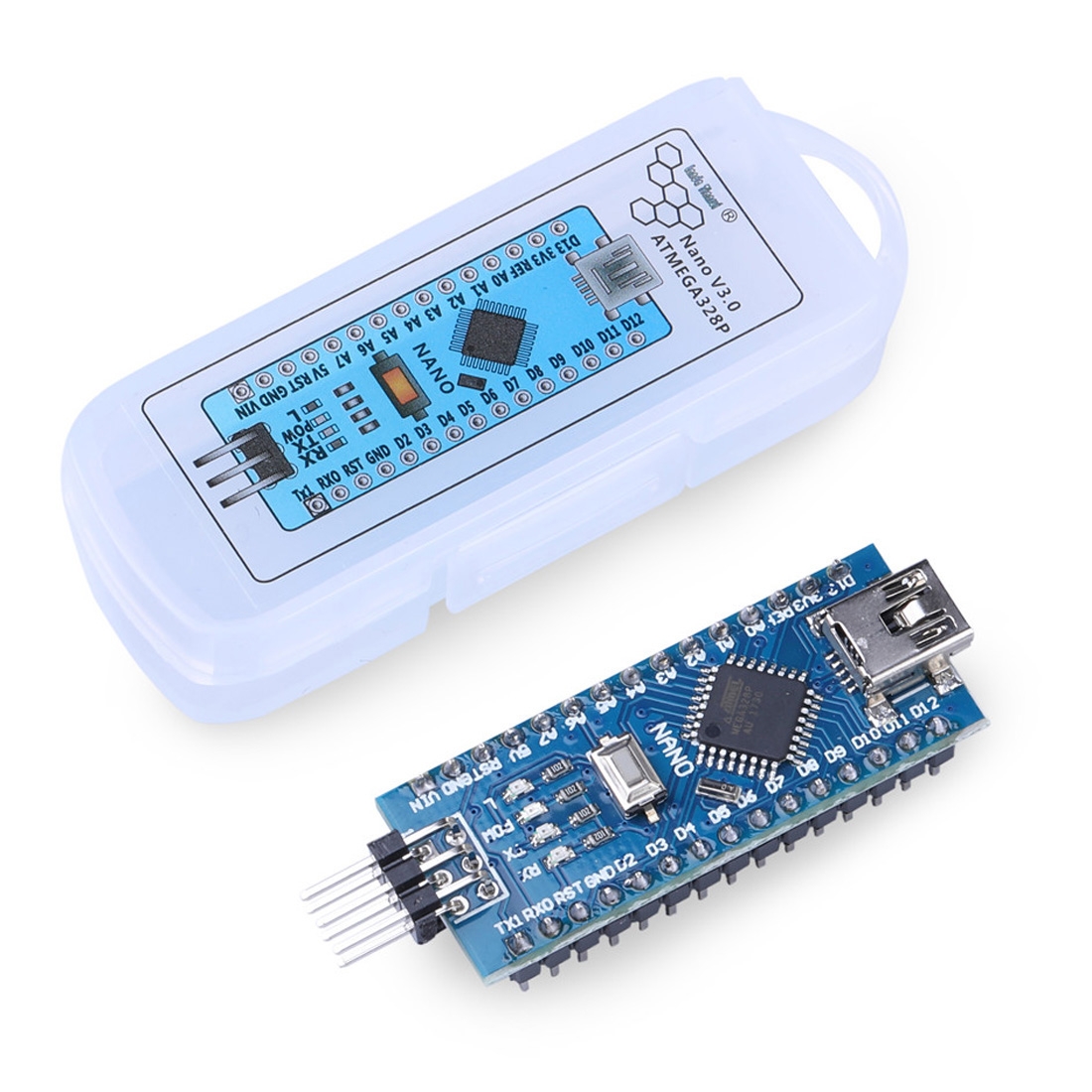

1. Compatible with Arduino Nano v3.0, Supports ISP Download, 5V Working Voltage This is Nano 3.0 development board based on Atmega328P. With Nano UNO Shield Adapter board, it can easily use the Arduino Shield and other peripheral modules such as serial MP3, 4 digit LED module, etc. 2. Come with a light transparent box for easy carry and store 3. Board type: Arduino Nano w/ ATmega328 4. Can be directly programmed with the Mini USB cable. 5. Compatible with program, expansion shields, IDE of Arduino Nano v3.0. 6. USB to serial TTL chip (CH340) supports win7 / win8 32bits, 64bits, Linux, MAC 7. Support ISP download. 8. Microcontroller: Atmel ATmega328P. 9. Working Voltage: 5V. 10. Working current: 500mA (Max) 11. Input Voltage: 7-12V. 12. Digital I/O Pins: 14 (of which 6 provide PWM output). 13. Analog Input Pins: 6. 14. Flash Memory: 32KB of which 2 KB used by bootloader. 15. SRAM: 2KB. 16. EEPROM: 1KB. 17. Clock Speed: 16MHz.

Specifications

SKU

DIY0094

Category

Consumer Electronics › Arduino & SCM Supplies › Boards & Shields

Weight

0.025 kg

Delivery

Standard delivery
