LandaTianrui LDTR-RM036 50N / 5kg FSR Pressure Sensor Module for Arduino (Black)

Product Description

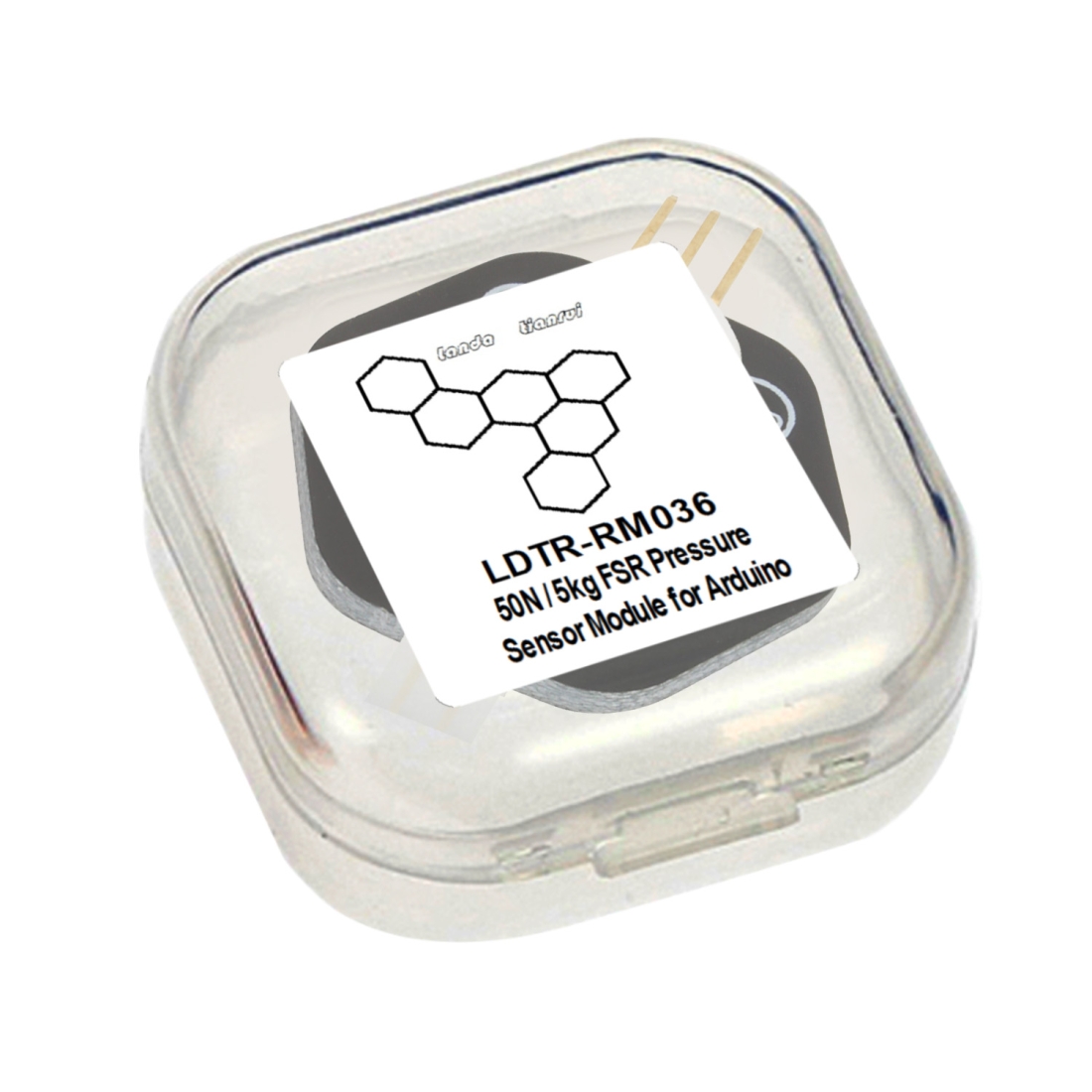

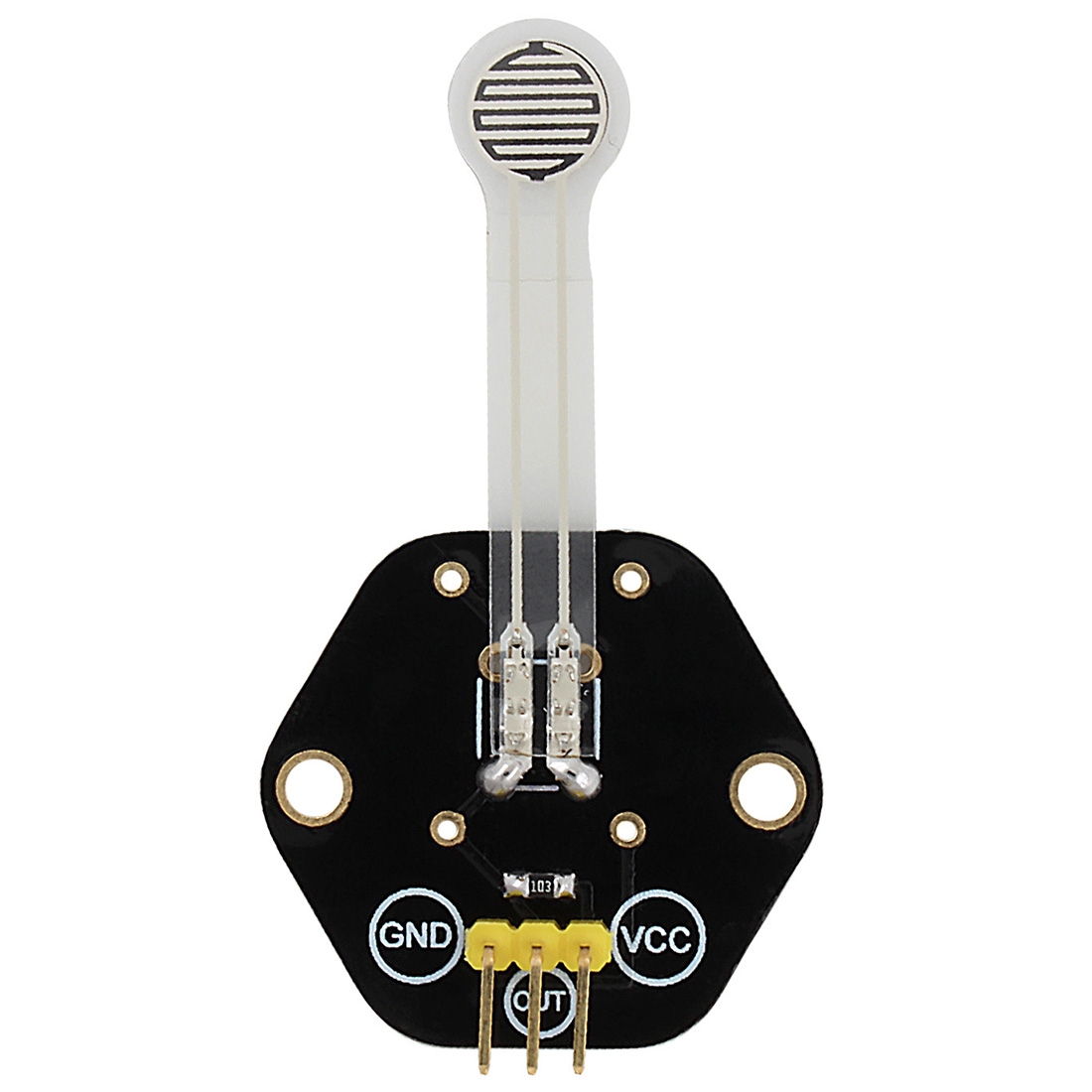

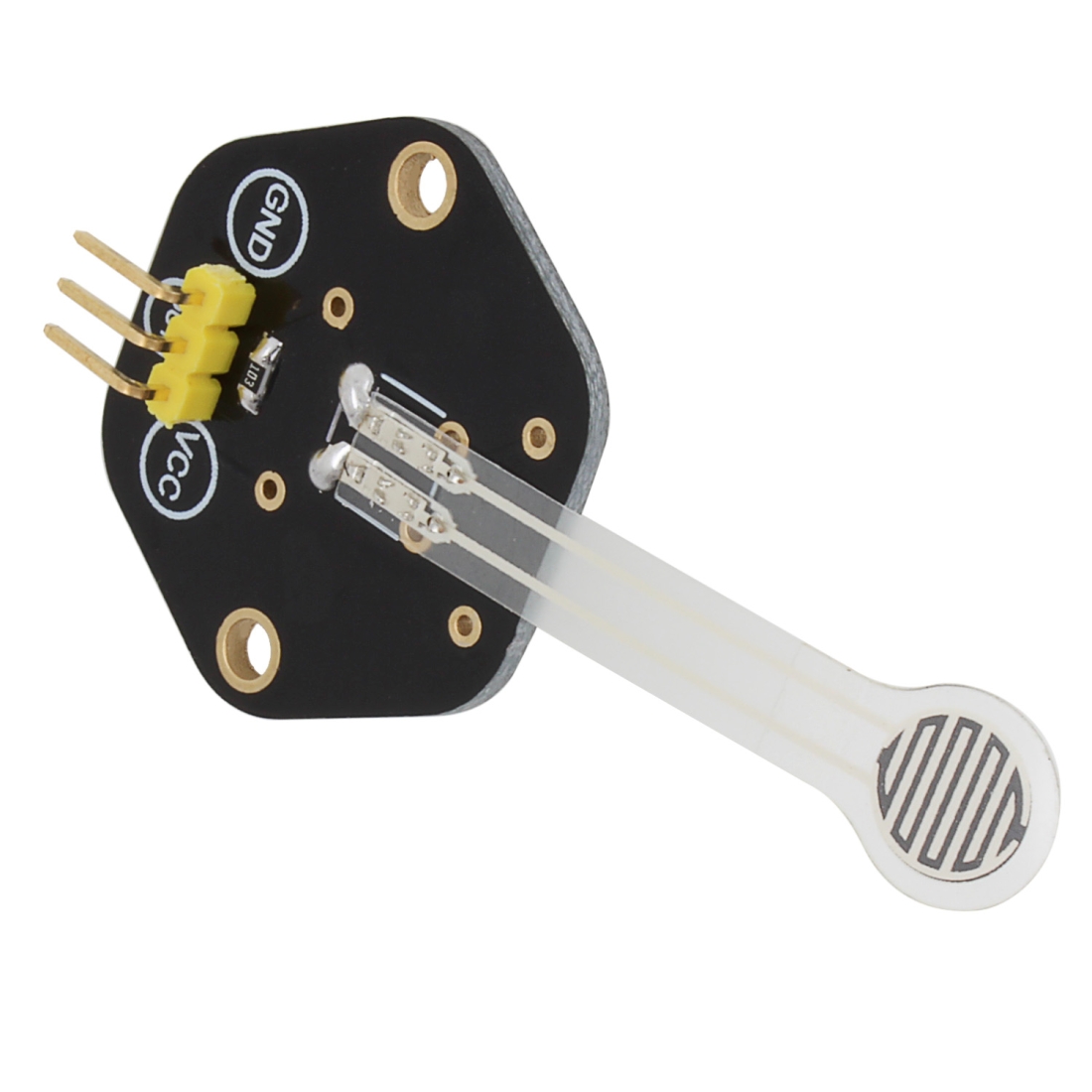

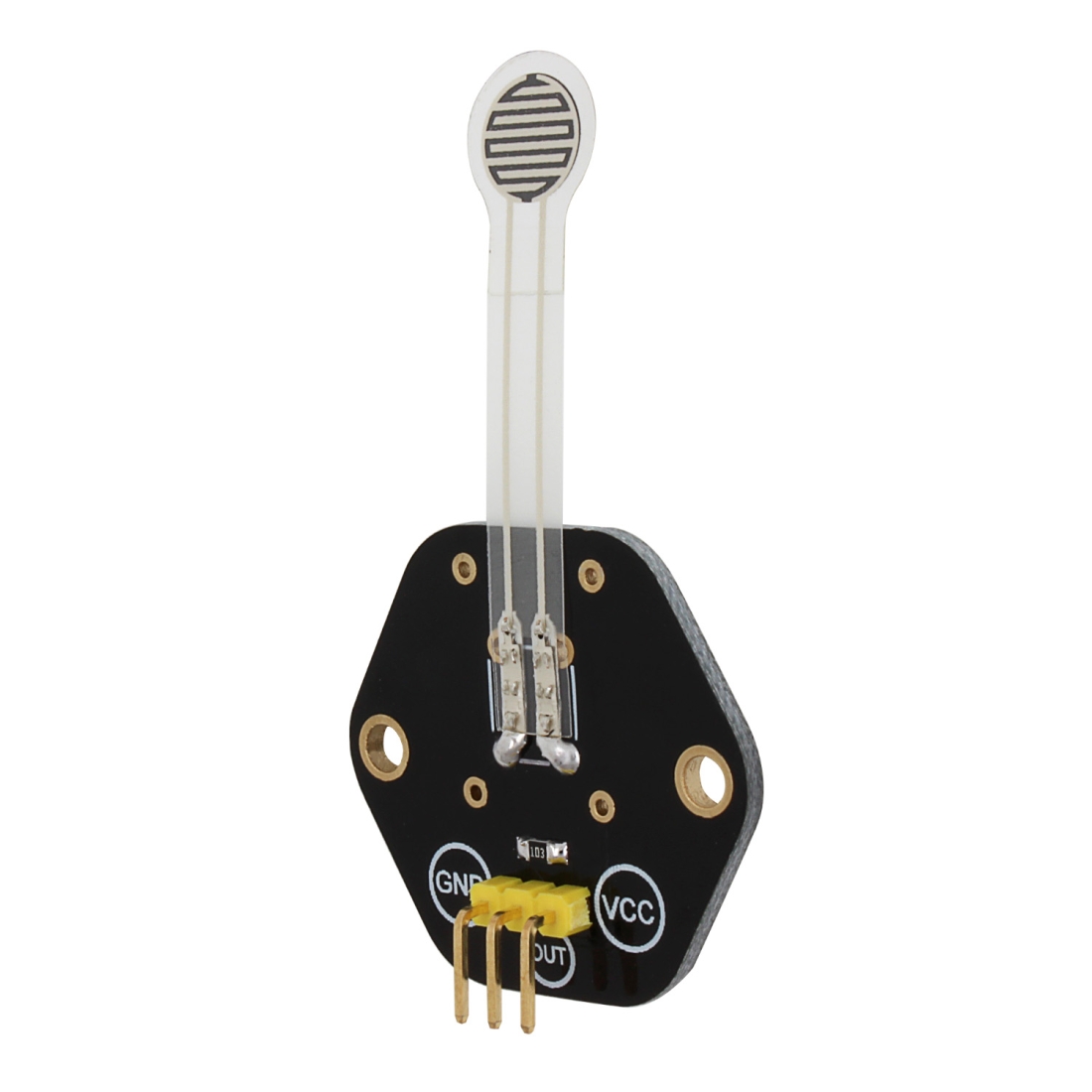

Force Sensitive Resistor Sensor Module, Simple to Use, Easy to Convert Pressure to Voltage Signal. FSRs are basically a resistor that changes its resistive value (ohm) depending on how much it is pressed. The FSR is made of 2 layers separated by a spacer. The more one presses, the more of those Active Element dots touch the semiconductor and that makes the resistance go down. FSR sensor module consists of thin film pressure resistor and 10k ohm resistor in series, the greater the pressure in the sensing area, the higher the output voltage. Even if you touch it the with your fingers, the output will change and induction is very sensitive. Features: 1.Working Voltage VCC: 5.5V DC(MAX). 2.Working Current: 1 mAh(MAX). 3.Pressure Scale: 0-50N. 4.Response time: less than 10m / s. 5.Recovery Time: less than 40m / s. 6.Sensing area diameter: 9mm. 7.Total length of the FSR resistor: 40mm. 8.Application: Detecting the pressure. 9.Dimensions: 5.5cm x 3cm x 0.8 cm. 10.Weight: 2.4g. Packing List: 5kg FSR Module x 1 Plastic Box x 1

Specifications

SKU

DIY7954B

Category

Consumer Electronics › Arduino & SCM Supplies › Sensor Module

Weight

0.032 kg

Delivery

Standard delivery
