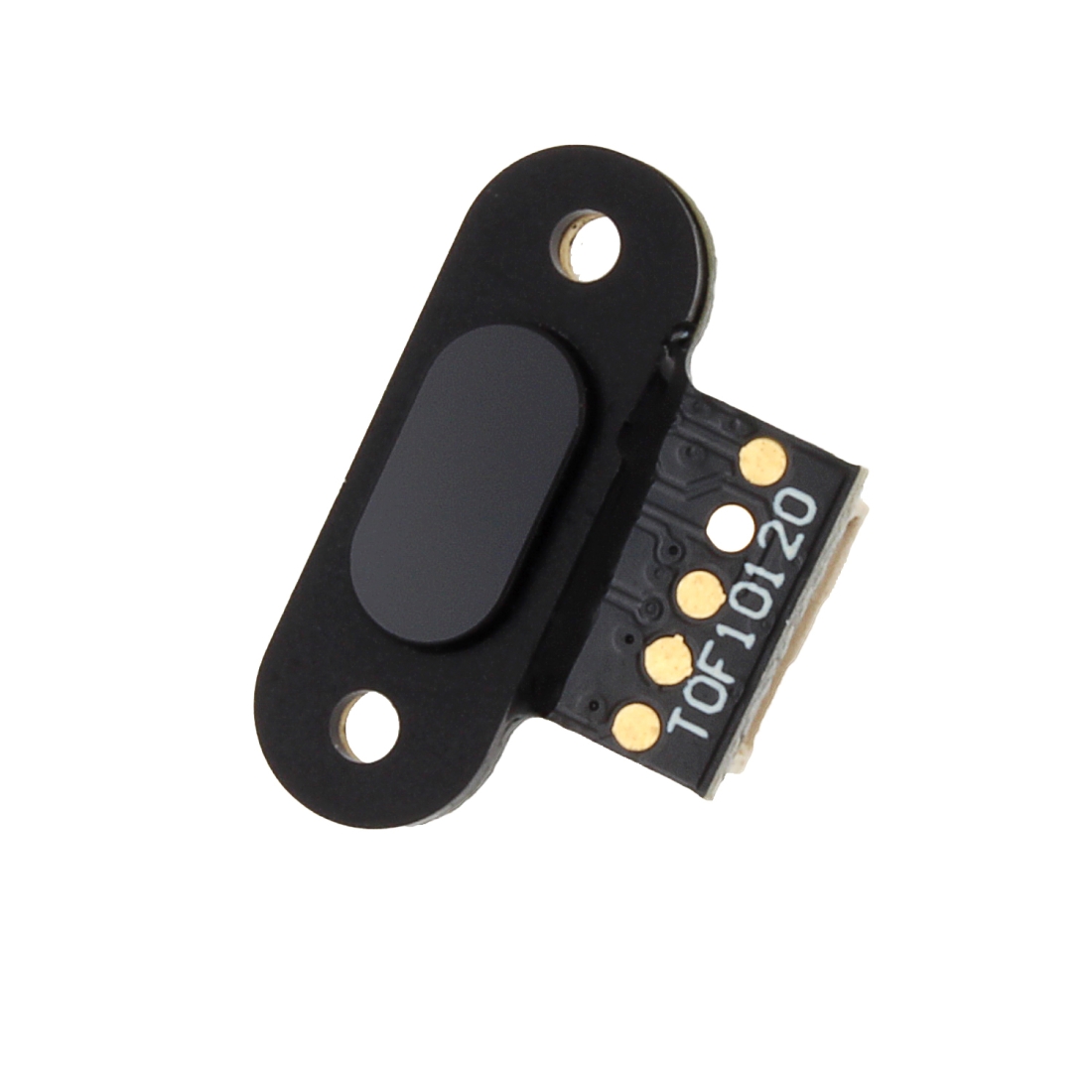

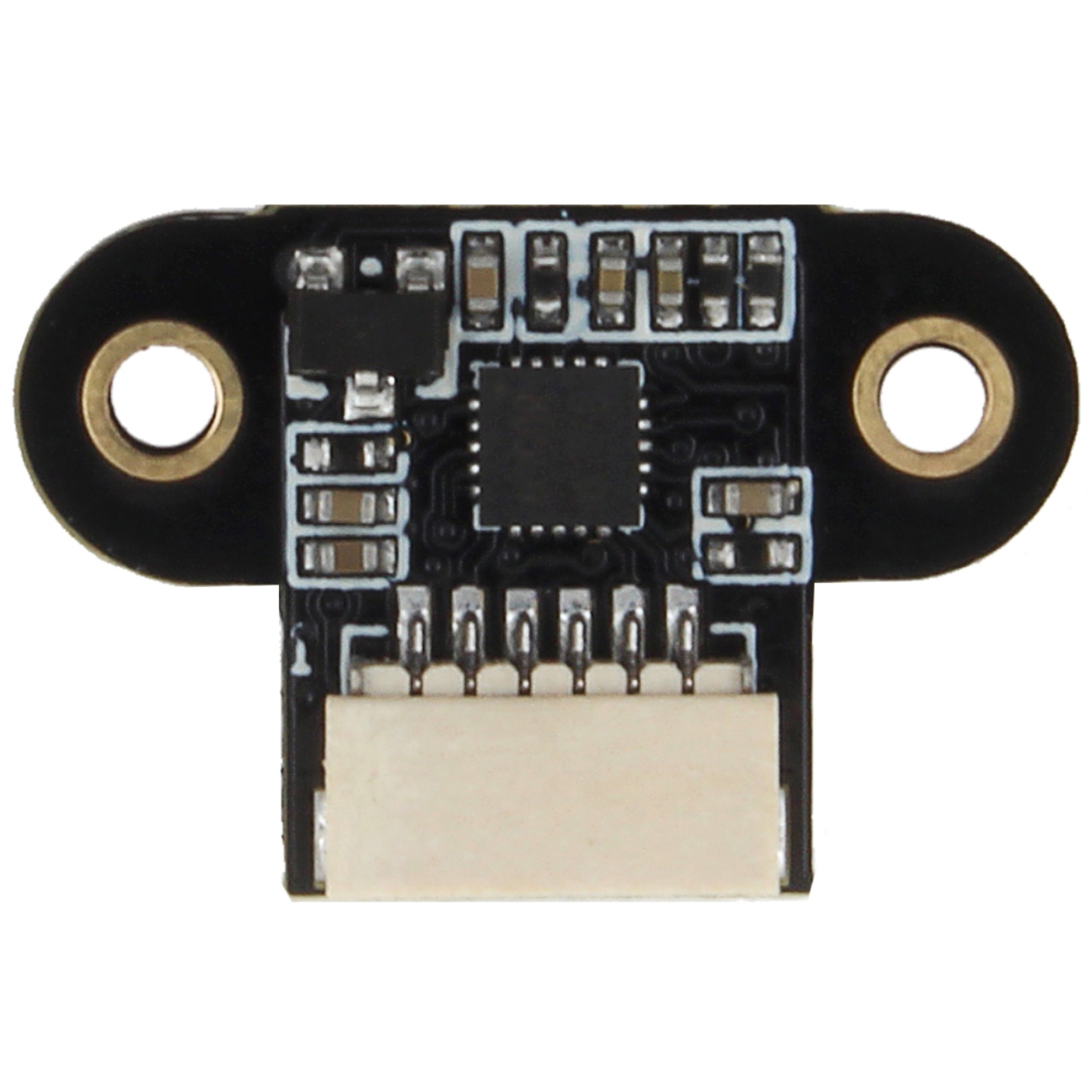

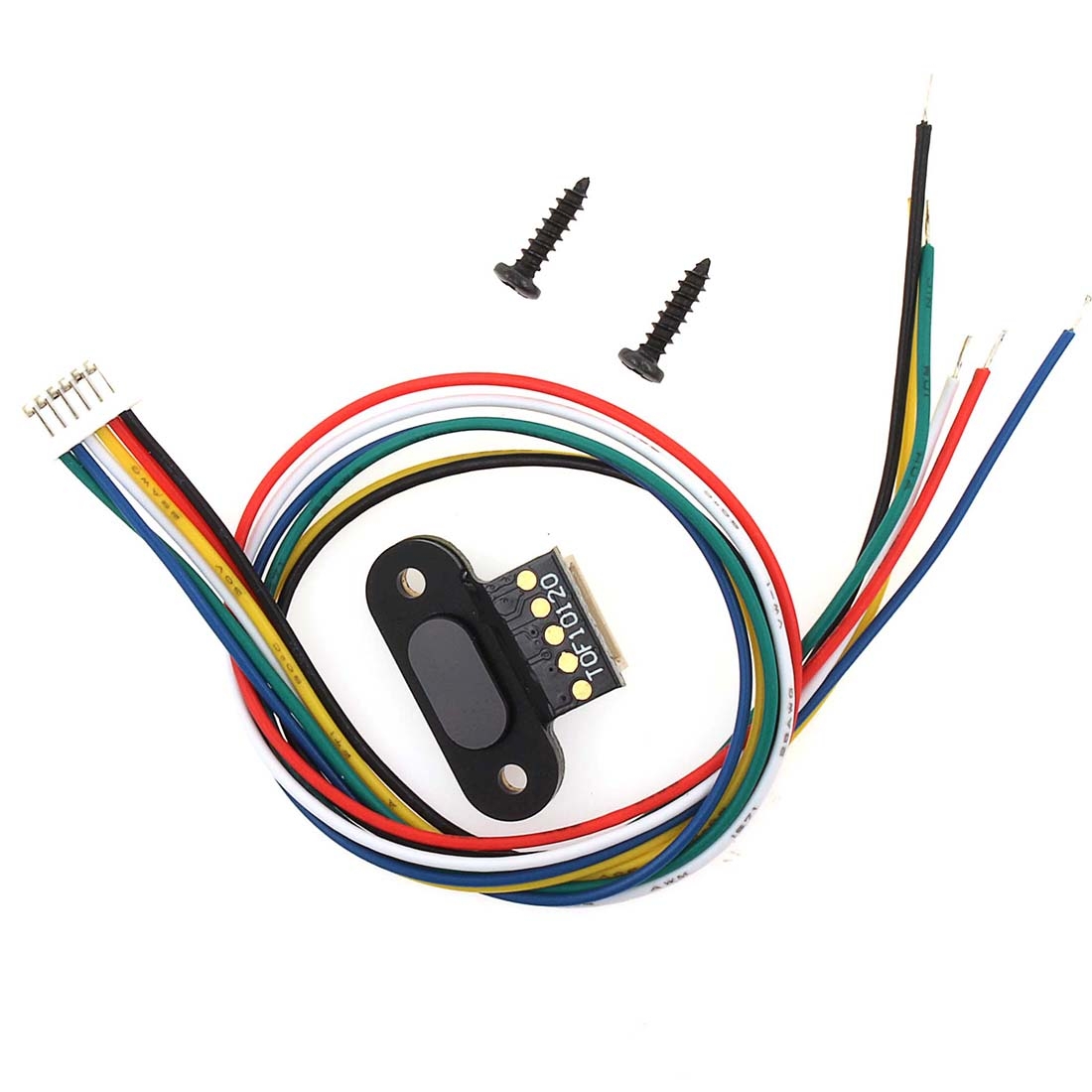

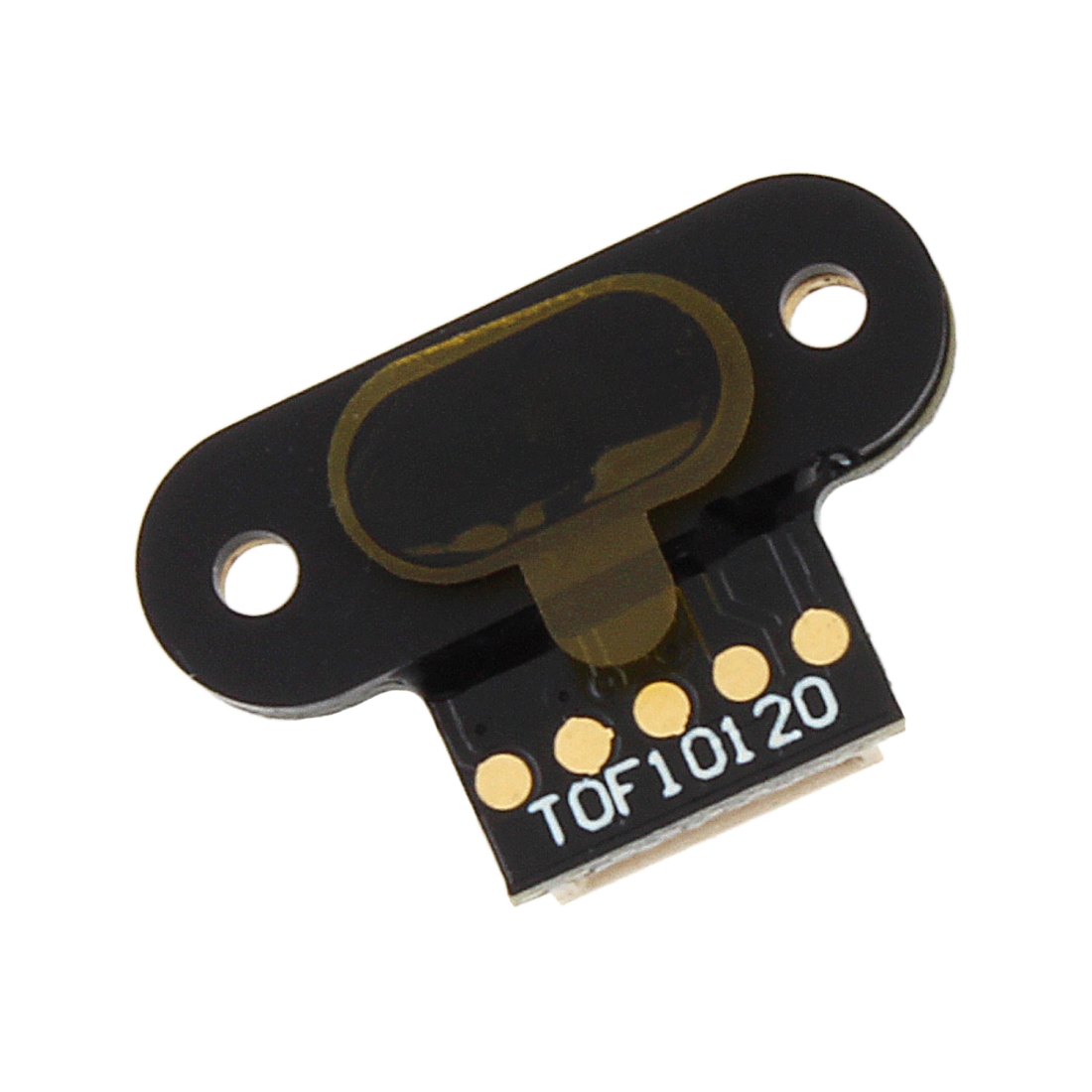

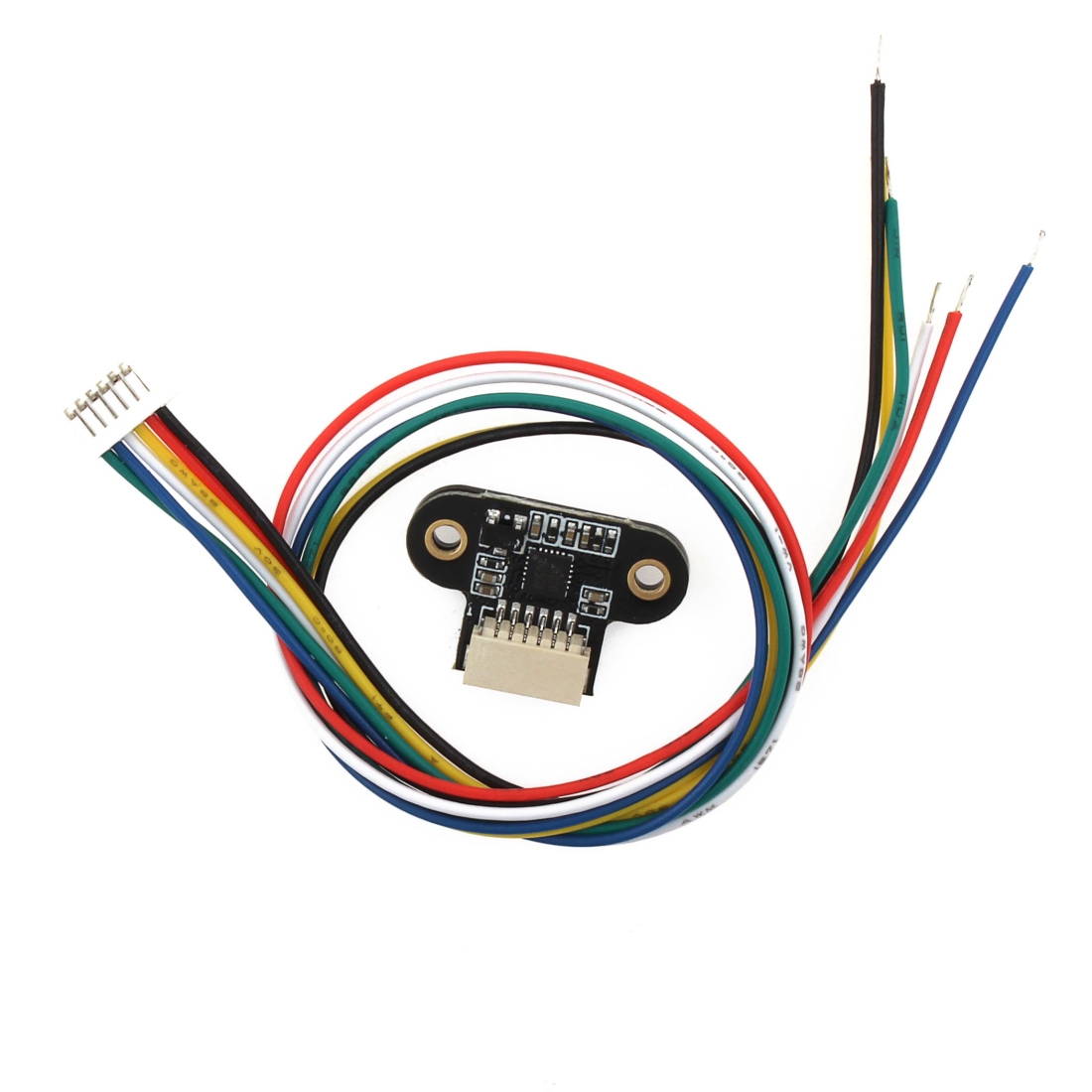

LandaTianrui LDTR-RM038 100 - 180mm Accurate Range Sensor for Smart Car / Robot / Distance Measuring(Black)

Product Description

TOF10120 range sensor provides accurate and repeatable long range distance measurement for high-speed autofocus (AF). The innovative time-of-flight technology allows performance independent of object reflectance. TOF10120 is time-of-flight sensing technology is realized by Sharp is original SPAD (Single Photon Avalanche Diodes ) using low-cost standard CMOS process. It enables accura te ranging result, higher immunity to ambient light and better robustness to cover-glass optical cross-talk by special optical package design. Features: 1.940nm laser classified as class 1 under operation condition by IEC 60825-1: 2014-3rd edition. 2.Small ceramic package: 20 x 13.2 x 2.0mm. 3.Long range absolute range m easurement up to 1.8m within 5 percent accuracy at indoor. 4.Reported range is independent of the target reflectance. 5.Operates in high infrared ambient light levels. 6.Advanced optical cross-talk compensation. 7.High speed ranging MAX 30m / s. 8.Standard solder reflow compatible. 9.No additional optics. 10.Single power supply. 11.Txd interface for device control and data transfer. 12.Lead-free, RoHS compliant. 13.Ranging Range: 100 - 180mm. 14.VCC: 3-5V. 15.ICC_VDD: 35mAh. 16.Topr: -20 to 70 degree celsius. 17.Tstg: -40 to 85 degree celsius. 18.Weight: 5g. 19.Material: FR4. Applications: 1.Application: Arduino experiments. 2.High-speed AF. 3.Continuous AF for video. 4.User detection for Personal Computers/Laptops/Tablets 5.Robotics (obstacle detection). 6.White goods (hand detection in automatic Faucets, refrigerator etc.) . Packing List: Accurate Range Sensor x 1 Cable x 1 Screw x 2

Specifications

SKU

DIY7956B

Category

Consumer Electronics › Arduino & SCM Supplies › Sensor Module

Weight

0.034 kg

Delivery

Standard delivery
