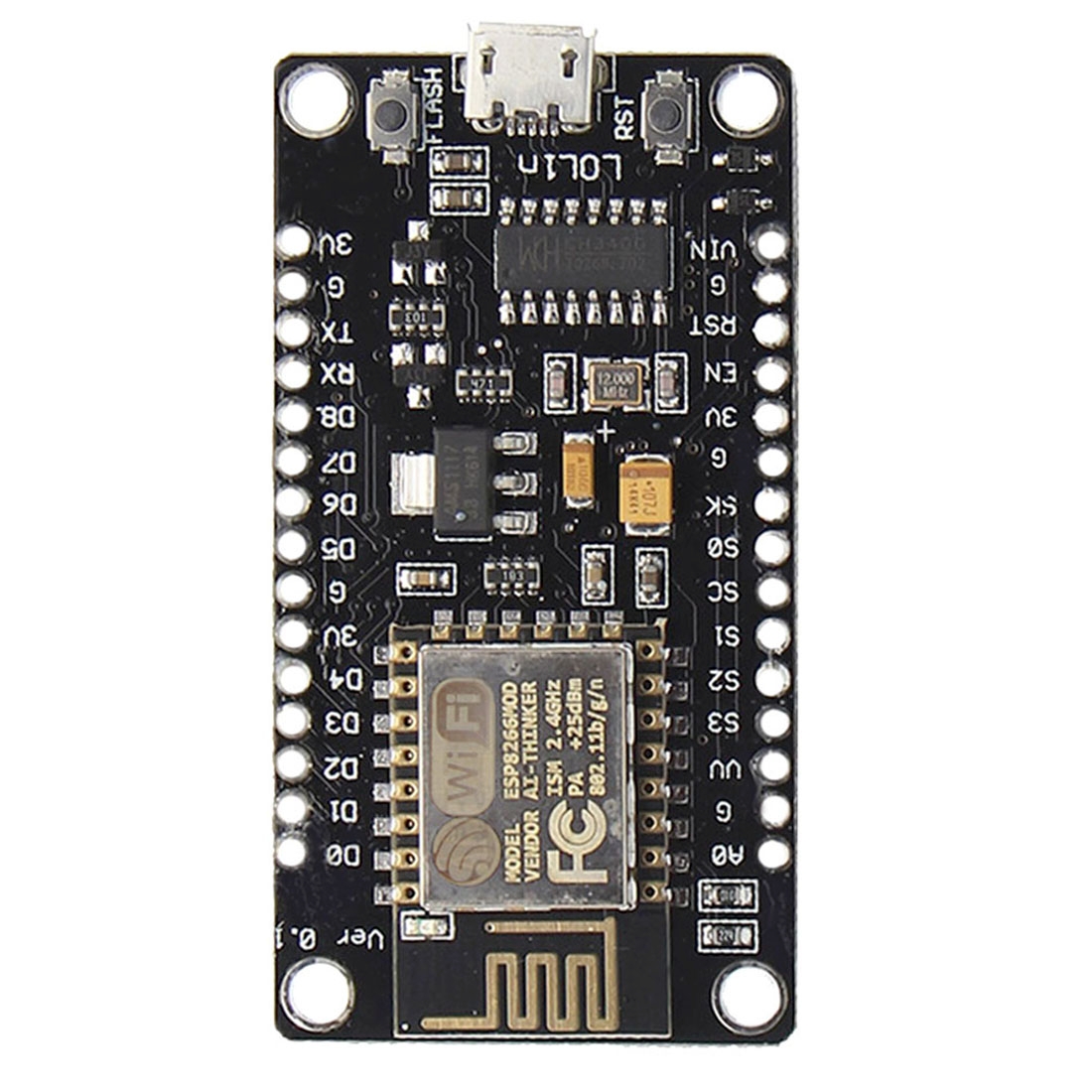

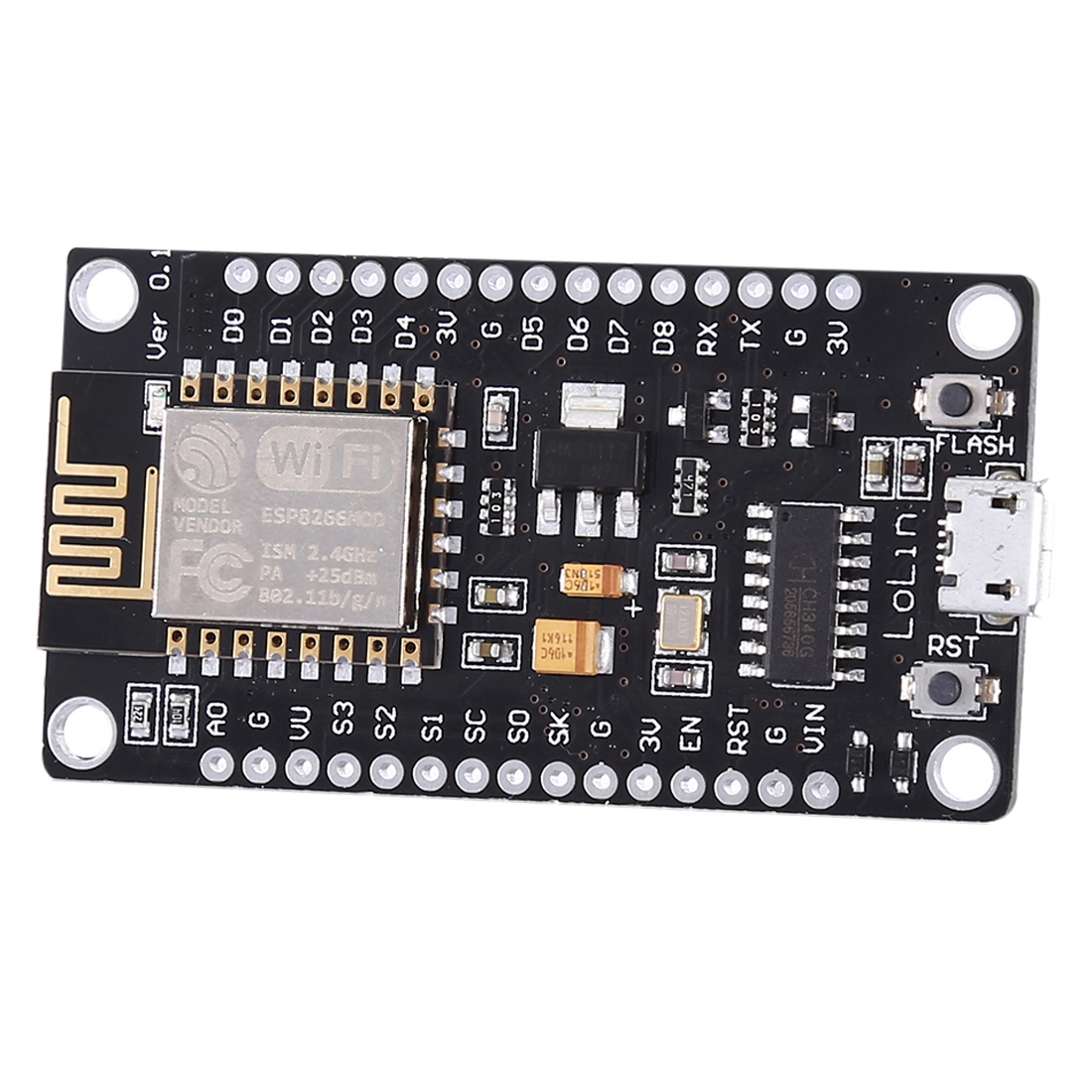

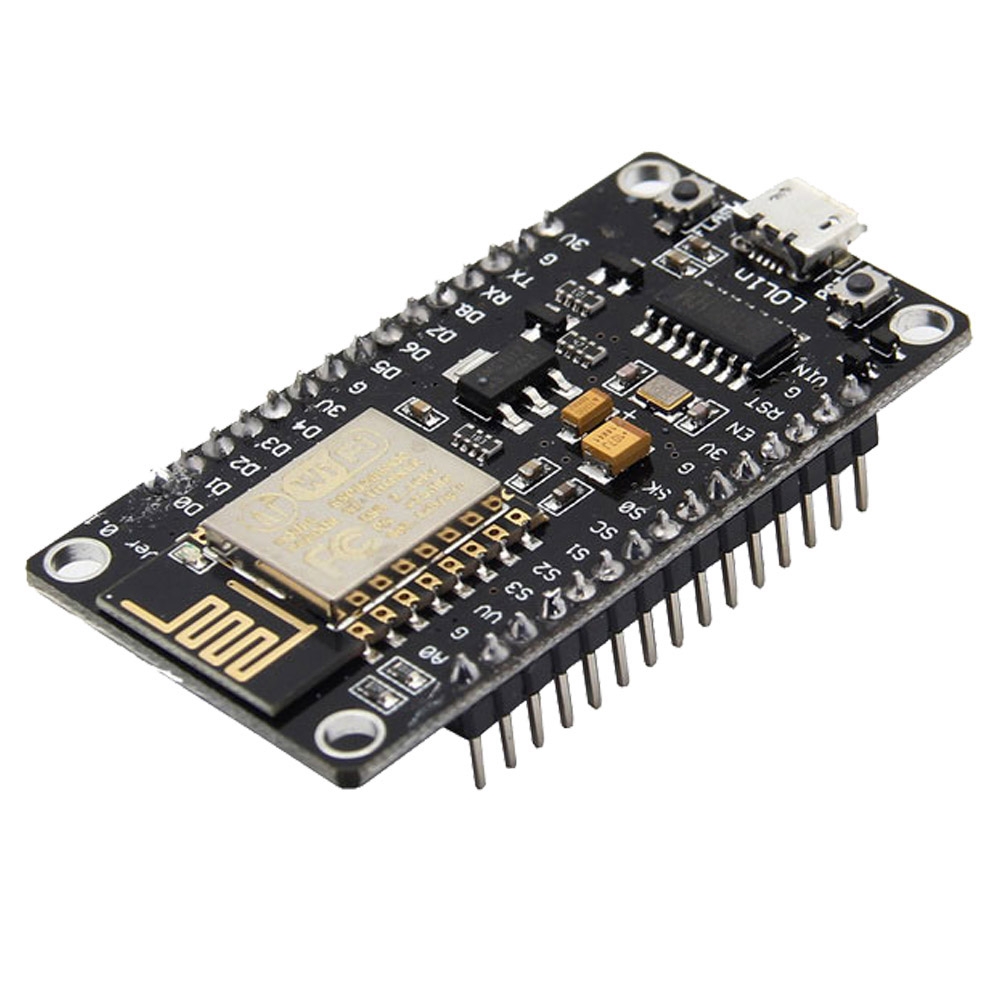

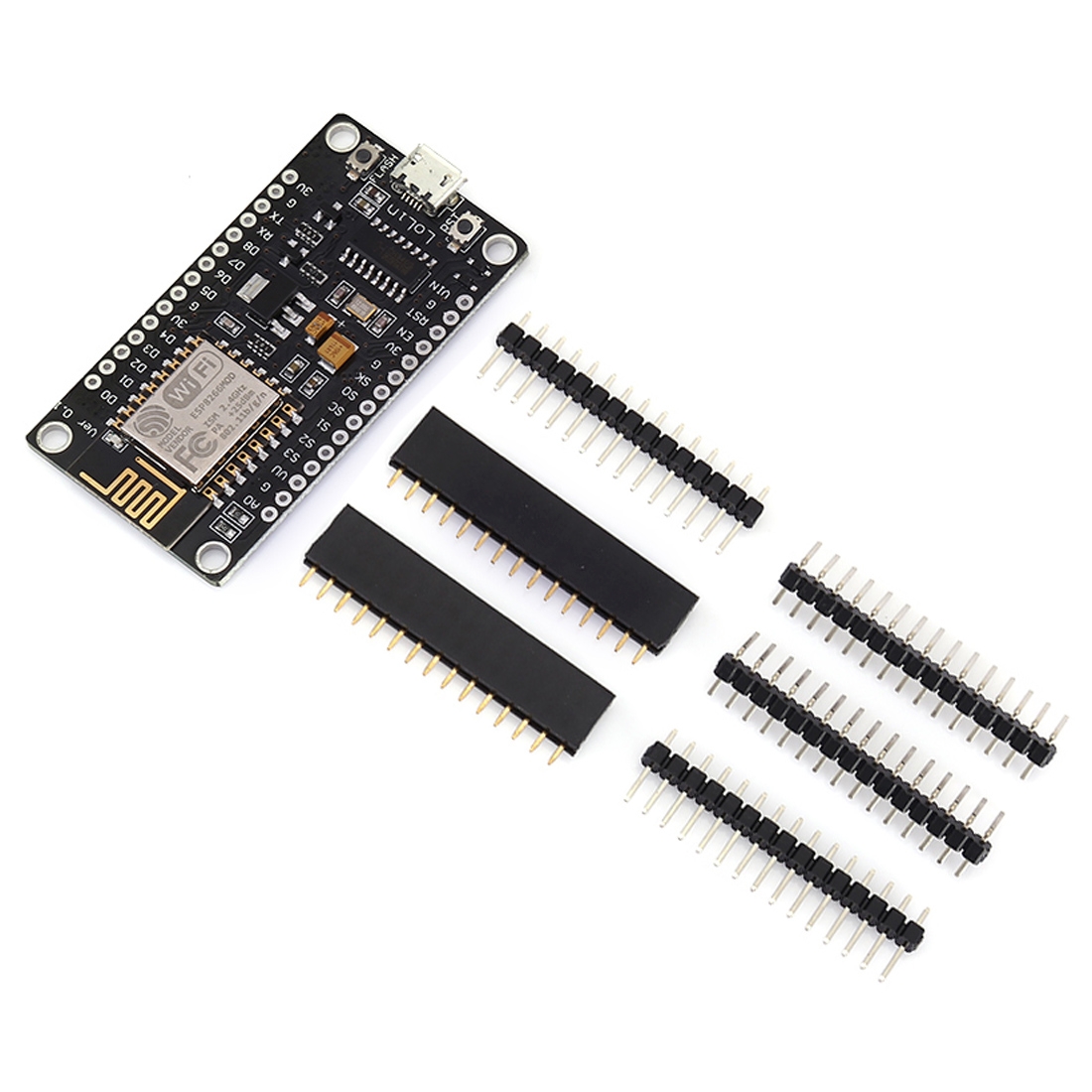

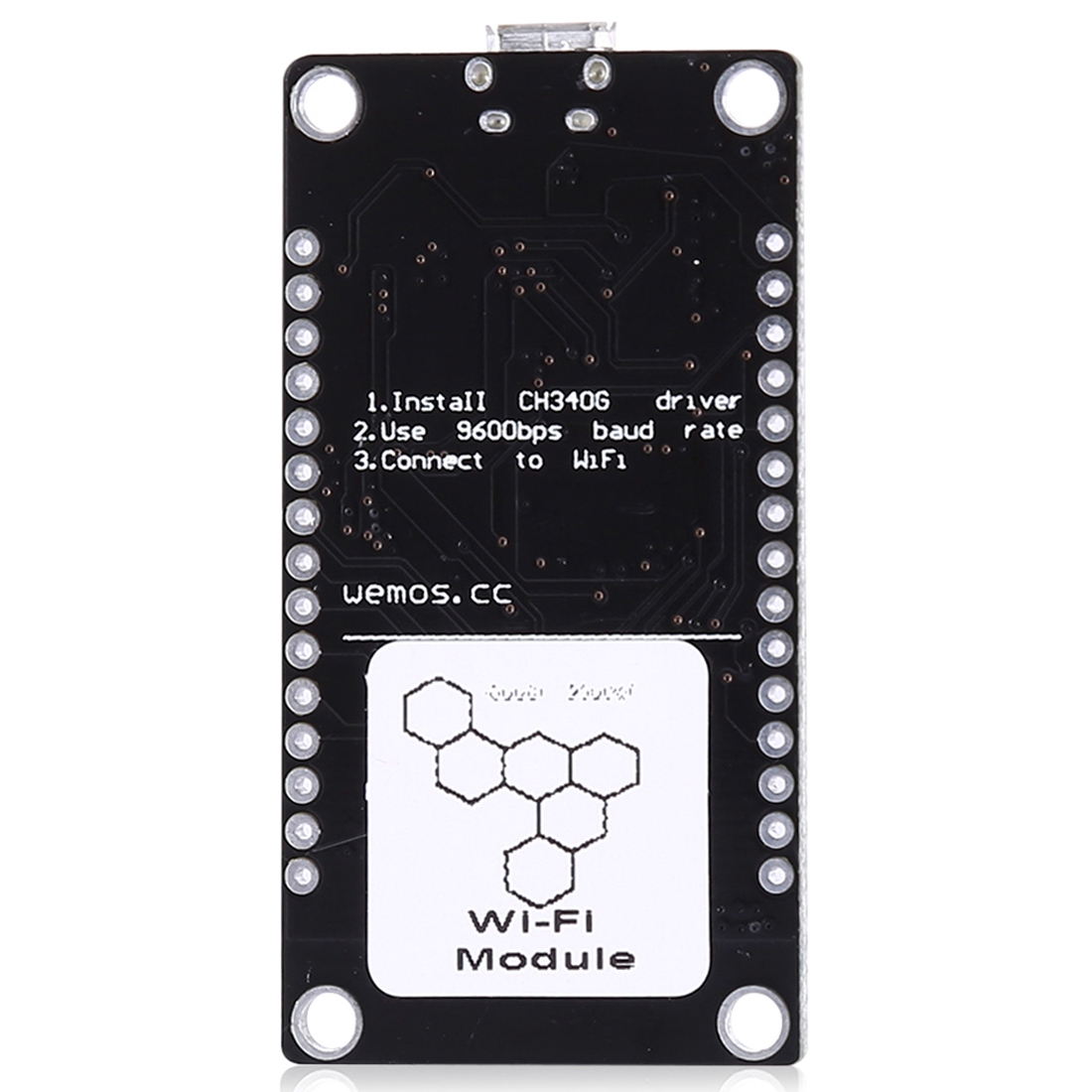

LandaTianrui LDTR-WG0131 ESP8266 Series WiFi Development Board, Compatible with CH340(Black)

Product Description

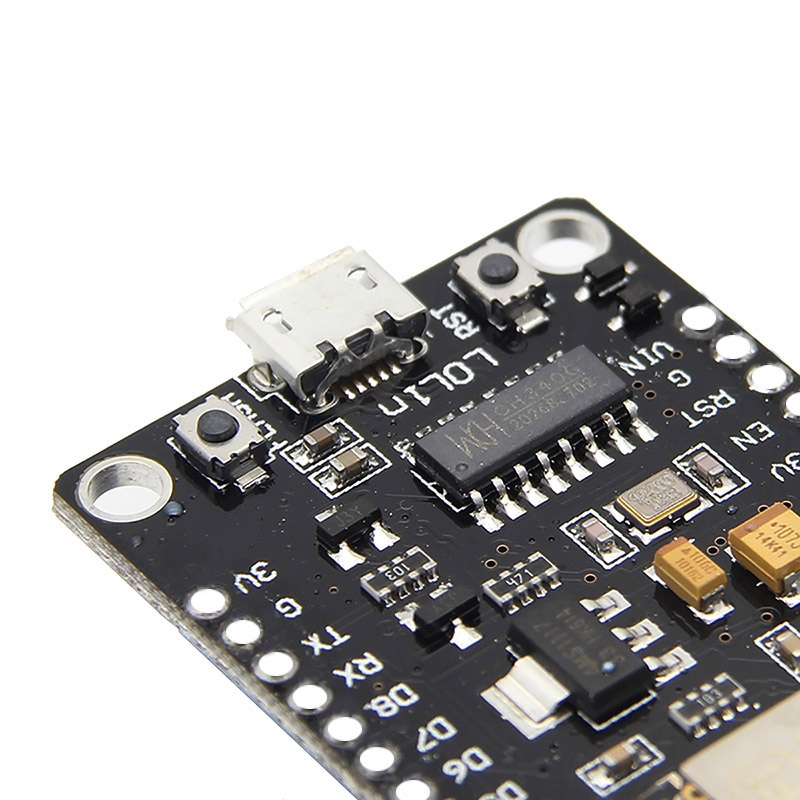

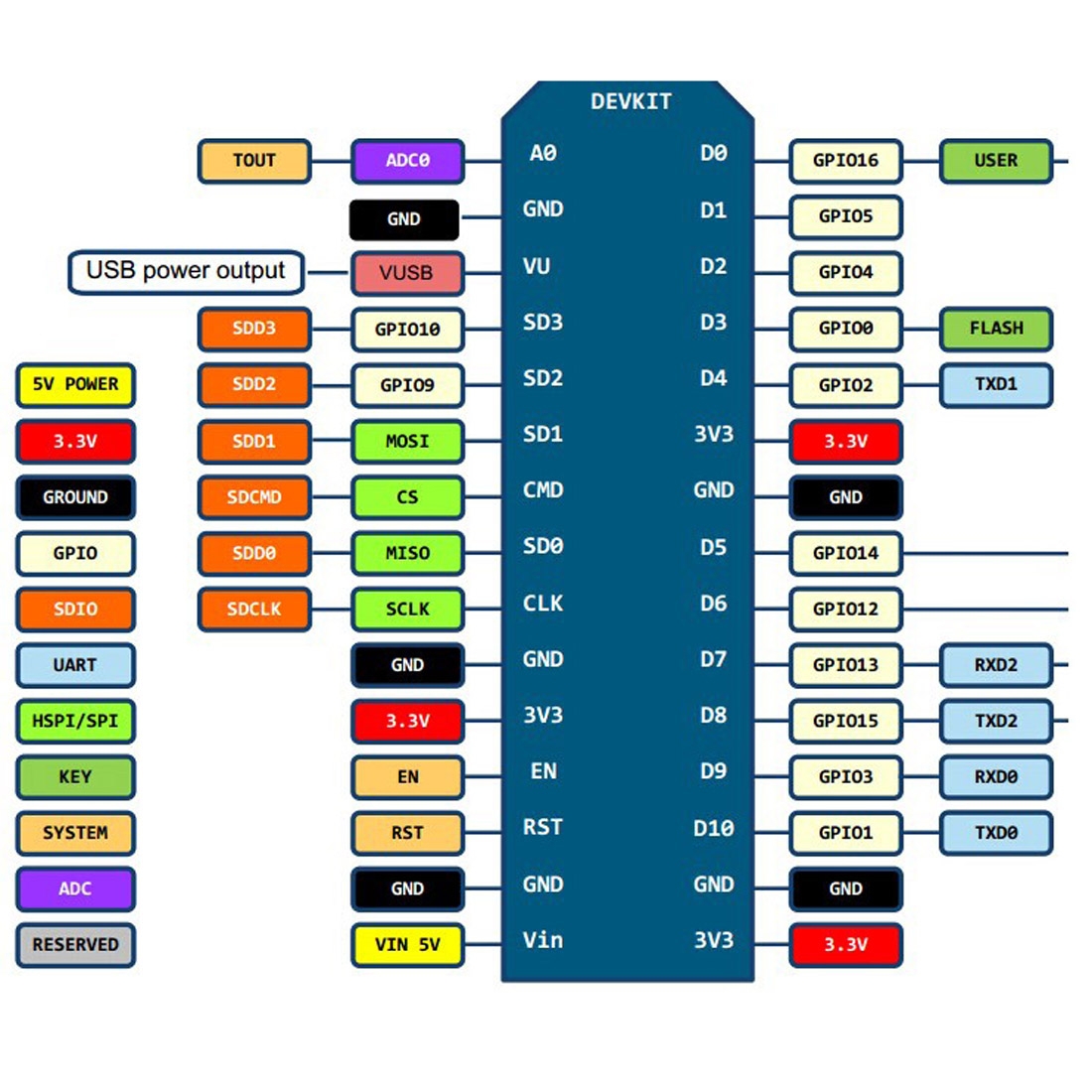

1. Support Windows 98 / ME / 2000 / XP / Server 2003 / VISTA / Server 2008 / Win7 / Win8 / Win8.1 32 / 64 bit and Mac system. 2. It contains the serial number and identification CH34X monitoring CH34X equipment swap library. 3. Chipset: CH340. 4. Wireless 802.11 b/g/n standard. 5. Support STA / AP / STA + AP three operating modee. 6. Built-in TCP / IP protocol stack to support multiple TCP client connections (5 max.) D0-D8, SD1-SD3 (used as GPIO, PWM, IIC, etc.). 7. Port driver capability: 15mA 8. AD0: 1 channel ADC . 9. Power input: 4.5-9V (10V max.), USB powered. 10. Current: continuous transmission about 70mA (200mA max.), standby less 200uA. 11. Transfer rate: 110 - 460800bps. 12. Support UART / GPIO data communication interface. 13. Remote firmware upgrade (OTA). 14. Support smart link smart networking. 15. Working temperature: -40 - 125 Deg. C. 16. Drive type: dual high-power H-bridge driver.

Specifications

SKU

DIY0108B

Category

Consumer Electronics › Arduino & SCM Supplies › Boards & Shields

Weight

0.047 kg

Delivery

Standard delivery
