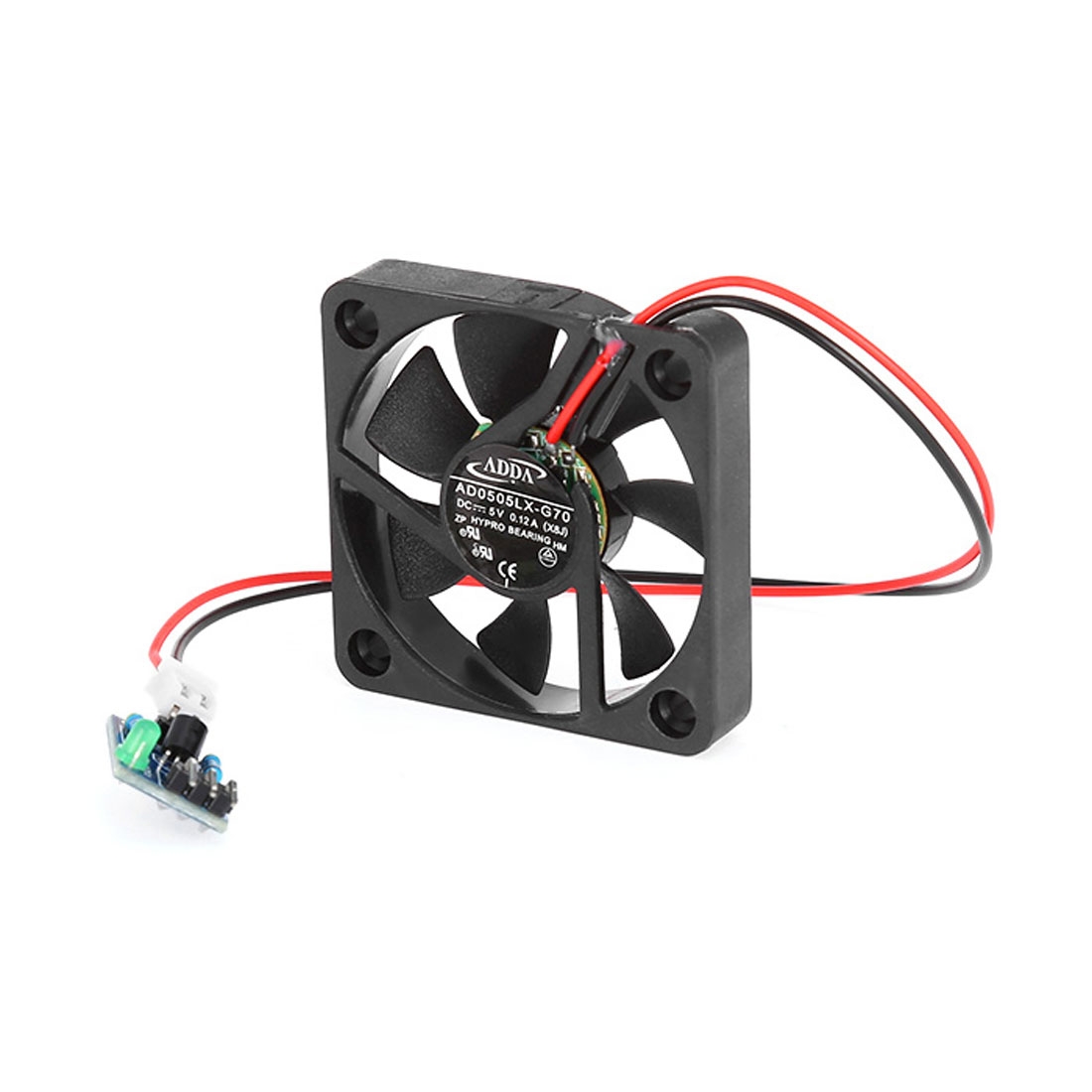

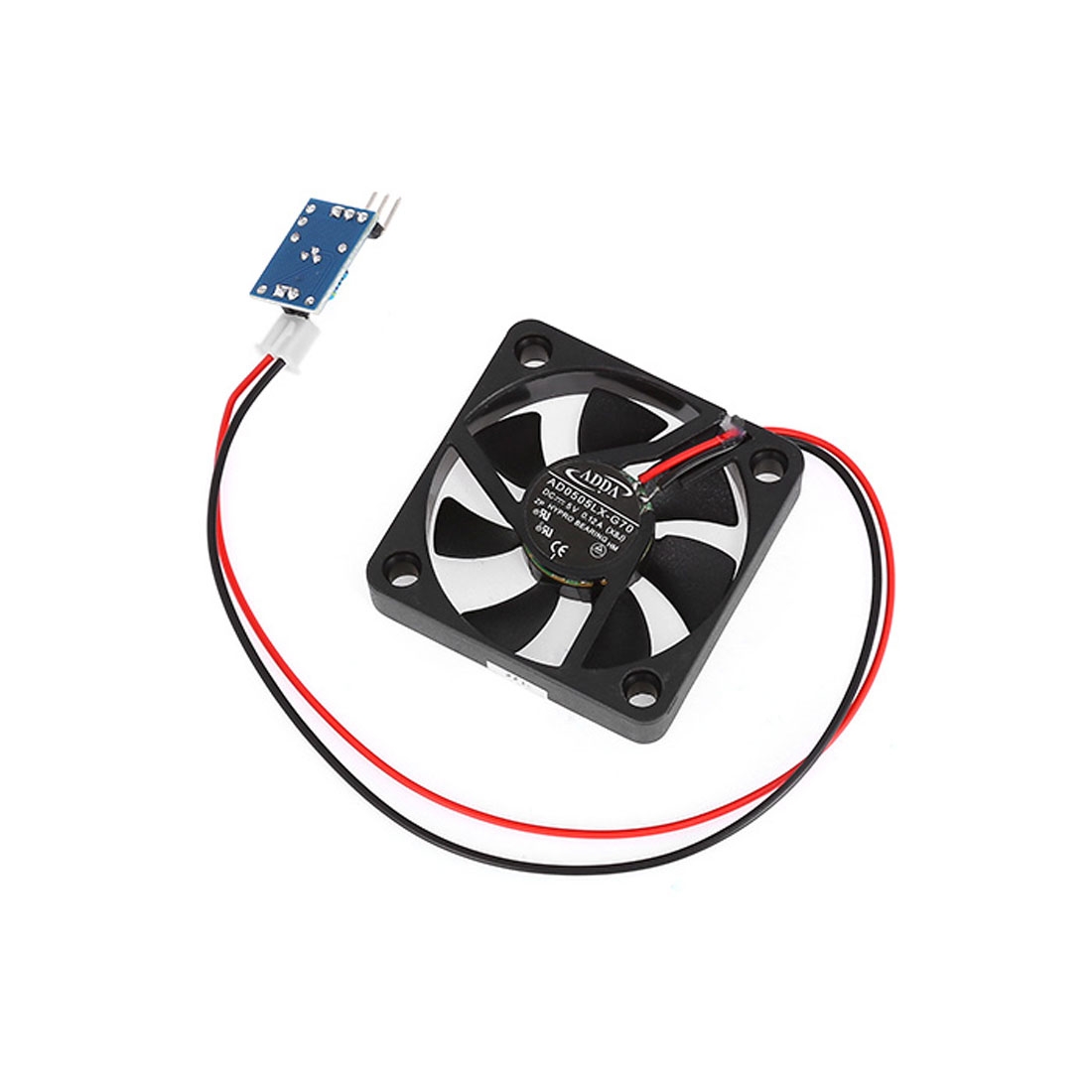

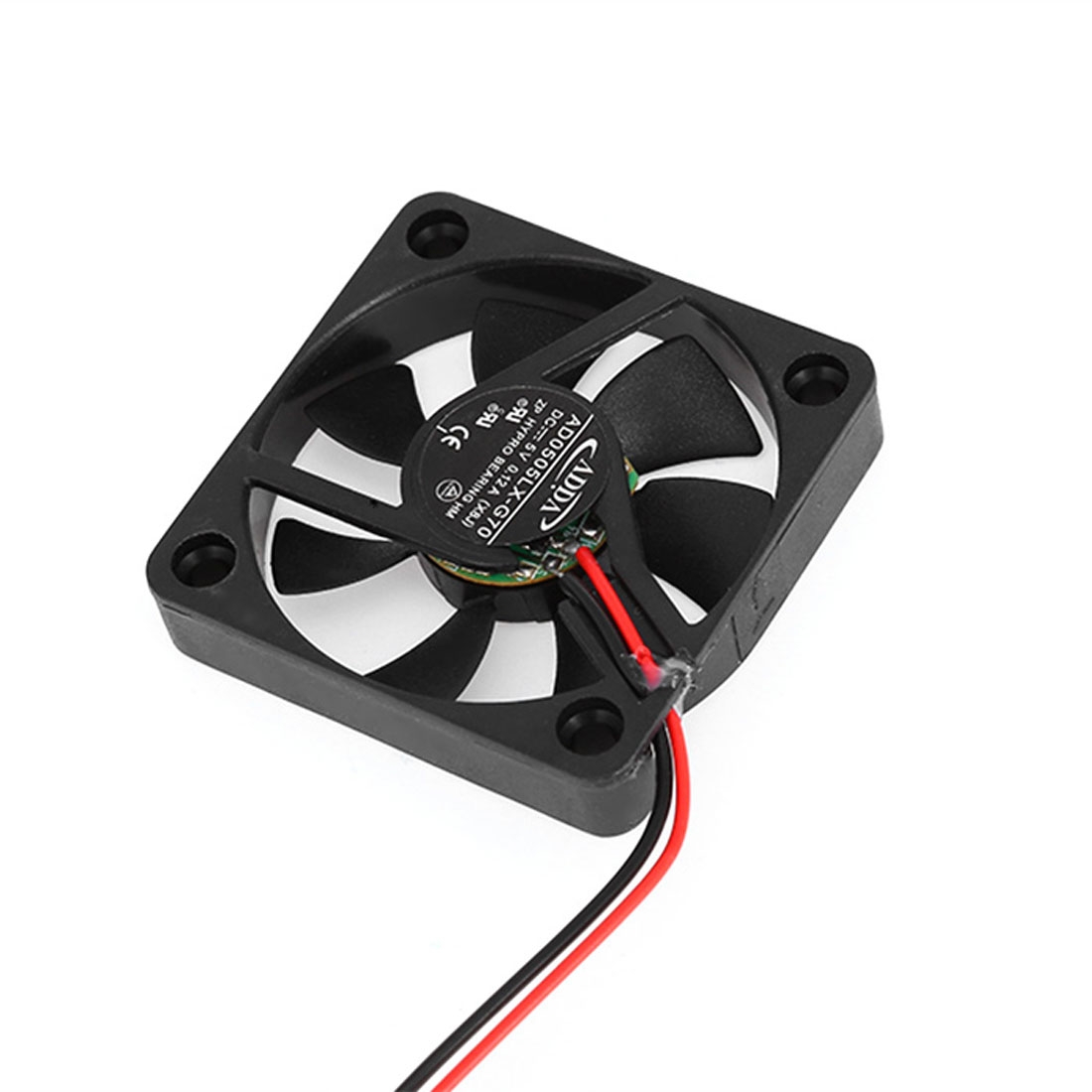

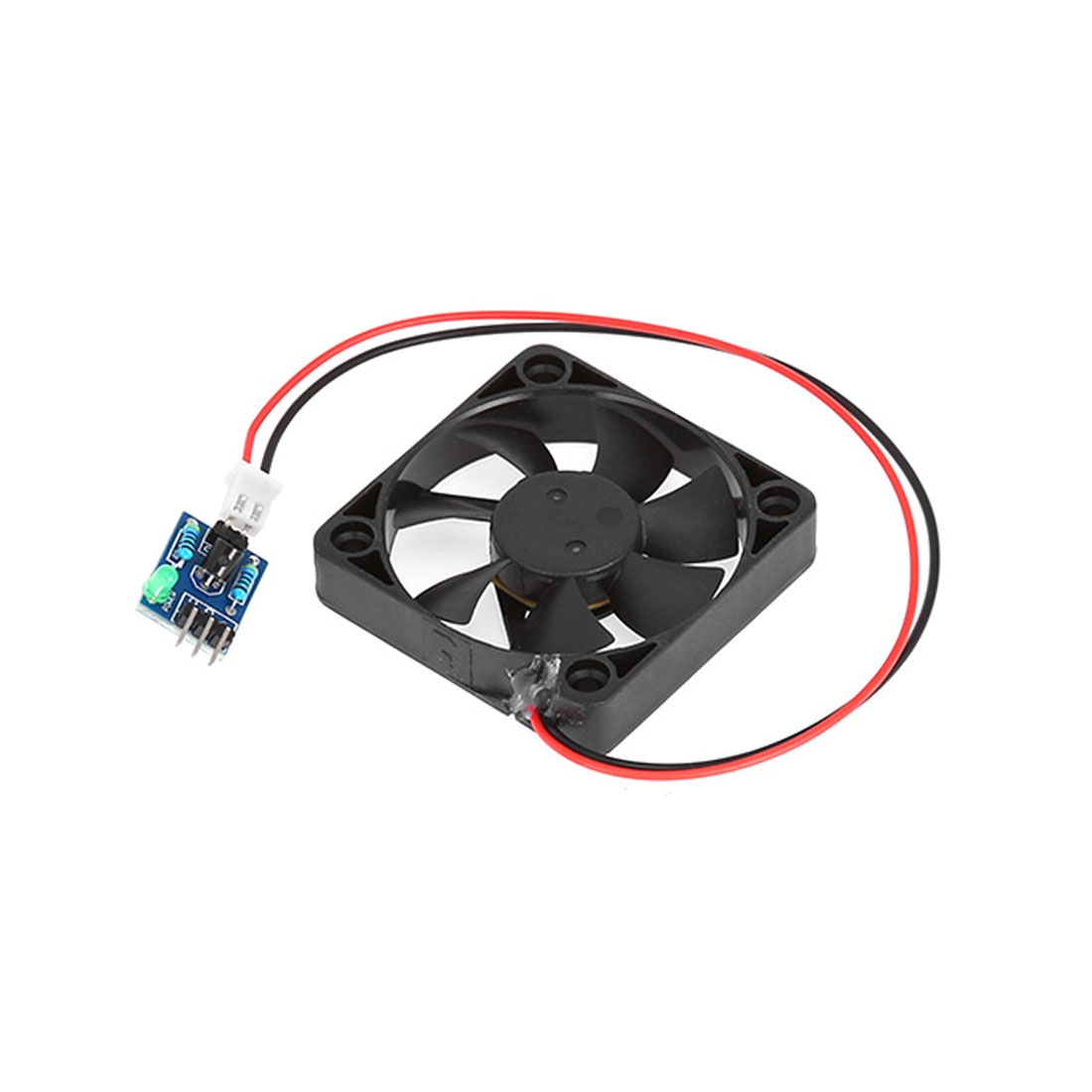

LDTR - B00012 Motor Speed Regulating Fan Module with Driving Board for Arduino DIY Project - Blue and Black

Product Description

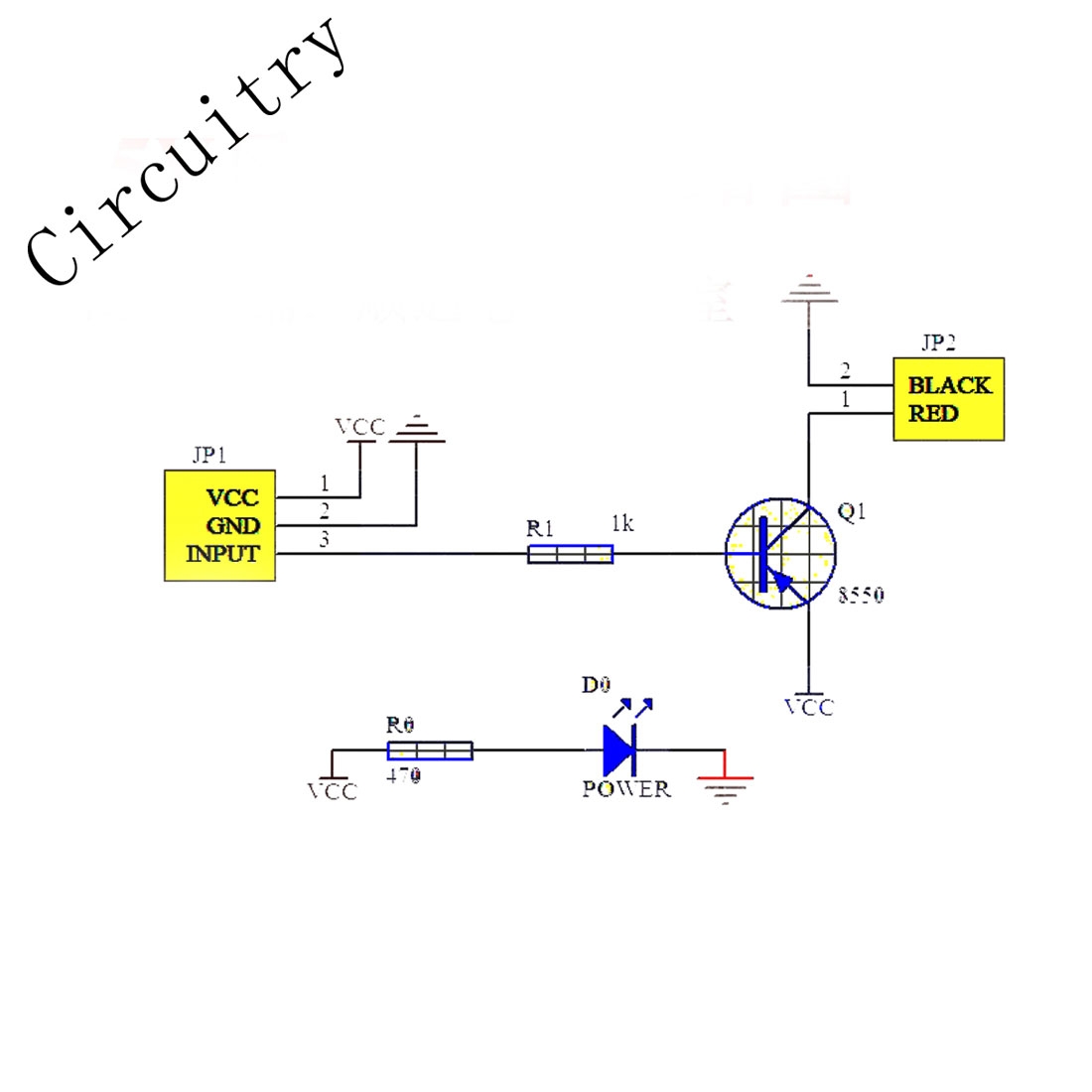

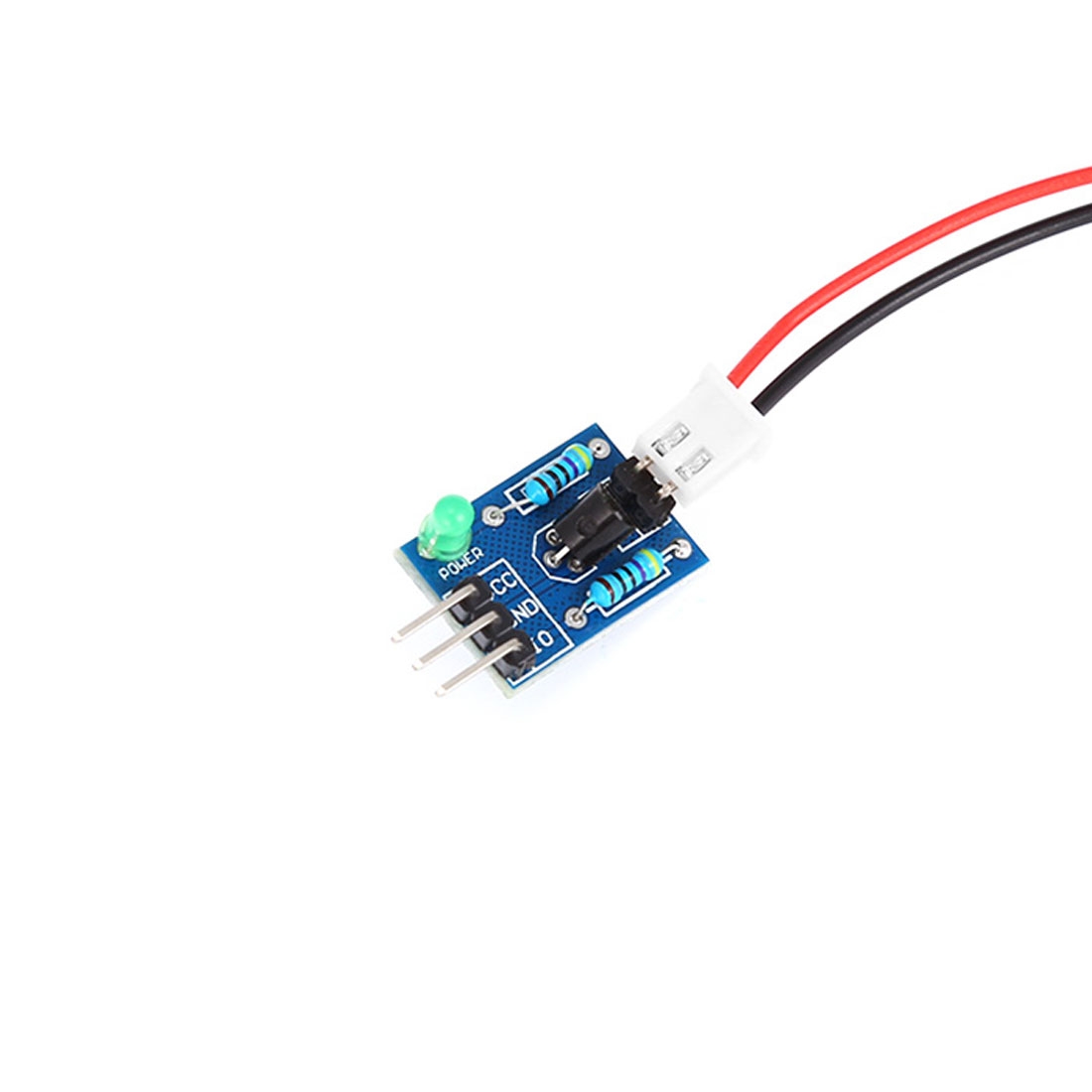

Main Features: 1. Starts up or stops 5V fan with controller port, and supports PWM speed control of fan with program 2. Power supply voltage input range: 3 - 6V DC 3. With LED indicator, it will light up after being switched on 4. Material: FR-4 5. Easy operation, can give rise to your interest in electronic circuits and enlighten your creative thinking Instruction of Wiring: 1. Connect input port VCC, GND to the power supply of controller or ground 2. Connect I / O to any I / O port of controller 3. Connect output port R to red wire of fan, B to black wire of fan 4. 5V fan can be started up when controller output low-level signal

Specifications

SKU

DIY3217

Category

Consumer Electronics › Arduino & SCM Supplies › Boards & Shields

Weight

0.028 kg
