LDTR - WG0094 WAVGAT D1 Mini I2C Dual Motor Driver Shield for TB6612FNG ( 1A ) V1.0.0

Product Description

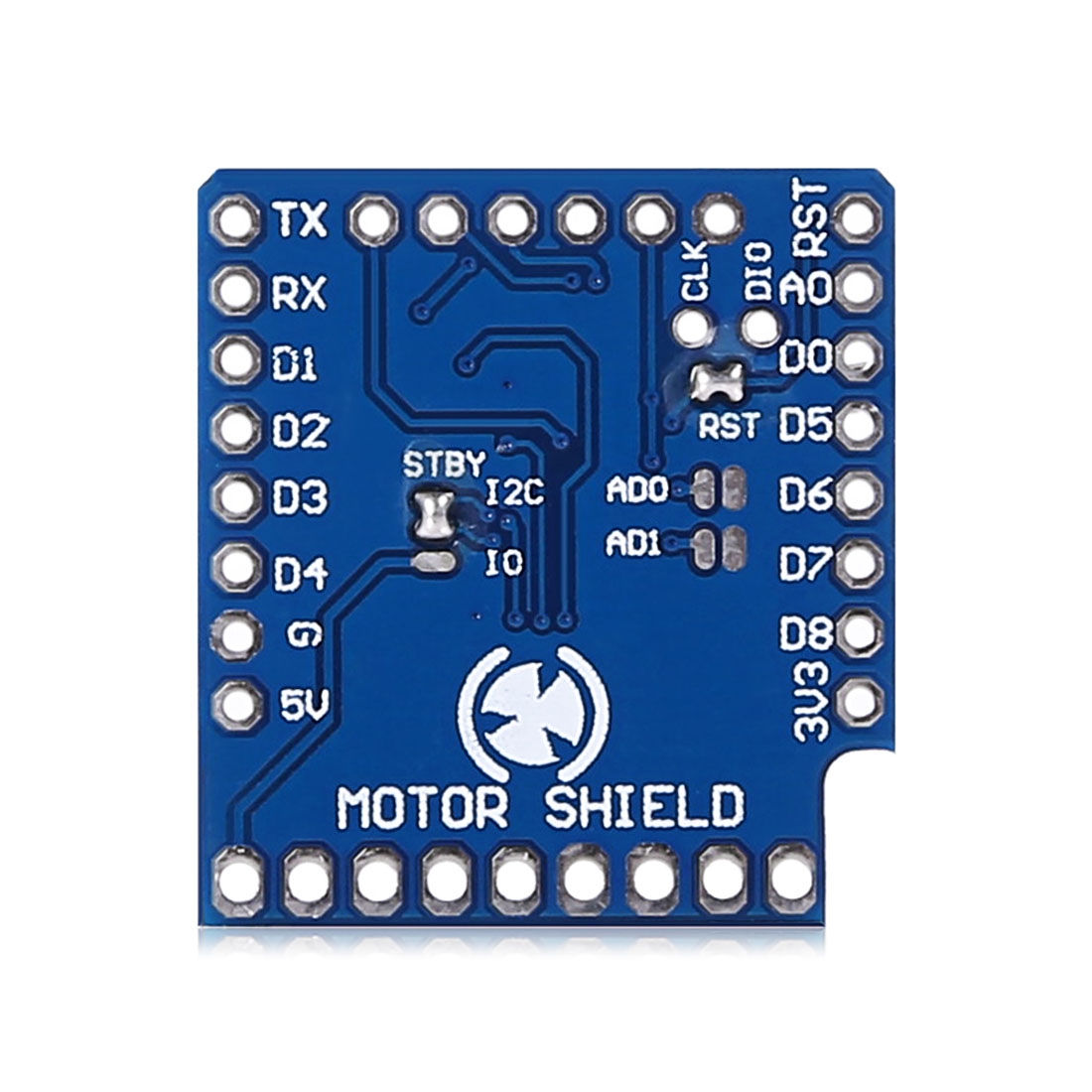

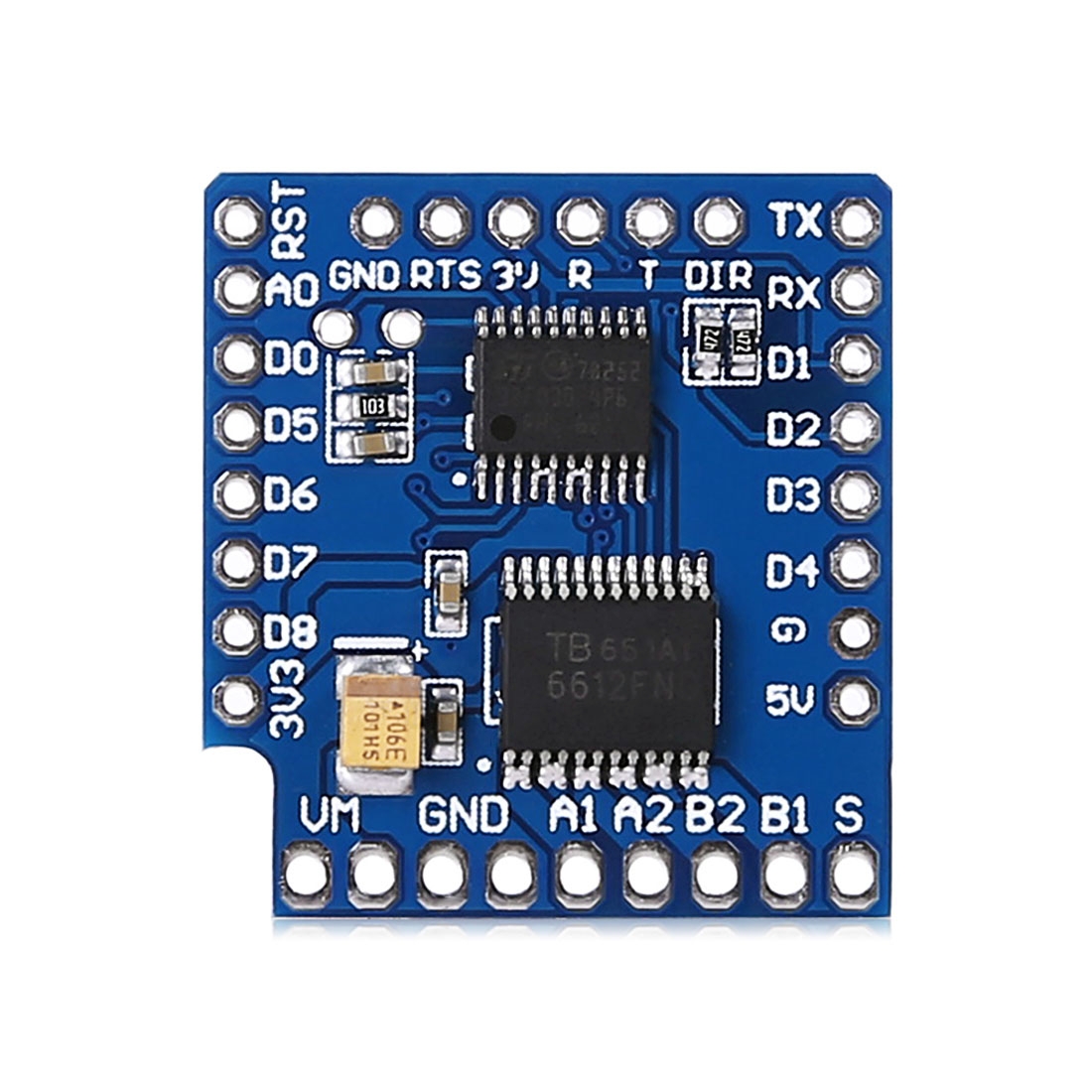

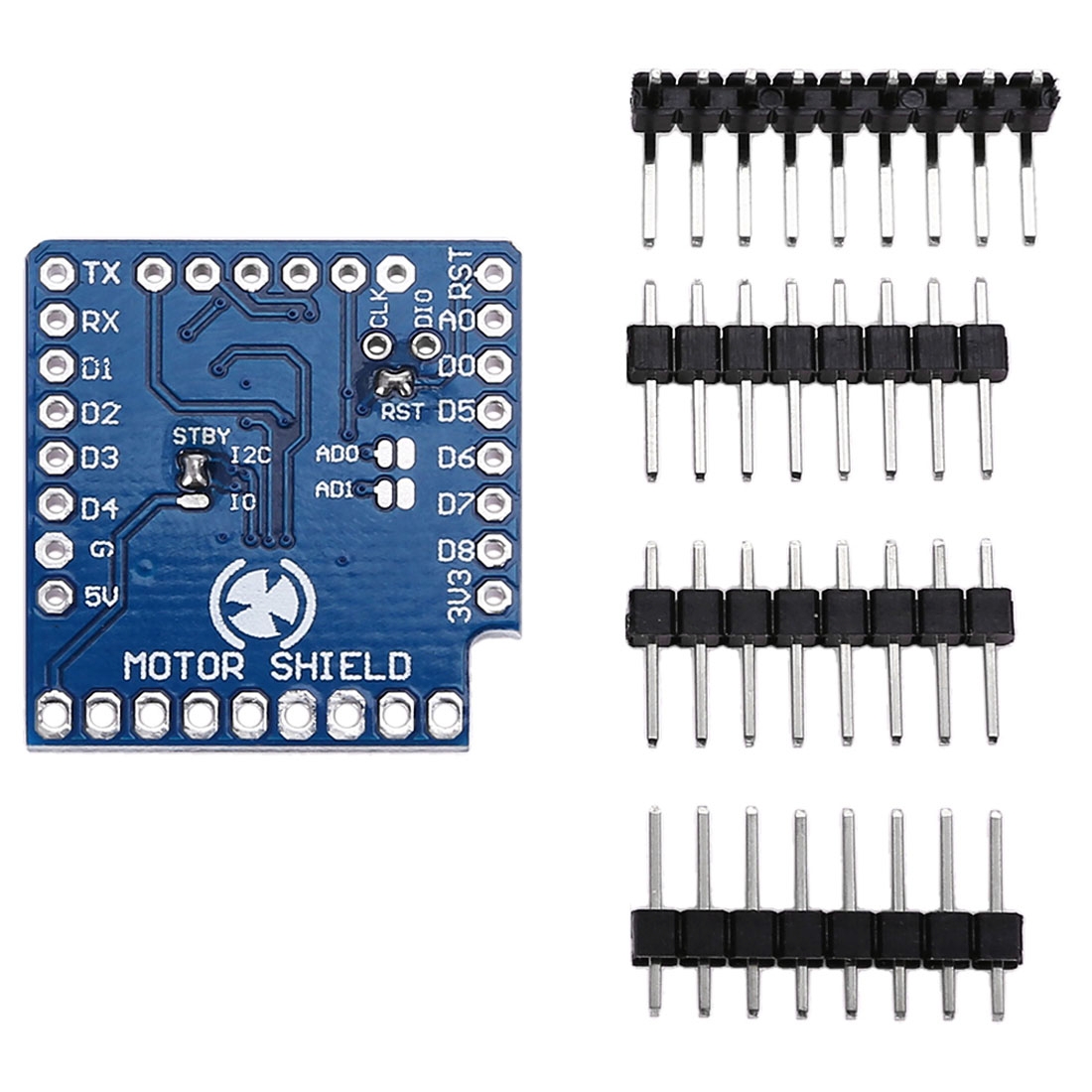

1. Interface: I2C 2. Power supply voltage: VM = 15V max 3. Output current: Iout = 1.2A ( average ) / 3.2A ( peak ) 4. Standby control to save power CW / CCW / short brake / stop motor control modes 5. VM: motor power supply+ 6. GND: motor power supply- 7. A1: Motor A A2: Motor A B2: Motor B B1: Motor B 8. S: stand by control port ( In io mode ) 9. Standby control mode-I2C mode: control TB6612's STBY with I2C protocol 10. IO mode: control TB6612's STBY with S pin 11. Shield reset mode: short: reset with d1 mini ( reset at power on or press d1 mini's reset button ); open: reset by DTR pin

Specifications

SKU

DIY9906

Category

Consumer Electronics › Arduino & SCM Supplies › Motor Module

Weight

0.028 kg
