LDTR-WG0158 STM32F103C8T6 STM32 Development Board

Product Description

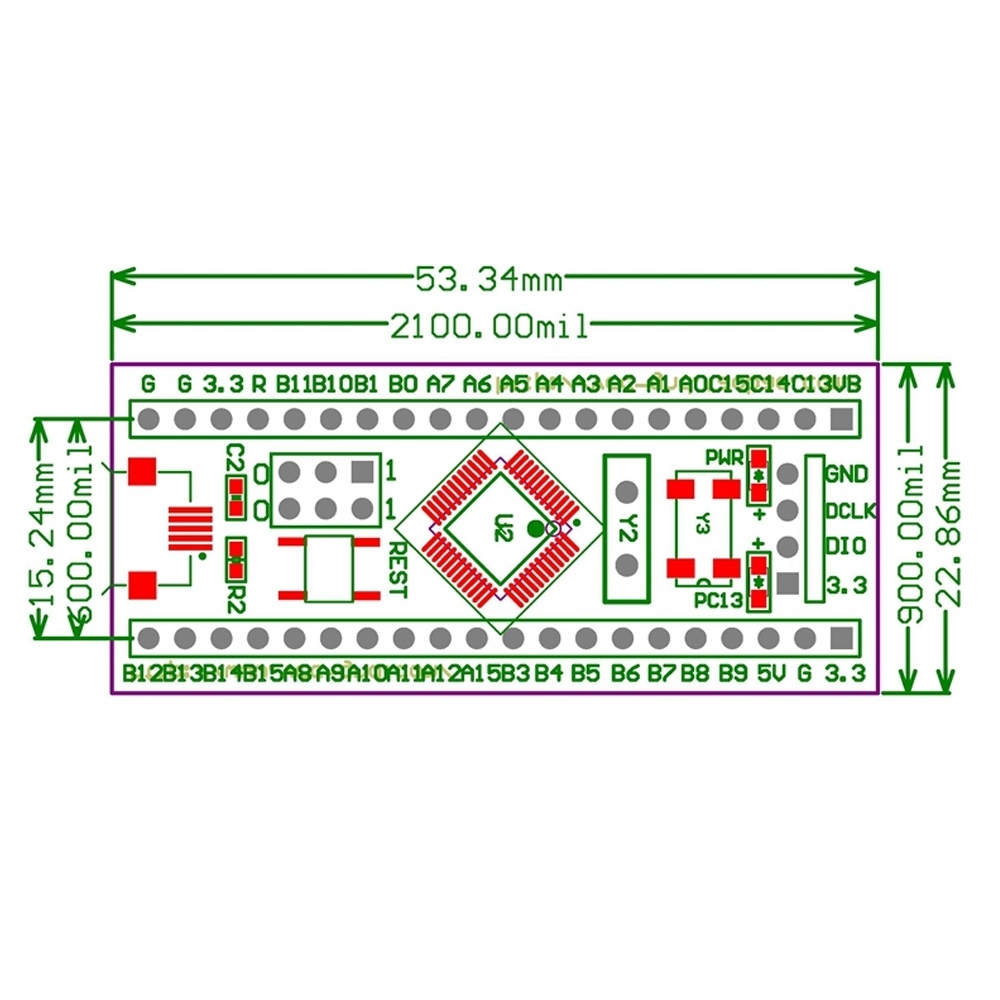

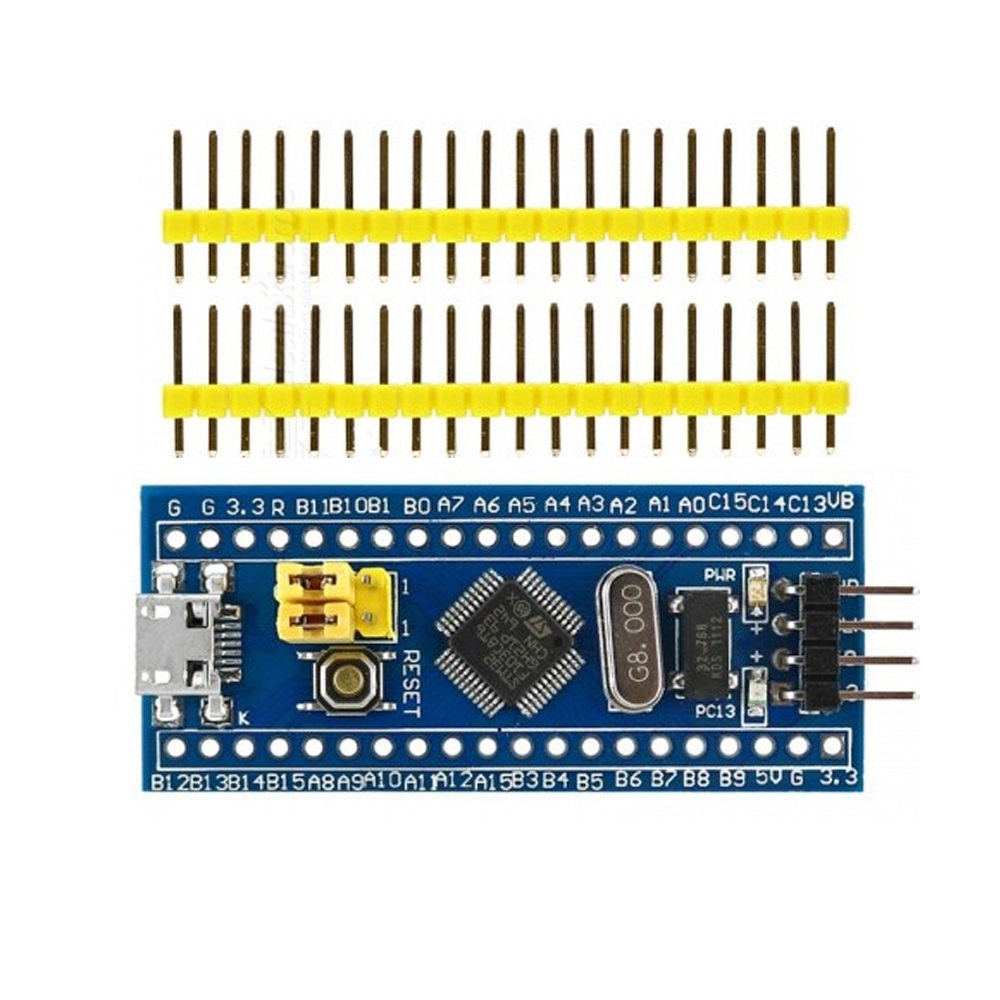

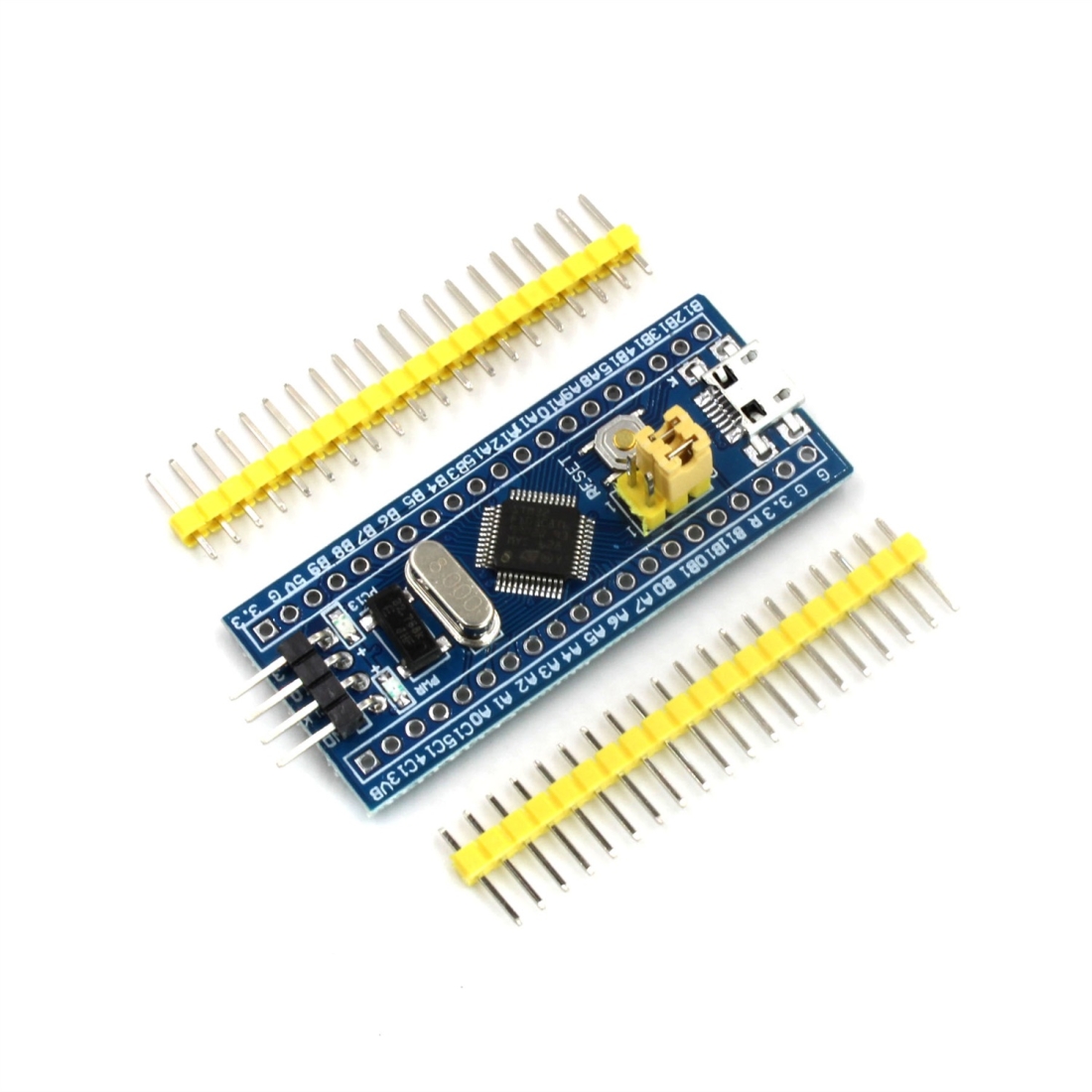

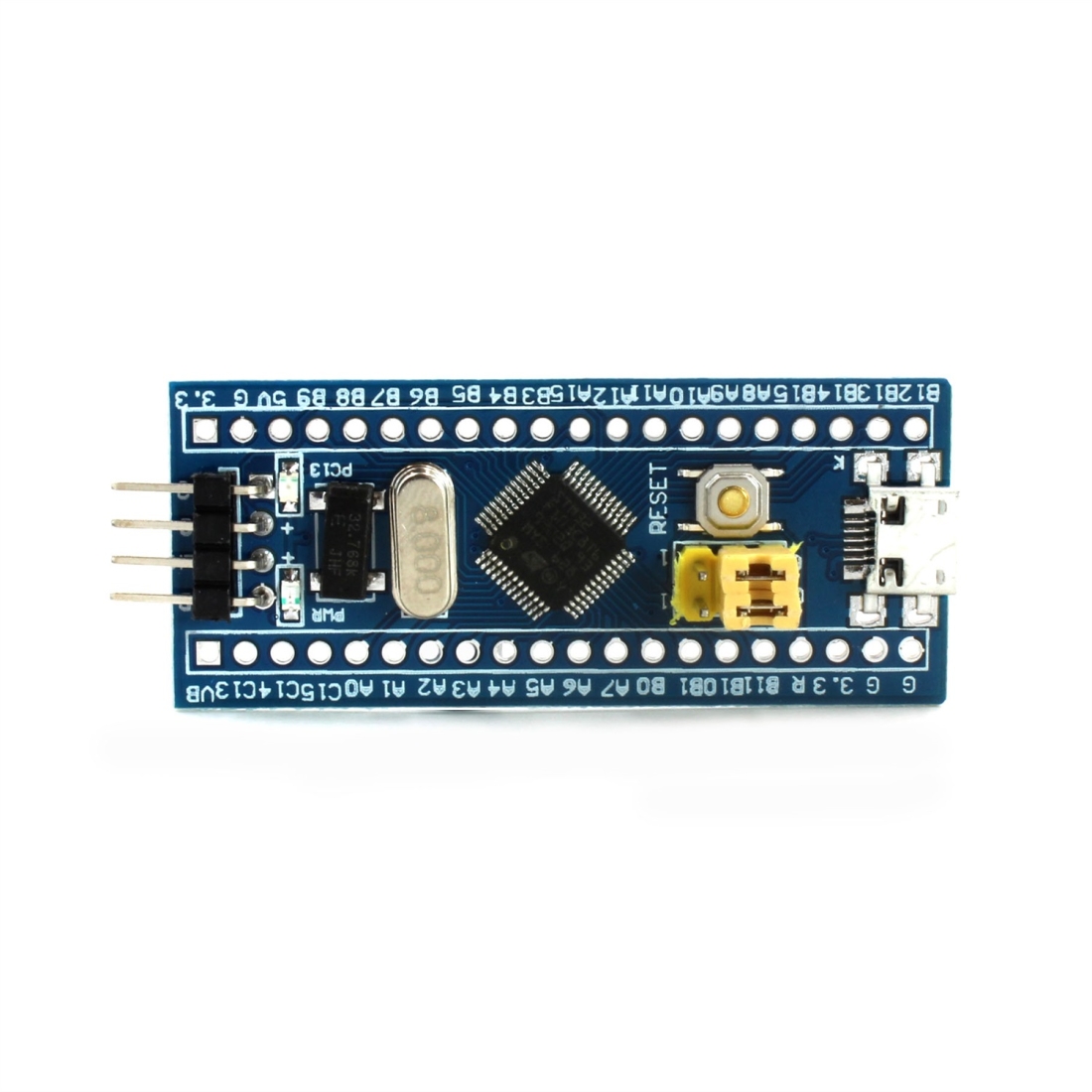

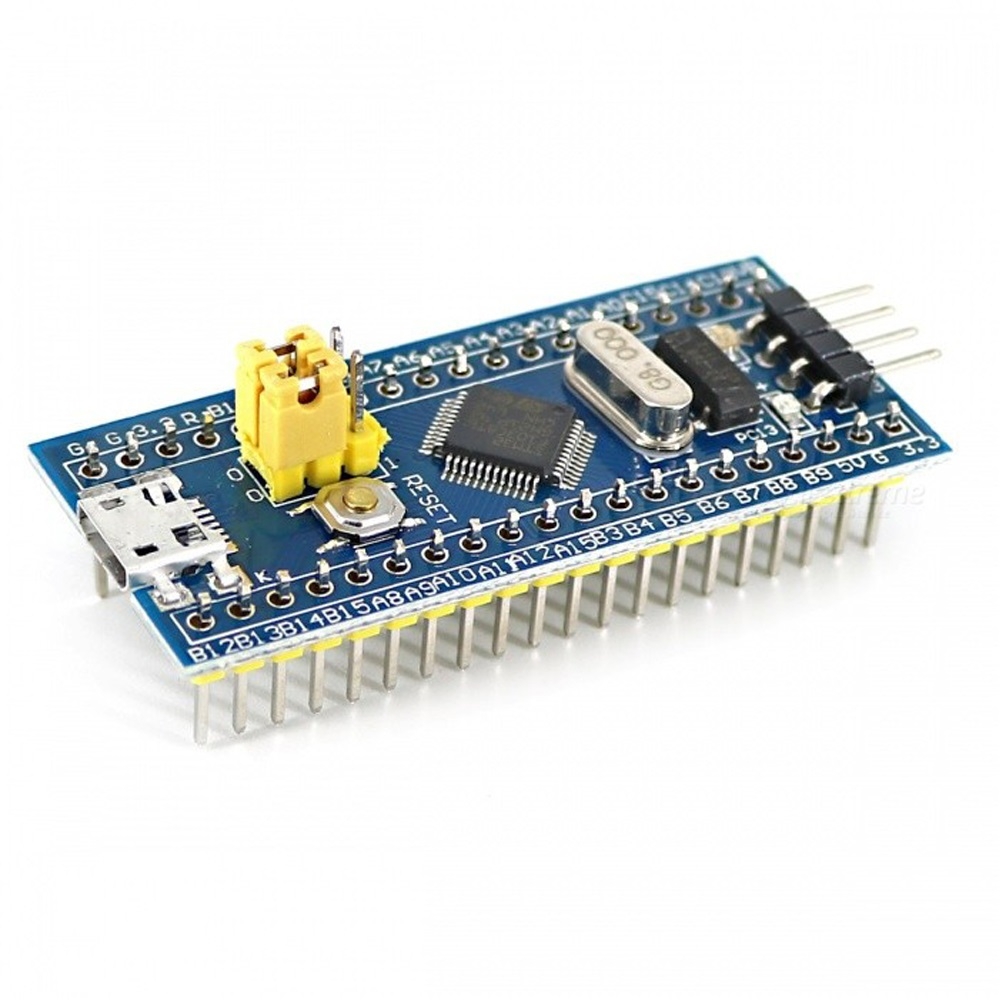

Features 1. On-board SWD interface, and it can be programmed with ST-LINK V2. 2. On-board test indicator LED, and the beginners can program to control it. 3. On-board 100ma 3.3V Regulator. 4. All GPIO are led out and the names of the pins are marked。 5. Microcontroller: STM32F103C8T6. 6. Burning times: 10k cycles 7. Operating voltage: 3.3 V. 8. IO logic voltage: 3.3V 9. Digital I/O Pins: 37. 10. Analog Input Pins: 10 (12bits). 11. Flash Memory: 64KB. 12. RAM: 20KB. 13. Programmable Clock Speed: 72 MHz (MAX). Specification 1. Model: DTR-WG0158 2. Quantity: 1 set 3. Color: Blue + Yellow 4. Material: PCB + Alloy + Plastic 5. Chipset: STM32F103C8T6 6. Dimensions (5.5 cm x 2.2 cm x 1.2 cm), weight (7.5g) 7. Packing List: - 1 x STM32F103C8T6 development board - 2 x 1X20P pin headers (2.54mm pitch)

Specifications

SKU

ZY14047767

Category

Consumer Electronics › Arduino & SCM Supplies › Boards & Shields

Weight

0.03 kg

Delivery

Standard delivery
