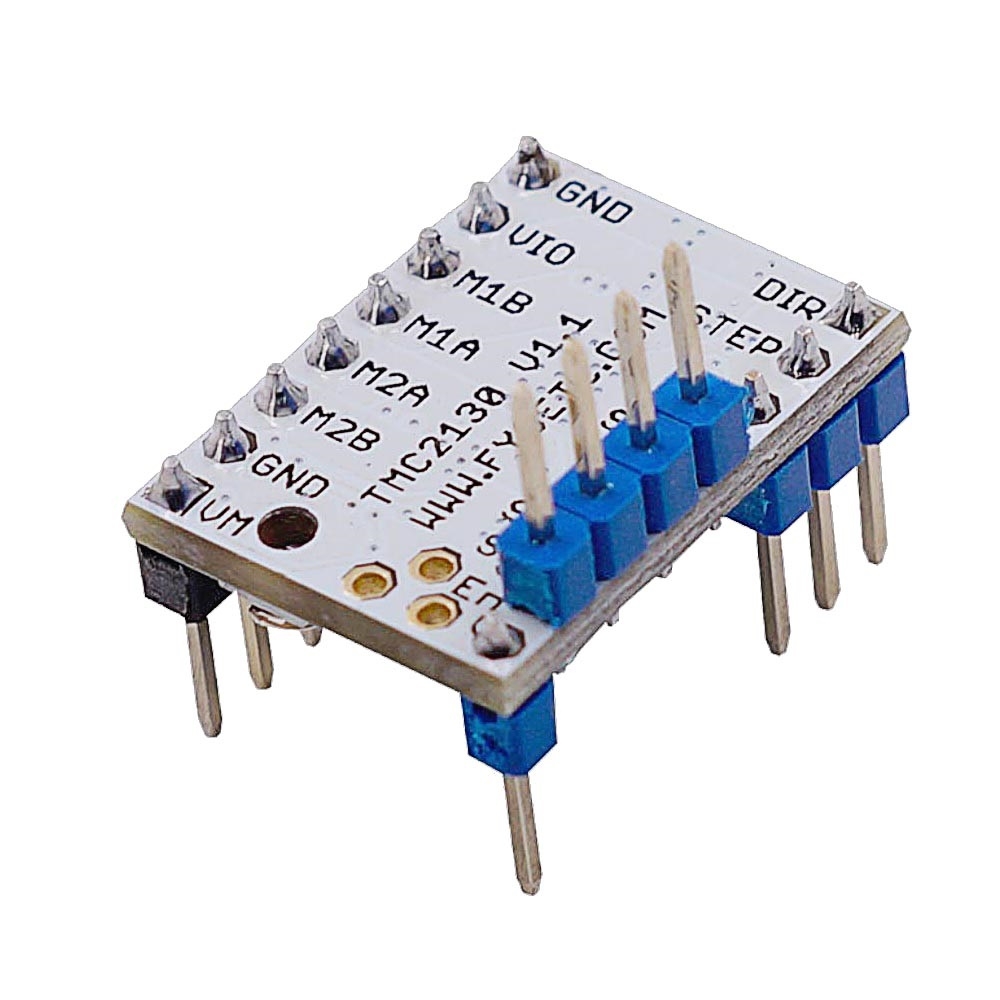

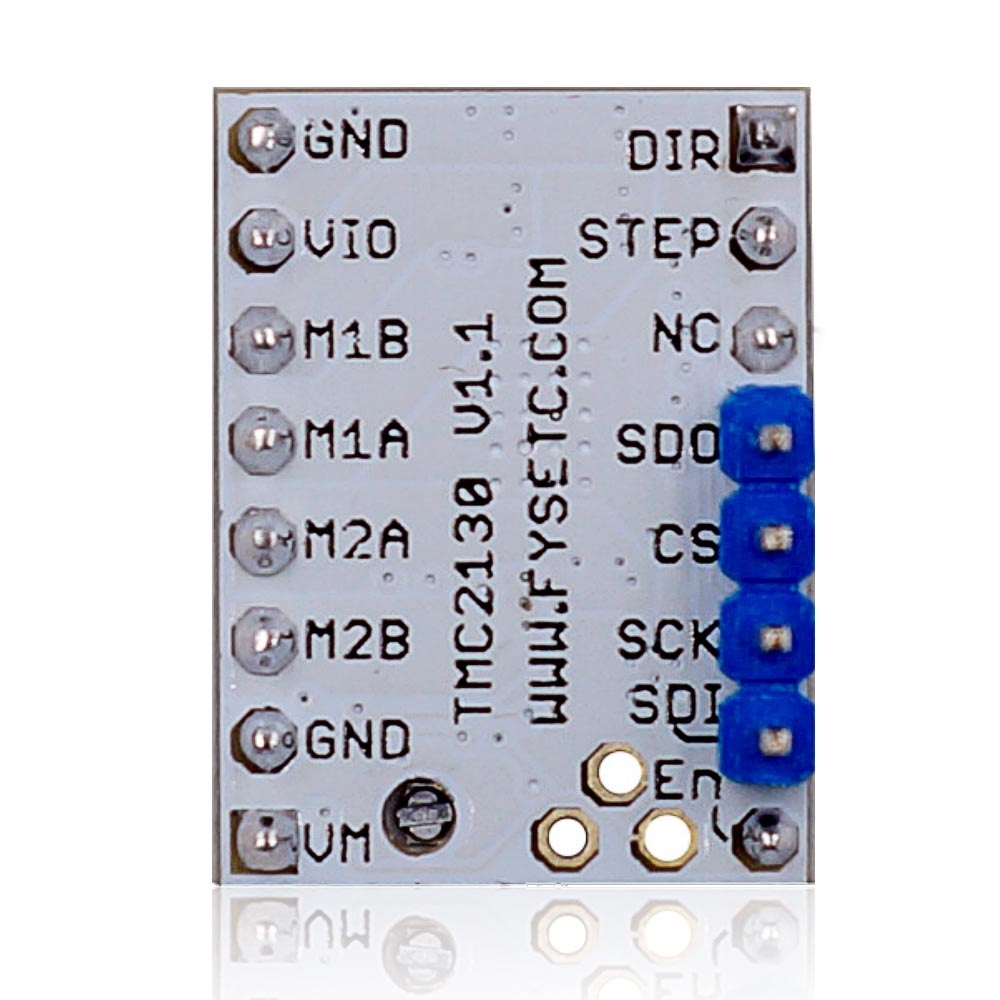

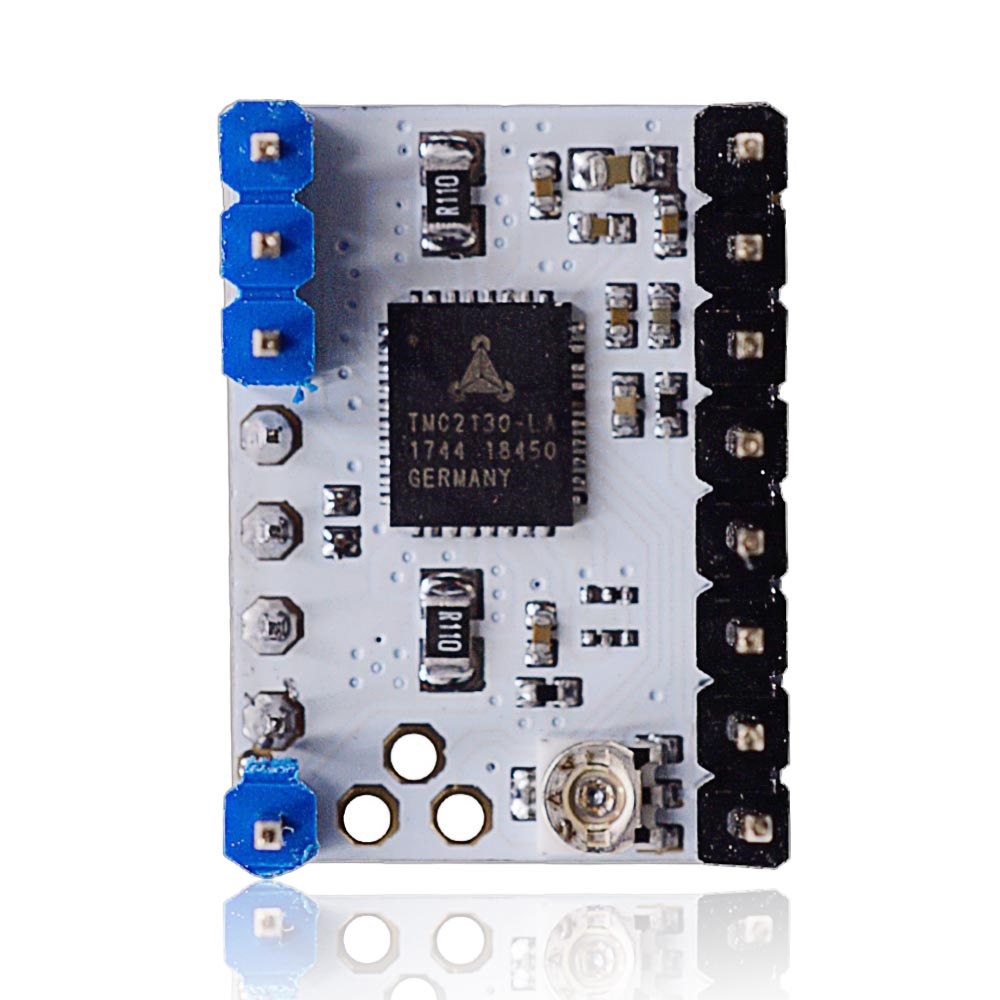

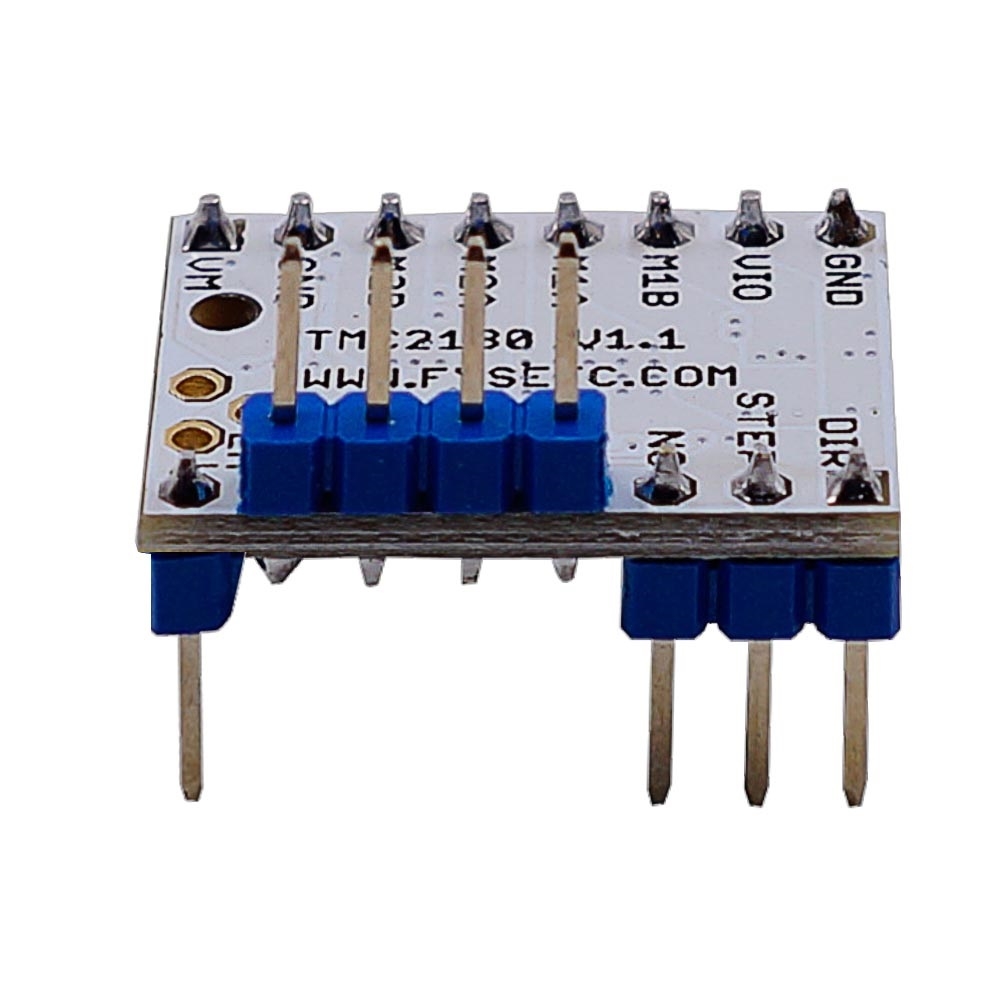

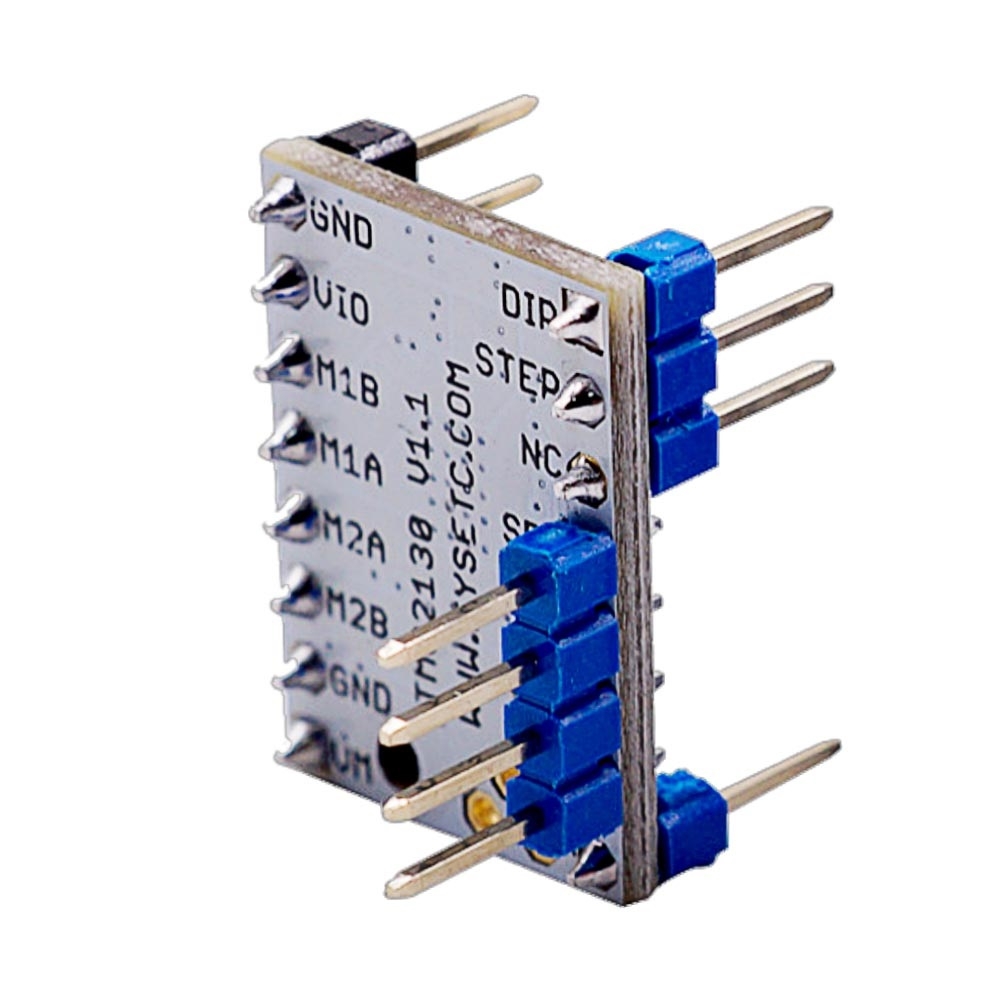

LDTR-WG0189 TMC2130 V1.1 Stepstick Stepper Motor Driver SPI Function with Heat Sink for 3D Printer

Product Description

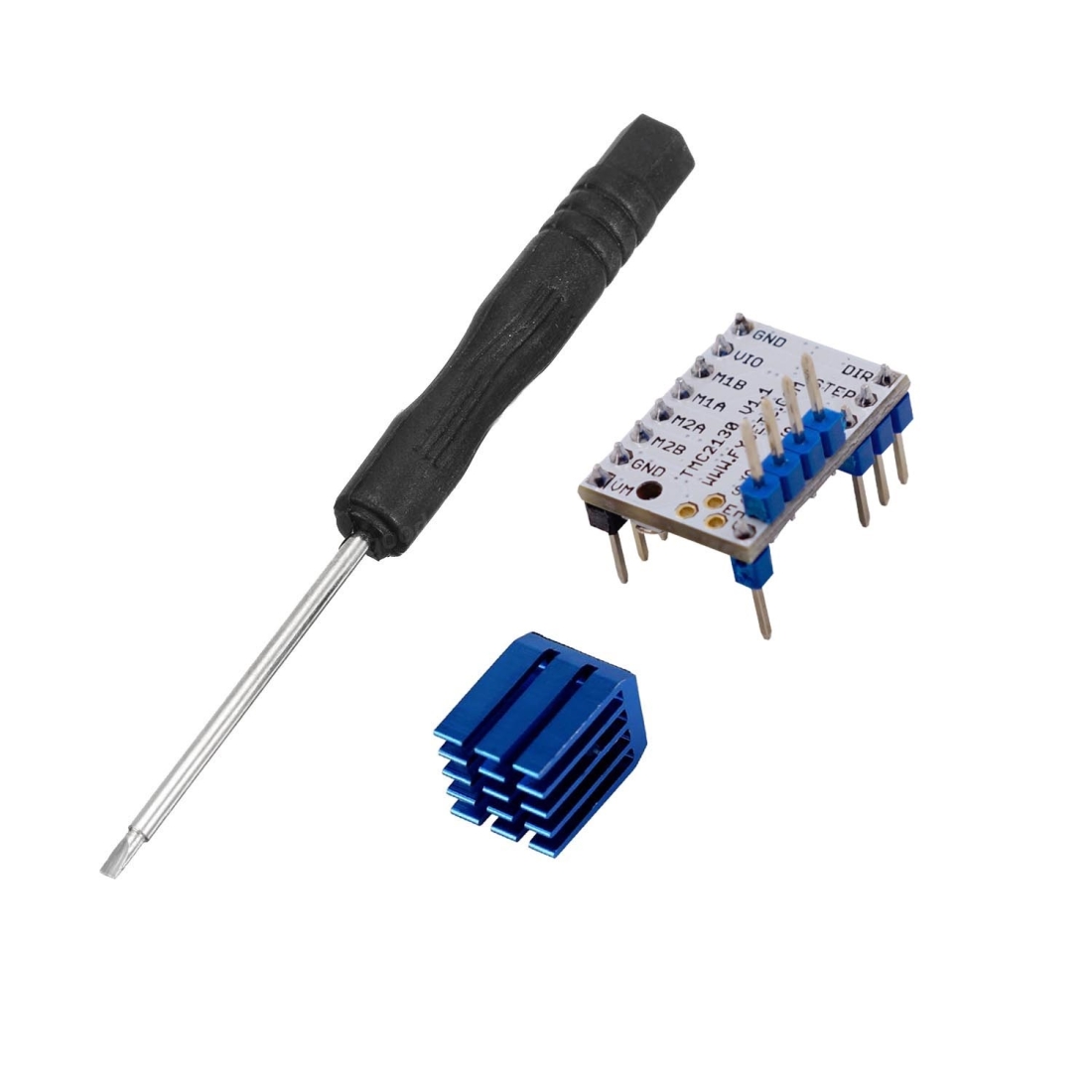

Features 1. Two-phase stepper motor single-phase current 1.2A (peak 2.5A) motor operating current can be adjusted 2. SPI only 3. Subdivided into 256 4. Noiseless operation combined with maximum efficiency and optimal motor torque 5. High-precision sensorless motor load detection 6. Reduce energy consumption by 75% 7. High load drive is not out of step Specifications 1. Product Name: TMC2130 V1.1 Stepstick Stepper Motor Driver 2. Motor input voltage range: 4.75~46V 3. Logic interface input voltage: 3 ~ 5V 4. Interface: Step/Dir or SPI 5. Configuration: CFG Pins or SPI 6. Native Microsteps*: up to 1/256 7. MicroPlyer 8. Microsteps: 1/256 9. Motor Phase Current: 1.2A RMS, 2.5A Peak 10. VM always needed: Yes 11. Internal V- Regulator: enabled 12. RDSon: >=0.5 Ohm 13. StealthChop (quiet): Yes 14. SpreadCycle: Yes 15. CoolStep: Yes 16. StallGuard: Yes 17. DcStep: Yes 18. Quantity: 1 set 19. Material: FR4 20. Dimensions: 6 cm x 4.8 cm x 1.5 cm 21. Weight: 20 g 22. Package Included: - 1 x TMC2130 V1.1 Stepstick Stepper Motor Driver - 1 x With plastic heat sink - 1 x Screwdriver Note: * Due to different producing batches, product details might be a little different. Thank you for understanding.

Specifications

SKU

ZY14086363

Category

Consumer Electronics › Arduino & SCM Supplies › Other Accessories

Weight

0.04 kg

Delivery

Standard delivery
