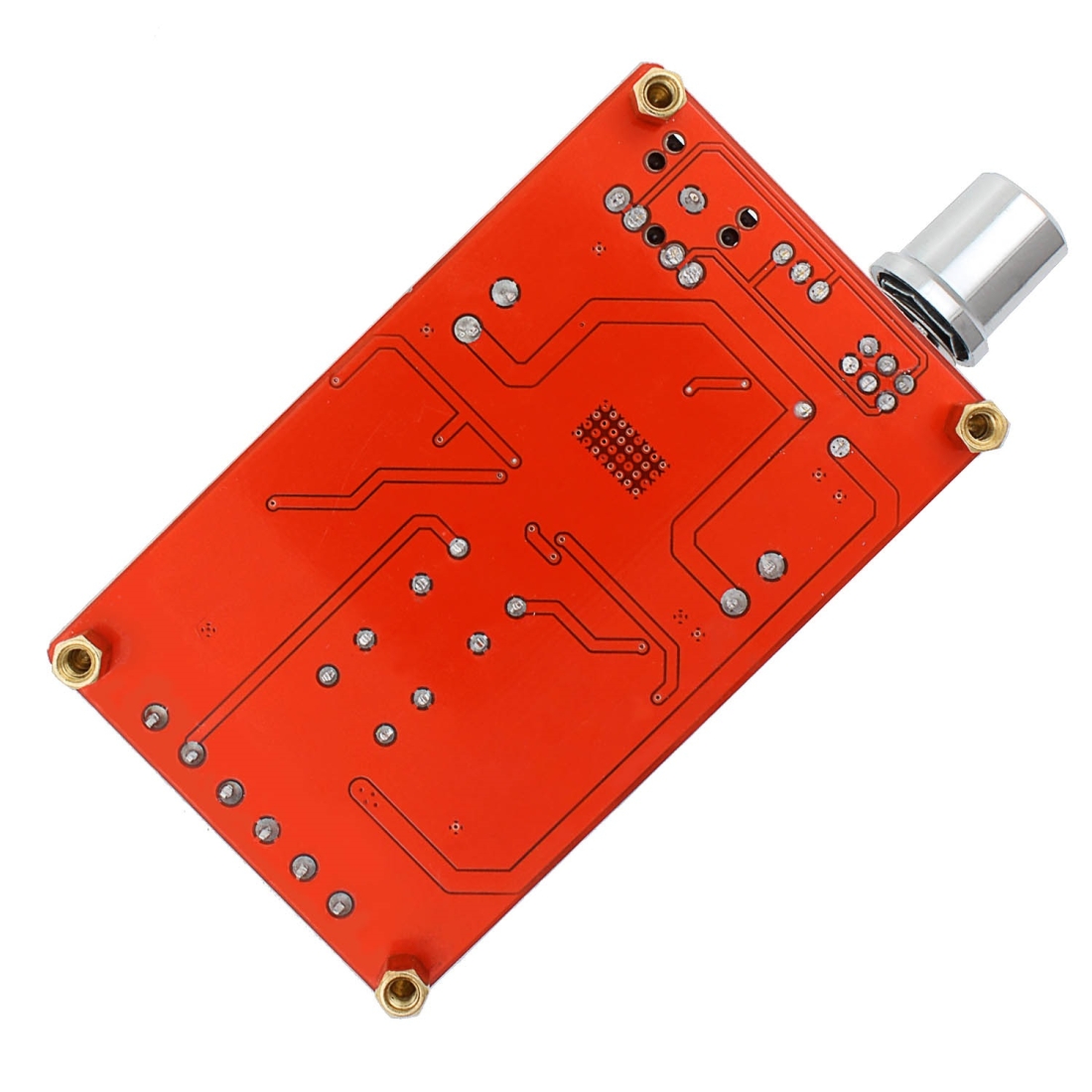

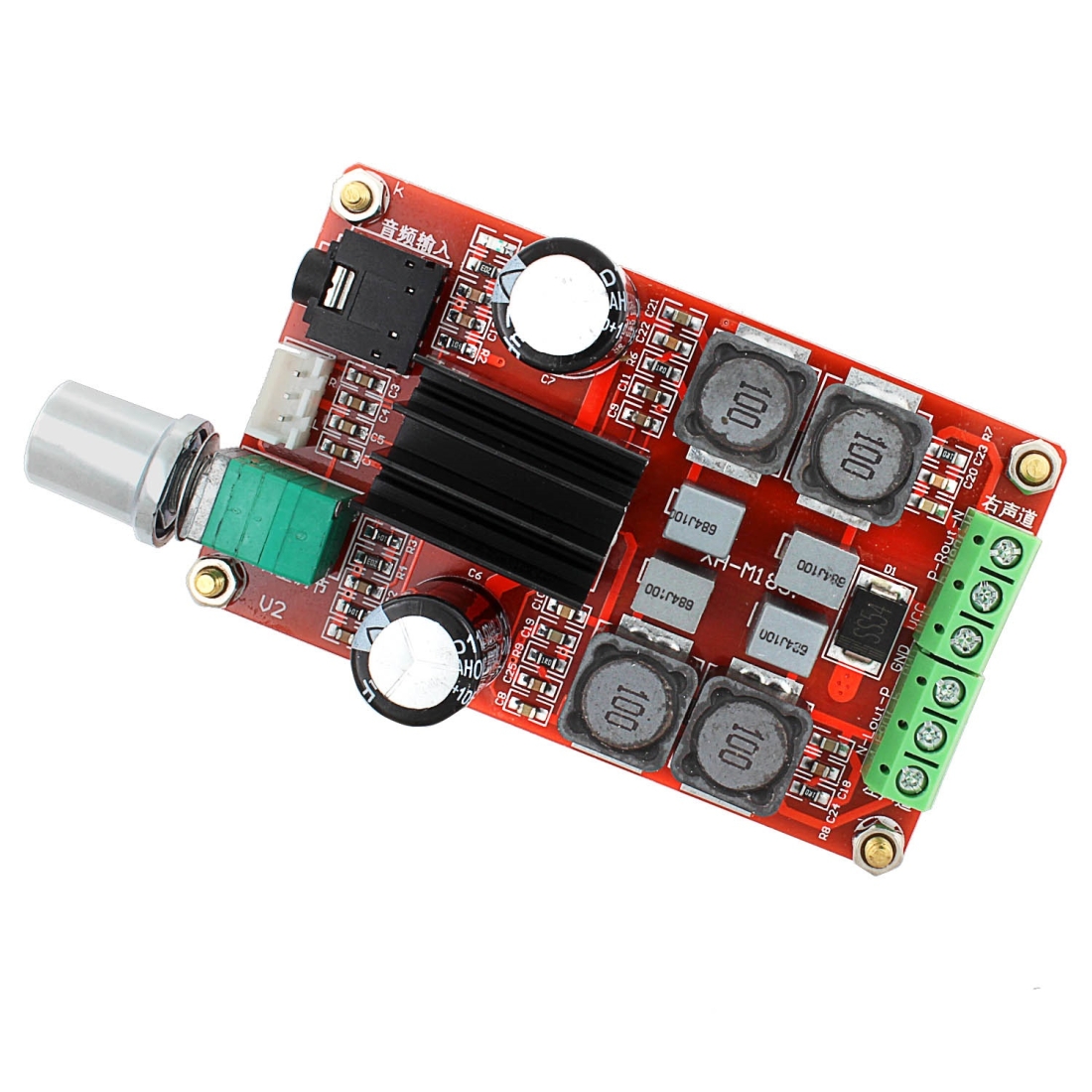

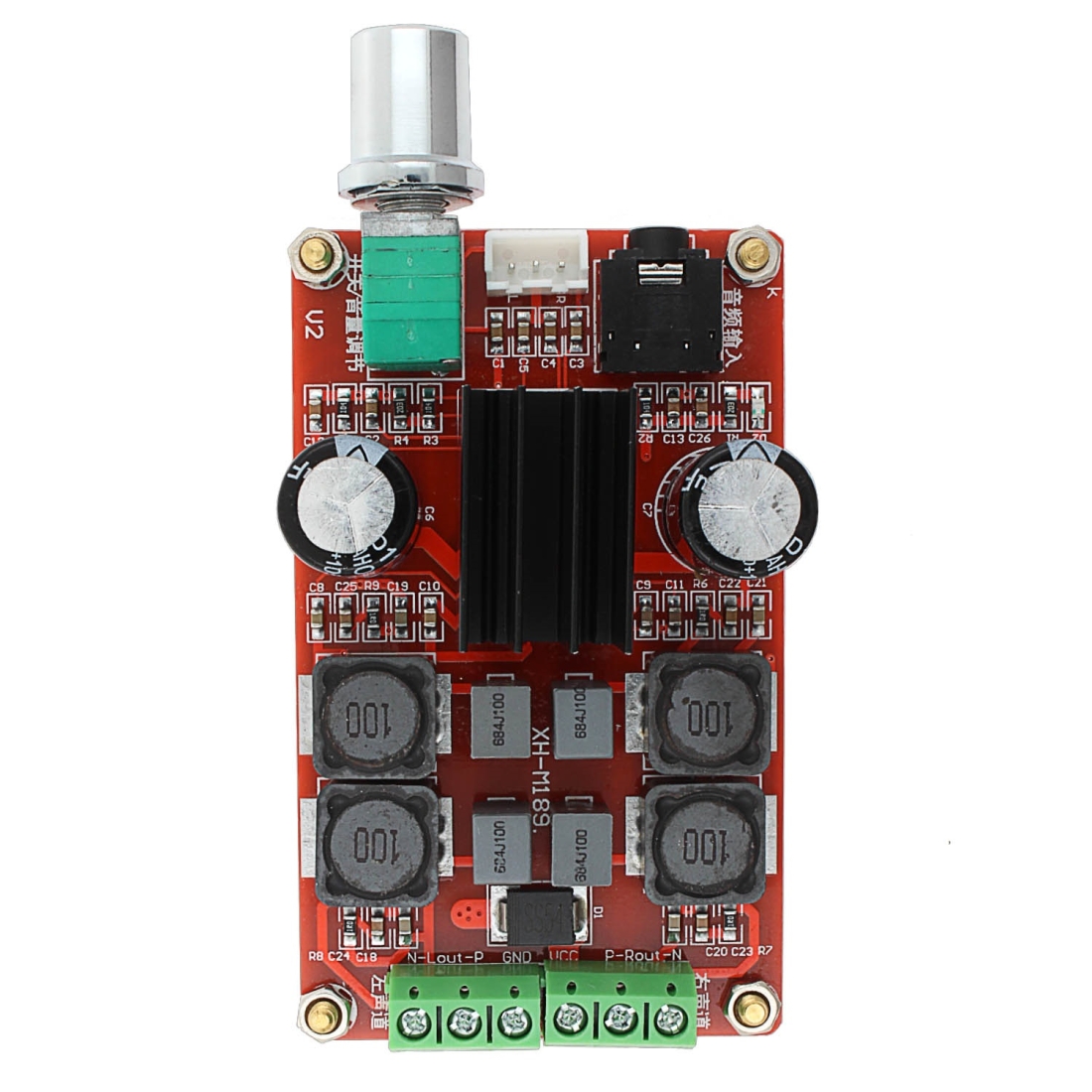

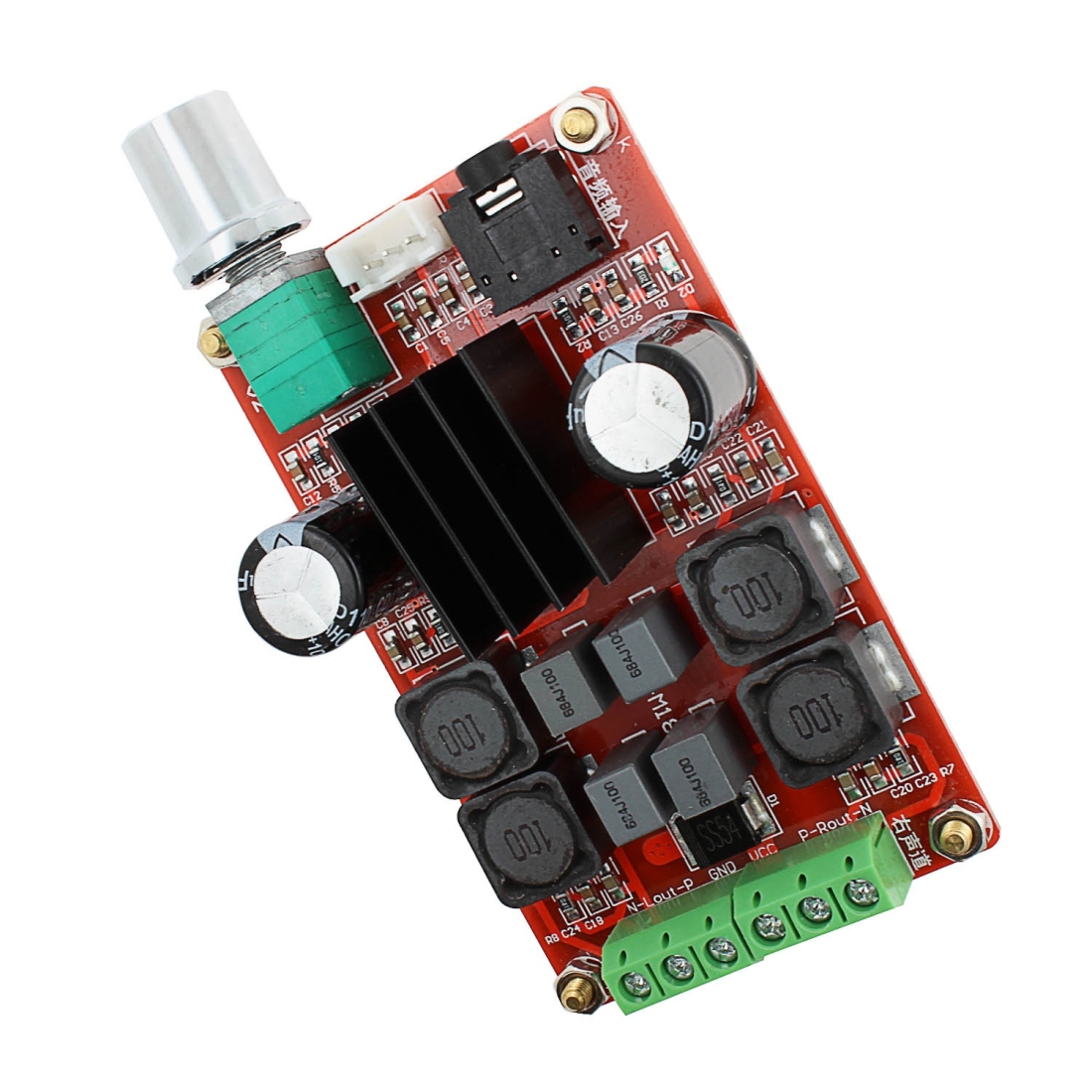

LDTR-WG0196 TPA3116D2 Digital Amplifier Board 2X50W Class D 12V 24V Dual Channel Stereo AMP

Product Description

Note: 1. The output power and supply voltage, the speaker impedance audio input size. 2. Generally higher supply voltage, the output power can be supported will be the bigger. 3. Different impedance speaker can support output power is different, usually smaller horns European 4. Power is also easy to do bigger. 5. About Arduio Input Terminal: - Please try to use a Shielded type of cable to reduce noise and current sound input connector incurred. - The connecting cable is available between the lines open or shorted, will lead to noise or current sound, no sound track, etc. The main technical parameters: 1. Operating voltage range: DC 5-24V (current 3A above, such as to power some advice 19-24V / 4A above, best for 24V) 2. Audio Type: Class D 3. Output channel: 2 4. Frequency response range: 20Hz-20KHz 5. SNR: 100dB 6. Dual channel speaker: 4-8 Euro 7. Maximum output power: - 50W (left channel) + 50W (right channel) two channels 8. Dual-channel output power: - C12V / 10 + 10W(8 Euro) / 15 + 15W (4 ohms) - 15V / 13 + 13W(8 Euro) / 25 + 25W (4 ohms) - 19V / 22 + 22W(8 Euro) /> 39 + 39W(4 ohms) - 22-24V /> + 32W(8 Euro) /> 50 + 50W(4 ohms). General 1. Model: LDTR-WG0196 2. Quantity: 1Piece 3. Form Color: Crimson + Black + Multi-Colored 4. Material: FR4 Specification 1. Chipset: TPA3116D2 2. Dimensions: 11 cm x 5.1 cm x 3.5 cm 3. Weight: 62g 4. Packing List: 1 * TPA3116D2 two-channel stereo amplifier board

Specifications

SKU

ZY14087800

Category

Consumer Electronics › Arduino & SCM Supplies › Boards & Shields

Weight

0.1 kg

Delivery

Standard delivery
