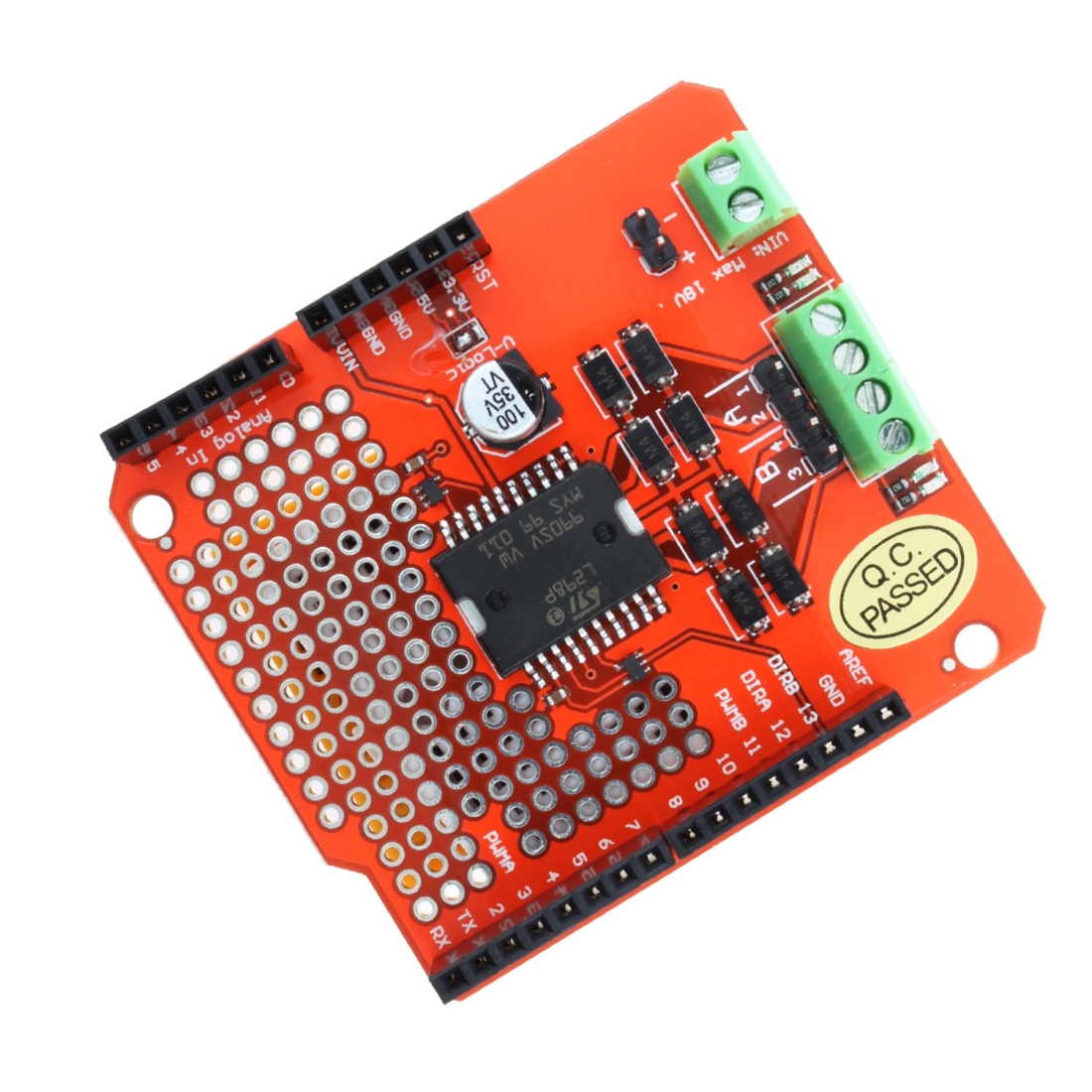

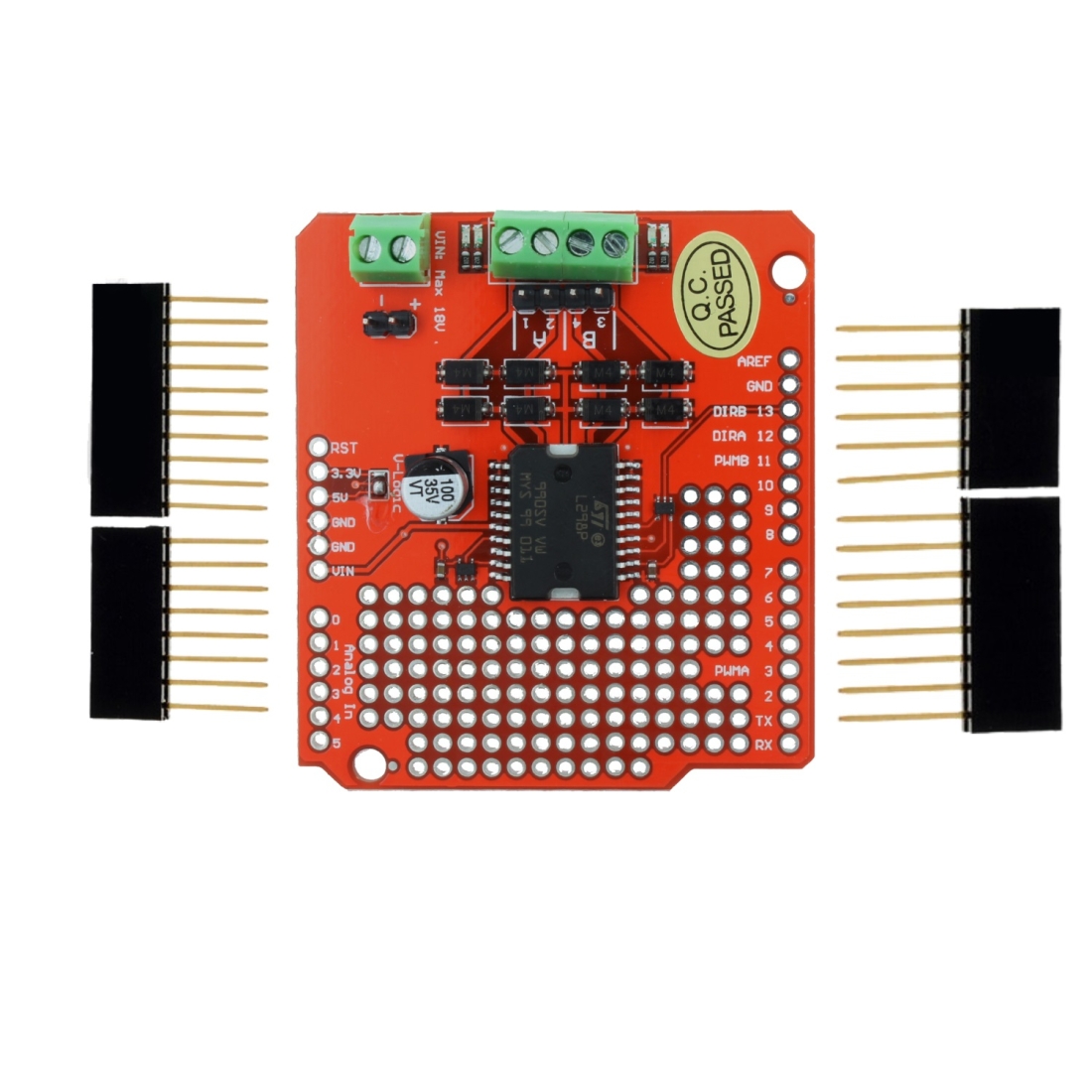

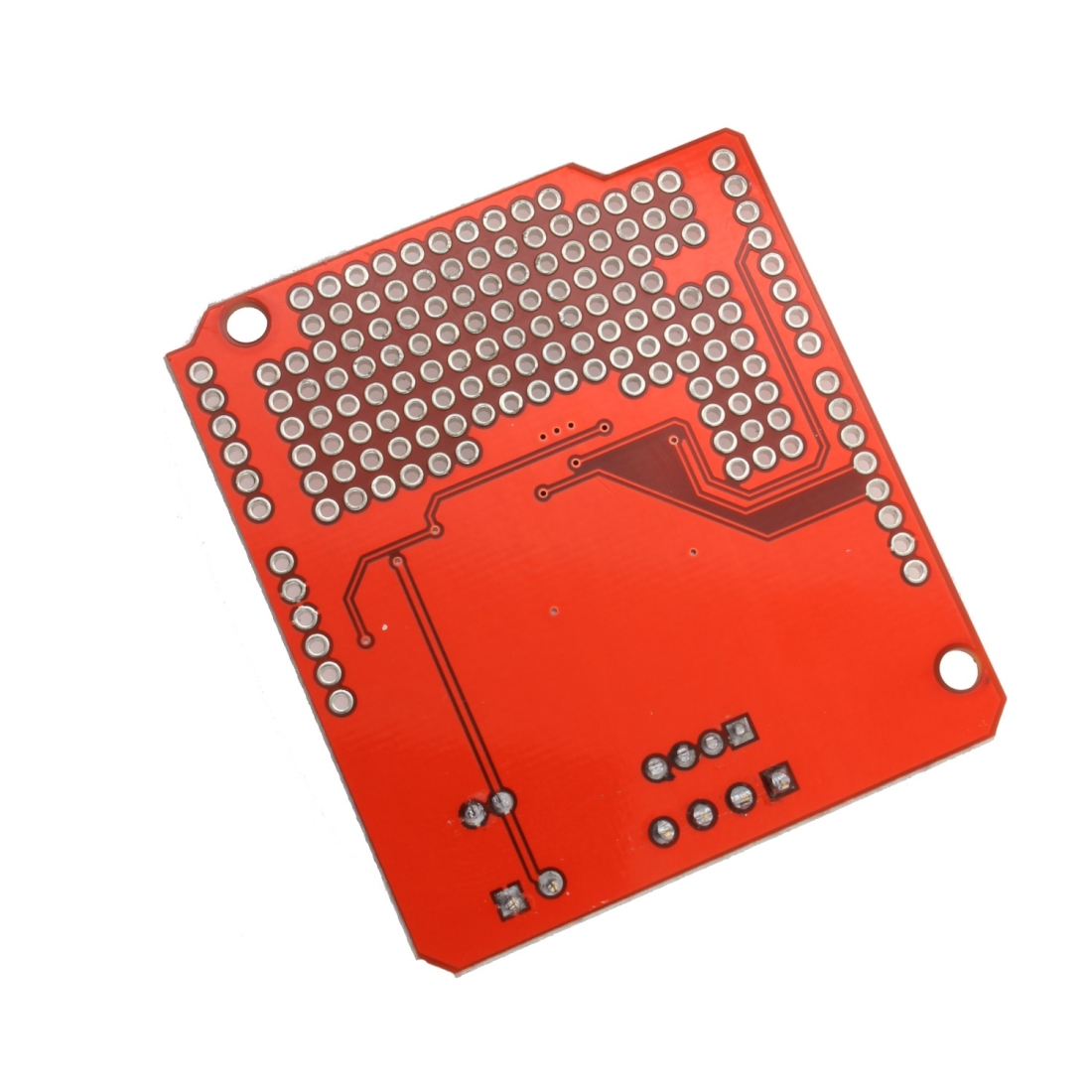

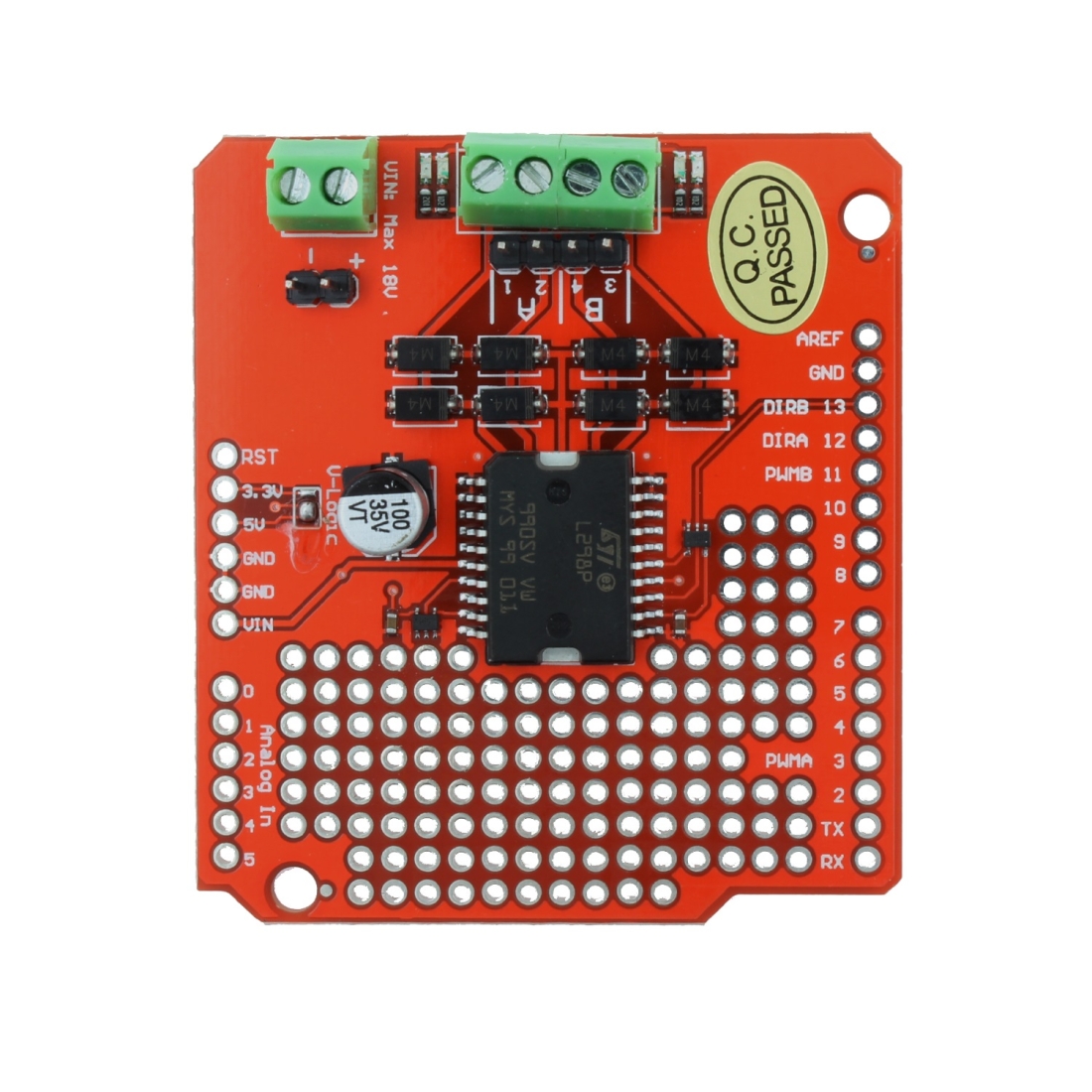

LDTR-WG0213 L298P DC Motor Driver Shield L298P Expansion Board (Red)

Product Description

About L298P 1. L298P Shield DC motor driver adopts the L298P driver chip wich is exclusively made for large-power motor. It can drive 2 DC motors directly with a drive current reaching 2A. The motor output is equipped with eight high-speed schottky diode as protection. This driver carries neat circuit layout and bonded components, in addition, the multi-layer design enables it to be plugged to Arduino directly. 2. L298P Shield DC motor driver carries PWM and PLL modes and the mode is switchable by jumpers. The motor can be powered via Arduino VIN input or terminal input on the driver, which are switchable by jumper. Specification 1. Logic part input voltage VD: 5V 2. Driving part input voltage VS: VIN input 6.5~12V, PWRIN input 4.8~24V 3. Logic part working current Iss: =

Specifications

SKU

ZY14090290R

Category

Consumer Electronics › Arduino & SCM Supplies › Boards & Shields

Weight

0.05 kg
