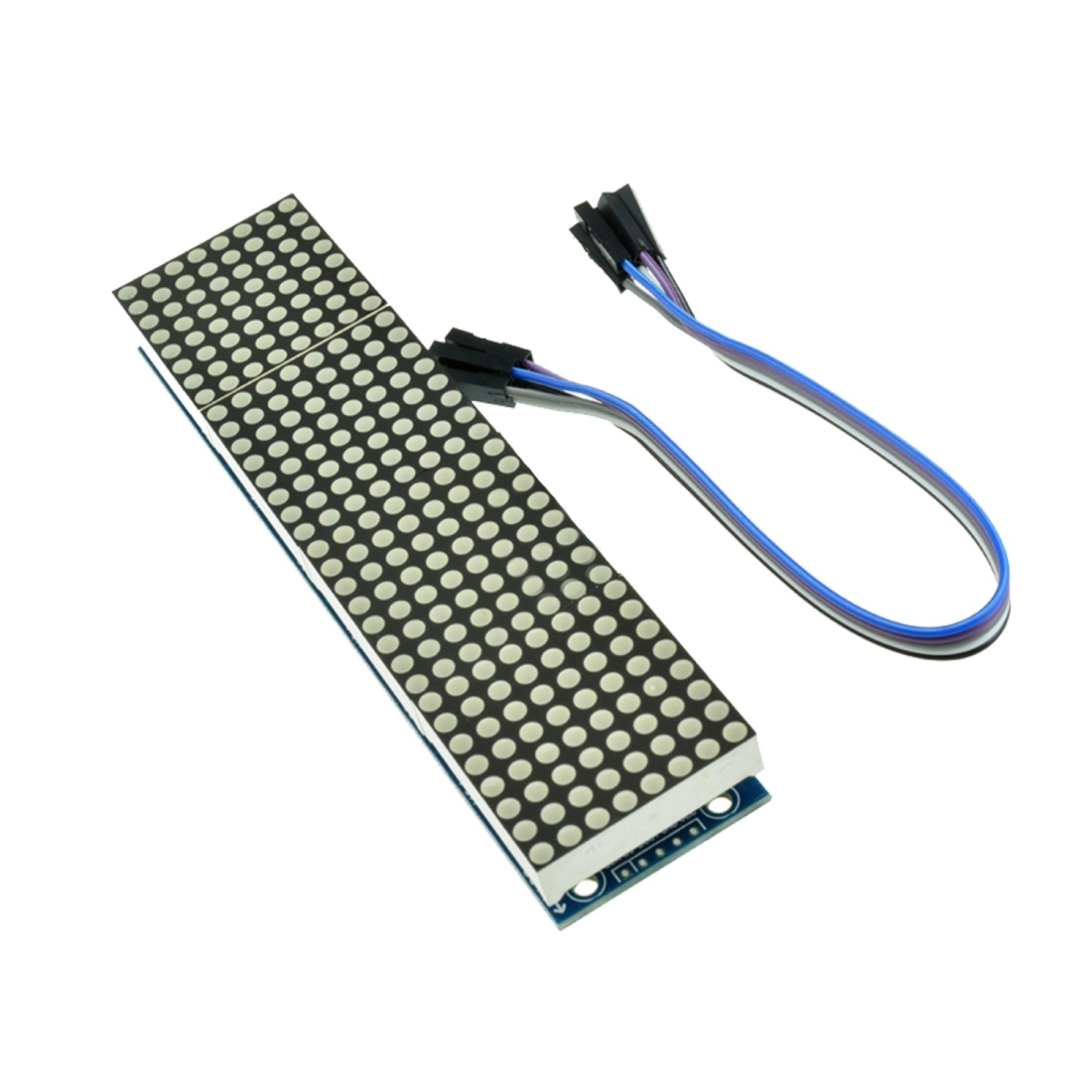

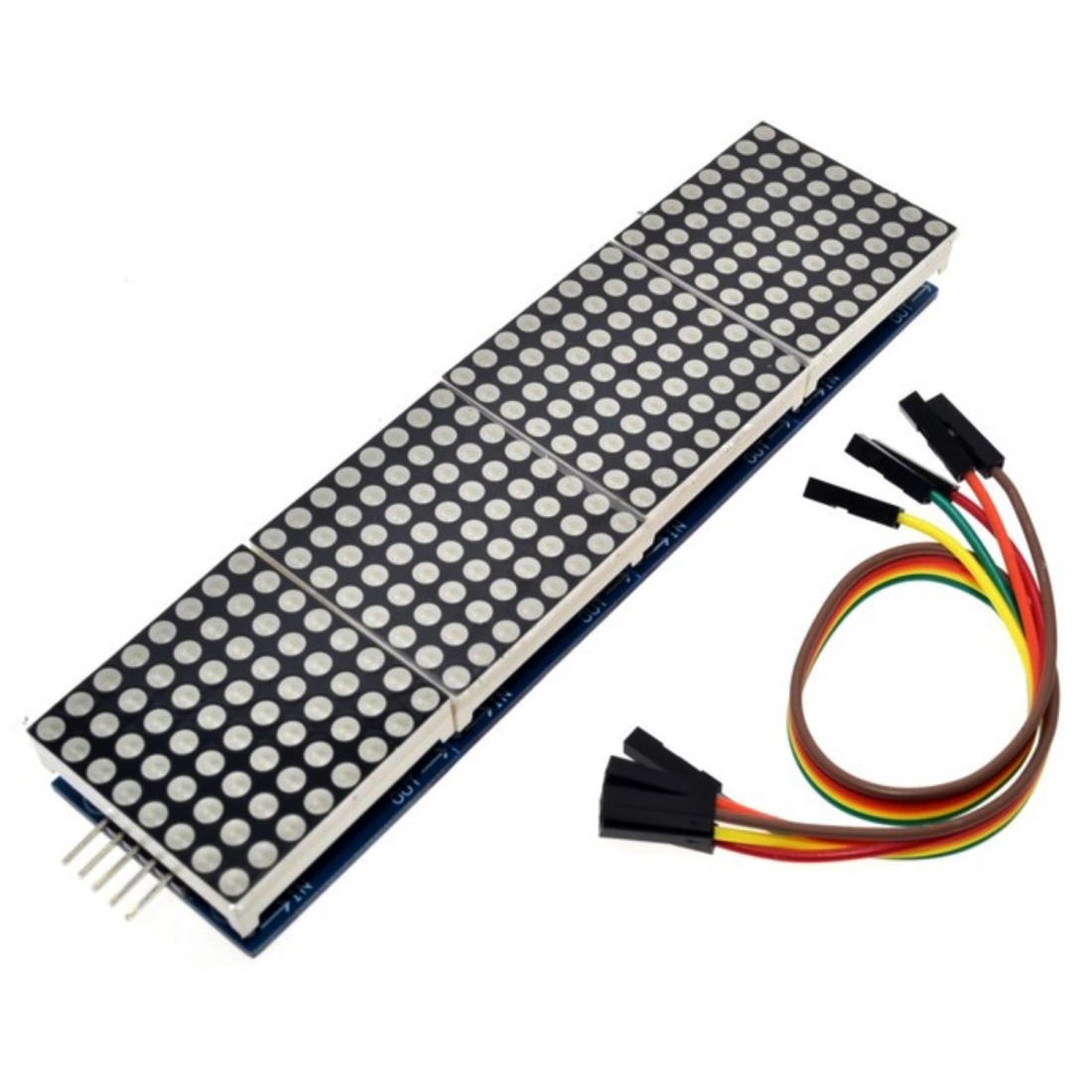

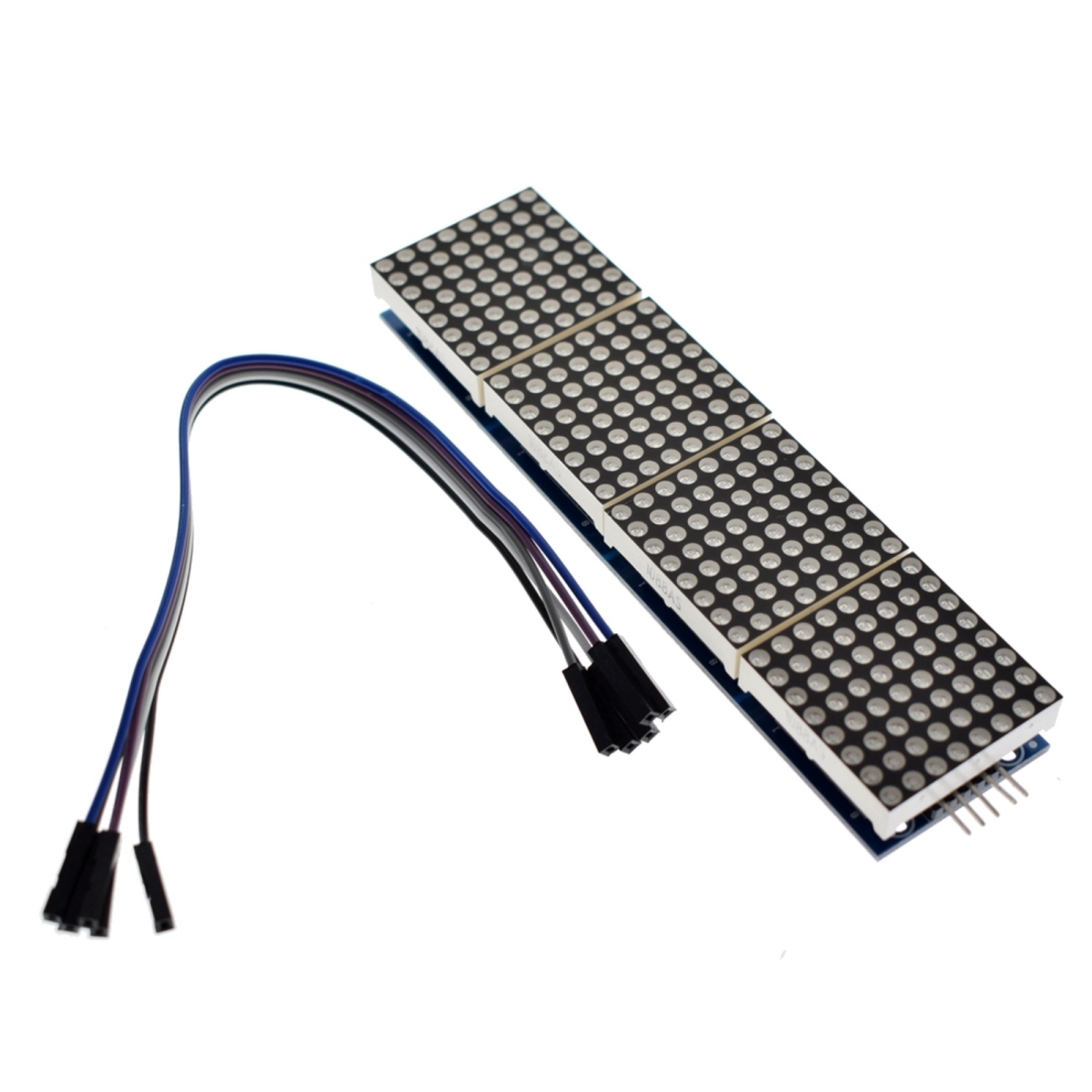

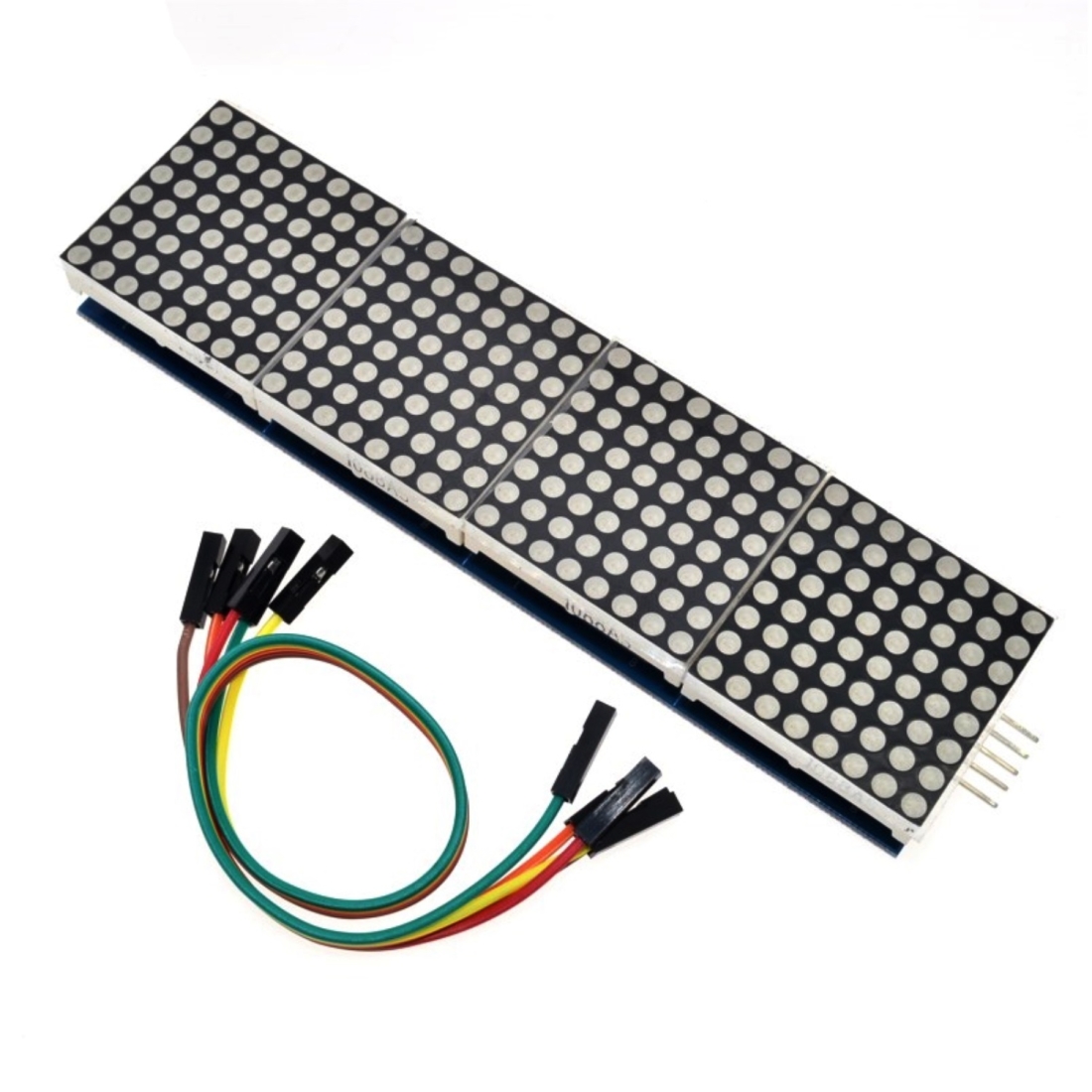

LDTR-WG0221 MAX7219 Microcontroller 4-in-1 Display Dot Matrix Module for Arduino

Product Description

Specifications: 1. A single module can drive a 8x8 dot matrix common cathode 2. Working voltage: 5V 3. Module size: 12.8 x 3.2 x 1.3 cm (L*W*H) 4. With 64 fixing screw holes, hole diameter: 3mm 5. Module with input and output interfaces, support for cascading multiple modules Wiring: 1. The left side of the module is the input port, and the right is the output port. 2. Control of a single module, the input port only need to receive CPU. 3. The more a module cascade and input end of the first module is connected with the CPU and input end of the input end of the output end is connected to the second module, output terminal of the second module connected with the three modules, and so on. 4. For example: 51 SCM - VCC→5V - GND→GND - DIN→P2.2 - CS →P2.1 - CLK→P2.0 General 1. Brand: Landa tianrui 2. Model: LDTR-WG0221 3. Quantity: 1 piece 4. Frame Color: Blue 5. Material: PCB 6. Dimensions: 12.8 cm x3.2 cm x 1.3cm 7. Weight: 42 g 8. Packing List - 1 x MAX7219 Dot Matrix Module - 1 x 5pin Dupont Cable

Specifications

SKU

ZY14259058

Category

Consumer Electronics › Arduino & SCM Supplies › LCD & LED Display Module

Weight

0.06 kg

Delivery

Standard delivery
