LDTR-WG0247 H-Bridge PWM Semiconductor Double BTS7960B DC 43A Stepper Motor Driver (Blue)

Product Description

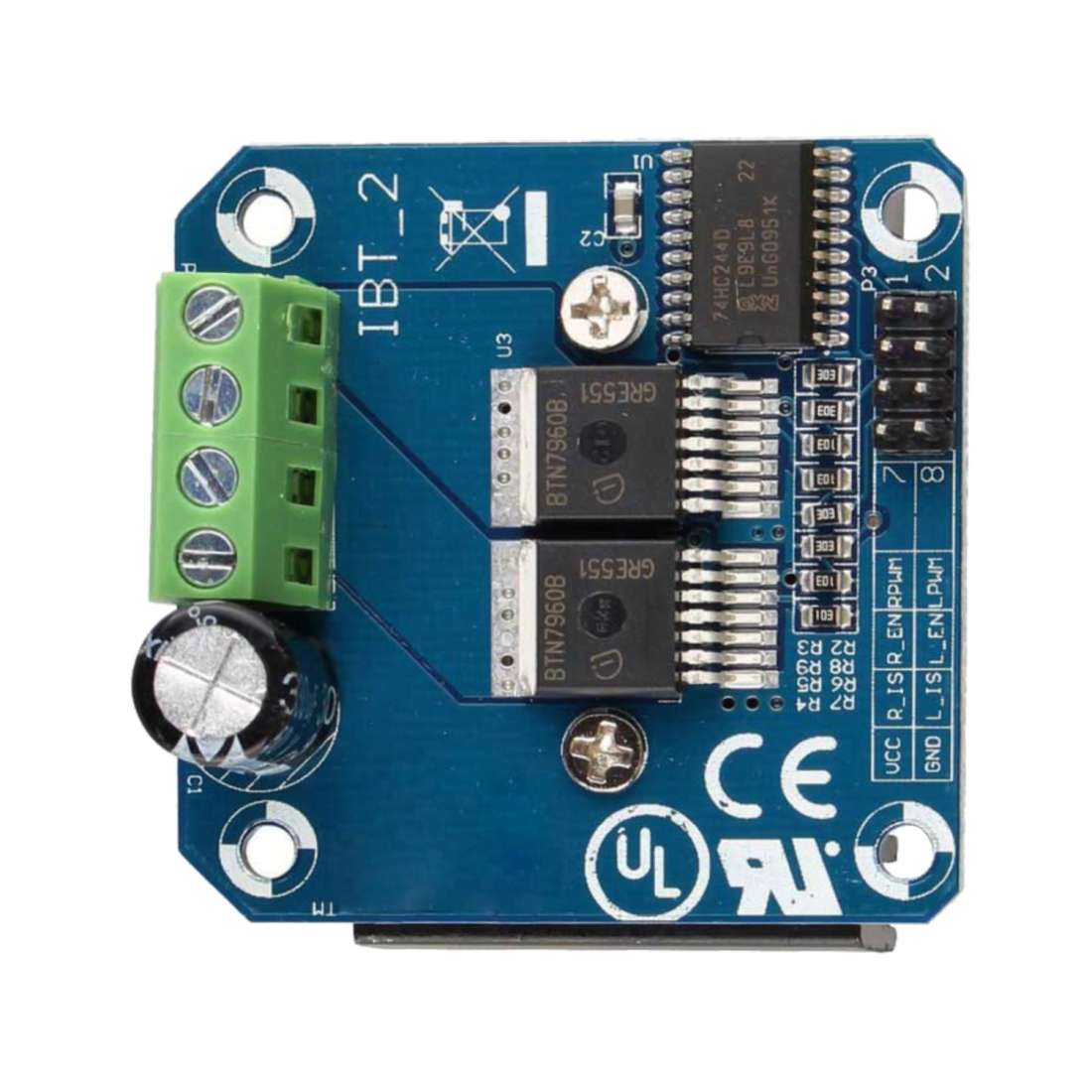

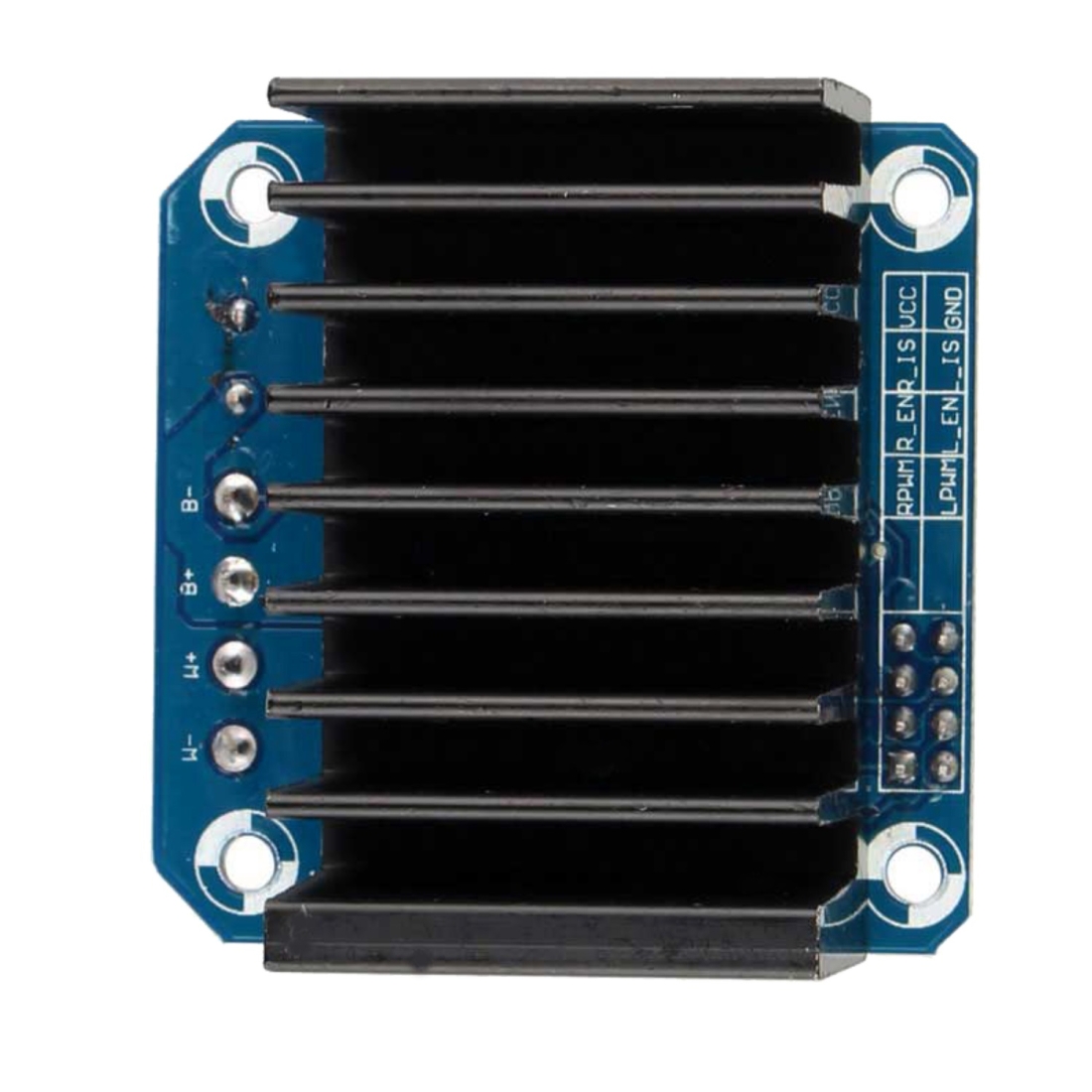

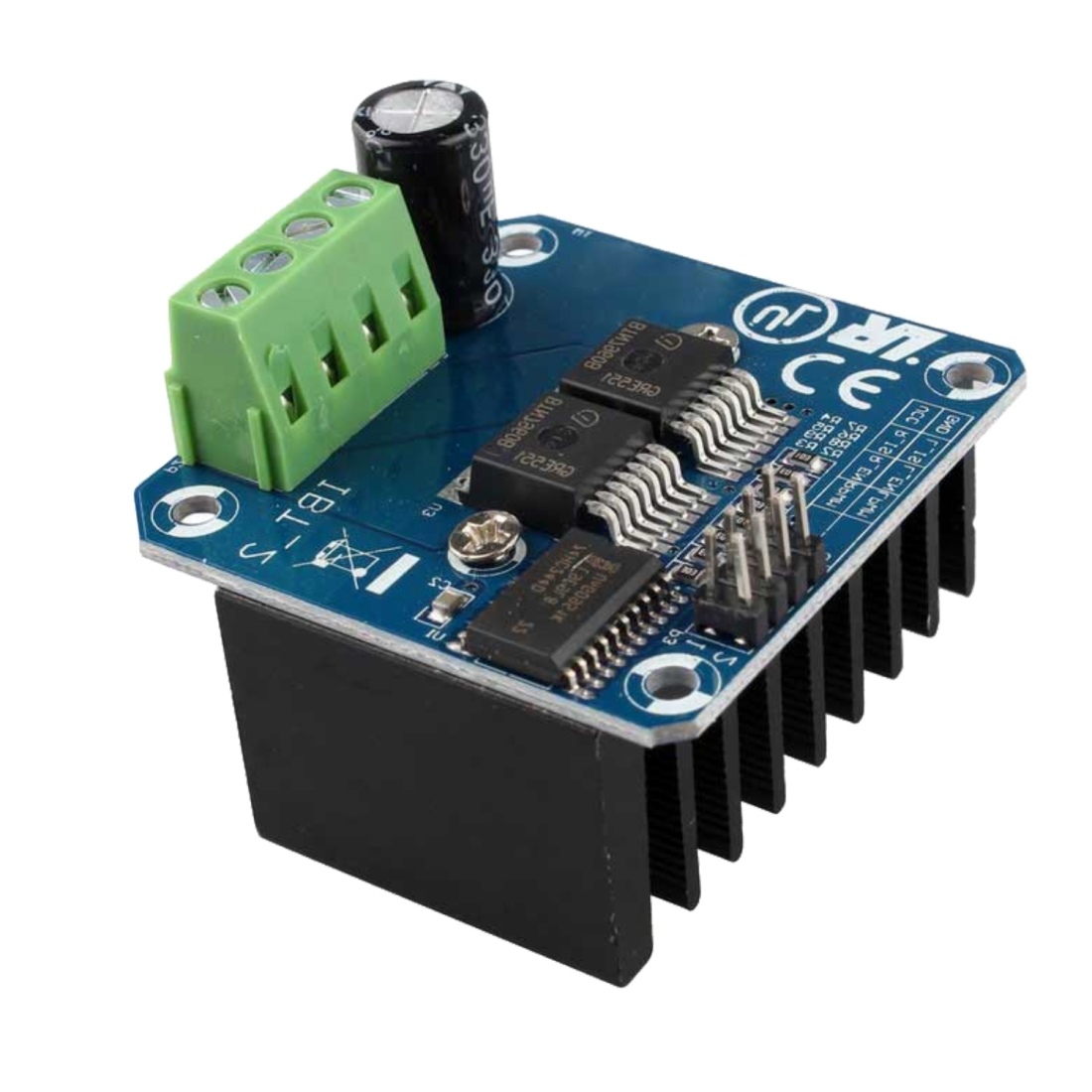

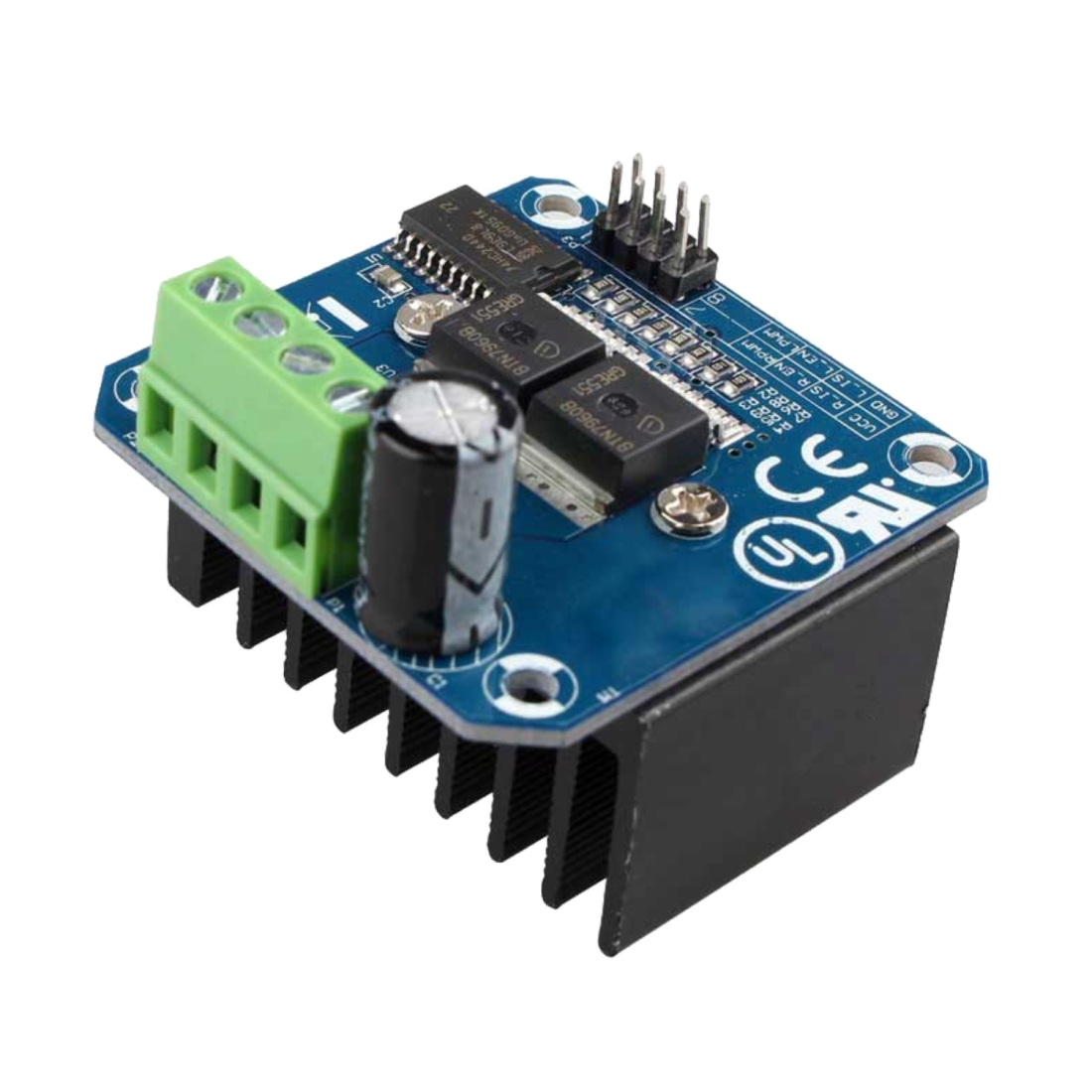

This driver uses Infineon chips BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection. Double BTS7960 H-bridge driver circuit, with a strong drive and braking, effectively isolating the microcontroller and motor driver! High-current 43A Specification 1. Double BTS7960 large current (43 A) H bridge driver; 2. 5V isolate with MCU, and effectively protect MCU; 3. 5V power indicator on board; 4. Voltage indication of motor driver output end; 5. Can solder heat sink; 6. Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2); 7. Isolation chip 5 V power supply (can share with MCU 5 V); 8. Able to reverse the motor forward, two PWM input frequency up to 25kHZ; 9. Two heat flow passing through an error signal output; 10. Isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply; 11. The supply voltage 5.5V to 27V 12. Size: 5.5 * 5 * 4 cm; 13. Material: FR4 14. Other Features: A product for Arduino that works with official Arduino boards. 15. Weight: 70g 16. Packing List: 1 * Stepper Motor Driver

Specifications

SKU

ZY14346987L

Category

Consumer Electronics › Arduino & SCM Supplies › Boards & Shields

Weight

0.1 kg

Delivery

Standard delivery
