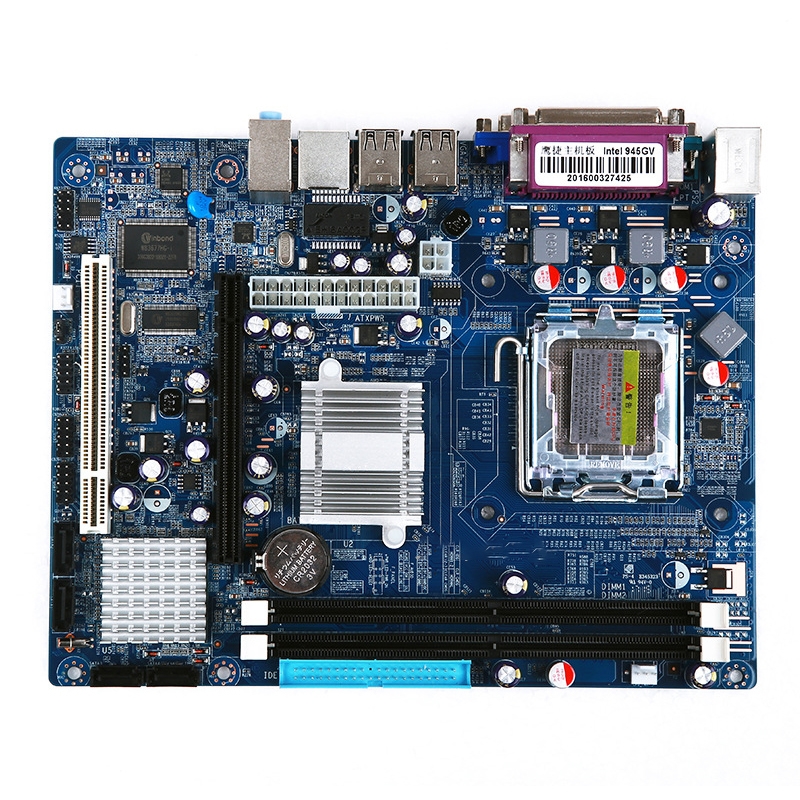

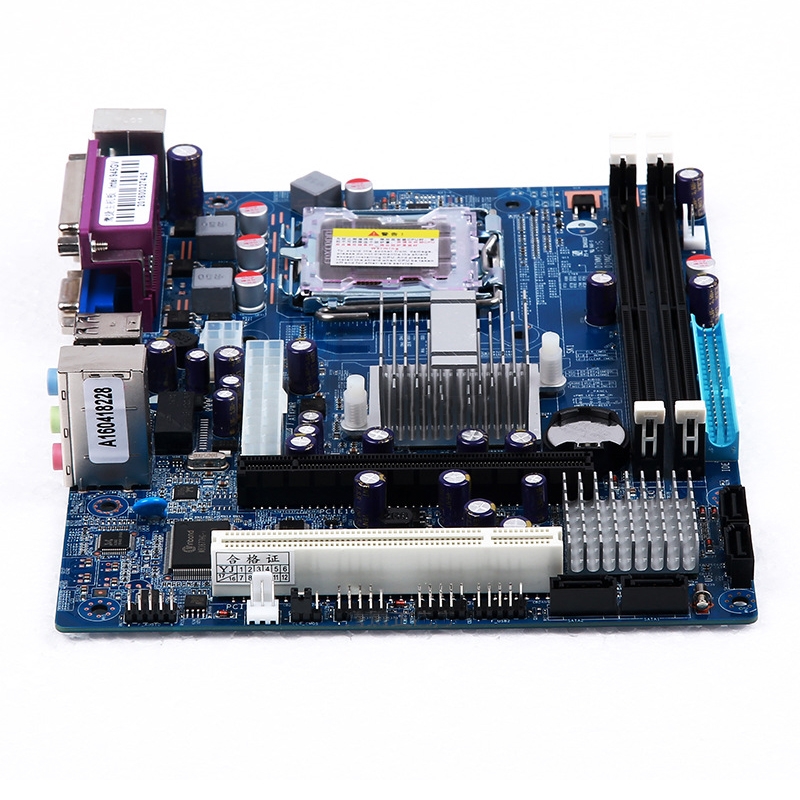

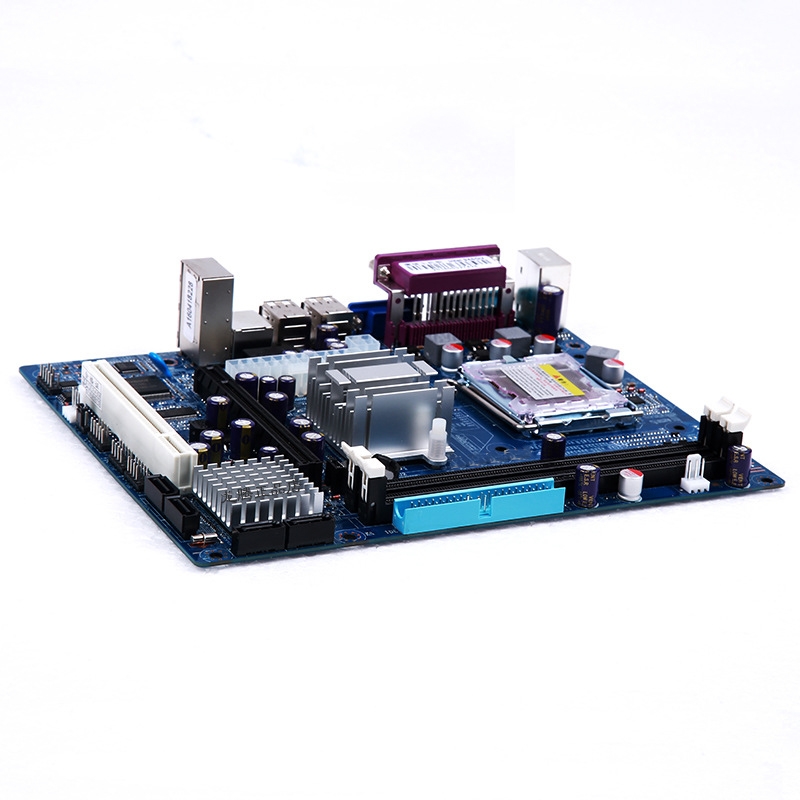

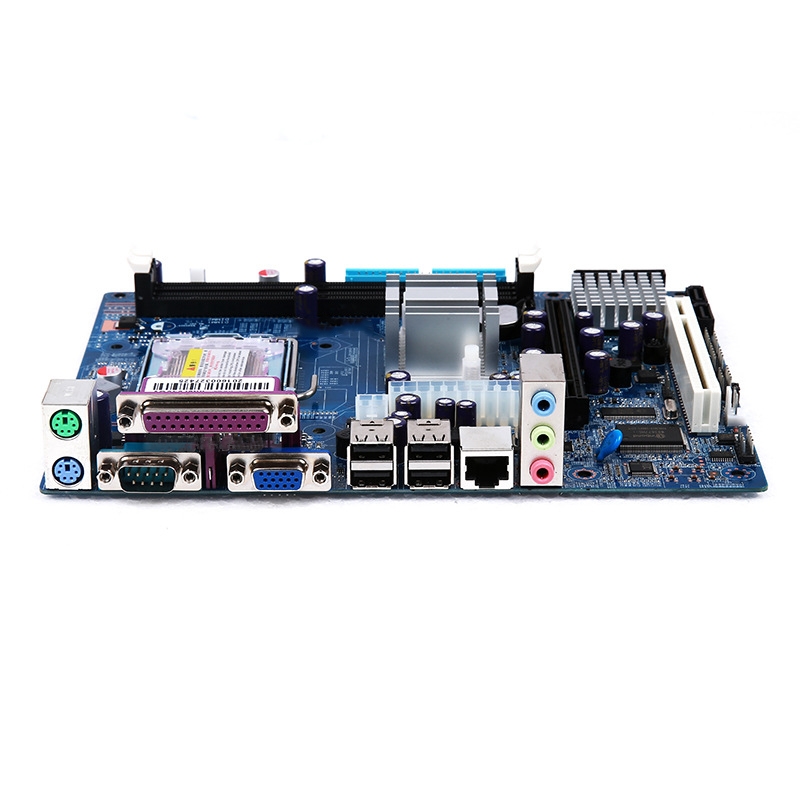

LGA 775 DDR2 Desktop Computer Motherboard for Intel 945GV Chip, Integrated Sound Card Graphics Card Network Card, Support Single / Dual Core

Product Description

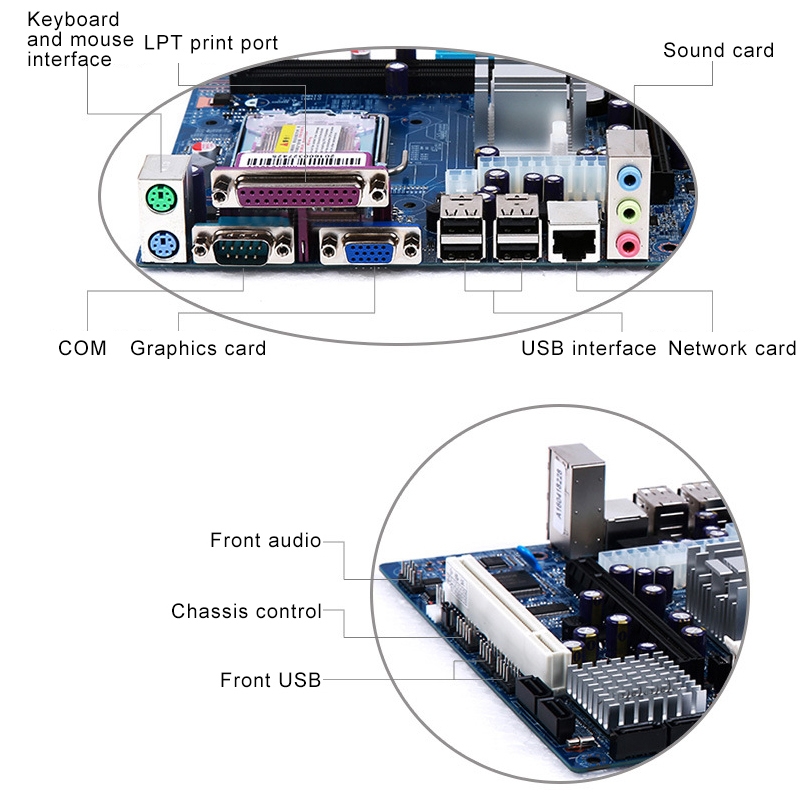

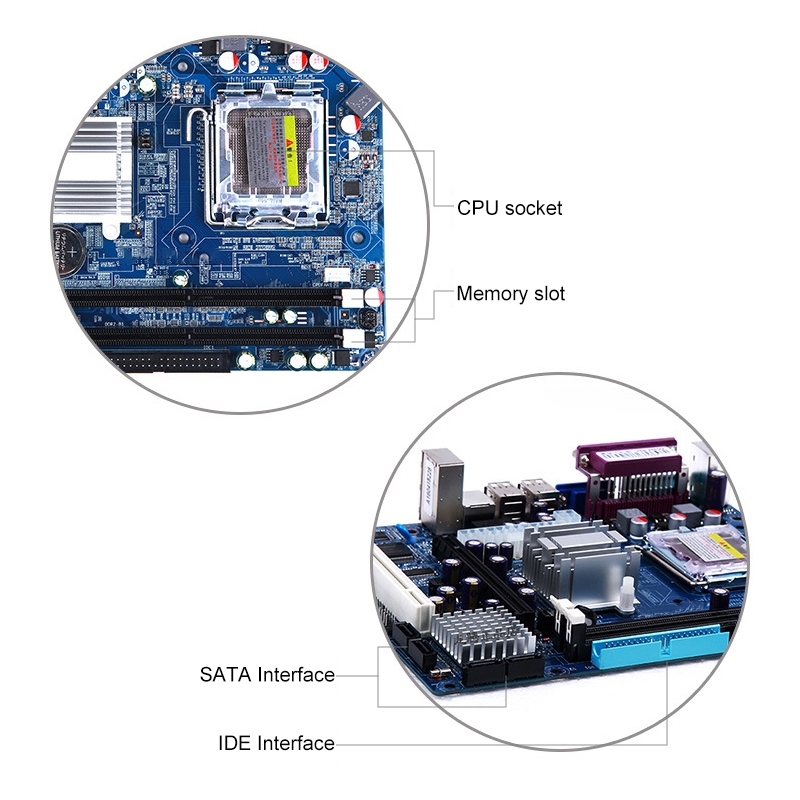

1. Intel 945G main chipset, Intel 945G+ICH7 chipset. 2. Number of CPU slots: 1, CPU slot type: Supports Intel Socket 775 interface processor. 3. Support Celeron Core Pentium series processor Intel Celeron D/Core2 Extreme/Core2 Duo/Pentium D/Pentium 4. 4. FSB (MHz): FSB 800/533. 5. Memory type: DDR2, support single and dual channel DDR2 533/667/800 memory. 6. Integrated chip: graphics card / sound card / network card. 7. Audio chip: Integrated Realtek ALC sound card chip. 8. Graphics chip: integrated GMA950 graphics core. 9. NIC chip: Realtek 8100C 100M NIC. 10. 6-8 USB ports, 4 rear, 2-4 front. 11. 1 x PCI-E graphics card slot. 12. One PCI slot, one IDE slot, no FDD slot. 13. PS/2 mouse, PS/2 keyboard interface. 14. External port: audio interface / VGA interface / network card / LPT print port / COM port. 15. 2-4 SATAII interfaces. 16. Memory slot: 2 x DDR2 DIMM. 17. Micro ATX form factor. 18. Power socket: one 4-pin, one 24-pin. 19. Dimensions: 21.6x16.8cm. Note: Do not put the chassis or screws on the goods you receive. In case the product does not meet the requirements you need, install it after the system has been installed and tested without any problems.

Specifications

SKU

PC0445

Category

Computer & Networking › Computer Components › Motherboard

Weight

0.58 kg

Delivery

Standard delivery
