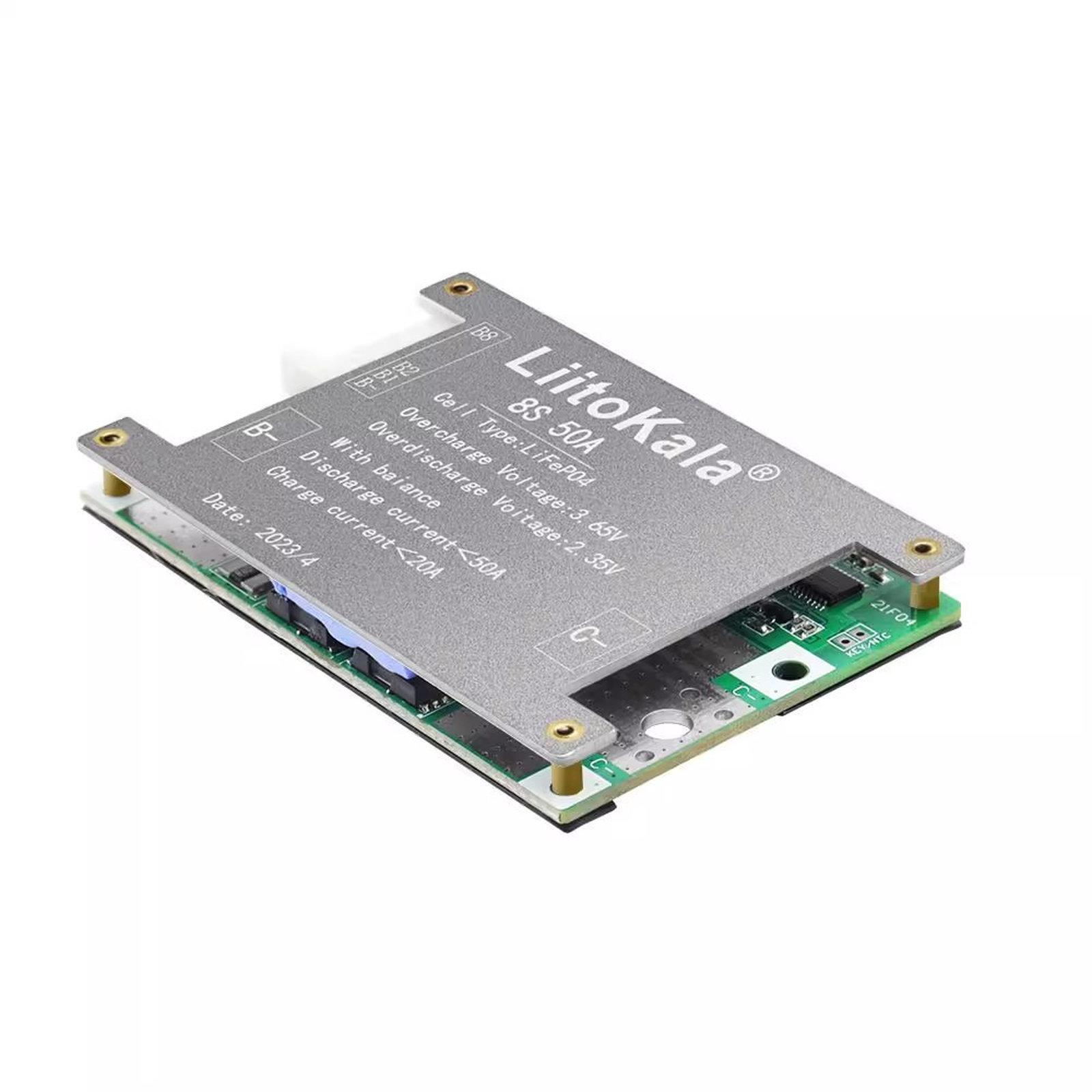

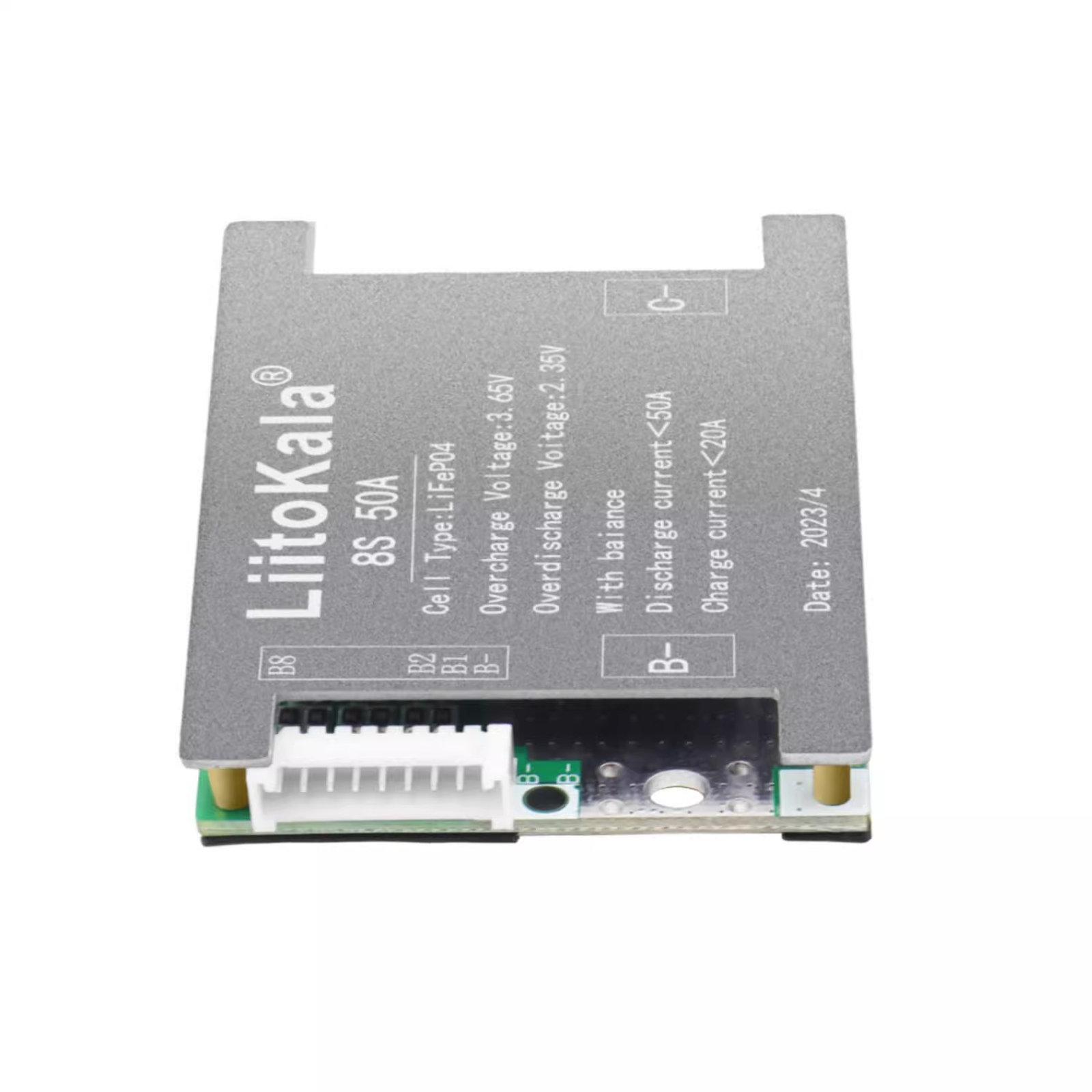

LiitoKala LiFePO4 BMS 8-cell Lithium Iron Phosphate Battery Protection Board(8S-24V 50A)

Product Description

1. Matches 8S 24V LiFePO4 (LiFePO4) battery packs, providing professional management and protection solutions for home solar energy storage systems, inverters, golf carts, AGVs, and DIY battery packs. 2. Supports continuous discharge current up to 50A and continuous charging current up to 20A. 3. Employs a single-port design, sharing the same main circuit interface for charging and discharging, simplifying complex wiring processes and improving assembly efficiency. 4. Intelligently detects individual cell faults or detached acquisition cables, instantly cutting off the circuit and entering protection mode. 5. Provides individual cell overcharge and over-discharge protection, with built-in high-precision integrated circuits for multiple layers of protection for added peace of mind. 6. Uses thickened integrated all-aluminum alloy heat sinks, effectively widening the heat dissipation channel and reducing heat buildup under high current operation. 7. The matching acquisition socket ensures a secure plug-in/plug-out connection; a high-strength, color-coded matching voltage acquisition cable is included to reduce wiring error rates. 8. When any battery in the battery pack fails or a cable becomes detached, the BMS immediately enters protection mode.

Specifications

SKU

TBD0606939401A

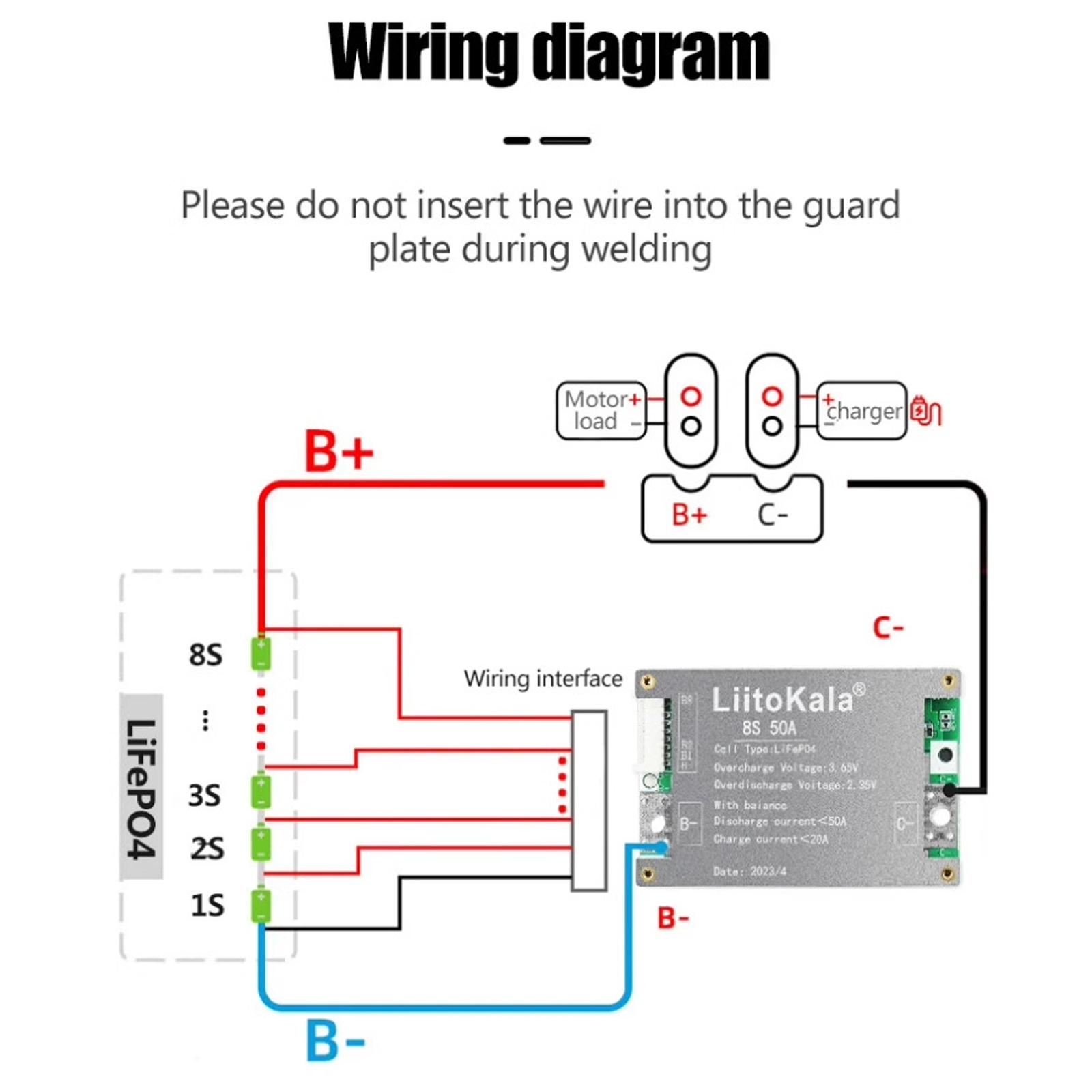

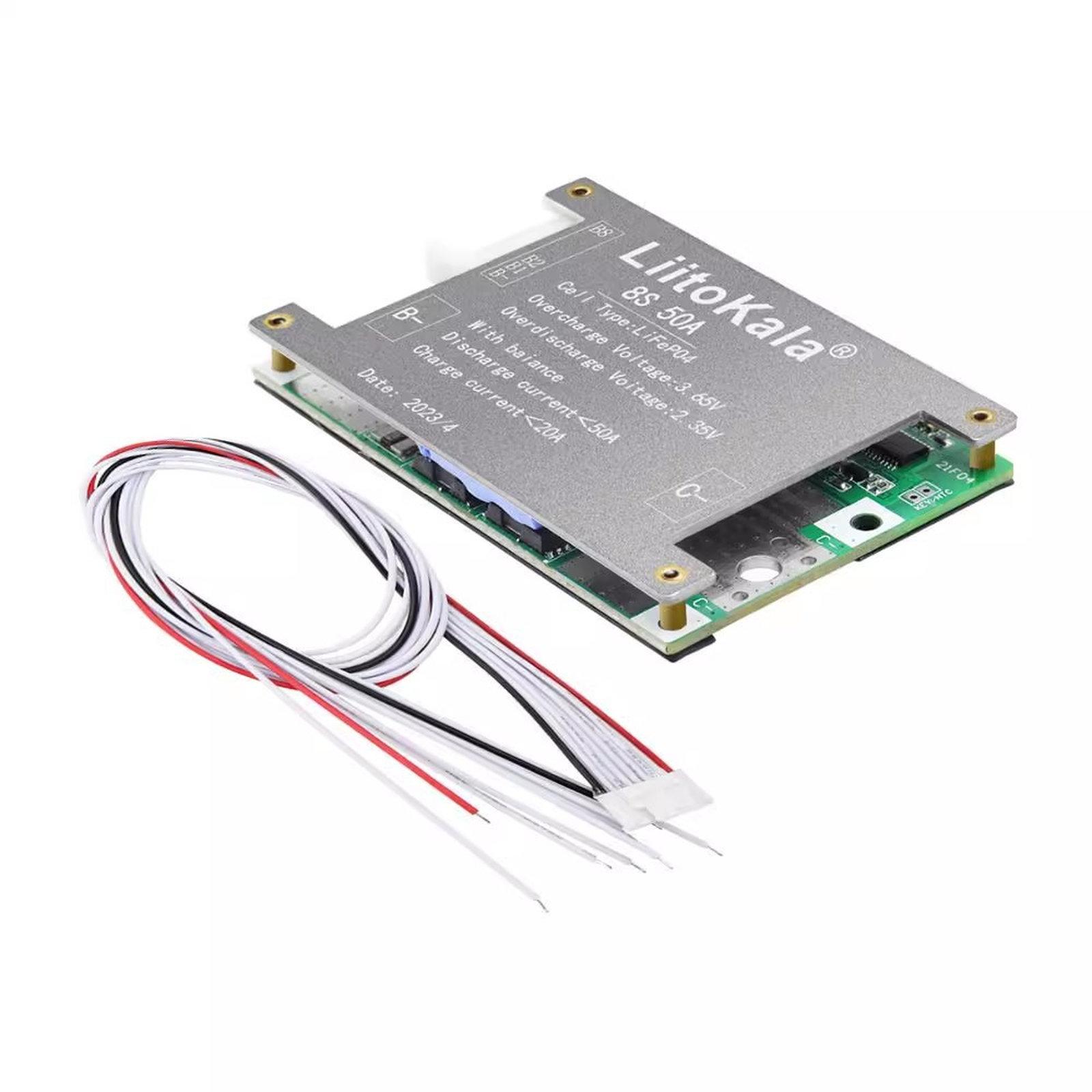

Category

Consumer Electronics › Arduino & SCM Supplies › Power Module

Weight

0.061 kg

Delivery

Standard delivery
