Linshang Automotive Inspection High Precision Paint Thickness Tester(LS233)

Product Description

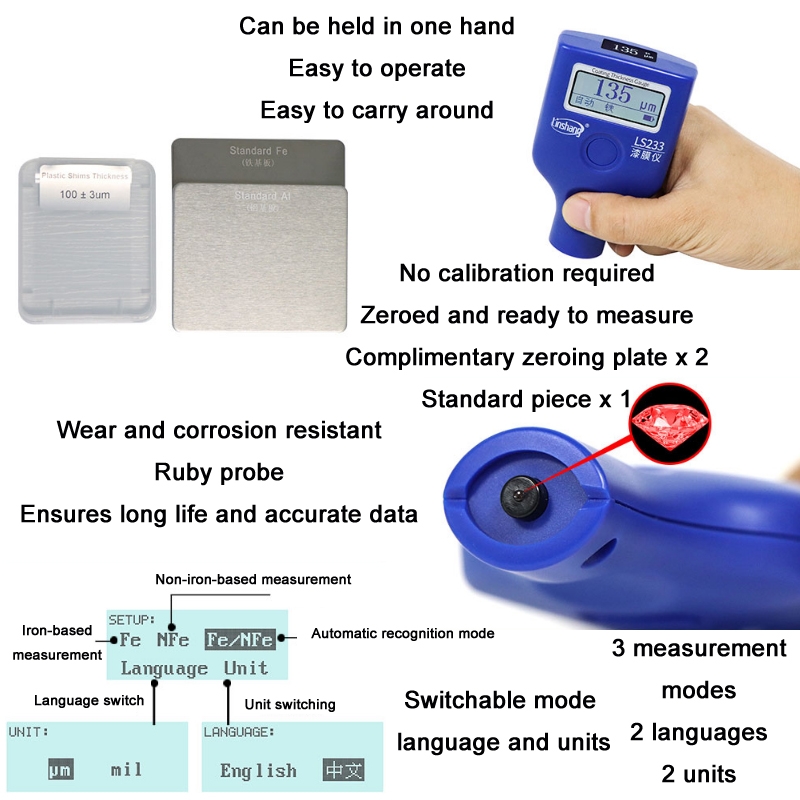

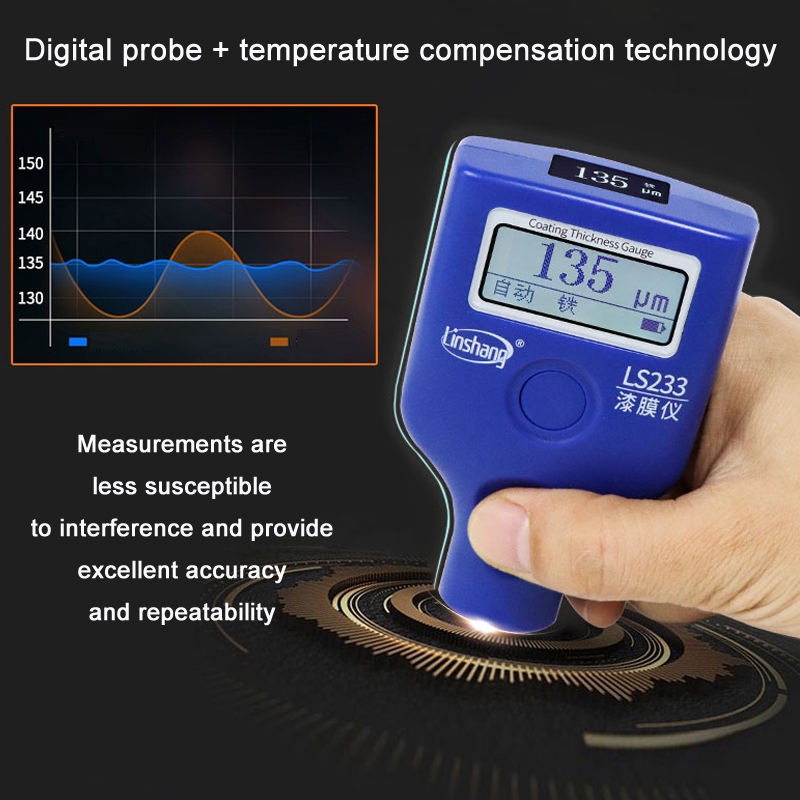

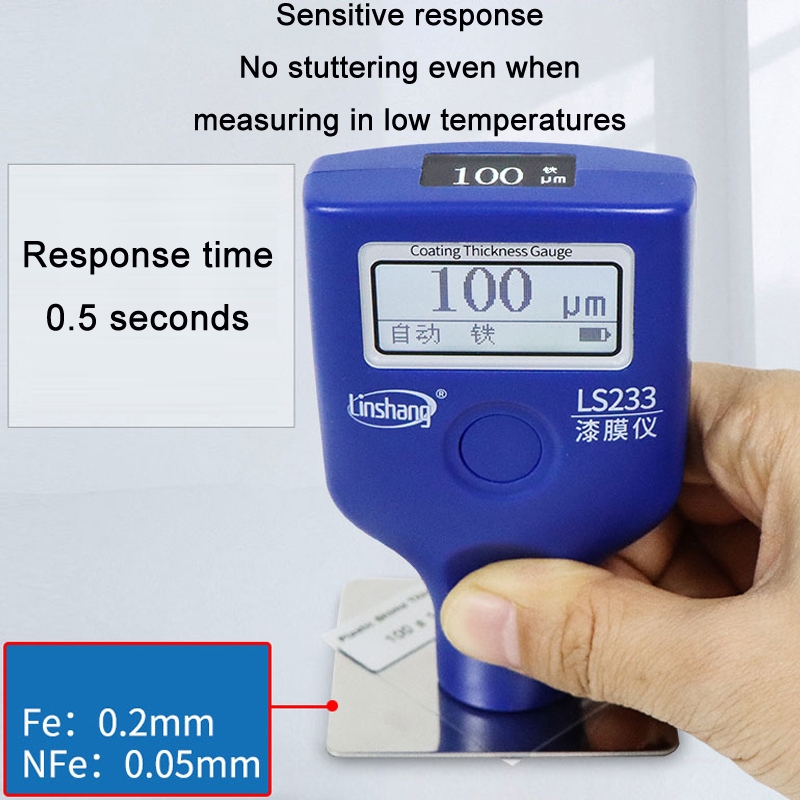

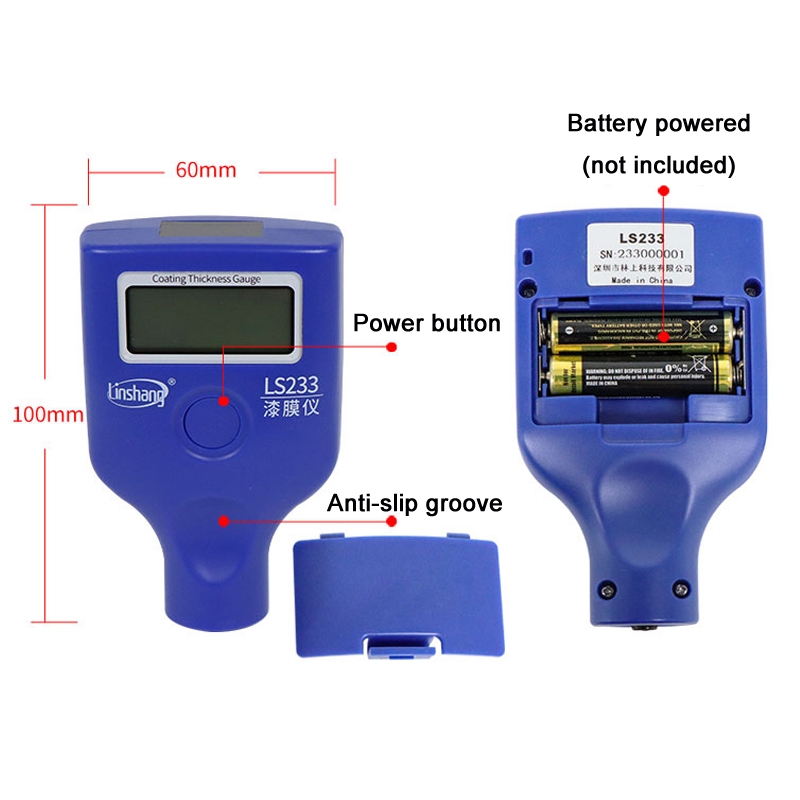

1. Measuring principle: Fe Hall effect/NFe eddy current effect 2. Radius of curvature (Min): 5 mm on convex surfaces / 25 mm on concave surfaces 3. Substrate thickness (Min): Fe 0.2mm/Nfe 0.05mm 4. Power supply: 2x1.5V AAA battery (not included) 5. Display: front 128x48 dot matrix LCD, top 128x64 dot matrix OLED 6. Front screen and top screen display data simultaneously for easier reading 7. Sensitive response, no stuttering even in low temperature measurement 8. Automatic switching between ferrous and aluminium substrates, with automatic recognition of ferrous and aluminium or other non-metallic substrates, enabling quick change of measurement mode 9. Digital probe + temperature compensation technology, measurement is not easily disturbed and provides excellent accuracy and repeatability 10. One-handed, easy to use and portable 11. Abrasion and corrosion resistant, ruby probe ensures long life and accurate data 12. No need to calibrate, zeroing to measure, free zeroing plate x 2; standard piece x 1 13. Switchable modes, languages and units, 3 measurement modes, 2 languages, 2 units 14. Dimensions: 100x60x24mm 15. Weight: about 80g

Specifications

SKU

TBD0603009801A

Category

Consumer Electronics › Test Equipment › Coating Thickness Gauge

Weight

0.084 kg

Delivery

Standard delivery
