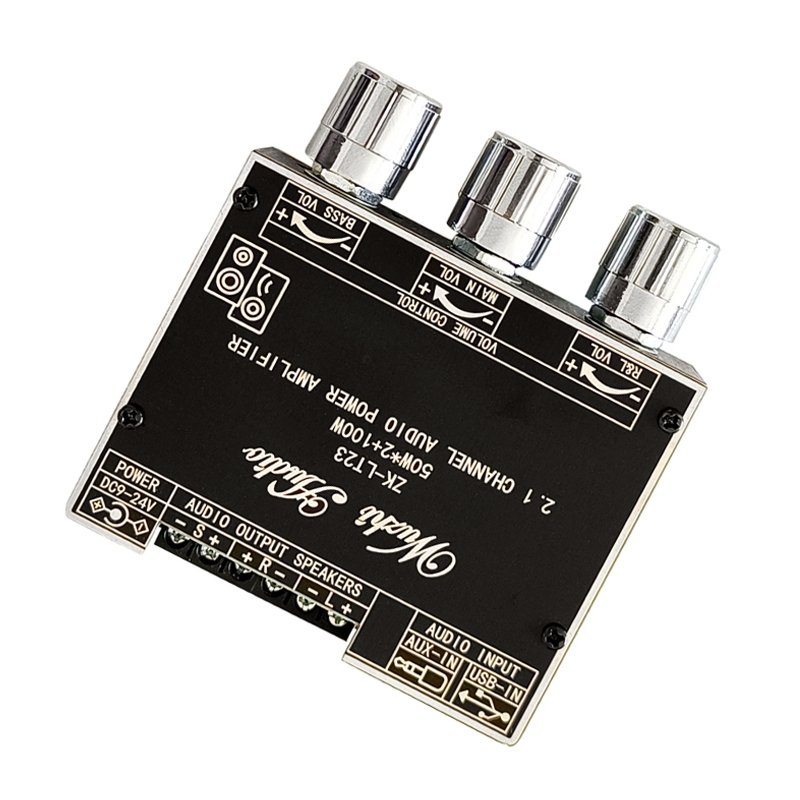

LT23 50W+100W 2.1 Channel TWS Bluetooth Audio Receiver Amplifier Module With Subwoofer

Product Description

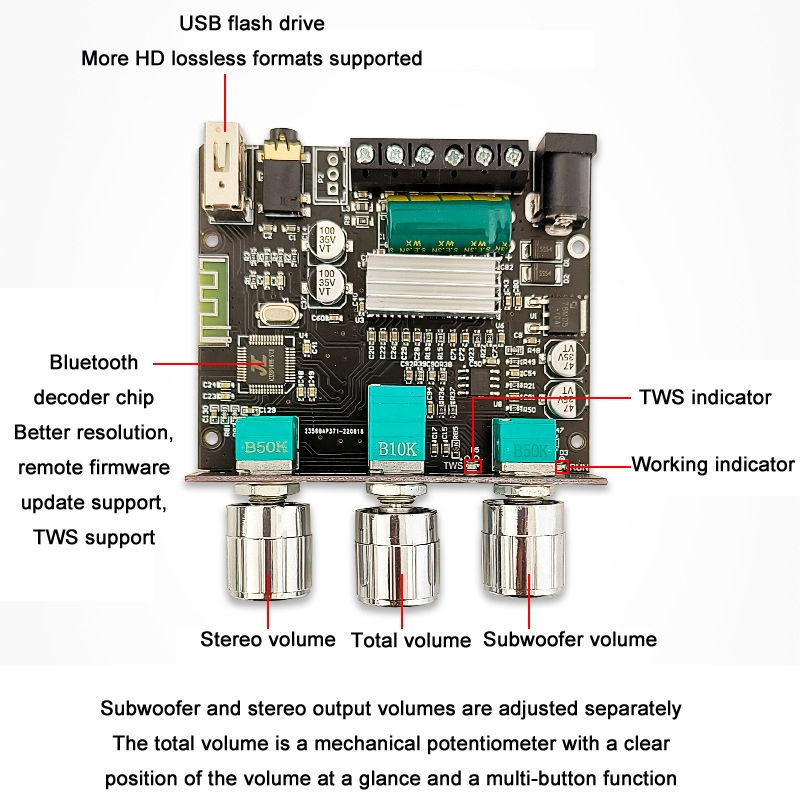

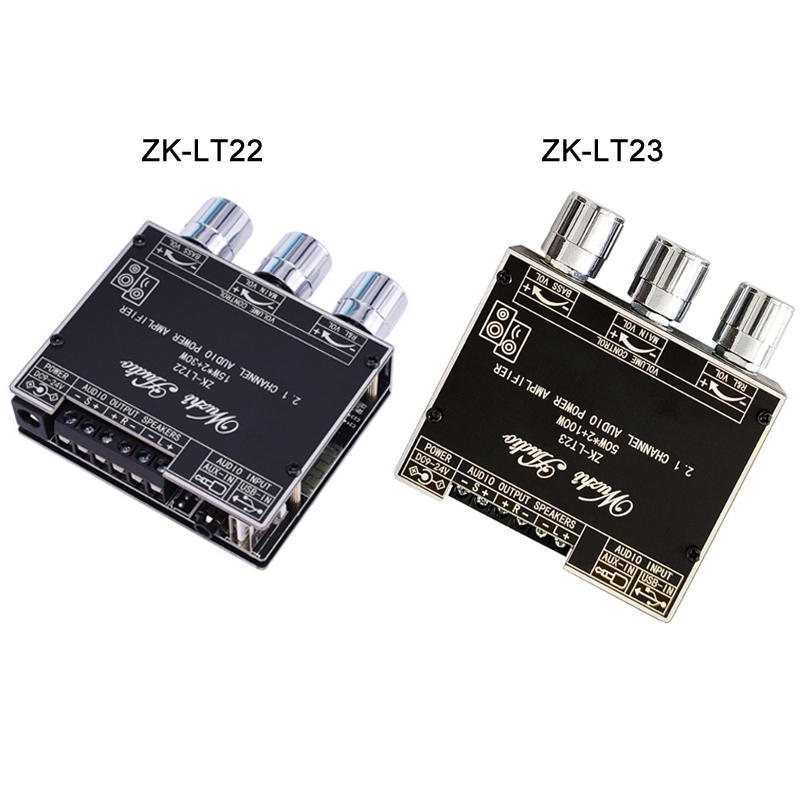

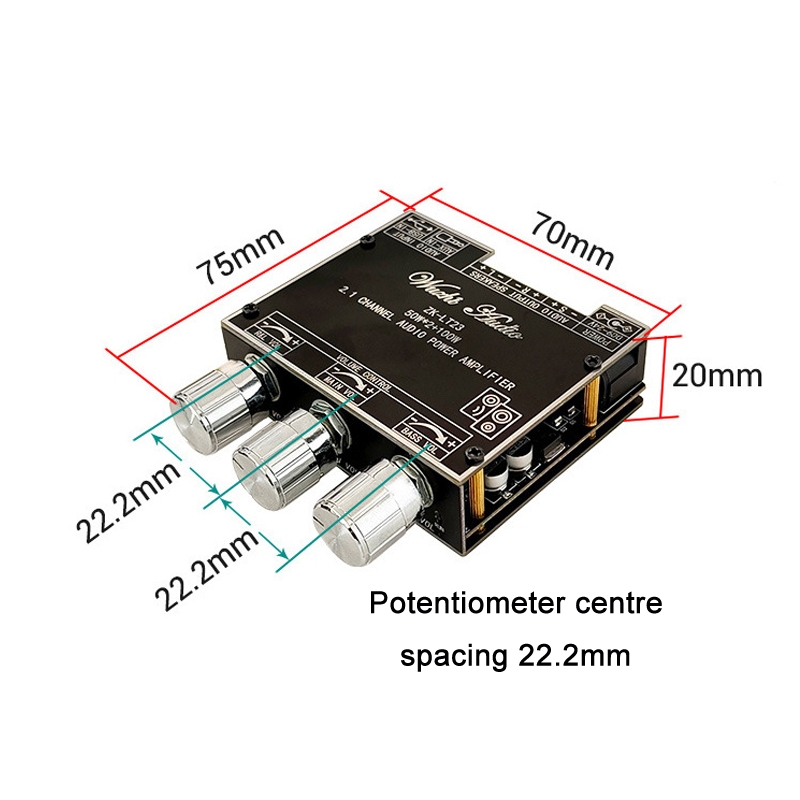

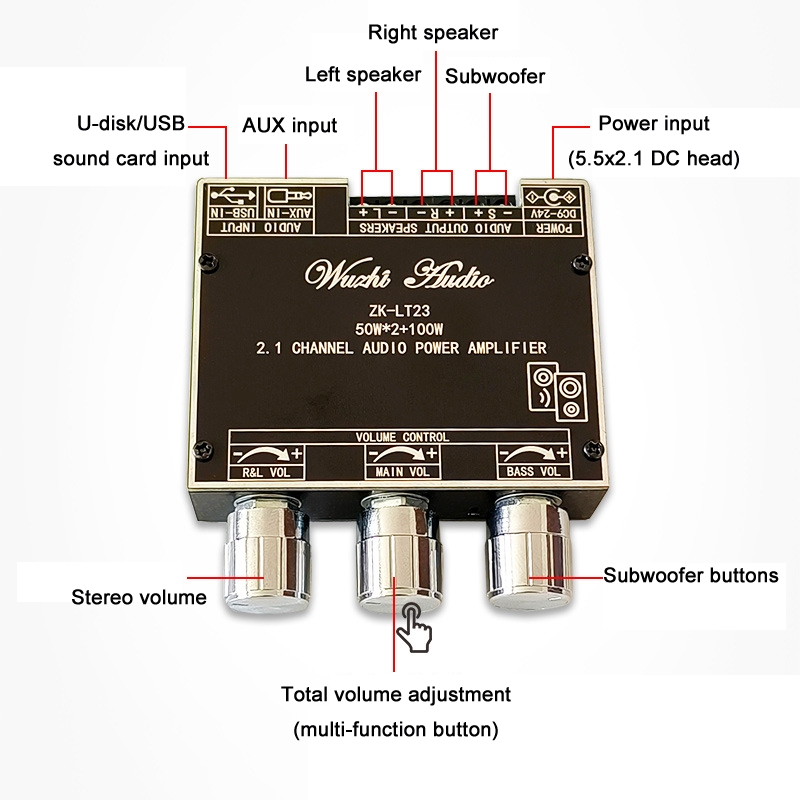

ZK-LT22: 1. Bluetooth version: 5.1 2. Bluetooth transmission distance: 10m 3. Audio input: Bluetooth + AUX + U disk + USB sound card 4. Audio output: 15W for left channel + 15W for right channel + 30W for subwoofer 5. Adaptable power supply: DC9-24V, 7A (not connectable to AC) 6. Speaker: left and right channel 10-30W, 4-8 ohms; subwoofer 10-30W, 4-8 ohms 7. Protection mechanism: over temperature, over current, short circuit, anti-static protection 8. Feature function: support Wuzhi Audio APP, modify Bluetooth name, password setting, beep volume adjustment, on/off beep, sleep aid song, firmware upgrade, etc. Pair box function, true wireless function allows two sets of speakers to be combined into a left and right channel pair box, with a stronger sense of spatial positioning 9. U-disk support for more HD lossless formats Bluetooth decoding chip, better resolution, support remote firmware update, support TWS function 10. Separate volume adjustment for subwoofer and stereo output 11. Total volume is mechanical potentiometer, volume position is clear at a glance, multi-button function is abundant 12. Dimensions: 75x70x20cm 13. Weight: 77g ZK-LT23: 1. Bluetooth version: 5.1 2. Bluetooth transmission distance: 10m 3. Audio input: Bluetooth + AUX + U disk + USB sound card 4. Audio output: 50W for left channel + 50W for right channel + 100W for subwoofer 5. Adaptable power supply: DC9-24V, 7A (not connectable to AC) 6. Speaker: left and right channel 10-50W, 4-8 ohms; subwoofer 20-50W, 4-8 ohms 7. Protection mechanism: over temperature, over current, short circuit, anti-static protection 8. Feature function: support Wuzhi Audio APP, modify Bluetooth name, password setting, beep volume adjustment, on/off beep, sleep aid song, firmware upgrade, etc. Pair box function, true wireless function allows two sets of speakers to be combined into a left and right channel pair box, with a stronger sense of spatial positioning 9. U-disk support for more HD lossless formats Bluetooth decoding chip, better resolution, support remote firmware update, support TWS function 10. Separate volume adjustment for subwoofer and stereo output 11. Total volume is mechanical potentiometer, volume position is clear at a glance, multi-button function is rich 12. Dimensions: 75x70x20cm 13. Weight: 78g

Specifications

SKU

TBD0603162702

Category

Consumer Electronics › DIY Parts & Components › Breadboard / Amplifier Board

Weight

0.129 kg

Delivery

Standard delivery
