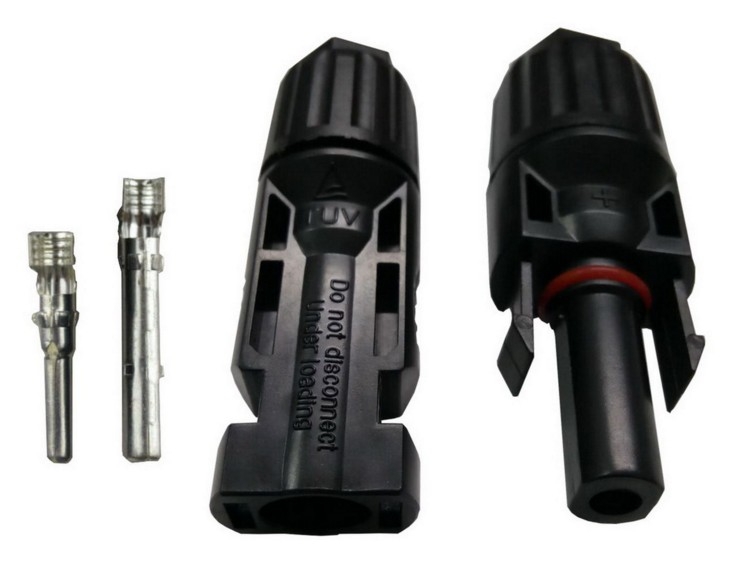

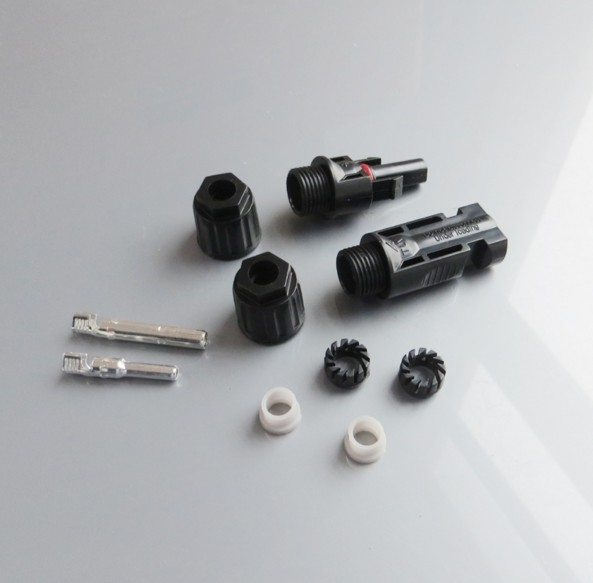

MC4 Connector male female 30A 1000V Solar Panel Branch Series for PV Cable 2.5/4/6mm2

Product Description

Model Number:EUConnection:Plug InOutput Type:DCBrand Name:ZOORUIUsage:Electric ToolOutput voltage:DC1000VUsage:solarSpecification Product No:MC4 Rated Voltage TUV 1000V DC / UL 600V DC Rating Current 20A-30A Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG Pin dimension:4.0mm Proof voltage:DC 8KV(1Min) Pollution degree: 2 Protection class: Class II Contact Material: Copper, tin-plated Contact Resistance: 5mW Connector Material: PPO Degree of Protection: IP IP67(IEC 60529) Withdrawal Force: 50N Insertion Force: 50N Temperature :-40-+85degree Flame Class: UL94V - 0

Specifications

SKU

TBD051384801A

Category

Consumer Electronics › Plugs & Sockets › AC Adapers

Weight

0.03 kg

Delivery

Standard delivery
