MECHANIC DC-3006 EU Plug Adjustable DC Regulated Power Supply High Precision Fine-Tuning Voltage Limiting Power Source

Product Description

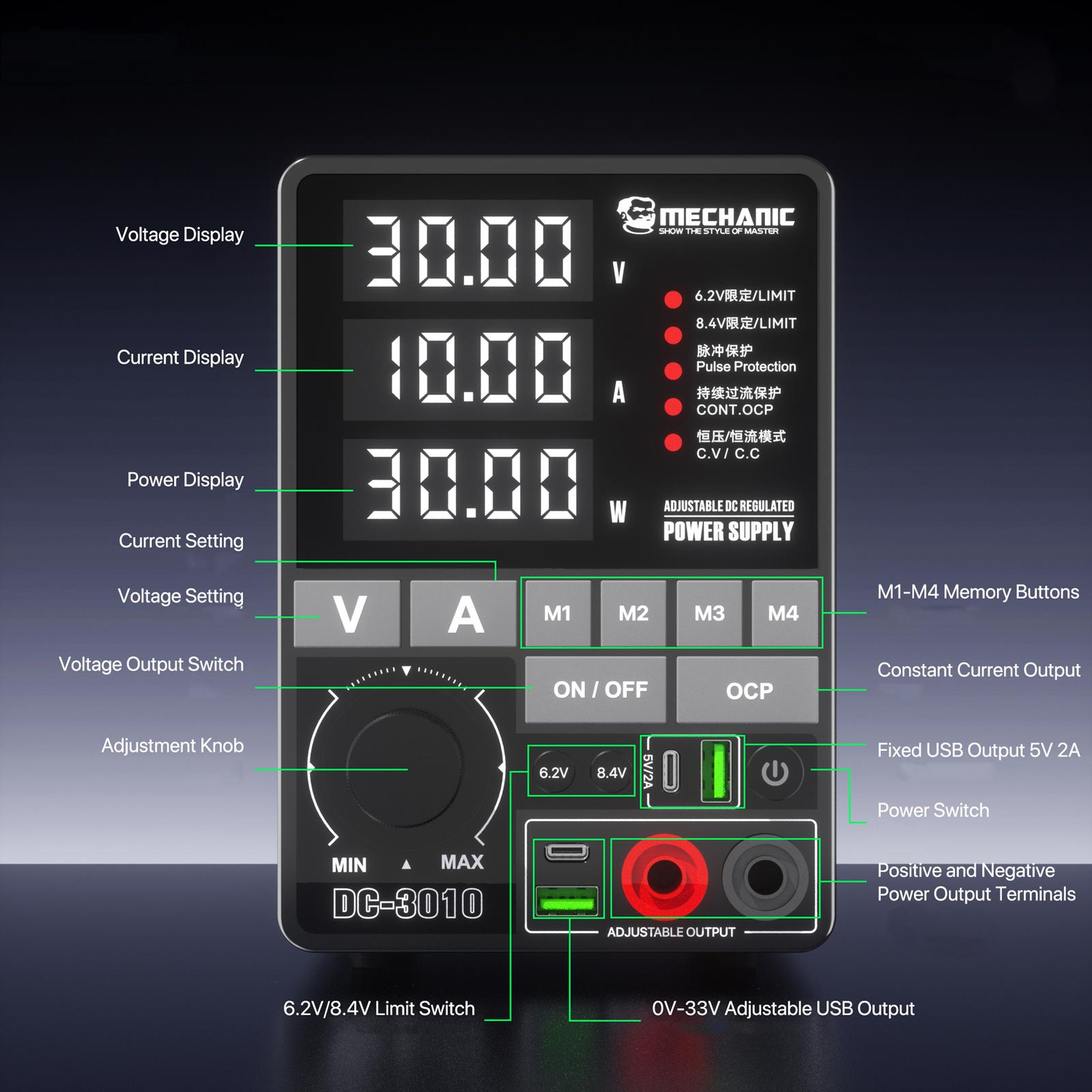

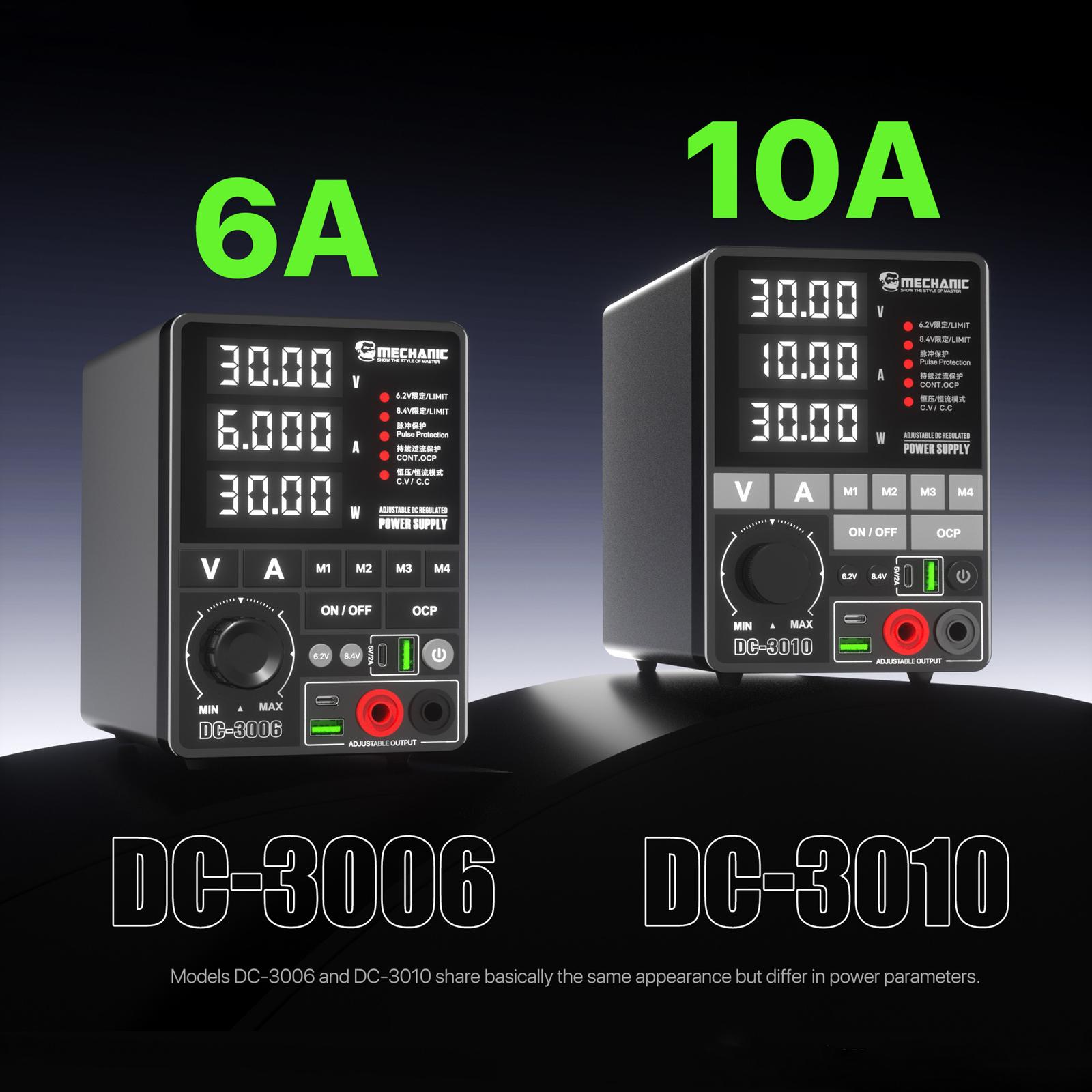

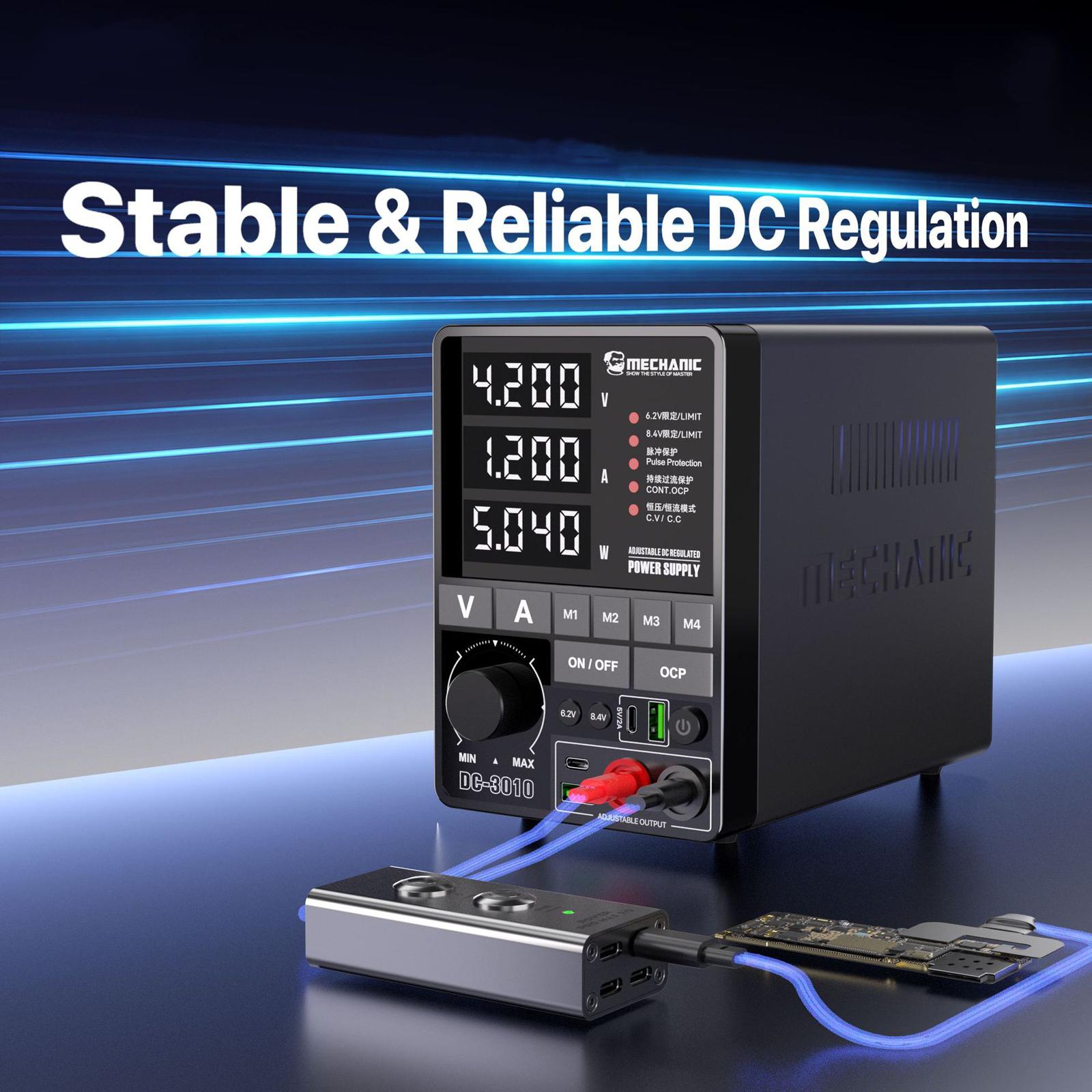

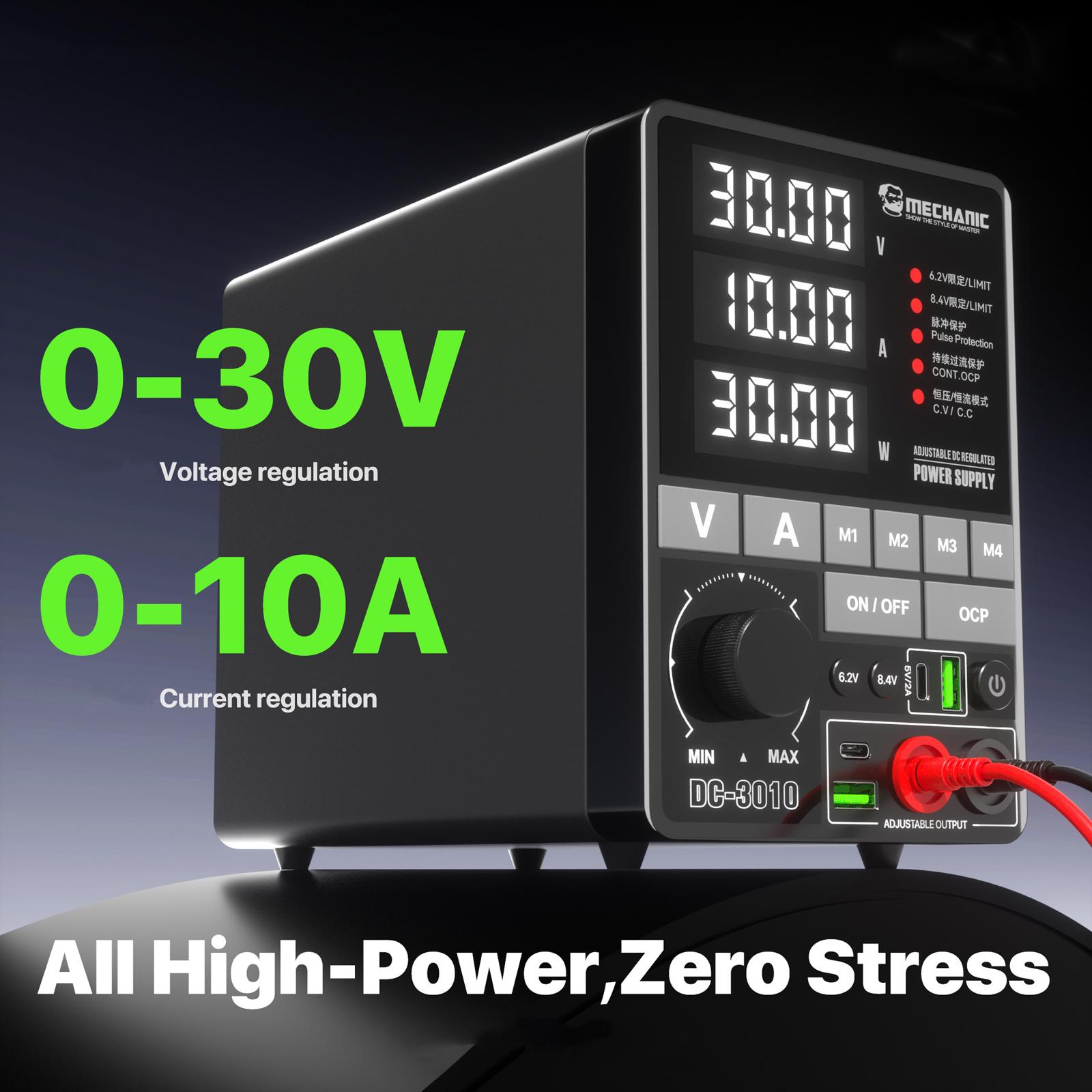

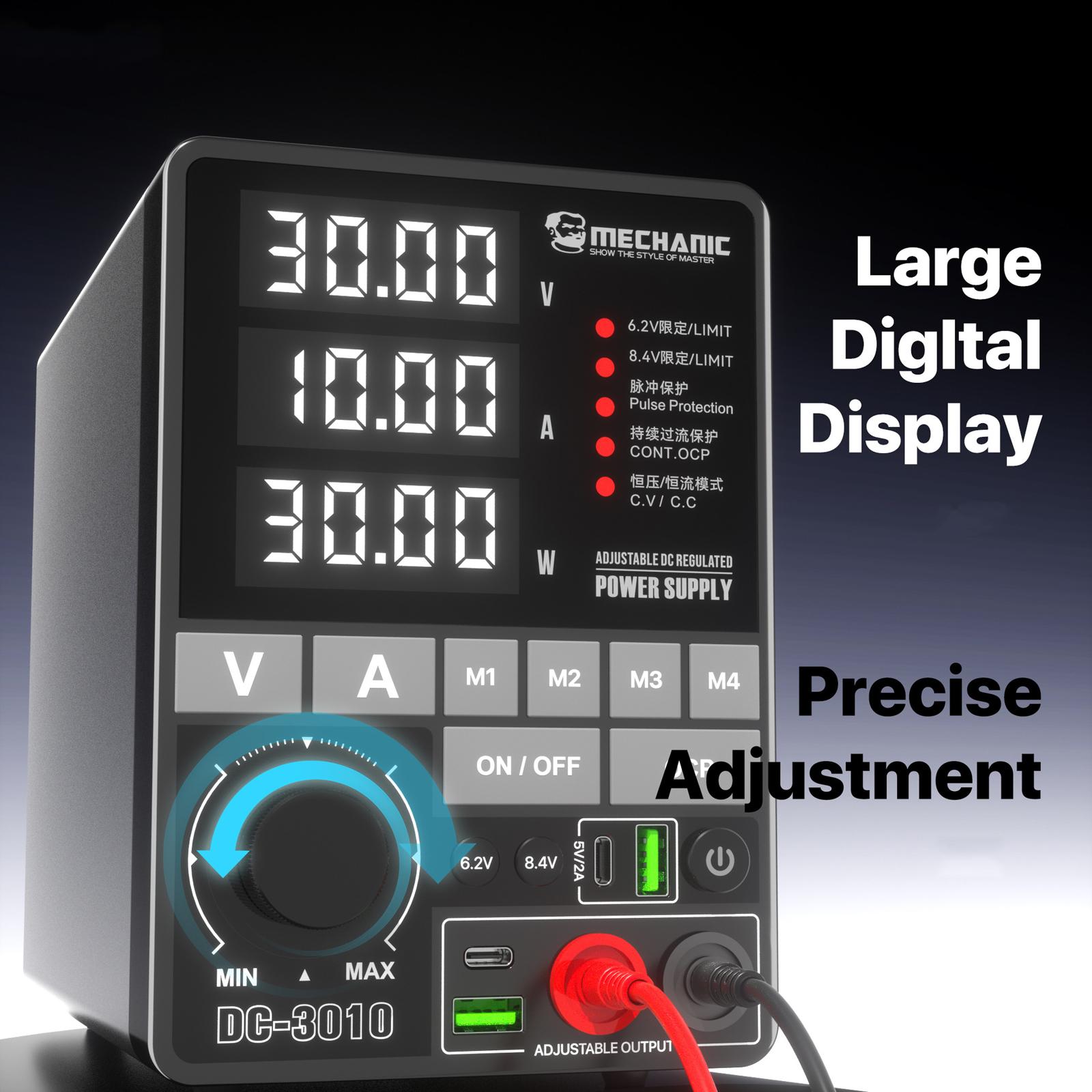

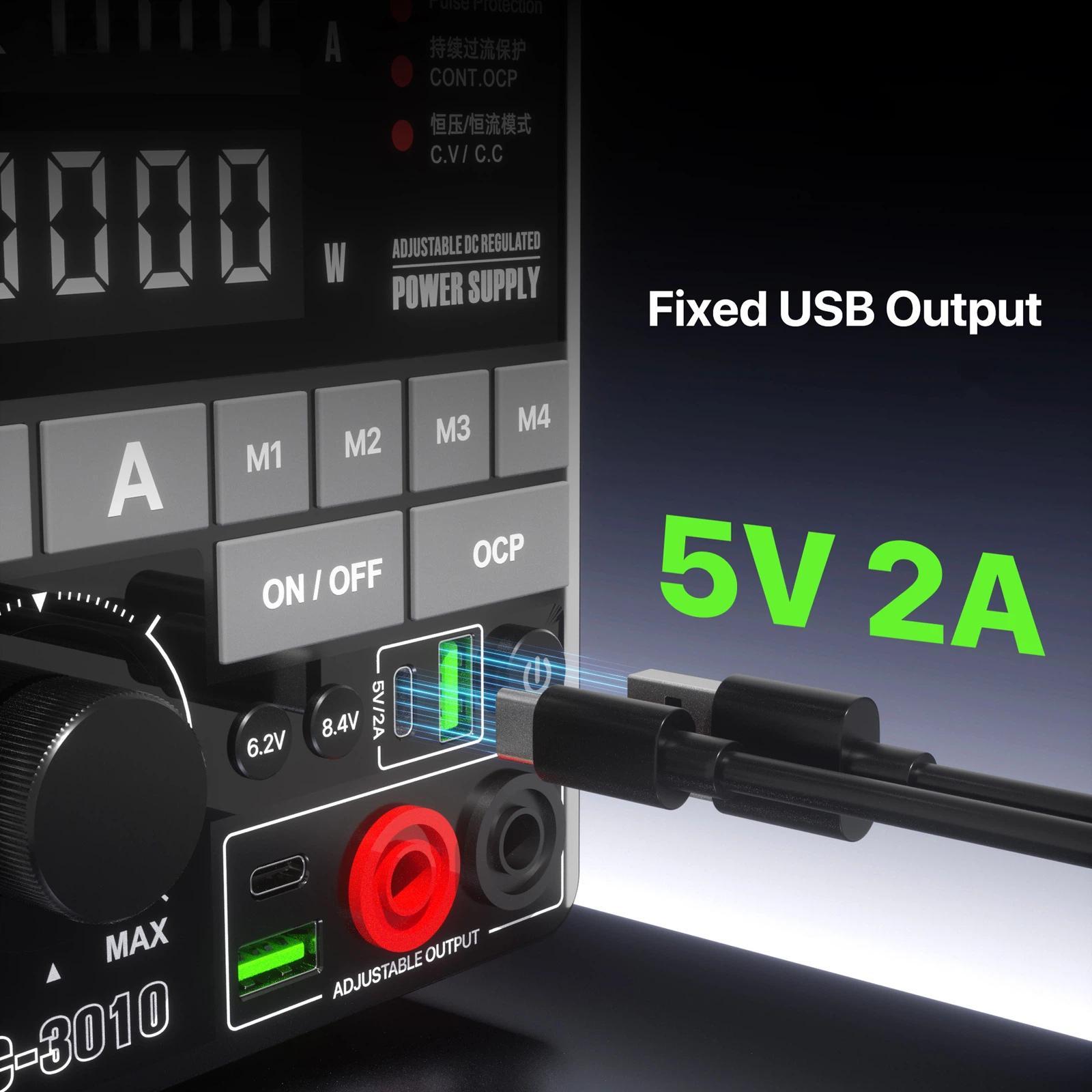

1. The large screen displays the voltage, current and power values in real time synchronously, with clear and intuitive readings 2. Equipped with adjustment knobs, it enables convenient fine-tuning of voltage and current, and supports precise parameter setting 3. With 4 built-in memory keys M1/M2/M3/M4, it can save commonly used parameters and be accessed with a single click 4. It has 6.2V and 8.4V voltage limit settings, suitable for mobile phone battery repair scenarios 5. Multiple safety protections: pulse protection, continuous overcurrent protection, and support for switching between constant voltage and constant current modes 6. Equipped with OCP overcurrent protection function, allowing manual activation of the output on/off switch 7. Dual USB output interfaces for expanded power supply applications 8. The DC regulated output is stable and reliable, suitable for mobile phone motherboard repair, equipment power supply, testing and debugging, etc 9. DC-3006: output voltage: 0 - 30V; output current: 0 - 6A; DC-3010: output voltage: 0 - 30V; output current: 0 - 10A

Specifications

SKU

TBD0607114402

Category

Mobile Parts › Repair Tools › Power Supply

Weight

3.014 kg

Delivery

Standard delivery
