Mechanic W04 Portable Mini Battery Spot Welding Machine PCB Short Circuit Detector

Product Description

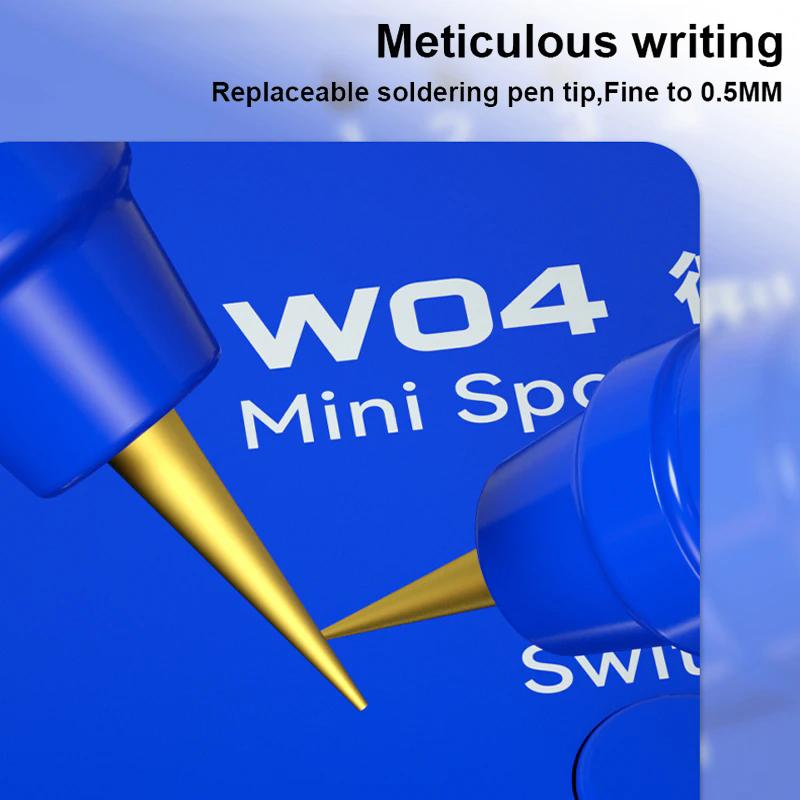

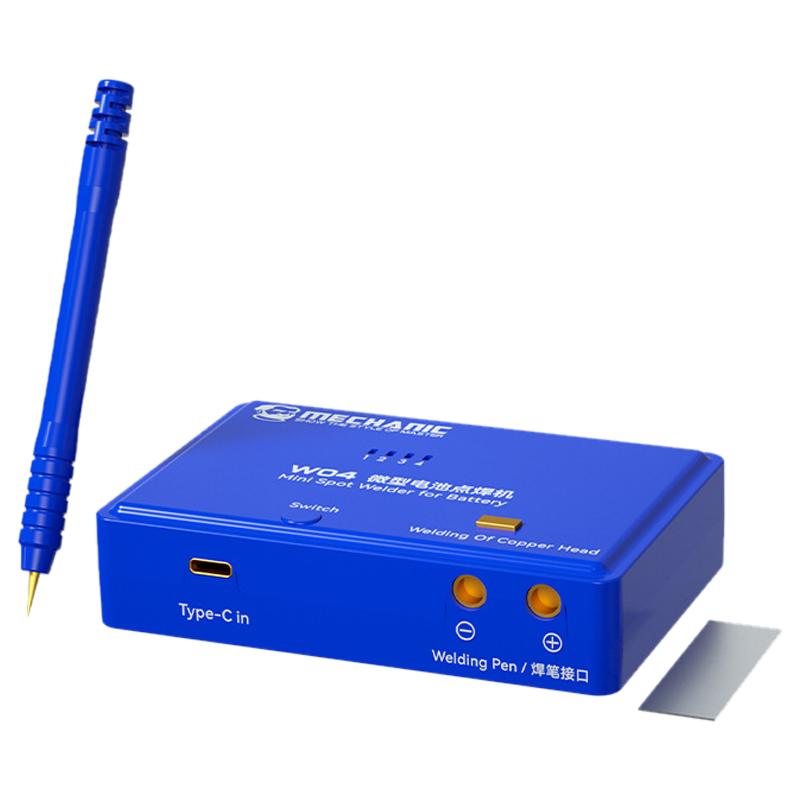

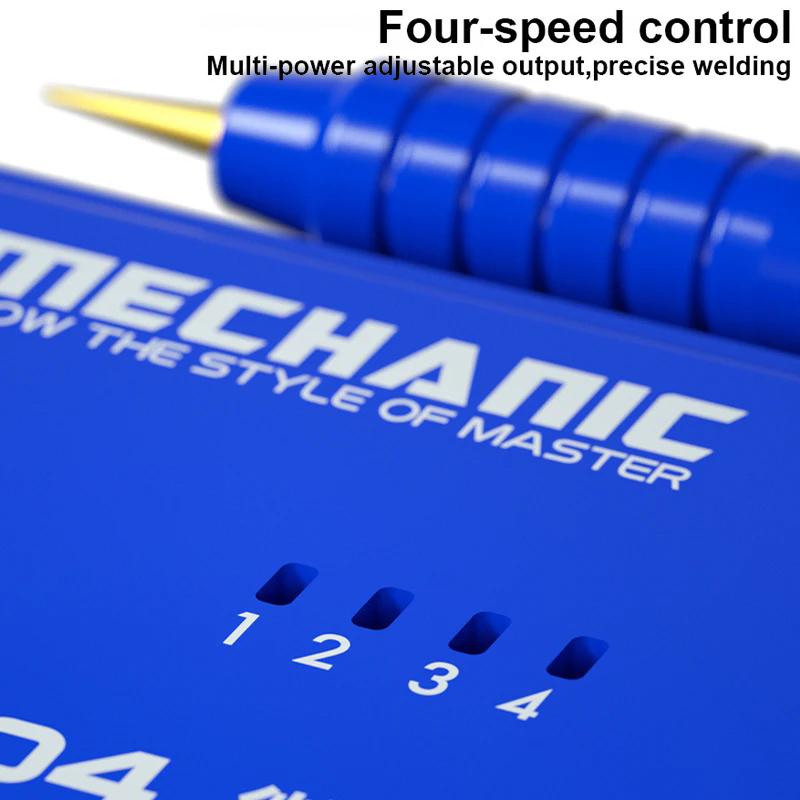

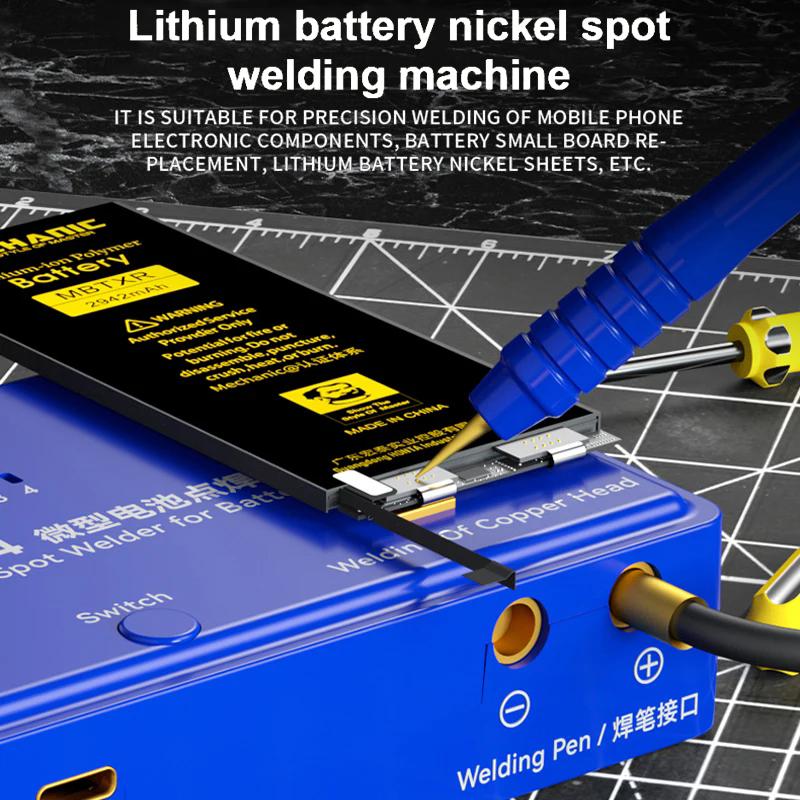

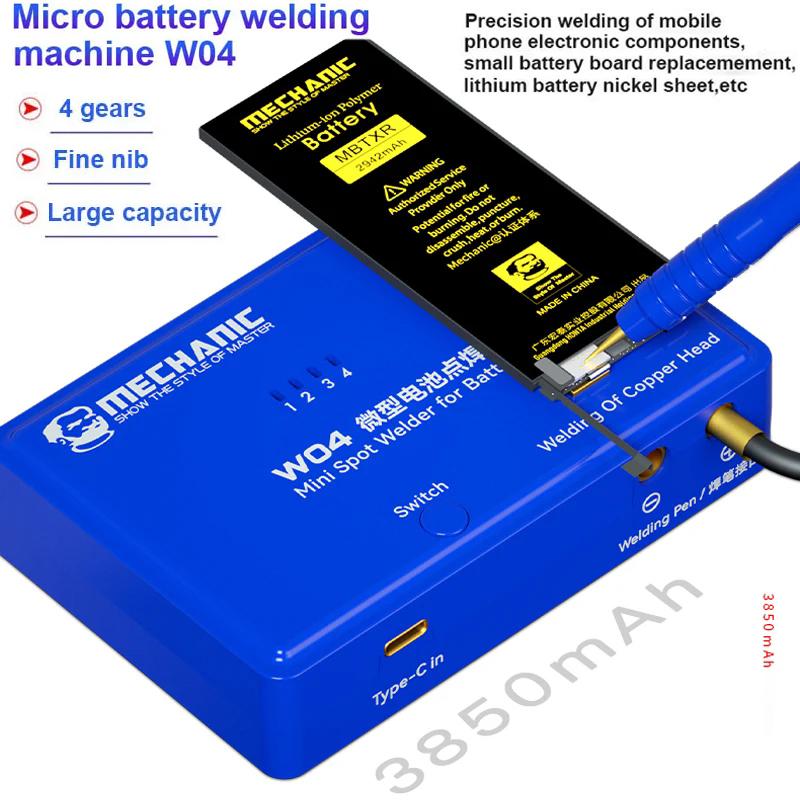

Specifications: 1. Product Model: W04 2. Product size: 112 x 85 x 25mm 3. Battery capacity: 3850mAh 4. Output voltage: 4.2V (Max) 5. Output current: 650A (Max) 6. USB output: 5V 2.4A (Max) 7. Micro USB input: 5V-2A 8. Output interface: Micro/IN input 9. Recommended nickel strip thickness: 0.1~0.2mm Features: 1. The operating voltage complies with mobile phone industry standards to avoid the breakdown of battery cells 2. Breakthrough the precision of traditional soldering pencil the tip is as fine as 0.5mm 3. Multi-power adjustable output, precise welding 4. The spot welding machine is also a power bank with a capacity of up to 3850mAh 5. It is suitable for the replacement of mobile phone electronic components and small battery boards, and precision welding of lithium battery nickel chips 6. It can weld nickel sheets of lithium battery and supports welding of mobile phone batteries such as Apple, Xiaomi, Huawei, etc 7. Four gear adjustment, multi-power adjustment, output, and precise welding 8. Package includes: 1 x Battery Welding Machine 1 x Soldering pen 1 x Nickel sheet

Specifications

SKU

EDA0083973

Category

Home & Garden › Soldering Tools & Accessories › Electric Soldering Iron

Weight

0.304 kg

Delivery

Standard delivery
