Microwave Radar Human Body Sensor 12/24V DC Body Car Mobile Sensing(807k-DC)

Product Description

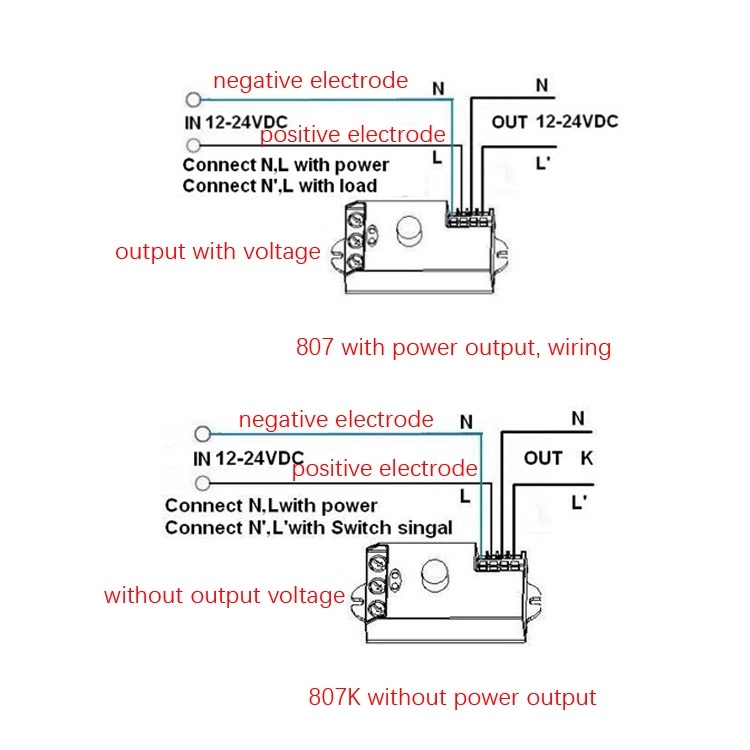

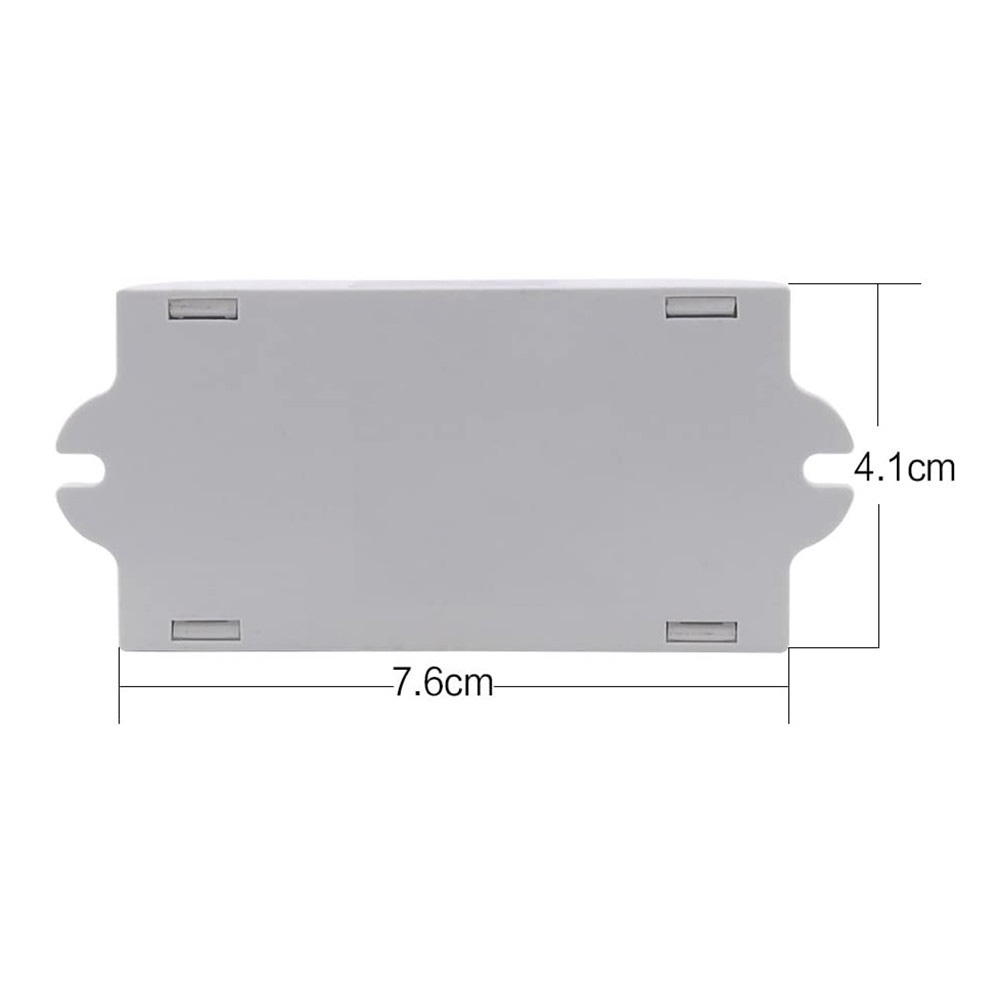

1. Voltage: DC12-24V 2. Frequency: 50/60HZ 3. Installation method: indoor, ceiling installation 4. HF system: 5.8GHz CW radio wave, ISM band 5. Transmitting power: less than 10mW 6. Power: 70W (DC 12V) 7. Detection angle: 360 degrees 8. Distance: about 1-10m (radius) adjustable 9. Working delay: 10 seconds to 3 minutes 10. Light control illumination: about 2-2000 LUX 11. Power consumption: about 0.5W 12. Description: 807 with power output, 807K without power output 13. Applicable environment: corridors, toilets, living rooms, corridors, warehouses, garages, etc. 14. Installation reminder: the induction switch has a transmission blind spot in the central area. If it is installed in a small indoor environment (such as bathroom, kitchen), try to install it on the side or in the corner, so that the induction area will be more effective on the side. otherwise, the vertical center activity may not be sensed 15. Size: about 7.6x4.1x3.9cm

Specifications

SKU

TBD0602086901B

Category

Consumer Electronics › Arduino & SCM Supplies › Sensor Module

Weight

0.095 kg

Delivery

Standard delivery
