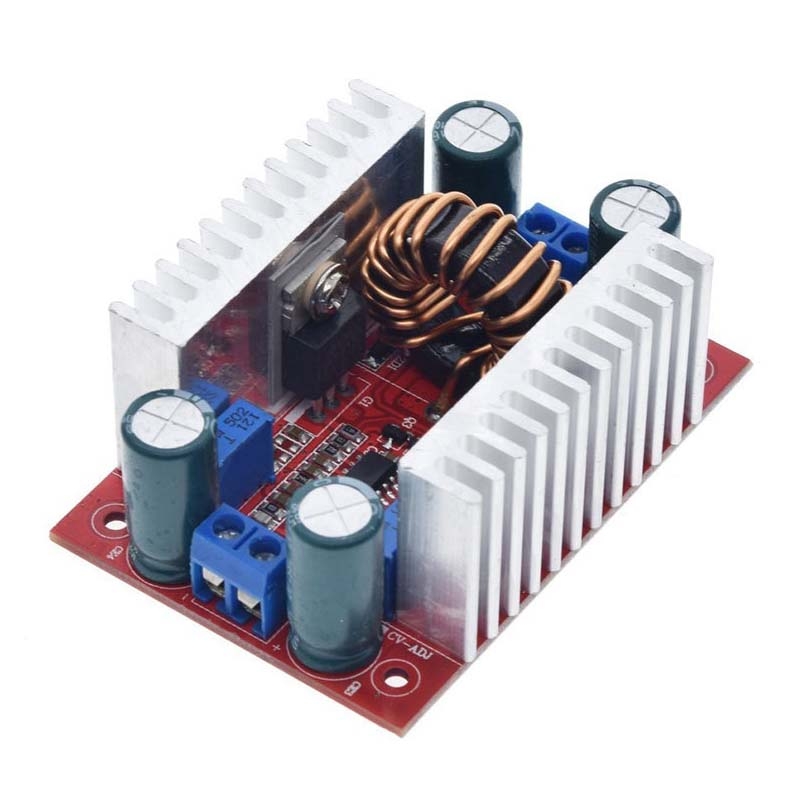

MK00132 DC-DC 400W 15A Boost Converter Constant Current Power Supply LED Driver Voltage Charger Module

Product Description

1. Module nature: non-isolated boost module 2. Input voltage: DC8.5-50V 3. Input current: 15A ((MAX) more than 8A please strengthen the heat dissipation) 4. Static operating current: 10mA (12V to 20V, the higher the output voltage, the static current will increase) 5. Output voltage: 19V 6. Output current: 12A (MAX) over 7A, please strengthen the heat dissipation 7. Operating temperature: -40-85 degrees celsius 8. Operating frequency: 150KHz 9. Conversion efficiency: 96 percent MAX 10. Overcurrent protection: yes (input more than 15A, automatically reduce the output voltage, there is a certain error range) 11. Input reverse connection protection: no 12. Constant current range: 0.2-12A 13. Installation mode: four 2.5mm screws 14. Output mode: wired output 15. Size: 67 x 48 x 28mm 16. Weight: 60g
