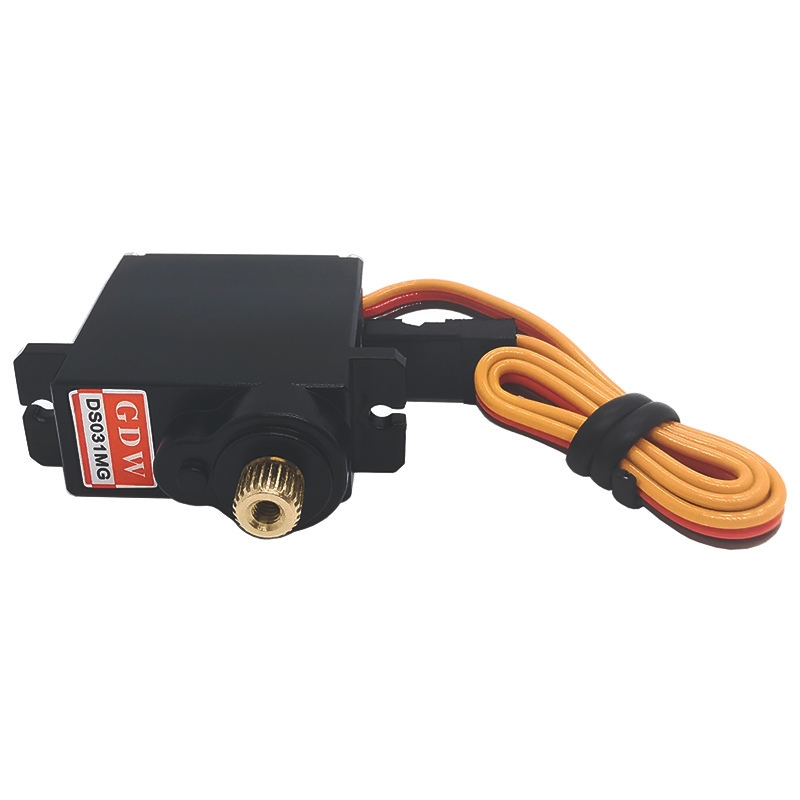

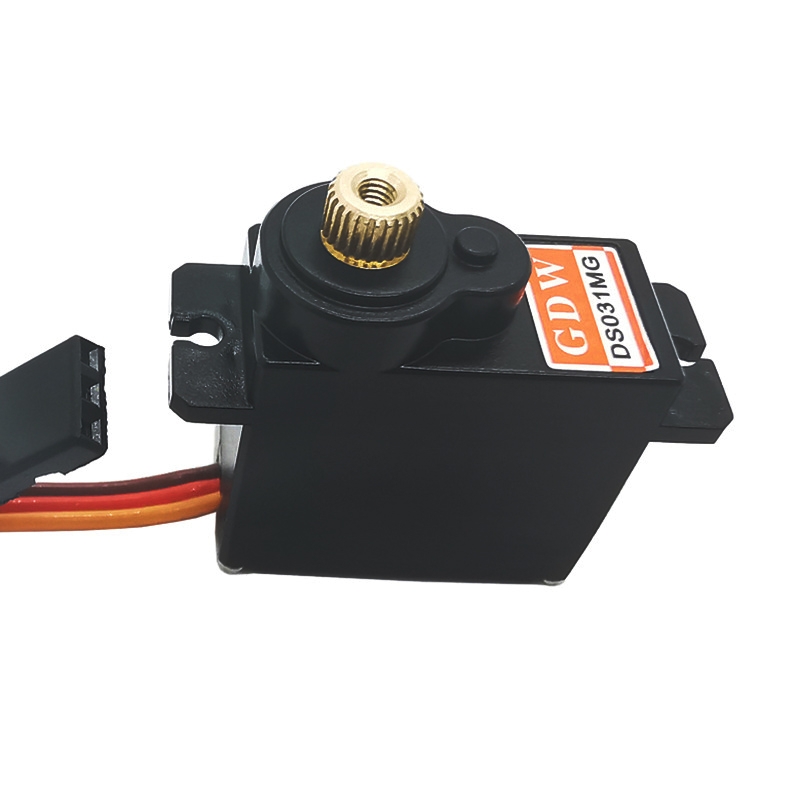

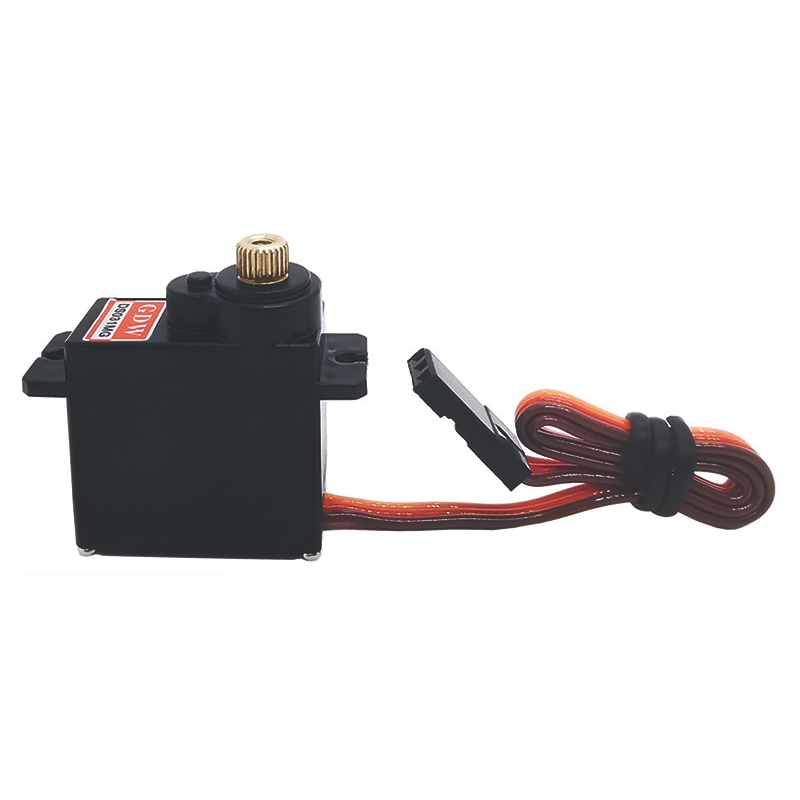

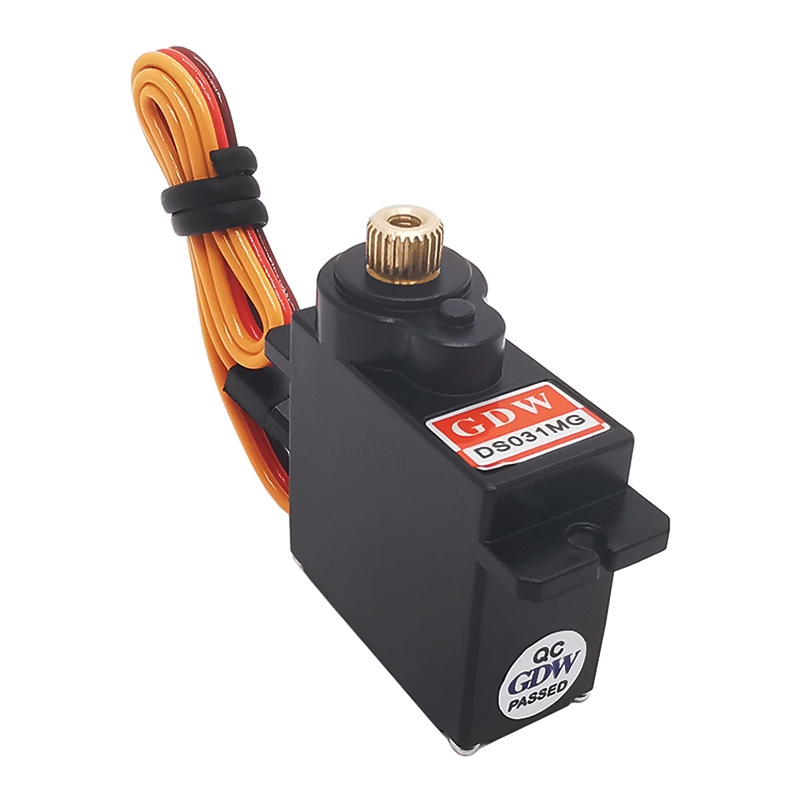

Model Aircraft 450 Swashplate GDW Steering Gear(DS031MG)

Product Description

1. Material: plastic + metal 2. Working voltage: DC4.8V - 7.2V 3. Working frequency: 1520us/333HZ 4. The default angle of the model remote control is about 60 degrees 5. The pulse width is 1000-2000us, and the controllable angle is 90 degrees 6. The controllable angle is 120 degrees, used for: RC model car, aircraft model, ship model, pulse width 900-2100us 7. Controllable angle 180 degrees, used for robot joints, industrial development, pulse width 500-2500us 8. Controllable angle 300 degrees, used for robot joints, industrial development, pulse width 500-2500us 9. 360 degree continuous rotation uncontrollable, used for stranded wire, industrial development, pulse width 500-2500us 10. Among them, 1400-1600us is the stop state, the more you go to 500 or 2500us, the higher the speed and torque (faster) 11. Optimize the gear structure and reduce the height 12. Strong and durable, installed 13. Weight: 12 grams

Specifications

SKU

TBD0602226001A

Category

Game Accessories › DIY Parts & Components › Others

Weight

0.034 kg

Delivery

Standard delivery
