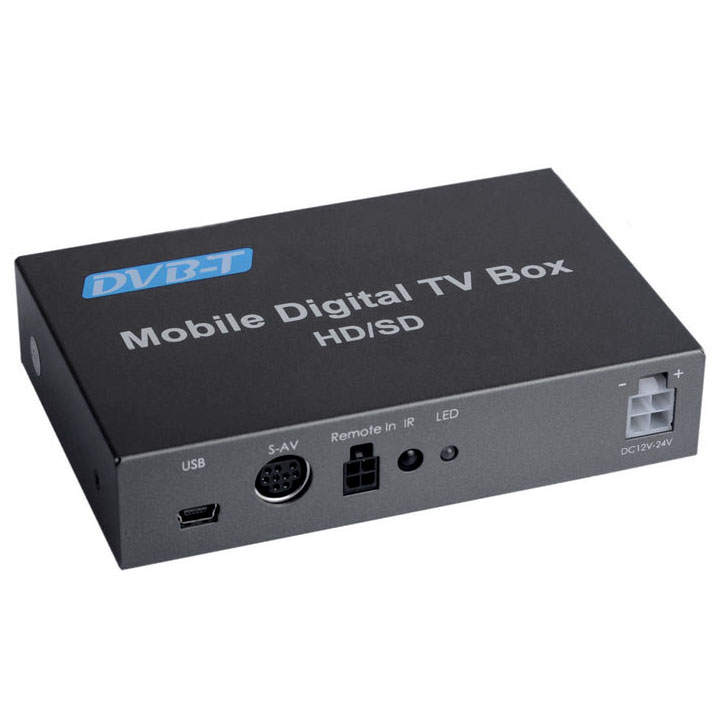

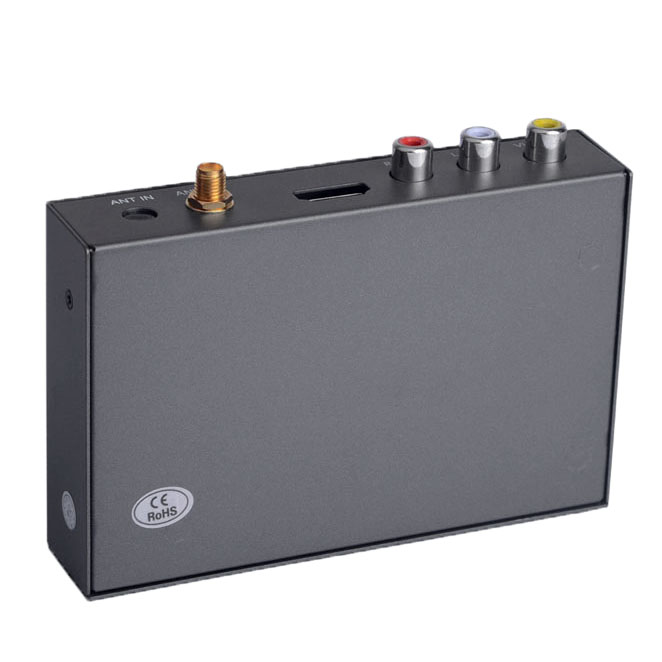

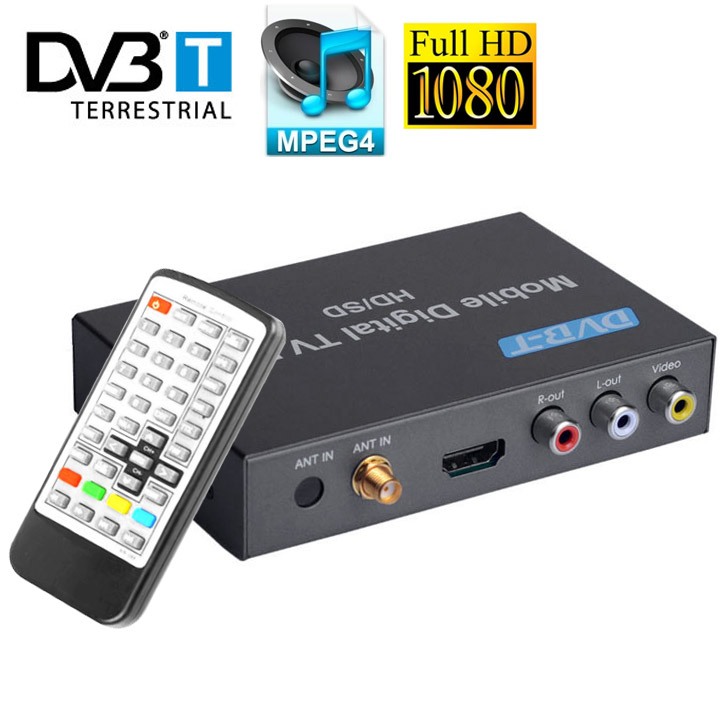

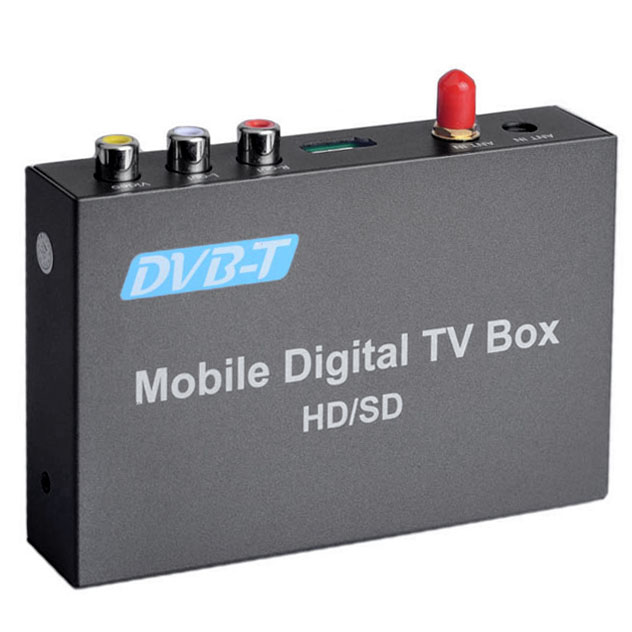

MPEG-4 HD 1080P DVB-T Mobile Car HD / SD Digital TV Box Receiver

Product Description

1) RF Input: UHF: 470MHz~862MHz 2) VHF: 174MHz~230MHz 3) Input Impedance: 75 ohms 4) Signal Level: -80dBm~-10dBm 5) Connector Type: SMA type terminalx2 6) Channel Band Width: 6M/7M/8M 7) Constellation: QPSK, 16QAM, 64QAM 8) Guard Interval: 1/32, 1/16, 1/8, 1/4 9) FEC: 1/2, 2/3, 3/4, 5/6, 7/8 10) COFDM Carrier Mode: 2K And 8K, Non Hierarchical / Hierarchical 11) Transport Stream: MPEG-4AVC/H.264 HP@L4 12) MPEG-2 MP@HL/ML 13) Video Aspect Ratio: 4:3 / 16:9 14) Video System: PAL / NTSC 15) Video Output: 1±0.3Vpp 16) Video Resolution: YPbPr, Resolution: 720*576@25fps / 720*480@30fps / HD 1920 x 1080p / 1920 x 1080i 17) Audio Decoder: MPEG-2/HE_AAC 18) Audio Channel: R/L/ST 19) Audio Output: 1Vpp 47Kohm Adjustable With E Volume Main Features: 1) Fully comply with DVB-T Standard 2) Twin tuners with diversity structure TV box for high speed driving 3) Subminiature appearance, easy to install 4) Special design for car using, support high speed above 230km / hours 5) Support MPEG-1, MPEG-2, MPEG-4, H.264 decoder (up to 1920x1080P) 6) Audio Decoder: MPEG-2/HE_AAC (DD/DD +optional) 7) Support multi-media format: MPG, MKV, AVI, MOV 8) Super fast hardware decoding of JPEG picture 9) DVB subtitling ETSI 300473 compliant and OSD teletext 10) Supports multiple OSD languages menu 11) EPG (Electronic Program Guide) with now and next and 7 days events 12) Channel search with automatic/manual scan 13) USB2.0 host support upgrade, PVR, timeshifting and media play with U-FLASH or HDD 14) RCA audio and video input with all the way ,three ot the RCA audio and video output 15) Standby consumption less than 0.85W

Specifications

SKU

S-TT-0004

Category

Consumer Electronics › TV Receivers › DVB-T & Analog Solutions

Weight

0.76 kg

Delivery

Standard delivery
