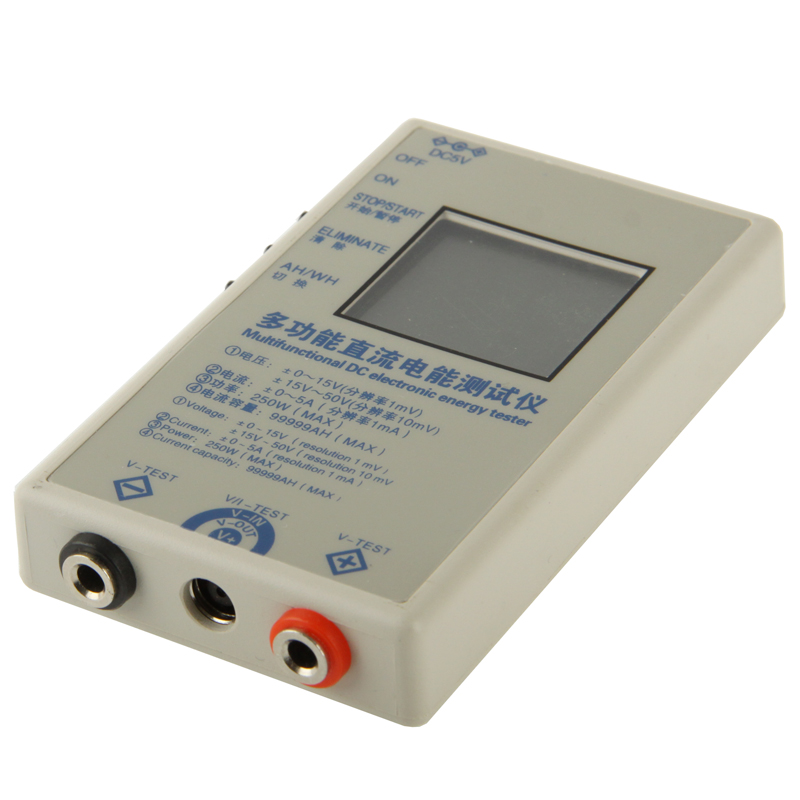

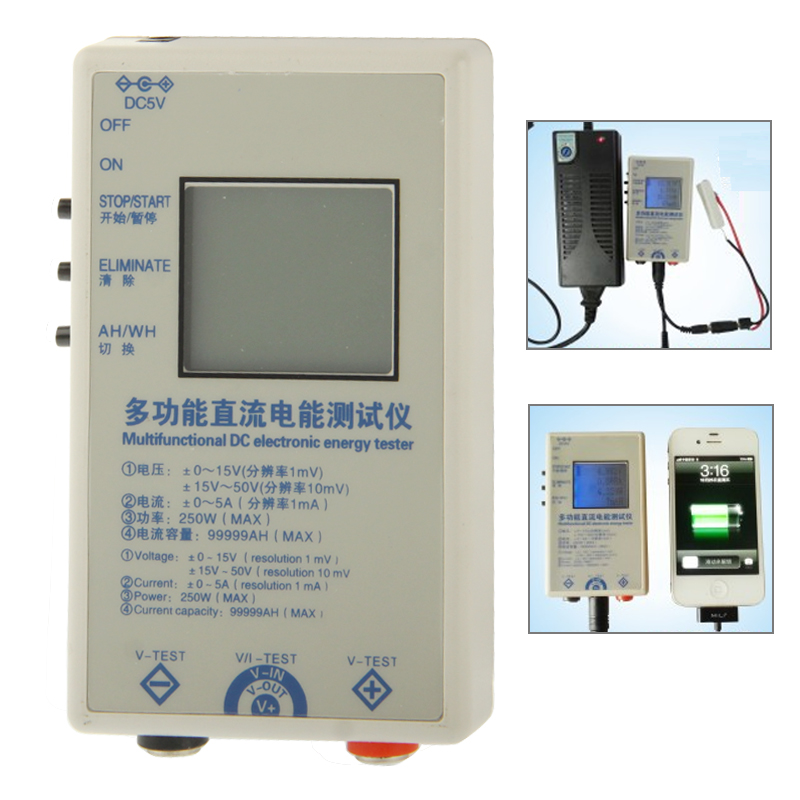

Multifunctional DC Electric Energy Tester (DC505AVW)

Product Description

1) Voltage: ±0 ~ 15V(resolution 1mV) / ±15 ~ 50V(resolution 10mV) 2) Current: ±0 ~ 5A (resolution 1mA) 3) Power: 250W(MAX) 4) Current capacity: 9999Ah(MAX) **Multifunction DC tester can be achieved: 1) DC voltage, current, two indicators of precision measurement; 2) measured by the value of the tester's power to determine the output power supply products are qualified; 3) can accurately test the battery or mobile power input and output capacity (mAH or WH). **Machine specifications and descriptions: 1) Maximum input voltage: ± 50V, ± 50V V exceeds displayed indicates over range; 2) Display digits: 0.000 ~ 14.999V and 15.00 ~ 49.99V; 3) DC voltage measurement accuracy: better than 1%; 4) test error: ± 5 number; 5) Resolution: 1mV (0 ~ 14.999V) and 10mV (15-50V) 6) DC voltage range: 0 ~ 15V and 15 ~ 50V two tranches automatic switching; **Power file: 1) shown in the current product of voltage and current; 2) Display digits: 999.999W and 999mW; 3) can be key to switch W (instant power) and WH (energy) is displayed. **Current capacity file: 1) Display the current capacity by the tester (mAH or AH), that is, the cumulative current time; 2) Display digits: 999mAH or 99999.999AH; 3) Test accuracy: better than 2%; 4) You can set the stall button to start, pause (double-click to start the pause button twice), Clear (Clear button press 2S); 5) As long as there is a current display, the current capacity will automatically start counting, the current becomes zero jump automatically stops at the last value. **DC Current file: 1) Display digits: 0.000 ~ 4.999A; 2) DC current measurement accuracy: better than 2% full file (1000mA less than 1%); 3) Test Error: ± 10 number (full file approximately ± 10mA); 4) Resolution: 1mA; 5) exceeds ± 4.999A A display indicates over range. **Each test gear drift indicators: 1) DC voltage range: better than 50ppm / ℃; 2) DC Current file: better than 120ppm / ℃. **Index test resistance class: 1) DC 0 ~ 15V voltage divider resistors built-equivalent impedance: 100K ohms; 2) DC 15 ~ 50V built-divider resistors equivalent impedance: 91K ohms; 3) DC current series impedance: 0.01 ohms (excluding test the connection line impedance and contact resistance, etc.). **Machine operating current: 1) Background lights: about 40mA; 2) When the backlight is off: about 33mA.

Specifications

SKU

S-DT-0164

Category

Consumer Electronics › Test Equipment › Current & Voltage Tester

Weight

0.2 kg

Delivery

Standard delivery
