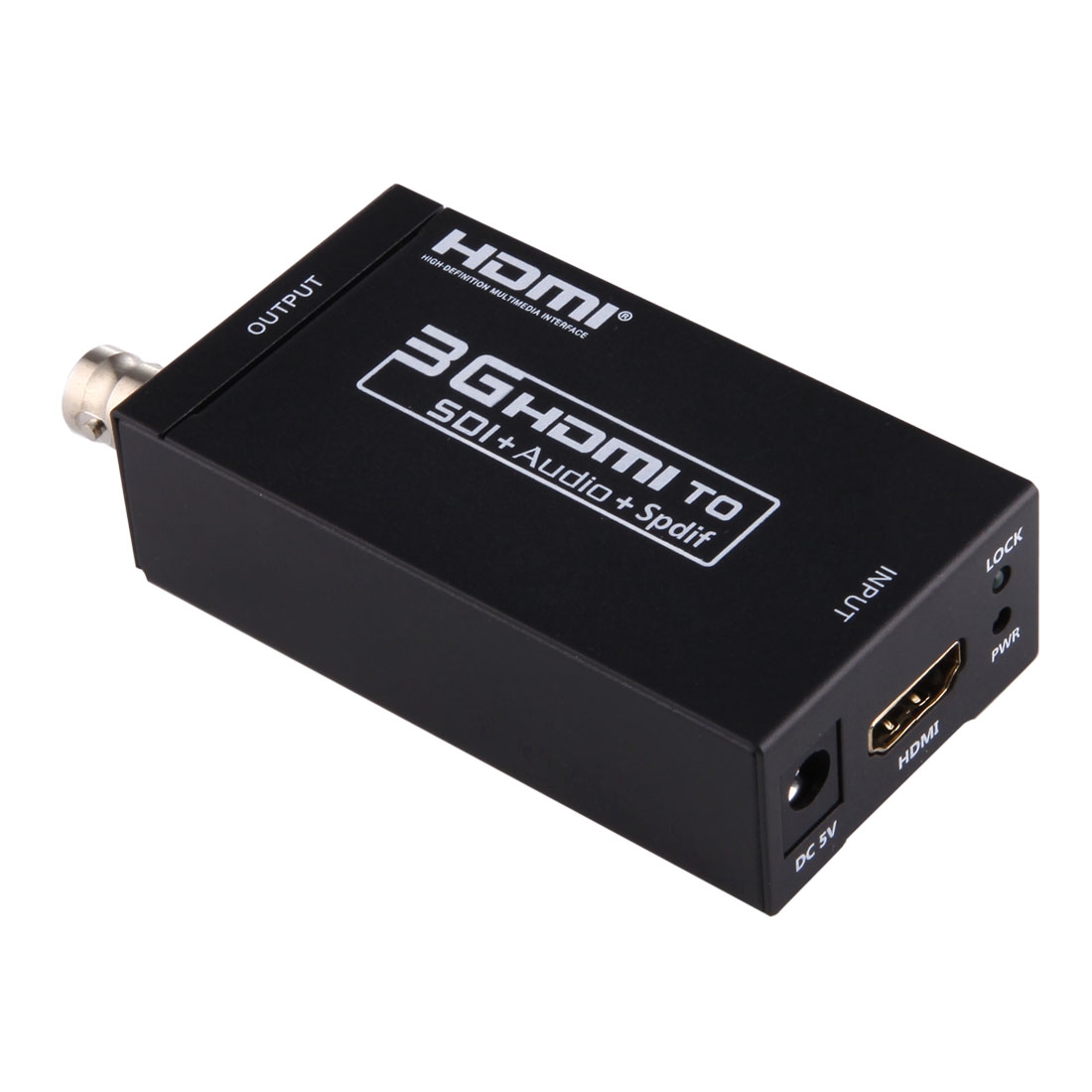

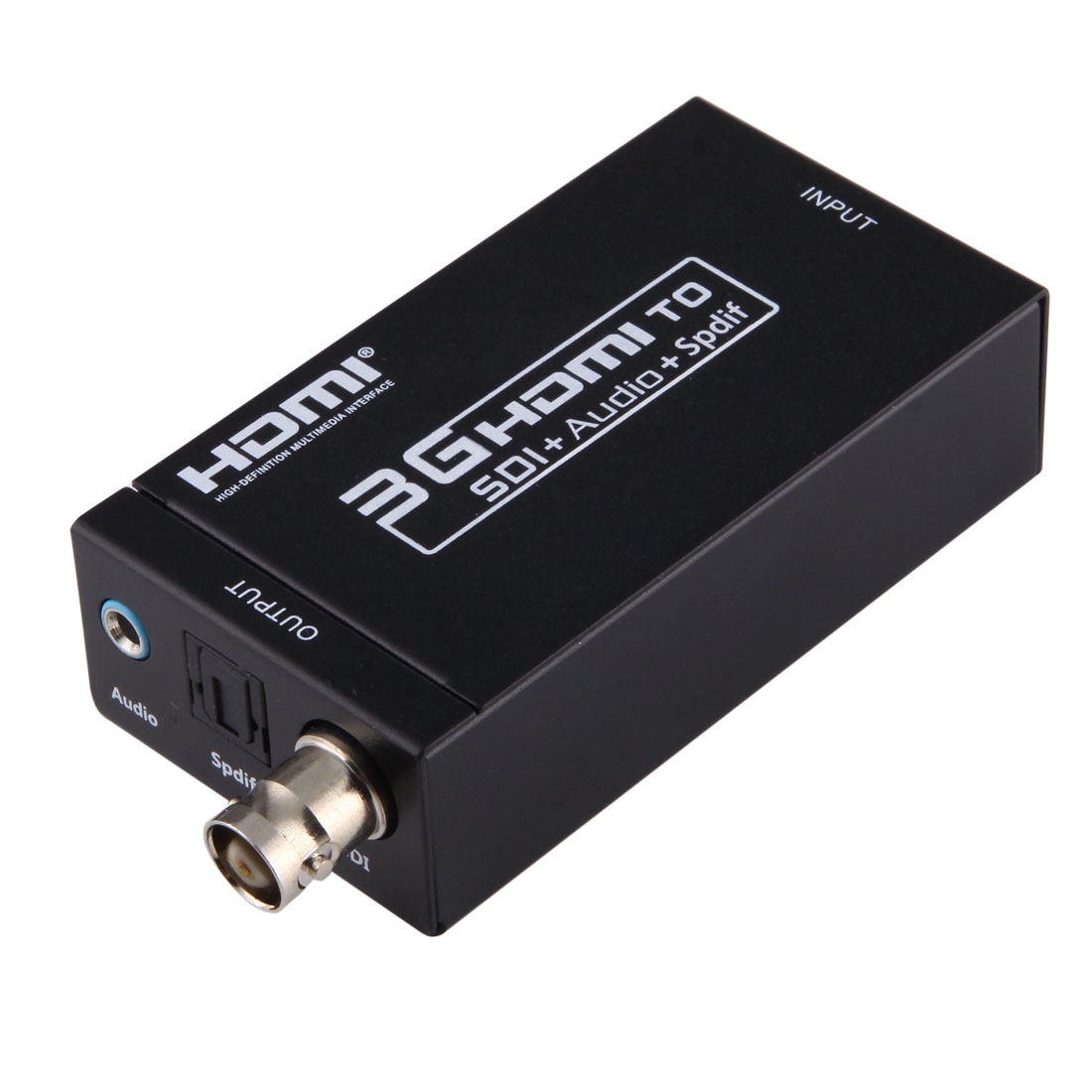

NEWKENG NK-B8 HDMI to SDI + SPDIF + 3.5mm Audio Video Converter

Product Description

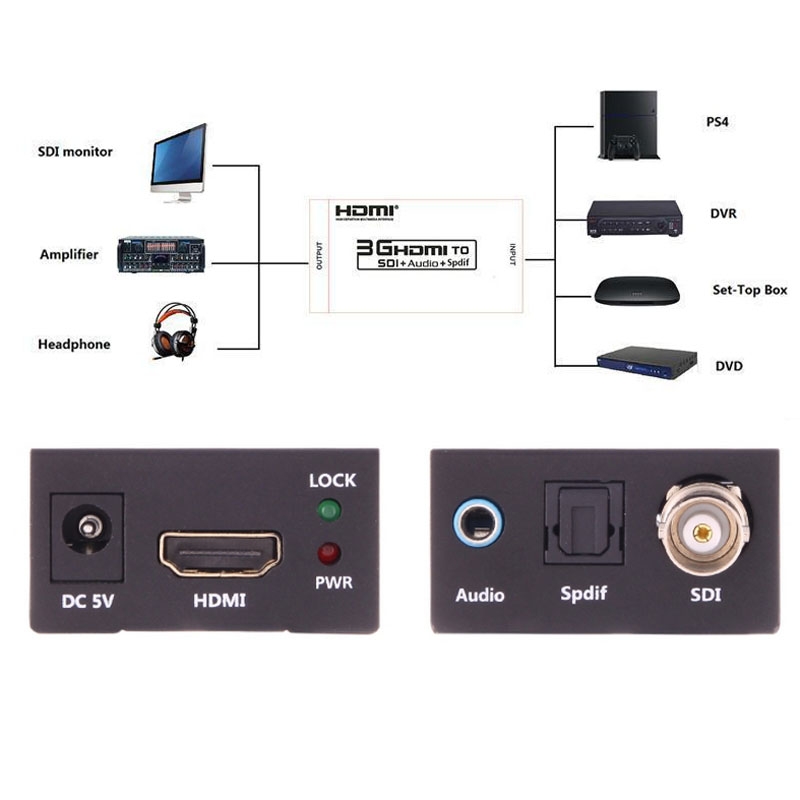

1. Converts HDMI input to SDI + SPDIF + 3.5mm audio output 2. LED indicator light to show the converter is connected to SDI or power supply 3. Supports HDMI input: 480i@59.94Hz, 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz 4. Converts HDMI signal to SDI: 480i/576i to SD-SDI (SMPTE 259M-C, 270Mb/s), 720p/1080i to HD-SDI (SMPTE 292M, 1.485Gb/s or 1.485Gb/1.001Gb/s), 1080p to 3G-SDI (SMPTE 424M/425M-AB, 2.970Gb/s or 2.970Gb/1.001Gb/s) 5. Supports SDI output distance up to 100m (3G-SDI), 200m (HD-SDI) or 300m (SD-SDI)

Specifications

SKU

HDMI5401

Category

Computer & Networking › SDI Series › Video Converter

Weight

0.34 kg

Delivery

Standard delivery
