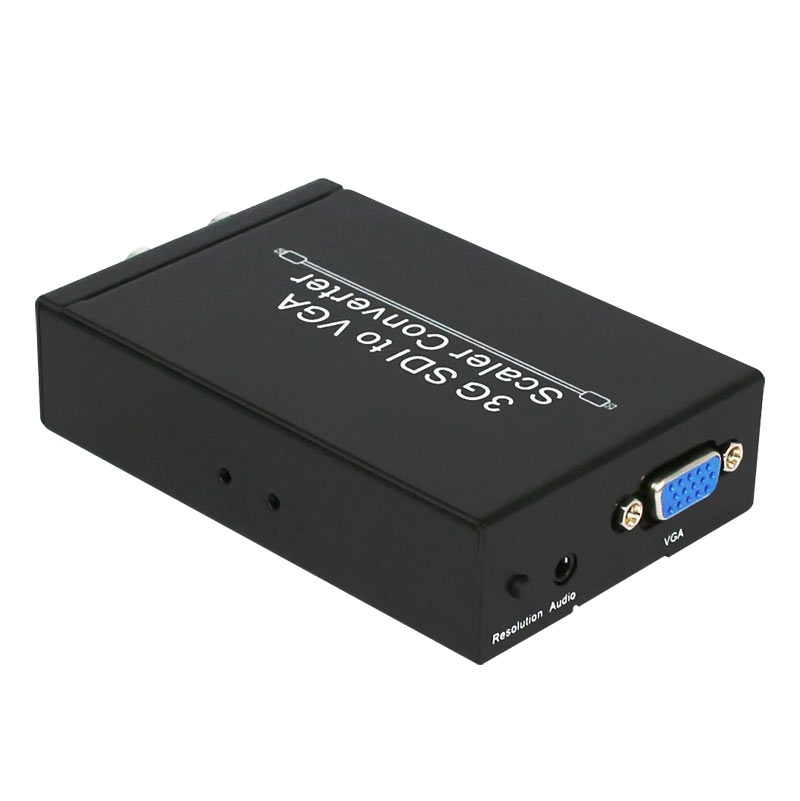

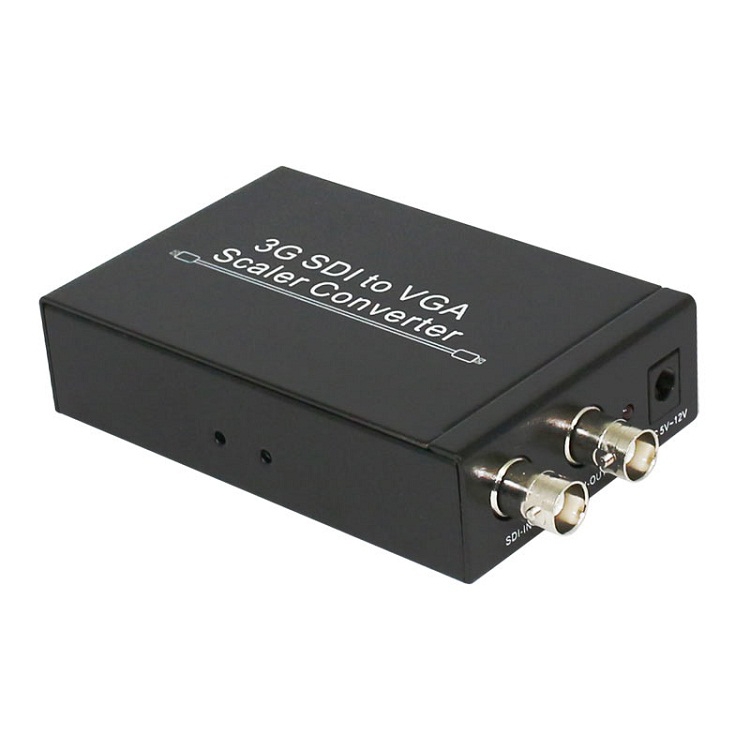

NK-F002 3G SDI to VGA Scaler Converter

Product Description

1. Operating speed is 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s 2. Equilibrium and retimed loop output 3. Automatic video mode detection is (3G / HD / SD) 4. Convert from SMPTE 425M Class B to Class A 1080p 50 / 59.94 / 60 4:2:2 10 bit 5. Connect to other devices for long-distance signal expansion 6. Simultaneous display using SDI / VGA signals 7. Analog 2CH alternative audio output 8. Support SD signal signal transmission distance up to 300M, HD signal up to 200M, 3G signal up to 100M 9. Note: Test the cable with the Belden 1694A. If used with other types of cables, the operating distance may vary. 10. Product size: 92mm x 70mm x 25mm.

Specifications

SKU

S-HDMI-5621

Category

Computer & Networking › SDI Series › Video Converter

Weight

0.4 kg

Delivery

Standard delivery
