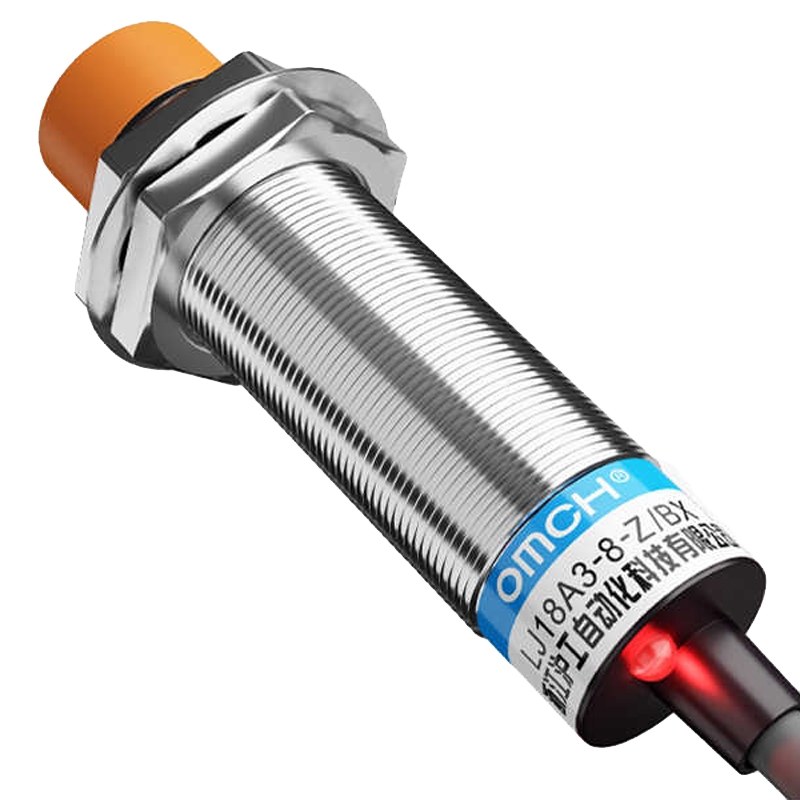

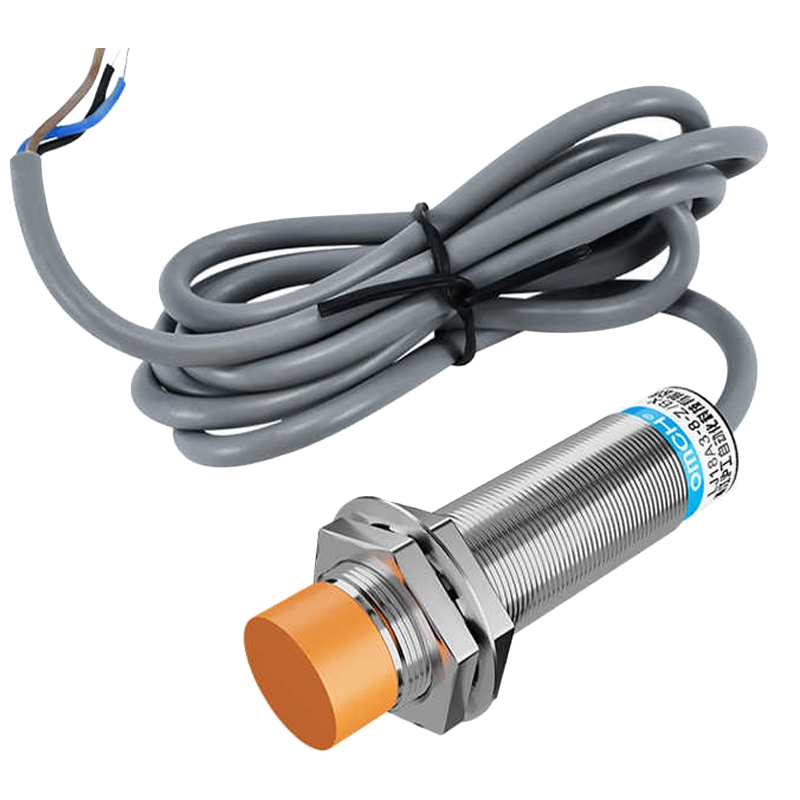

OMCH LJ18A3-8-Z/BX DC NPN 3-Wire Normally Open Sensors Inductive M18 Proximity Switch

Product Description

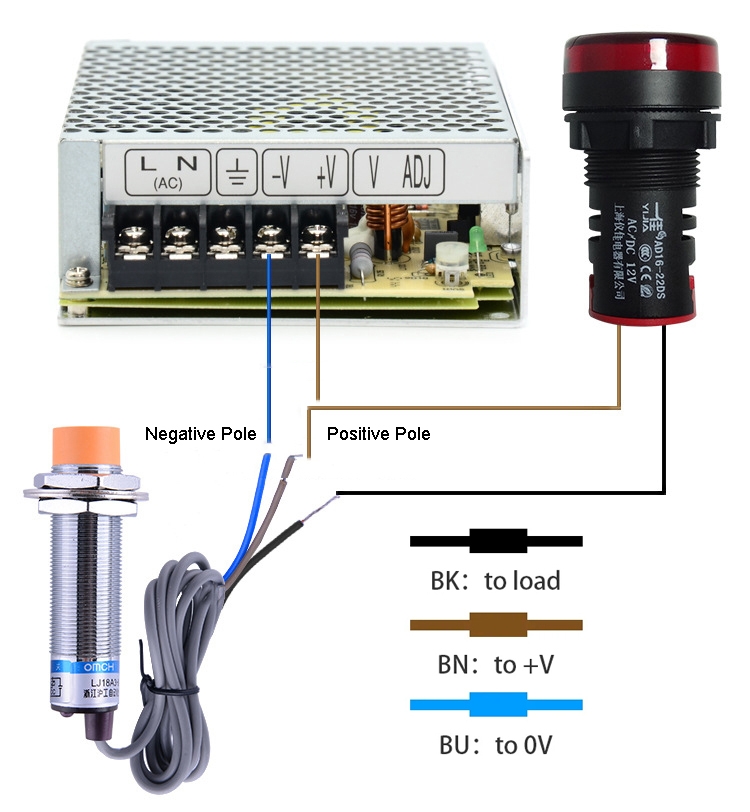

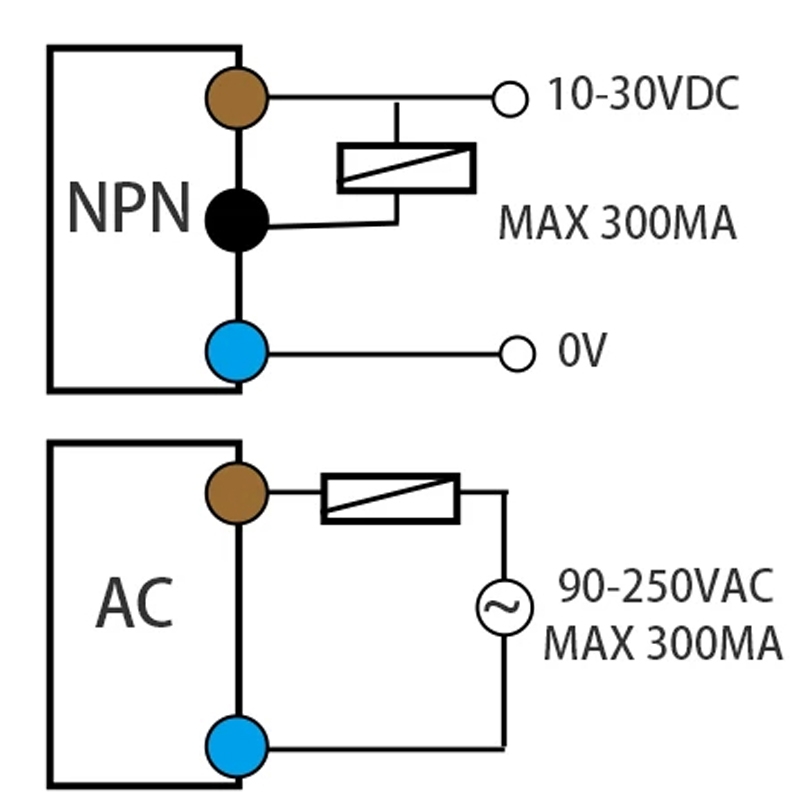

1. Output form: DC NPN three-wire normally open 2. Detection distance: about 8mm 3. Detecting object: metal object 4. Current: 300mA 5. Power supply voltage: DC12-24V (6-36V) 6. Weight: about 86.2 g 7. Wire length: about 1.1m Features: 1. Proximity switch detects metal objects, the detection distance is about 8mm (when the proximity switch detects metal objects, the red light at the end will light up) 2. Built-in smart sensor chip on the top of the product, more sensitive to detect metal objects 3. Threaded design, solid and reliable, nickel-plated brass 4. Selection of wire, the standard line length of about 1.1 meters, the application of thicker cable, durable, good conductivity 5. NPN: indicates a common positive voltage, negative voltage output; NPN NO: indicates that the normal is normally open, when the object is detected, the black line outputs a negative voltage signal

Specifications

SKU

TBD06043298

Category

Consumer Electronics › DIY Parts & Components › Switch

Weight

0.104 kg

Delivery

Standard delivery
