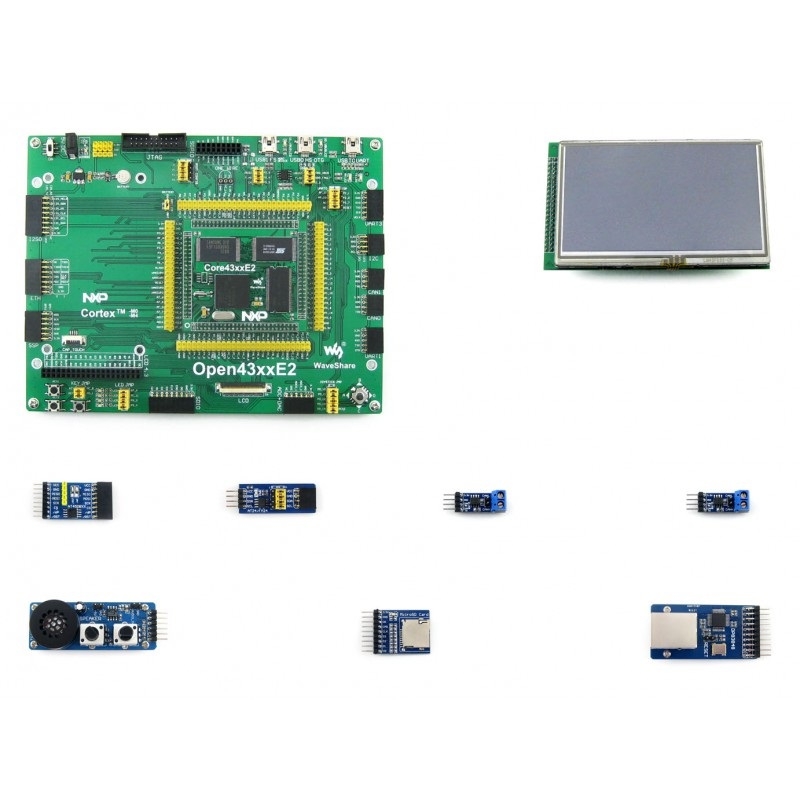

Open4357-C Package A, LPC Development Board

Product Description

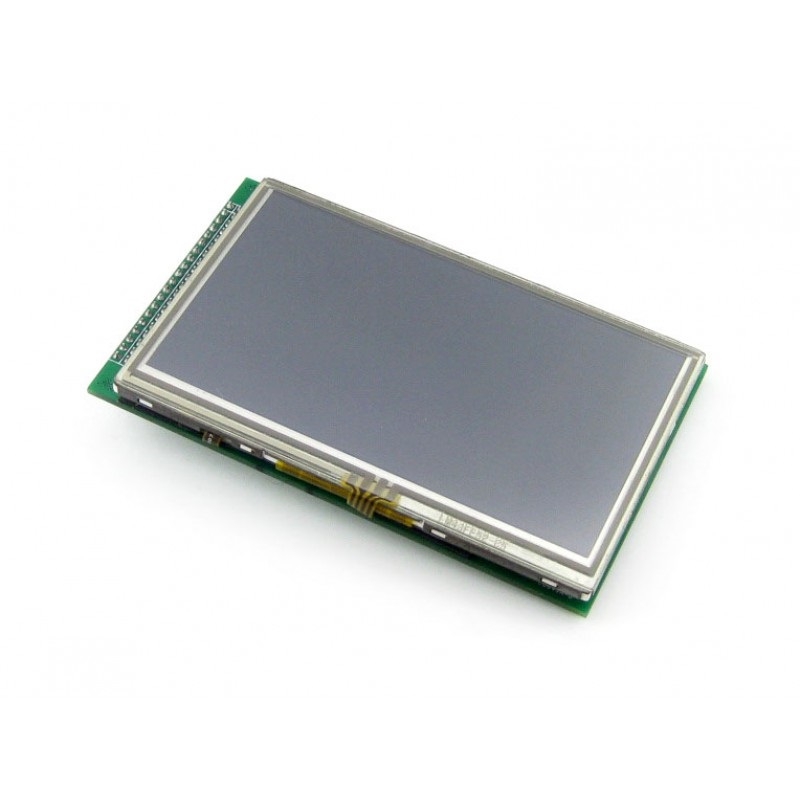

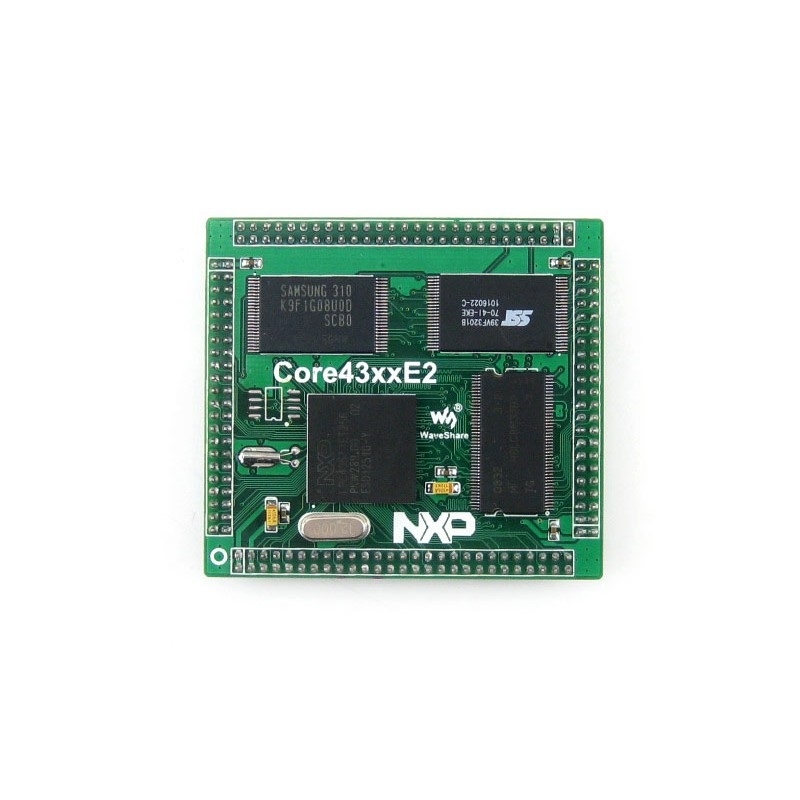

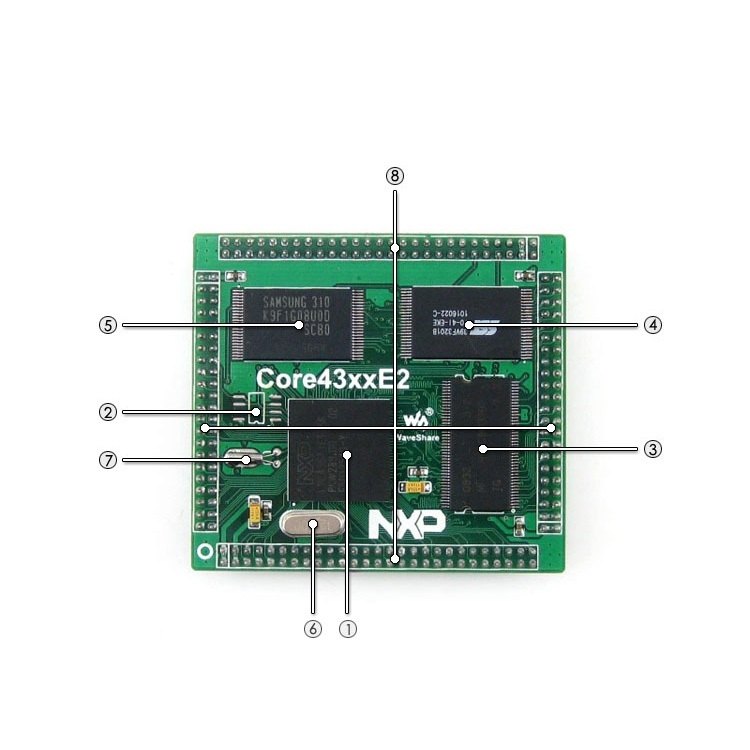

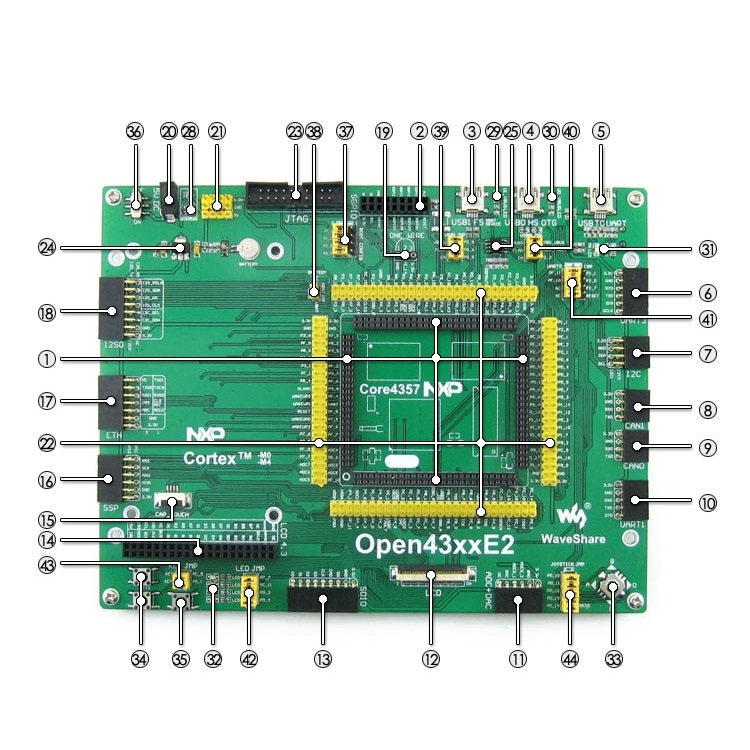

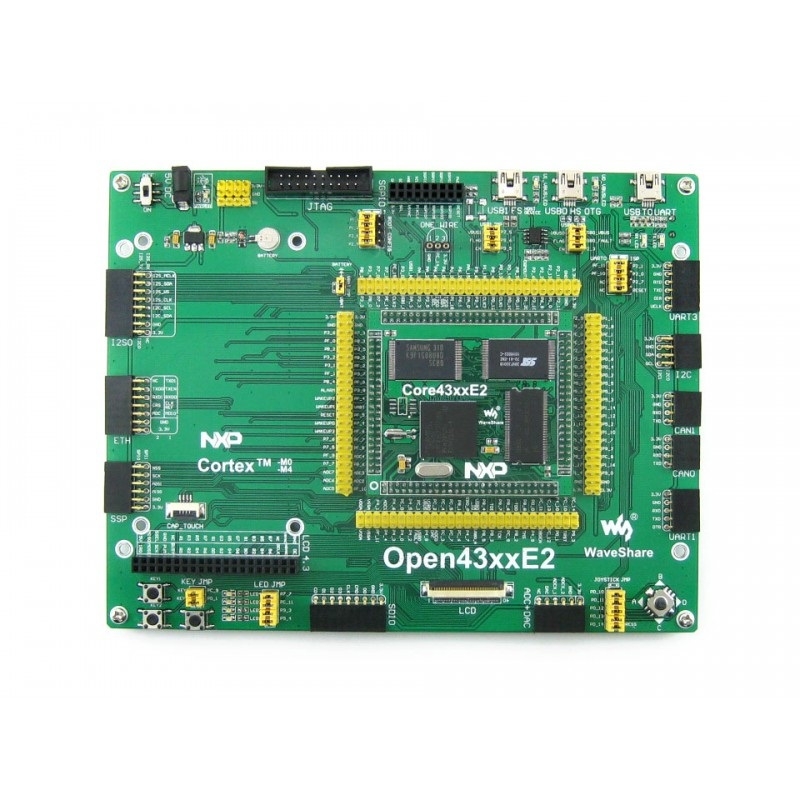

Overview Open4357-C is an LPC development board designed for the LPC4357FET256 / LPC4357JET256 microcontroller, consists of the mother board and the MCU core board Core4357. The Open4357-C supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with NXP LPC series microcontrollers. What is on the mother board 1. MCU core board connector: For easily connecting the MCU core board 2. SGPIO connector: For connecting camera module 3. USB interface 1: USB1 FS 4. USB interface 2: USB0 HS 5. USB interface 3: Converts to UART through an onboard USB to UART convertor PL2303 6. UART3 interface: Easily connects to RS232, RS485, USB TO 232, etc. 7. I2C0 | I2C1 interface: Easily connects to I2C peripherals such as I/O expander (PCF8574), EEPROM (AT24Cxx), etc. 8. CAN1 interface: For connecting CAN module 9. CAN0 interface: For connecting CAN module 10. UART1 interface: Easily connects to RS232, RS485, USB TO 232, etc. 11. ADC+DAC interface: For ADC/DAC testing 12. LCD interface 1: For connecting 7inch LCD 13. SDIO interface: For connecting Micro SD module, features much faster access speed rather than SPI 14. LCD interface 2: For connecting 4.3inch LCD 15. Capacitive touch screen interface: for connecting capacitive touch screen 16. SSP interface: Easily connects to SPI peripherals such as DataFlash (AT45DBxx), SD card, MP3 module, etc. 17. ETH interface: For connecting ETH module 18. I2S0 interface: For connecting I2S modules such as Audio module, etc. 19. ONE-WIRE interface: Easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc. 20. 5V DC jack 21. 5V/3.3 V power input/output: Usually used as power output, also common-grounding with other user board 22. MCU pins connector: All the I/O ports are accessible on expansion connectors for further expansion 23. JTAG interface: For debugging/programming 24. AMS1117-3.3: 3.3V voltage regulator 25. LM3625-H: USB power management device 26. XPT2046 (on bottom side): Touch screen controller 27. PL2303TA (on bottom side): USB TO UART convertor 28. Power indicator 29. USB1 VBUS LED 30. USB0 VBUS LED 31. PL2303TA TX-LED / RX-LED, UART transmitting/receiving indicator 32. LEDs: Convenient for indicating I/O status and/or program running state 33. Joystick: Five positions 34. User key: Convenient for I/O input and/or interact with running code 35. Reset button 36. Power switch 37. BOOT jumper 38. VBAT jumper 39. USB1 FS jumper 40. USB0 HS jumper 41. USB TO UART jumper 42. LEDs jumper 43. User key jumper 44. Joystick jumper What is on the Core4357 1. LPC4357FET256 / LPC4357JET256:the LPC ARM Cortex-M4/M0 dual-core microcontroller: - Core: Cortex-M4 processor, 204MHz Max - Core: Cortex-M0 coprocessor, 204MHz Max - Package: LBGA256 - I/Os: 164 - Memories: FLASH total 1M, SRAM total 136kB, ROM 64kB, E2PROM 16kB, OTP memory 64 bit - Interfaces: -- 1 x SPIFI, 1 x 10/100T MAC -- 1 x High-speed USB2.0 Host/Device/OTG -- 1 x High-speed USB 2.0 Host/Device -- 1 x 550 UART, 3 x 550 USART, 1 x IrDA -- 2 x CAN 2.0, 2 x SSP, 1 x SPI, 1 x Fast-mode Plus I2C -- 1 x standard I2C-bus, 2 x I2S, 1 x EMC, 1 x LCD controller -- 1 x SD/MMC, 1 x PWM, 1 x QEI, 1 x 10-bit DAC, 2 x 10-bit ADC 2. QSPI FLASH solder pads, for soldering external Flash if required 3. MT48LC8M32B2, 256M Bit SDRAM 4. SST39VF3201, 32M Bit NorFlash 5. K9F1G08U0B, 1G Bit NandFlash 6. 12M crystal oscillator 7. 32.768K crystal, for internal RTC with calibration 8. MCU pins expander, VCC, GND and idle I/O ports are accessible on expansion connectors for further expansion Package Contents 1. Standard Package - Open4357-C development board x 1 - USB type A plug to mini-B plug cable x 1 - USB type A receptacle to mini-B plug cable x 1 - 4-pin 2-pin wires pack x 1 - USB power cable x 1 - Software CD x 1 2. Accessory Boards Package - 4.3inch 480x272 Touch LCD (B) x 1 - DP83848 Ethernet Board x 1 - Micro SD Storage Board x 1 - Analog Test Board x 1 - FM24CLXX FRAM Board x 1 - AT45DBXX DataFlash Board x 1 - SN65HVD230 CAN Board 2pcs x 1 - Ethernet Cable x 1 - 4.3inch LCD screws pack x 1

Specifications

SKU

ZY14410933

Category

Consumer Electronics › Electronics Module › MCU Tools

Weight

0.43 kg
