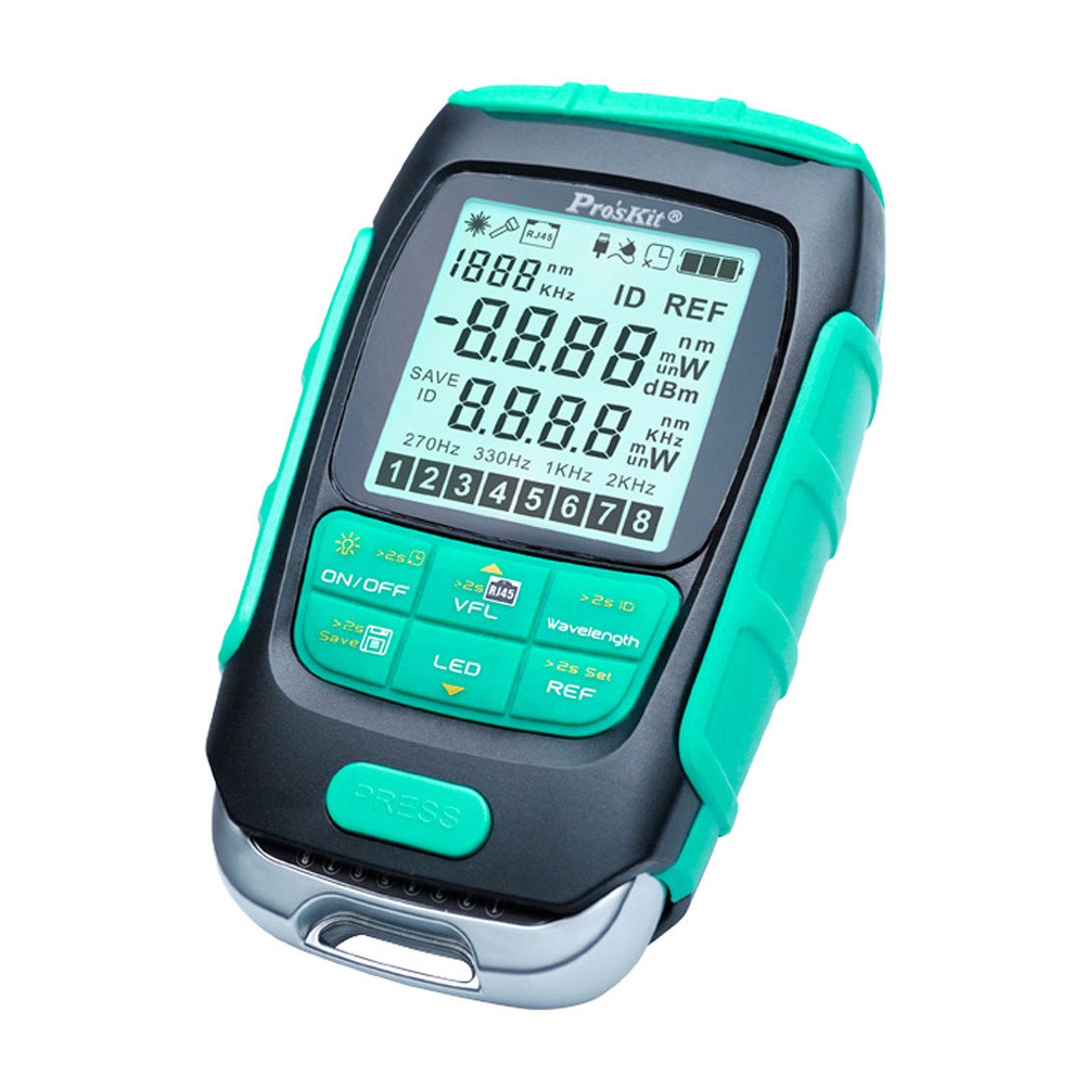

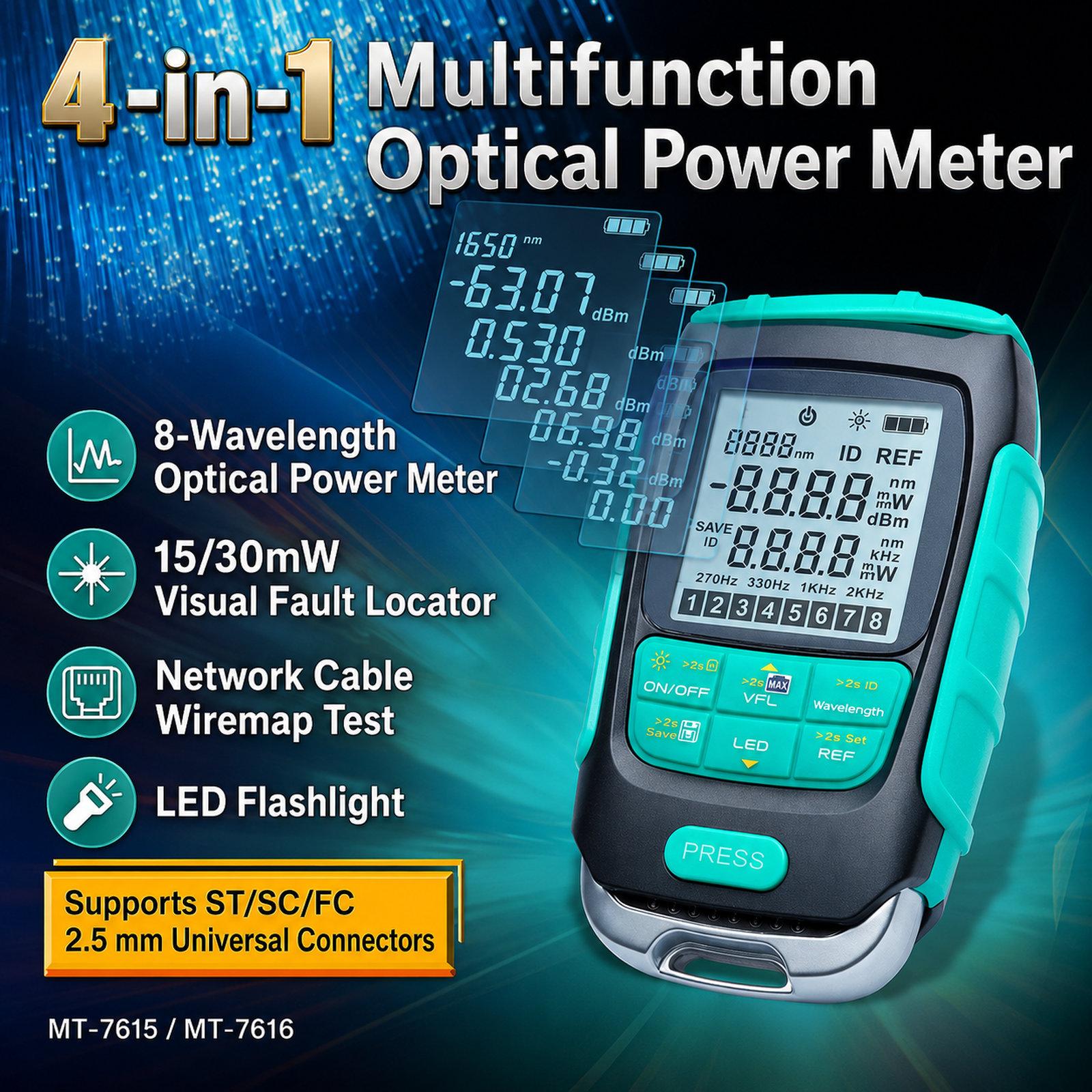

Proskit MT-7616-C 30nW Multifunctional Optical Power Meter 4 In 1 Fiber Optic Tester

Product Description

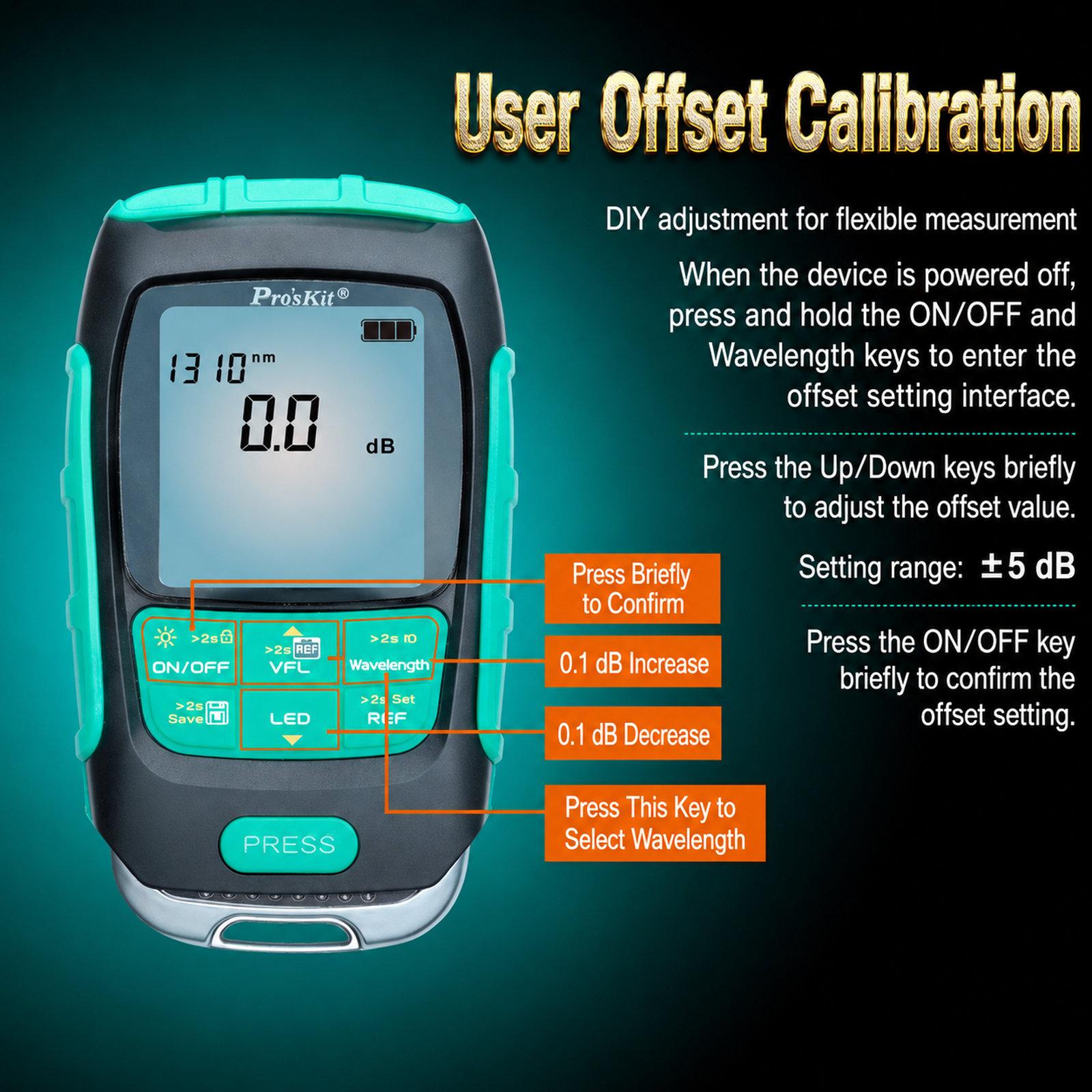

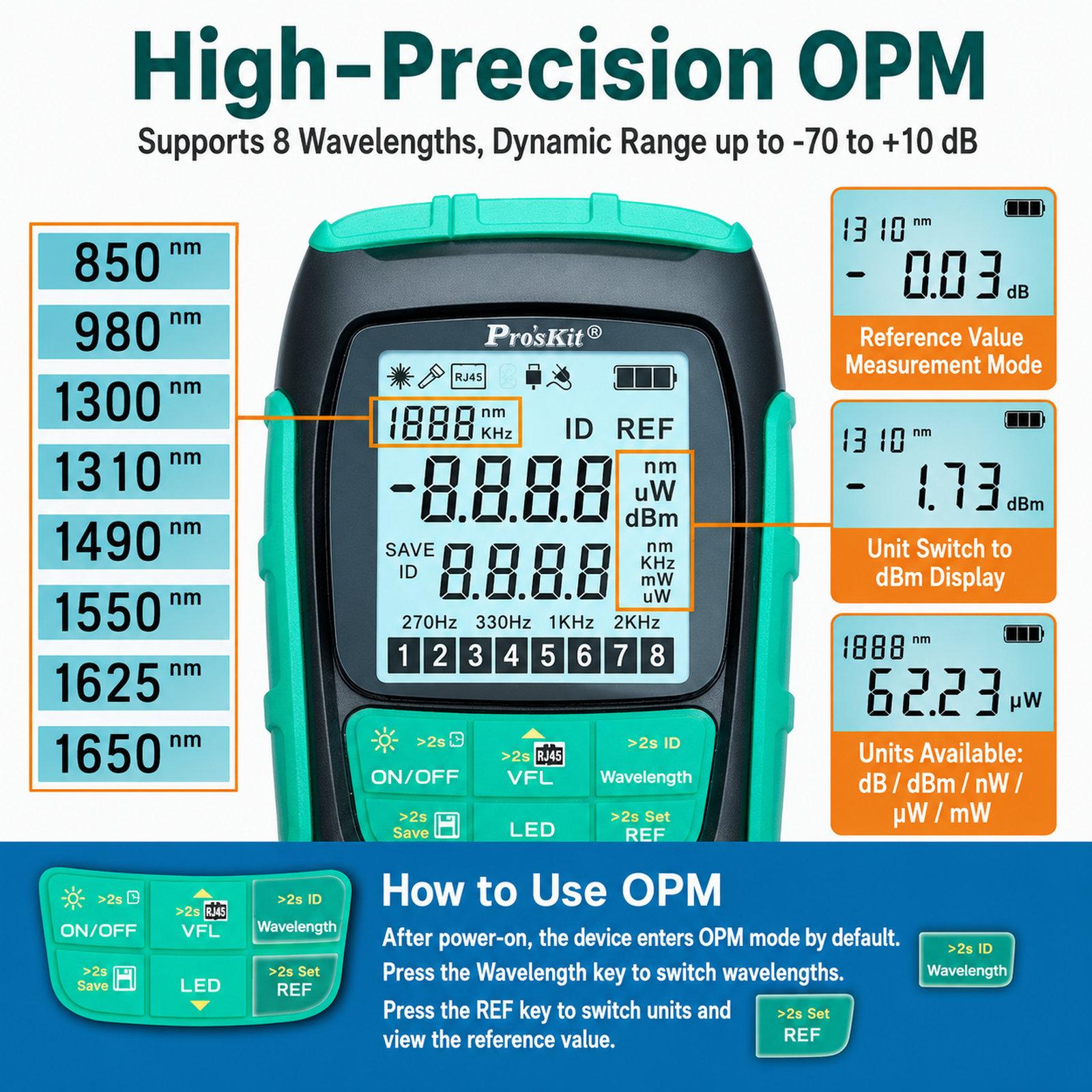

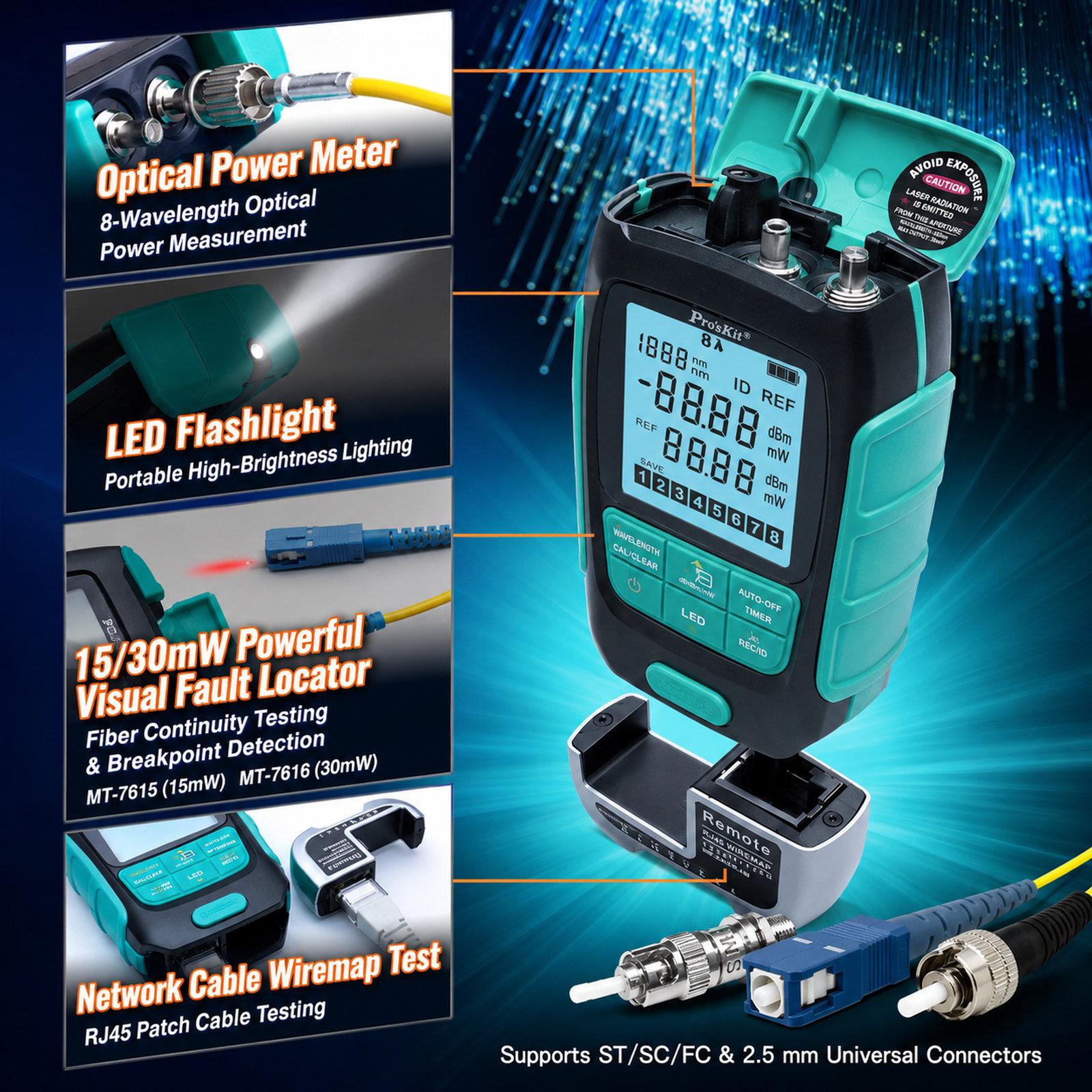

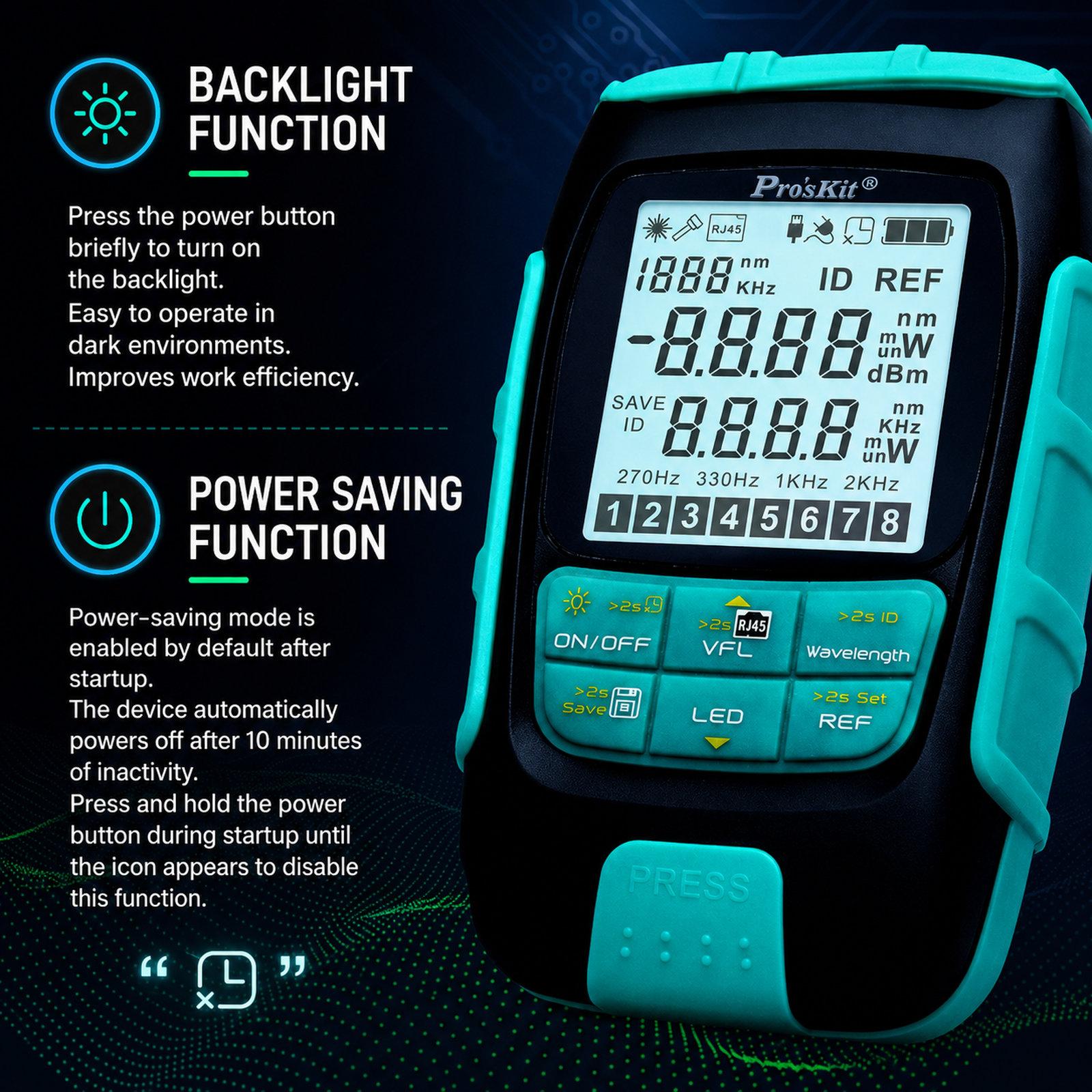

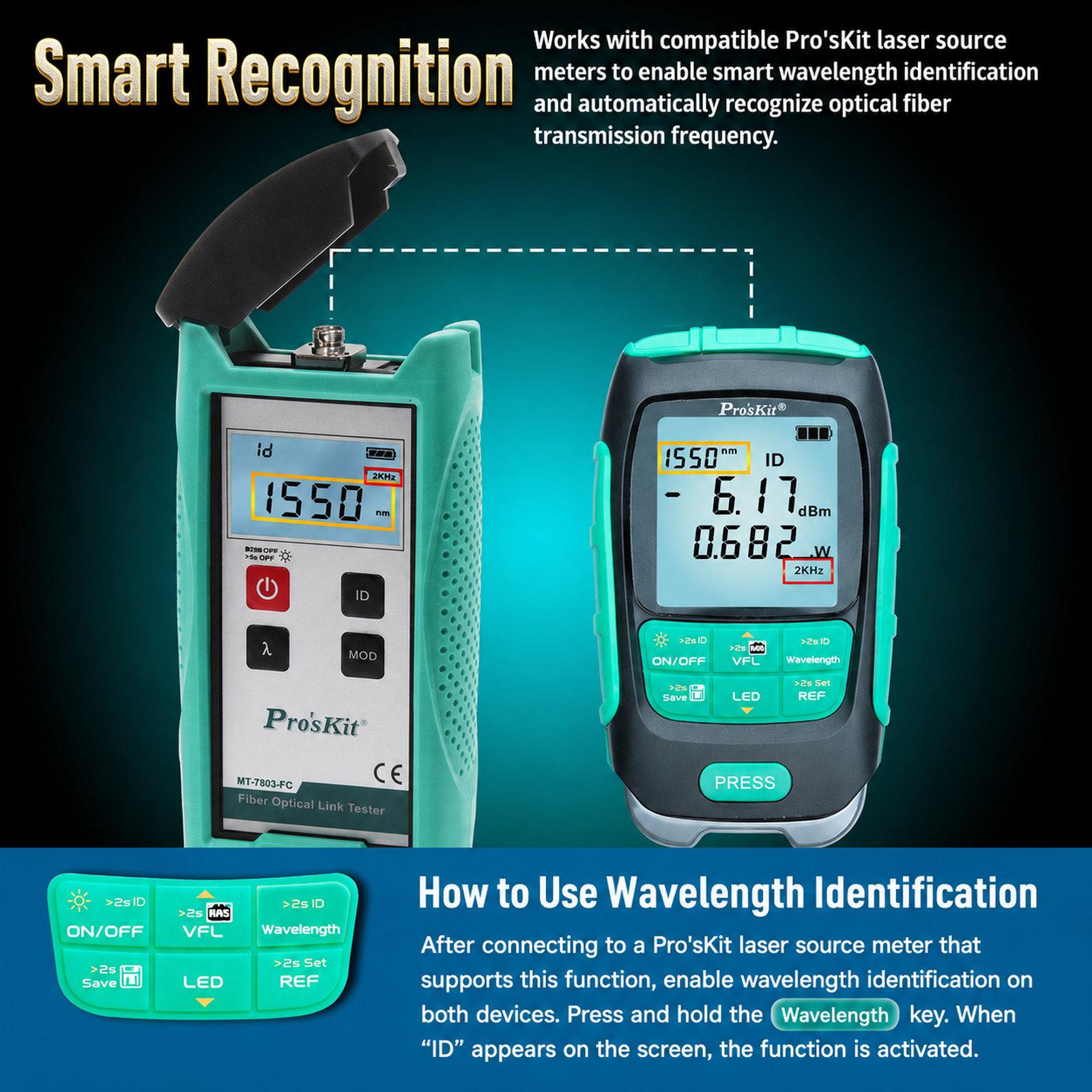

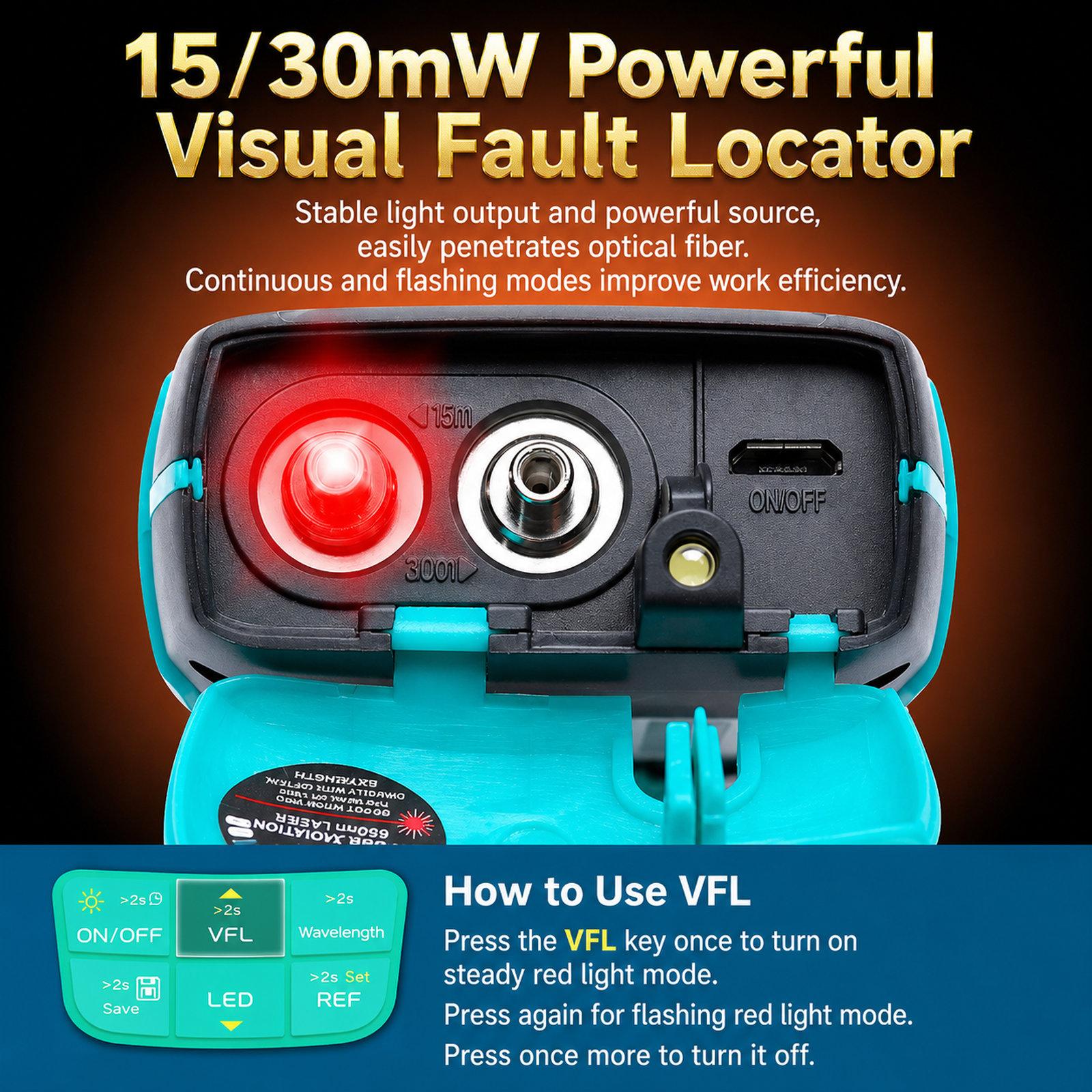

1. Output Power: MT-615: 15mW; MT-616: 30mW 2. Test Distance: Single-mode fiber, MT-615: 10-12km; MT-616: 14-16km 3. Detector Type: InGaAs 4. Wavelength Response Range: 700-1700nm 5. Power Meter Interface: 2.5mm universal connector 6. Measurement Wavelengths: 850/980/1300/1310/1490/1550/1625/1650nm 7. Measurement Range: -70 to +10dB 8. Resolution: 0.01dB 9. Accuracy: 1550, 1310nm +/-0.2 dB; 1490nm, 1625nm, 1650nm +/-0.3 dB; 850nm, 980nm, 1300nm +/-0.4dB 10. Display Units: dB, dBm, mW, μW, nW 11. Frequency recognition: 270/1k/2kHz 12. Data storage: 500 sets 13. Red light source interface: 2.5mm universal connector 14. Red light wavelength: 650 +/-20nm 15. Output mode: Constant on / 2H flashing 16. Compatible Networks: UTP network cables 17. Connector Type: RJ45 (UTP/8P8C) 18. Test Type: Network Cable Sequence 19. Test Distance: 600 m 20. Illumination: LED Light 21. Low Battery Indicator: Battery Level Indicator 22. Other Features: Wavelength Memory, Wavelength Identification (ID), Self-Calibration, Relative Measurement, Screen Backlight, Auto Shutdown (10 minutes) 23. Charging Interface: Micro USB 24. Operating Time: Approx. 50-60 hours (power meter mode) 25. Power Supply: 3.7V/450mAh, Li-ion (charging time approx. 3 hours, standby time up to 90 days) 26. Operating Environment: -10 to 50 degrees Celsius, less than 90% RH 27. Dimensions: Approx. 9.8 x 5.9 x 2.7cm 28. Weight: Approx. 100g Features: 1. OPM high-precision optical power meter, offering 8 wavelengths for testing 2. Universal FC/SC/ST & 2.5mm connectors, compatible with most fiber optic connectors 3. Automatically scans and detects network cable sequence; measures cable lengths up to 600 meters or more; portable and space-saving design; self-locking mechanism prevents loss 4. Store and view data anytime; 500-entry cyclic storage; scroll through records using the up and down buttons 5. Wavelength memory function; automatically restores the wavelength set before the last shutdown upon power-on 6. Self-calibration of offset; DIY adjustment for flexible measurements 7. Short press the power button to turn on the backlight; works in dim environments to improve work efficiency 8. Short press the power button to enable power-saving mode by default; automatically shuts down after 10 minutes of inactivity 9. Intelligent multi-protection design 10. Soft rubber anti-slip sleeve design, featuring shock-resistant soft rubber and an ABS body 11. Lightweight and compact, convenient to carry and use

Specifications

SKU

TBD0606988602

Category

Consumer Electronics › Test Equipment › Other Tester Tool

Weight

0.204 kg
