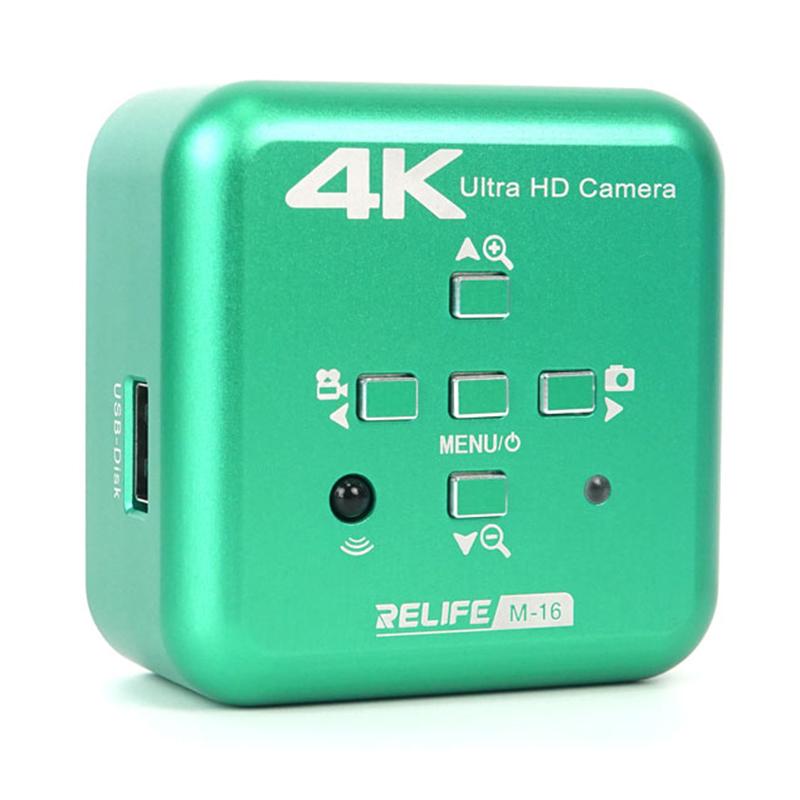

RELIFE M-16 HD 4K 30fps Industrial Grade Electronic Microscope Camera, Plug:US Plug

Product Description

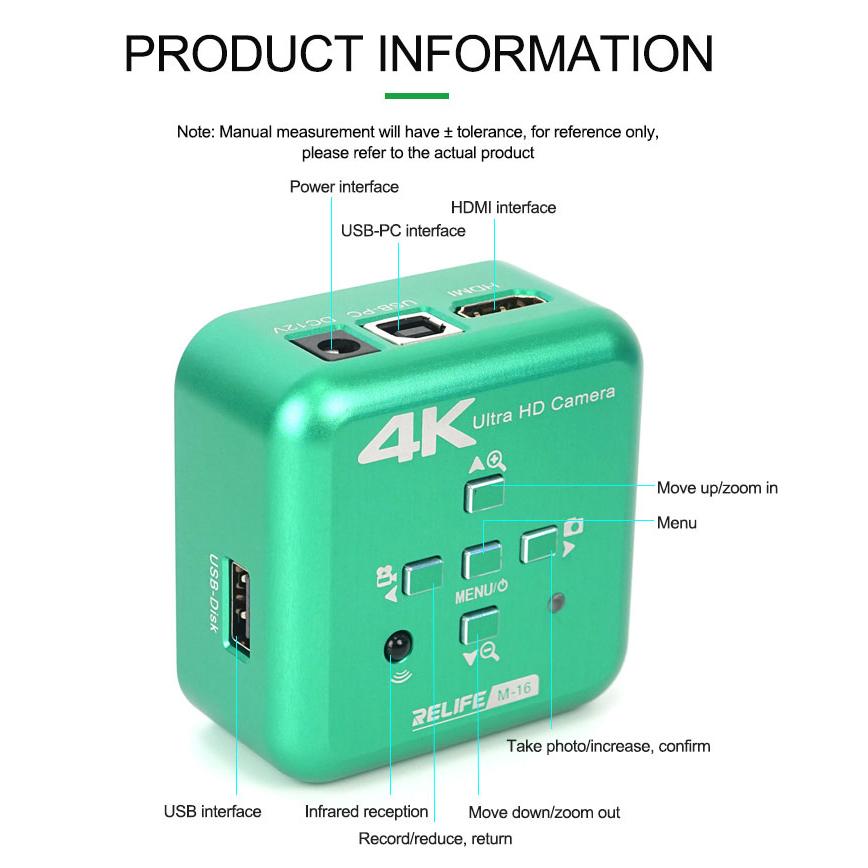

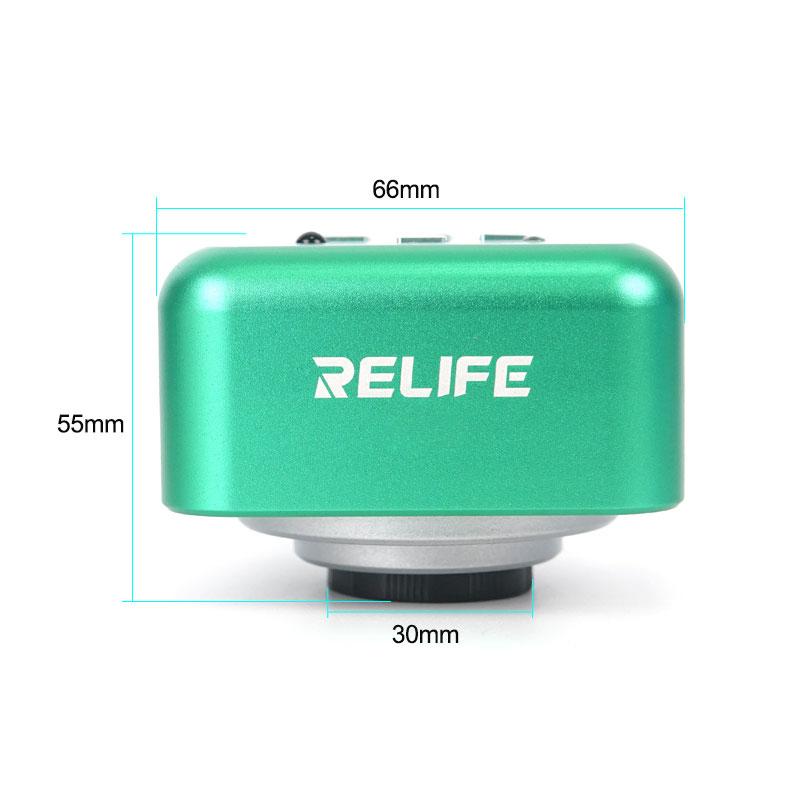

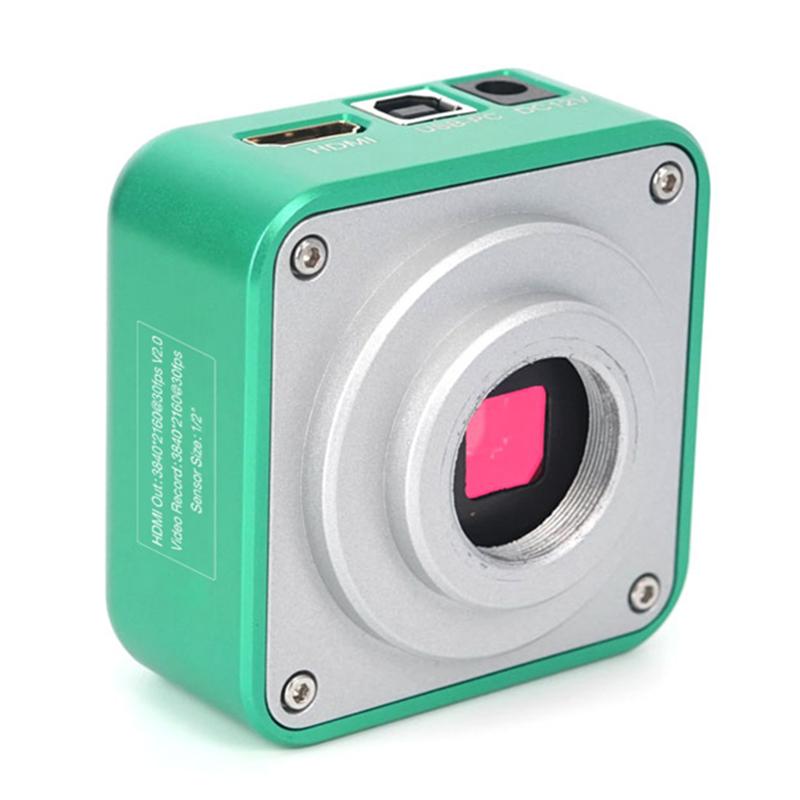

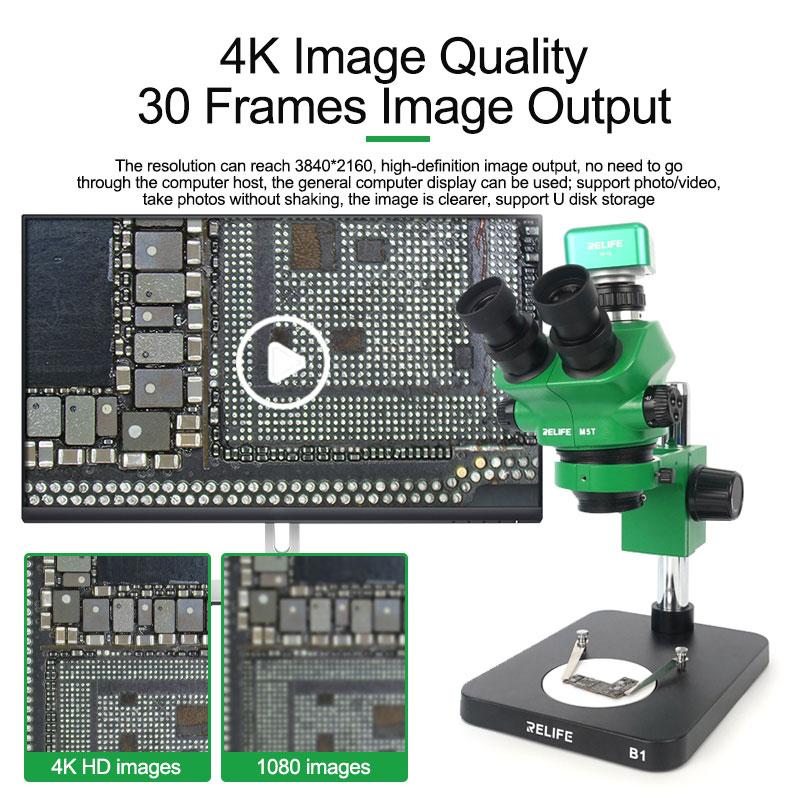

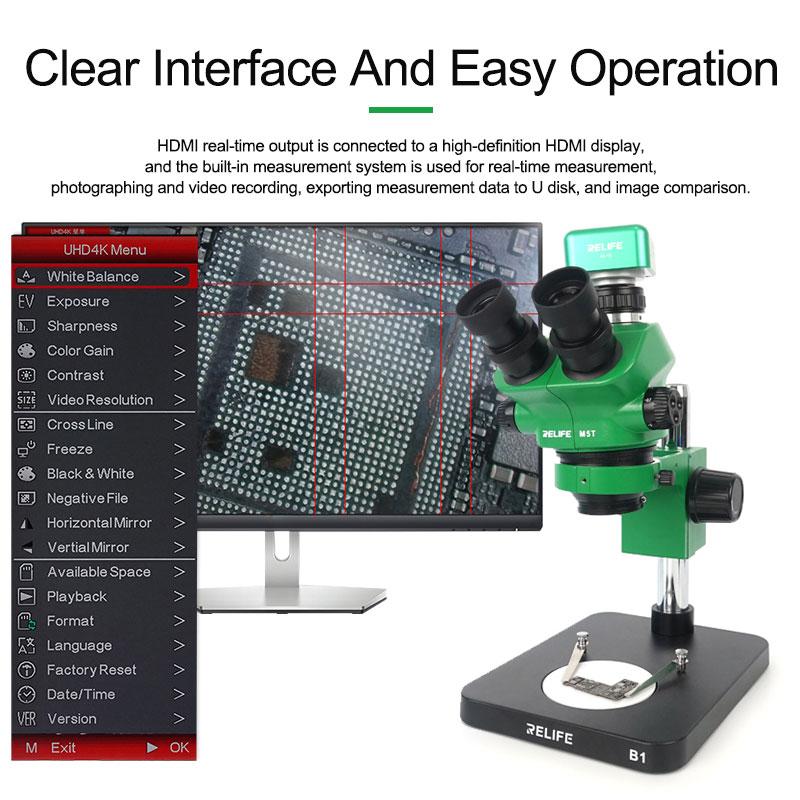

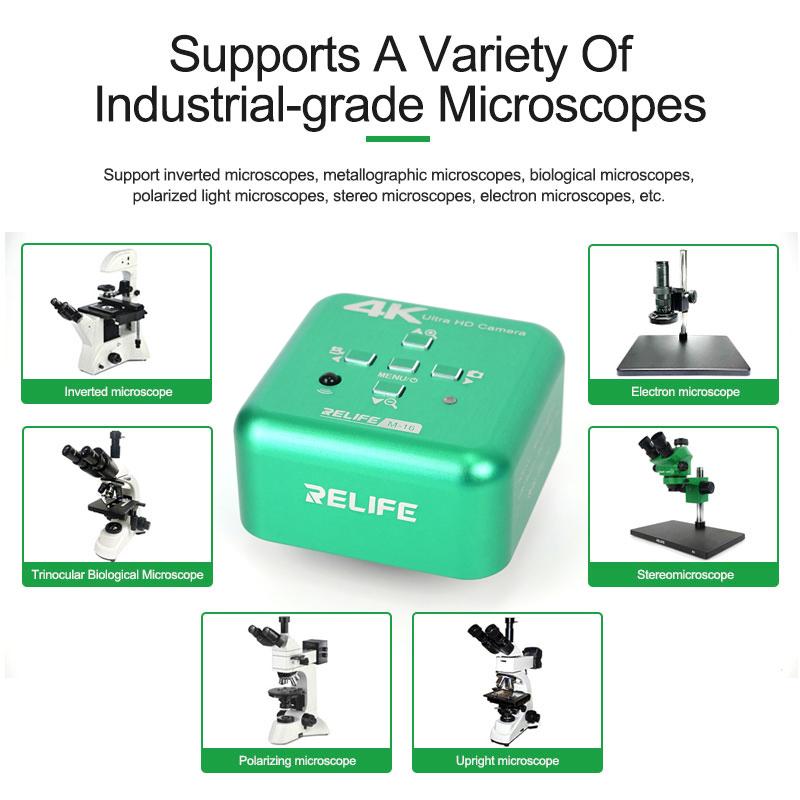

Specification: 1. Model: M-16 2. Net Weight: About 205g 3. Product Size: 66 x 66 x 40 4. Video Output: HDMI/USB-PC/U disk photo and video interface 5. HDMI Output Resolution: 4k@30fps/1080@60fps 6. USB-pc Output Resolution: 4k@25fps 7. U Disk Video Resolution: 4k@30fps/1080@60fps 8. Camera Interface: CS 9. Operating Voltage: 12V 10. Working Current: 200mA 11. Photosensitive Size: 1/2 inch 12. Cell Size: 2 x 2 micrometer 13. Effective Pixels: 4k/3840 x 2160 14. Clarity: 2000 TVline 15. Frame Rate: 4k@30fps/1080@60fps 16. Scanning Method: Progressive line by line 17. Shutter Type: Electronic shutter 18. Dynamic Range: 78dB 19. Signal To Noise Ratio: 40dB 20. Menu Language: Chinese/English 21. White Balance Mode: One-touch white balance/Manual/Auto 22. Reduced Reflection Adjustment: Adjustable 23. Removable Crosshair: Support 10 horizontal and vertical lines/color/linewidth adjustable configuration 24. Package includes: 1 x Host 1 x HDMI Cable 1 x Remote Control 1 x Power Cord Features: 1. HDMI HD 30 frames / Sensor 1/2 inch 2. High-definition electronic camera dedicated to trinocular microscopes 3. 4K/30 frame output/Ultra HD Pixels 4. Equipped with 1/2-inch chip, high sensitivity, showing rich picture effects 5. 4K image quality 30 frames image output 6. The resolution can reach 3840 x 2160, high-definition image output, no need to go through the computer host, the general computer display can be used 7. Support photo/video, take photos without shaking, the image is clearer, support U disk storage 8. Supports a variety of industrial-grade microscopes 9. Support inverted microscopes, metallographic microscopes, biological microscopes, polarized light microscopes, stereo microscopes, electron microscopes, etc 10. Clear interface and easy operation 11. HDMI real-time output is connected to a high-definition HDMI display, and the built-in measurement system is used for real-time measurement, photographing and video recording, exporting measurement data to U disk, and image comparison 12. Support 10 horizontal and vertical lines/color/line width adjustable

Specifications

SKU

EDA009742602

Category

Mobile Parts › Repair Tools › Microscope Magnifier Series

Weight

0.554 kg

Delivery

Standard delivery
