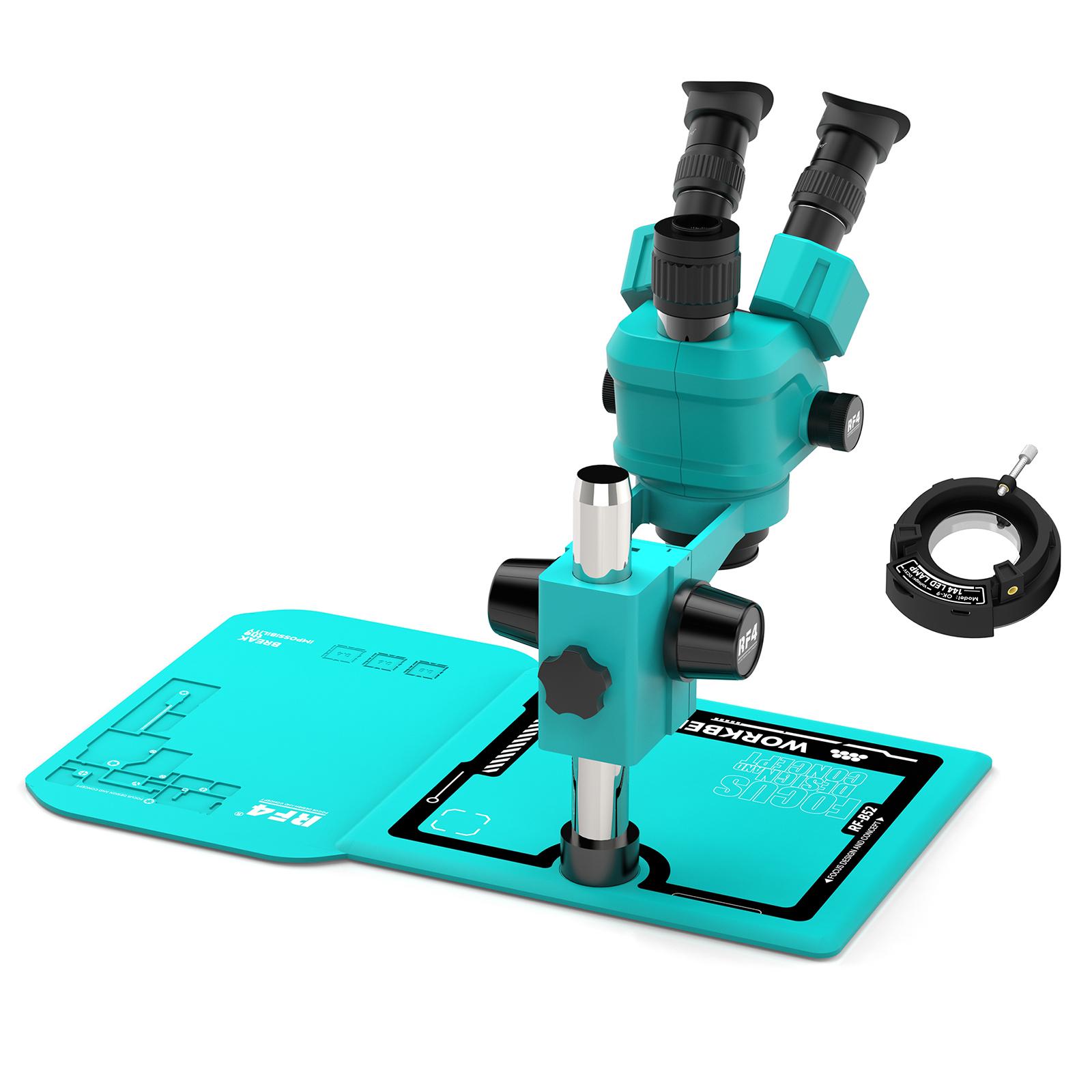

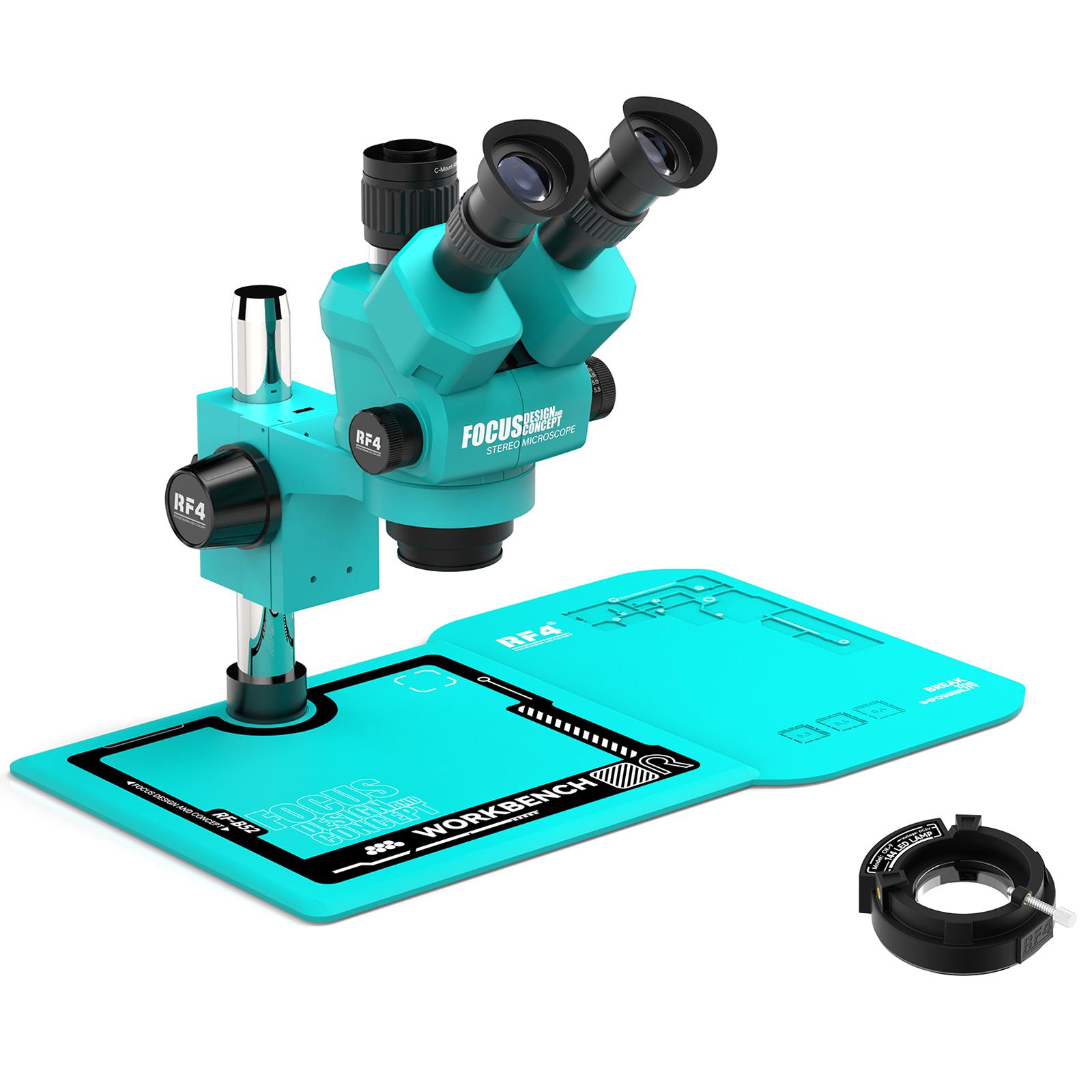

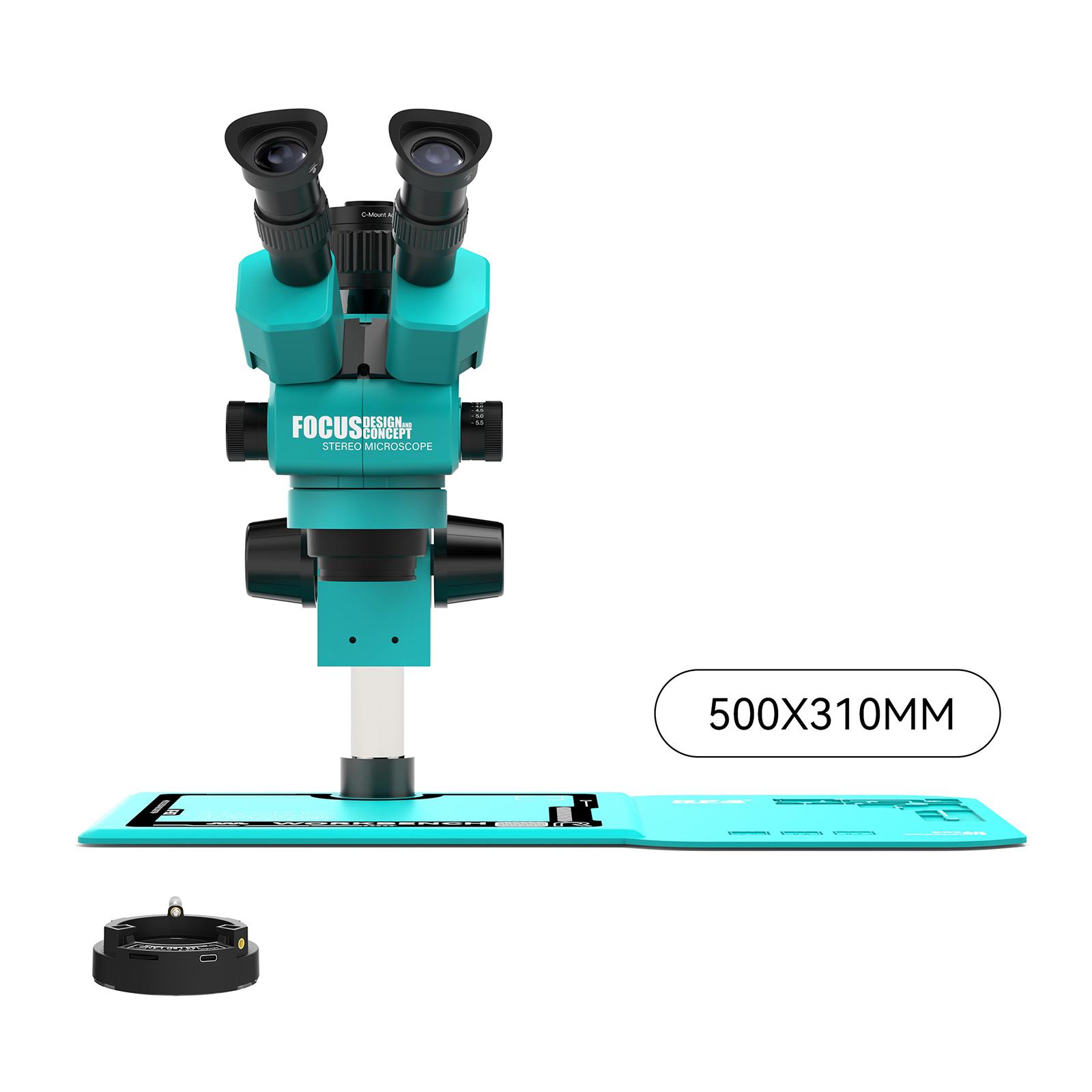

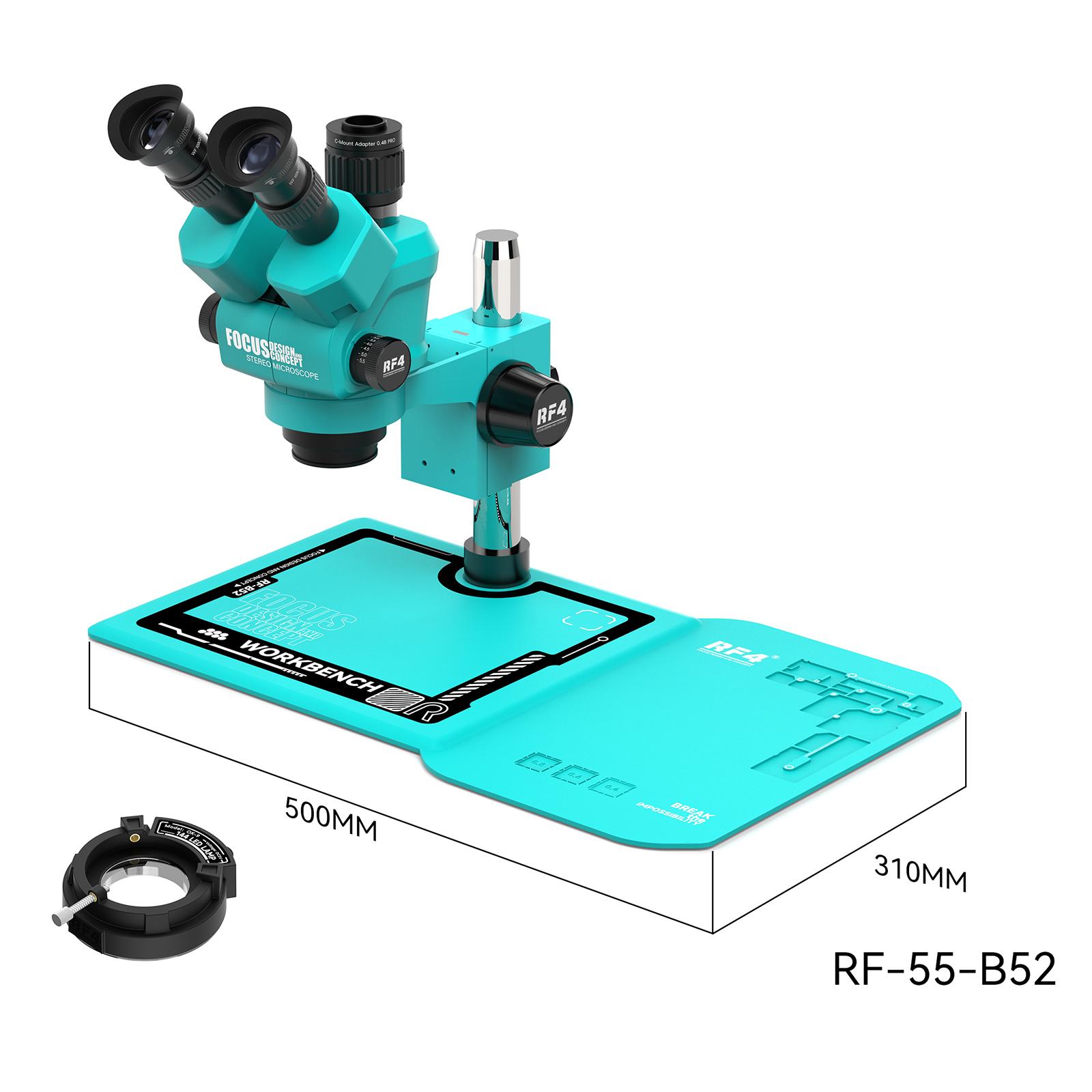

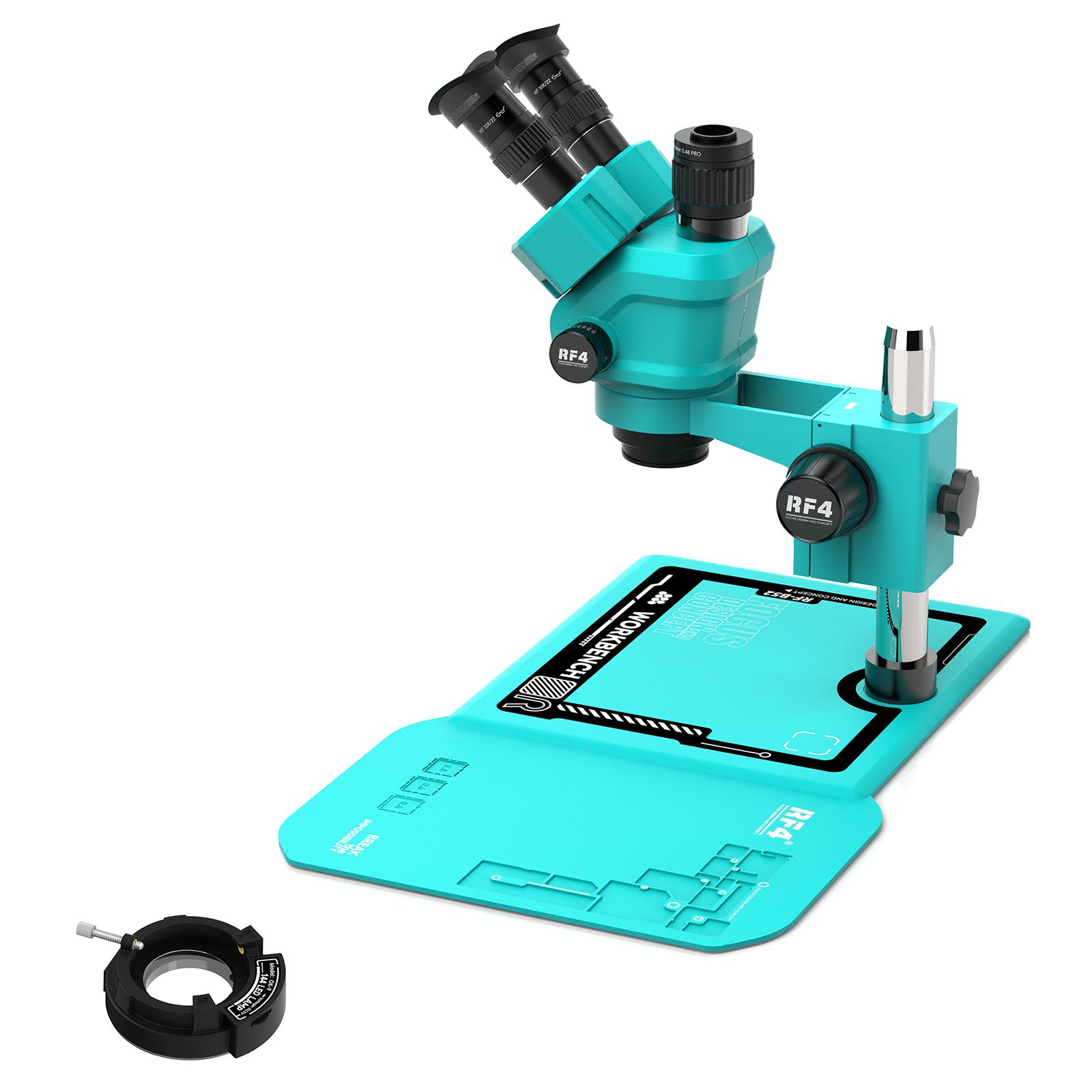

RF4 RF-55-B52 6.5-55X Synchronous Zoom Trinocular Stereo Microscope(Blue)

Product Description

Specification: 1. Magnification: Continuous zoom 6.5X to 55X 2. Head: 45-degree inclined 360-degree swiveling trinocular 3. Eyepiece: WF10X/22MM 4. Objective: 0.65-5.5X 5. Camera Connector: 0.48PRO CTV (Monitor and eyepiece Synchronous zoom) 6. Accessories: 144 light dustproof lens Limit lock Leak-proof eye cup Support Parameters: 1. Column Aperture: 32mm 2. Lens Aperture: 76mm 3. Center Distance: 155mm 4. Lifting Range: 50mm Wide-Angle Eyepieces 10X/22: 1. Magnification: 10X 2. Wide field of view 22mm 3. Matching Size: 30mm 4. Applicable Models: Stereoscopic, fixed, and continuous magnification microscopes 0.5X CTV Len: 1. The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet 2. The adapter ring can use LCD to focus, this kind of focus method is manual focus 3. The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming 144 LED Ring Light: 1. Input: AC 100-240V 50/60Hz 2. Output: DC 12V, Max 700mA 3. Light color: White 4. Number of lights: 144 LEDs 5. Inside diameter: 60mm Package Includes: Microscope x 1 Aluminum Alloy Plate x 1 144 LED Light x 1 Dustproof Len x 1 0.5X CTV Lens x 1

Specifications

SKU

EDA009465401A

Category

Mobile Parts › Repair Tools › Microscope Magnifier Series

Weight

5.704 kg

Delivery

Standard delivery
