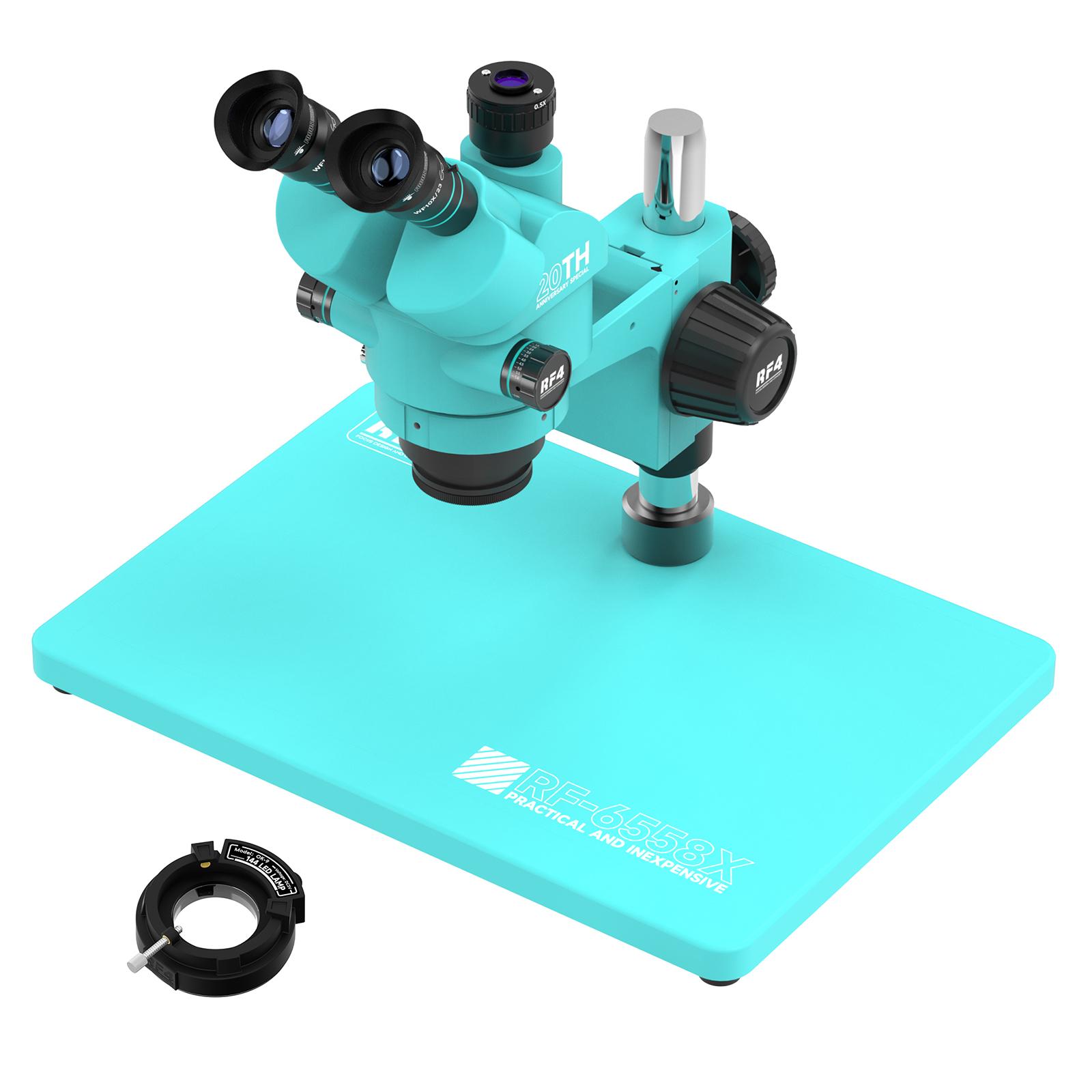

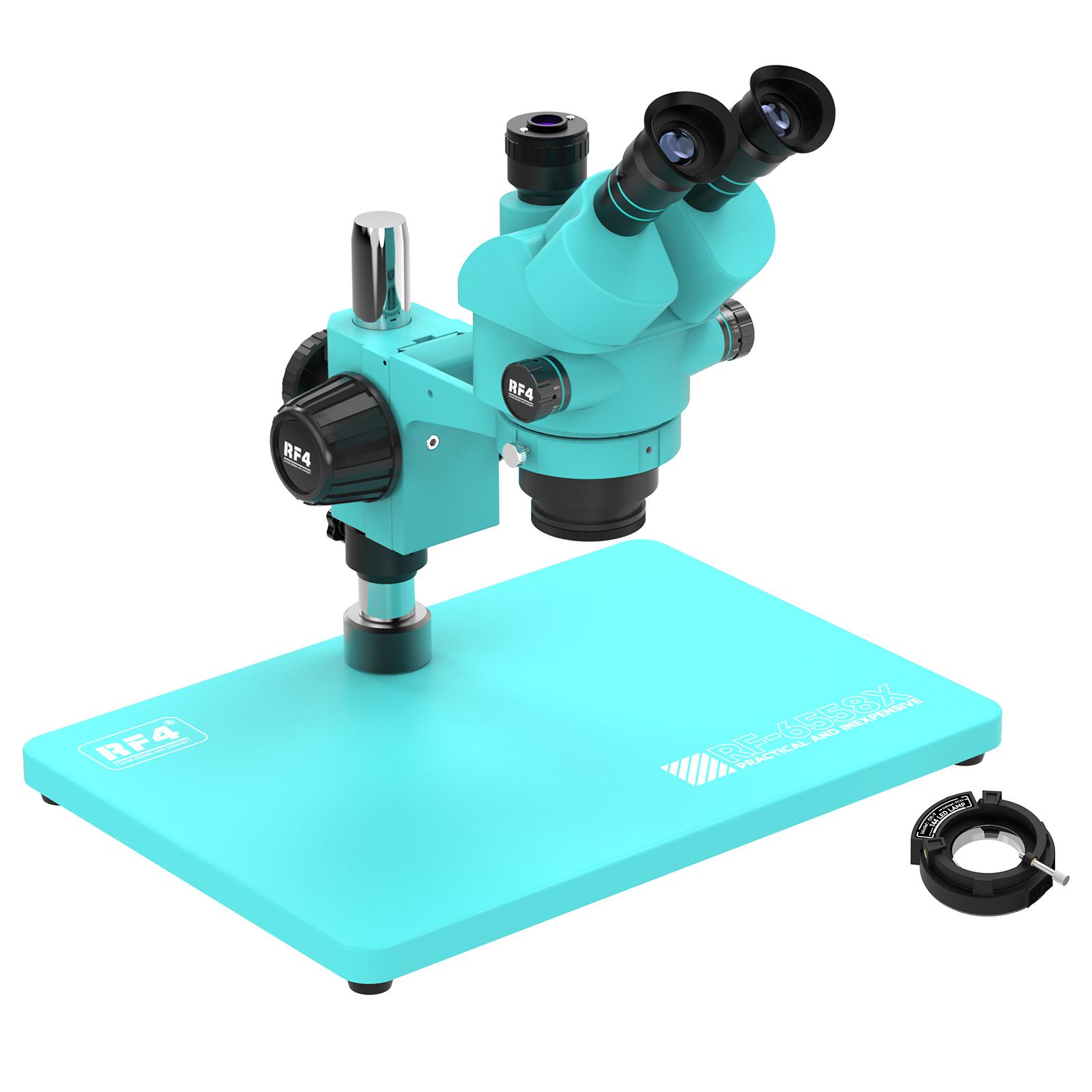

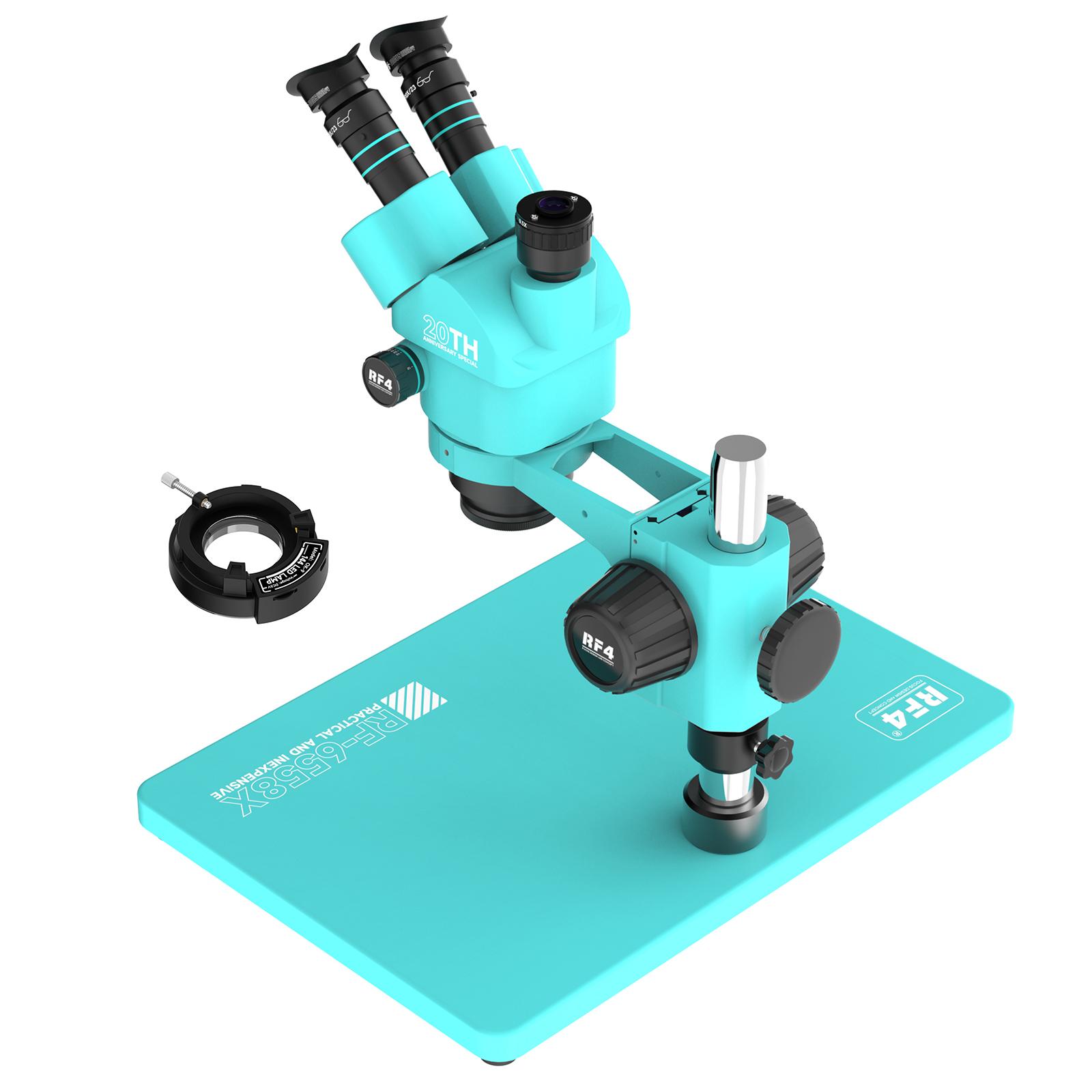

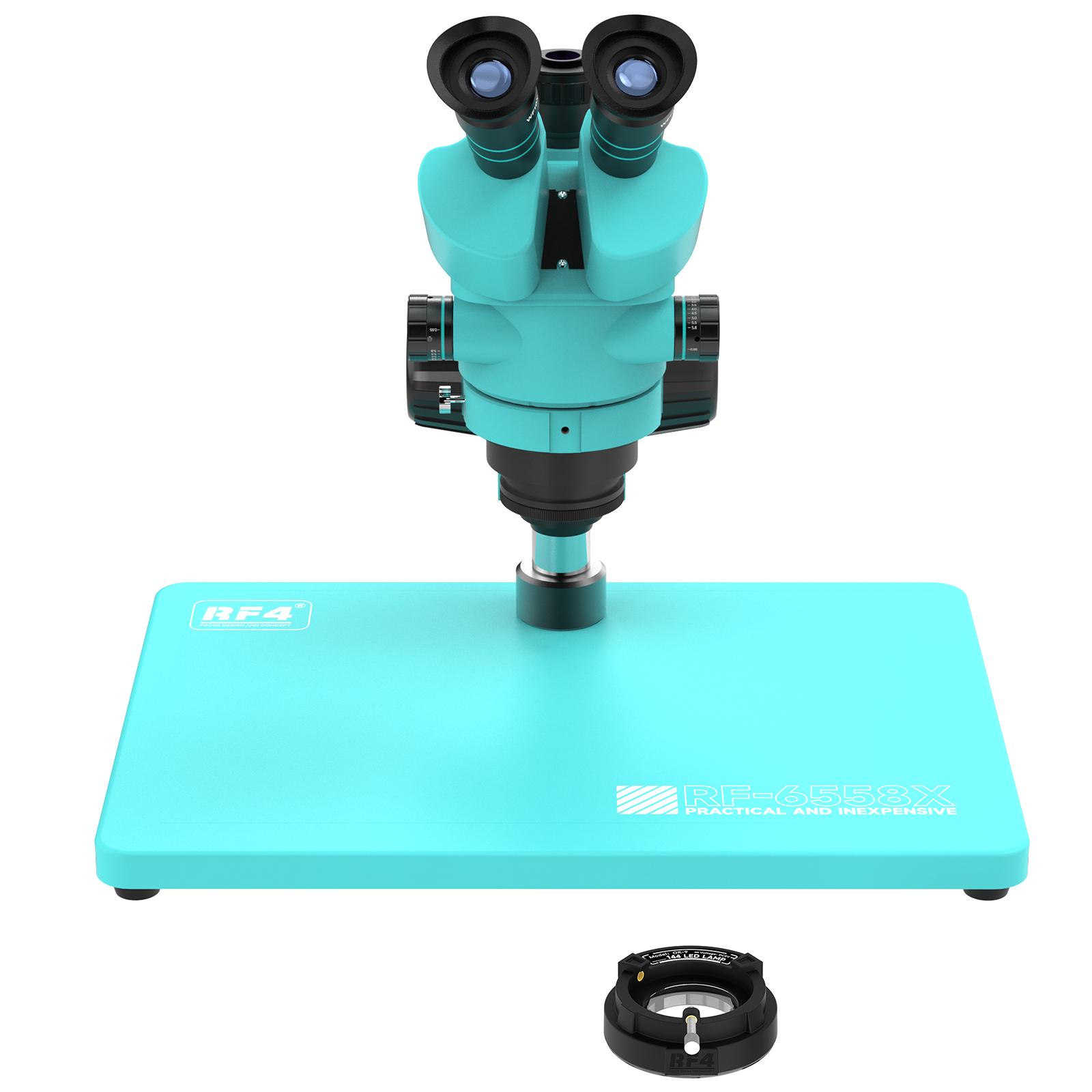

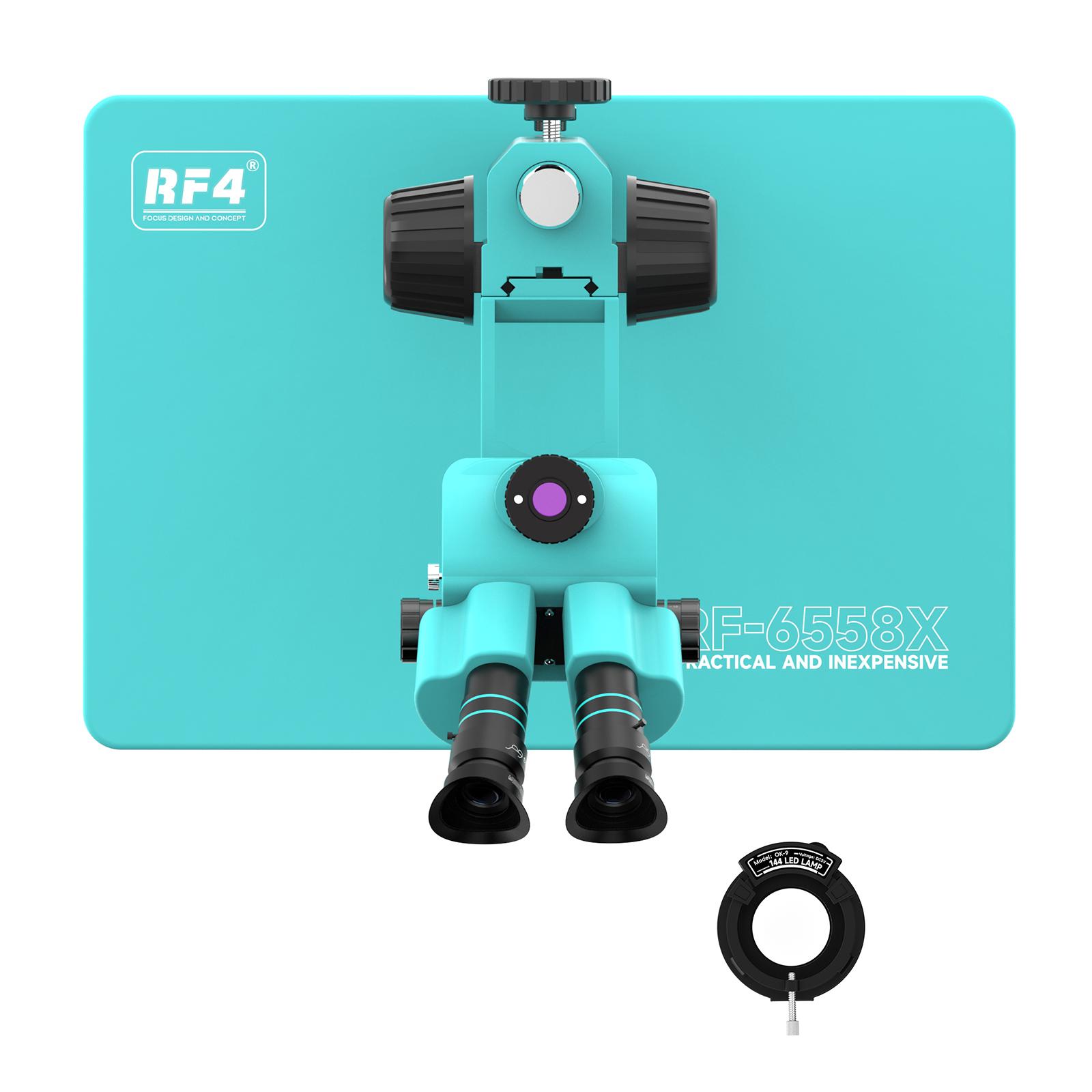

RF4 RF-6558X 6.5-58X Synchronous Zoom Trinocular Stereo Microscope with Aluminum Alloy Big Base(Blue)

Product Description

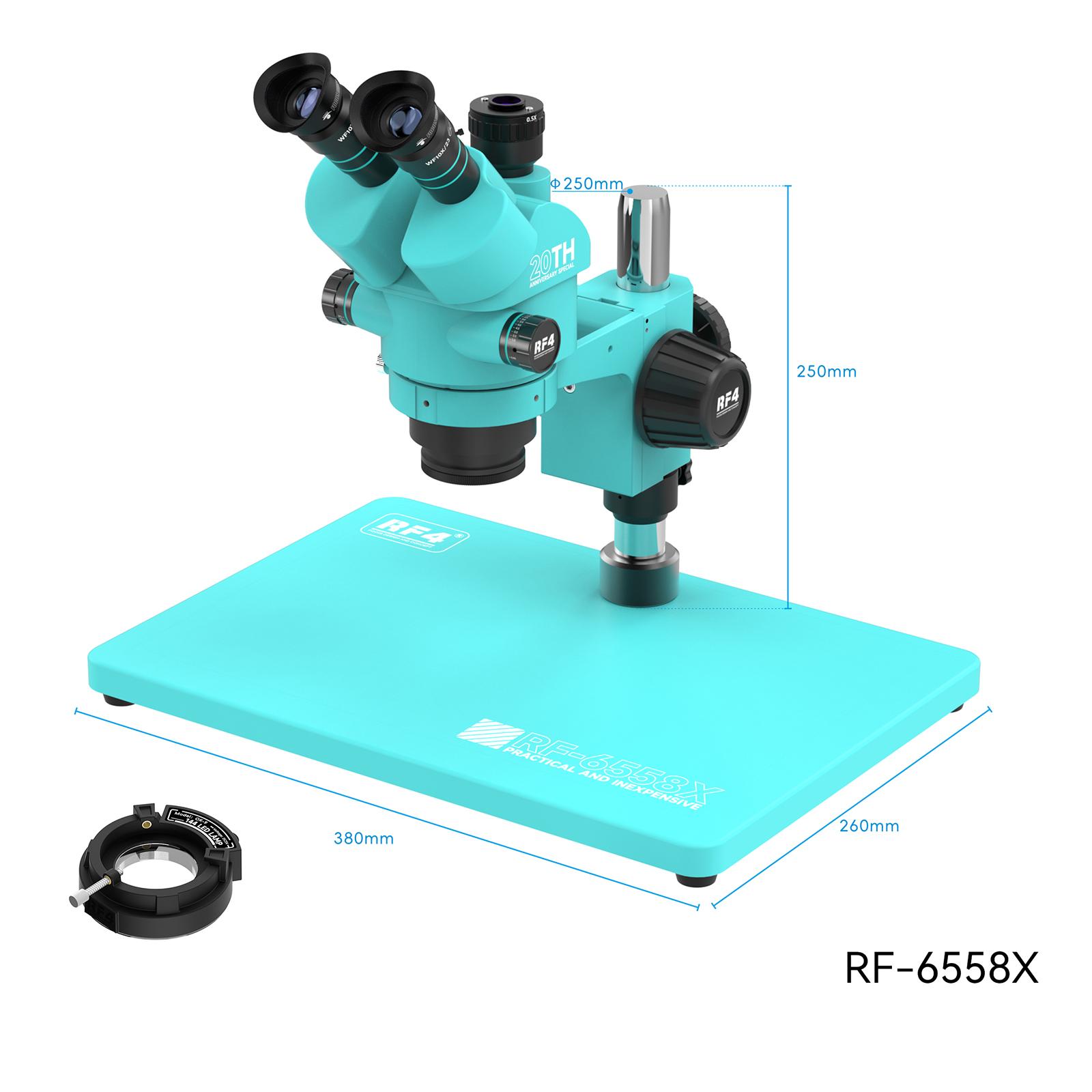

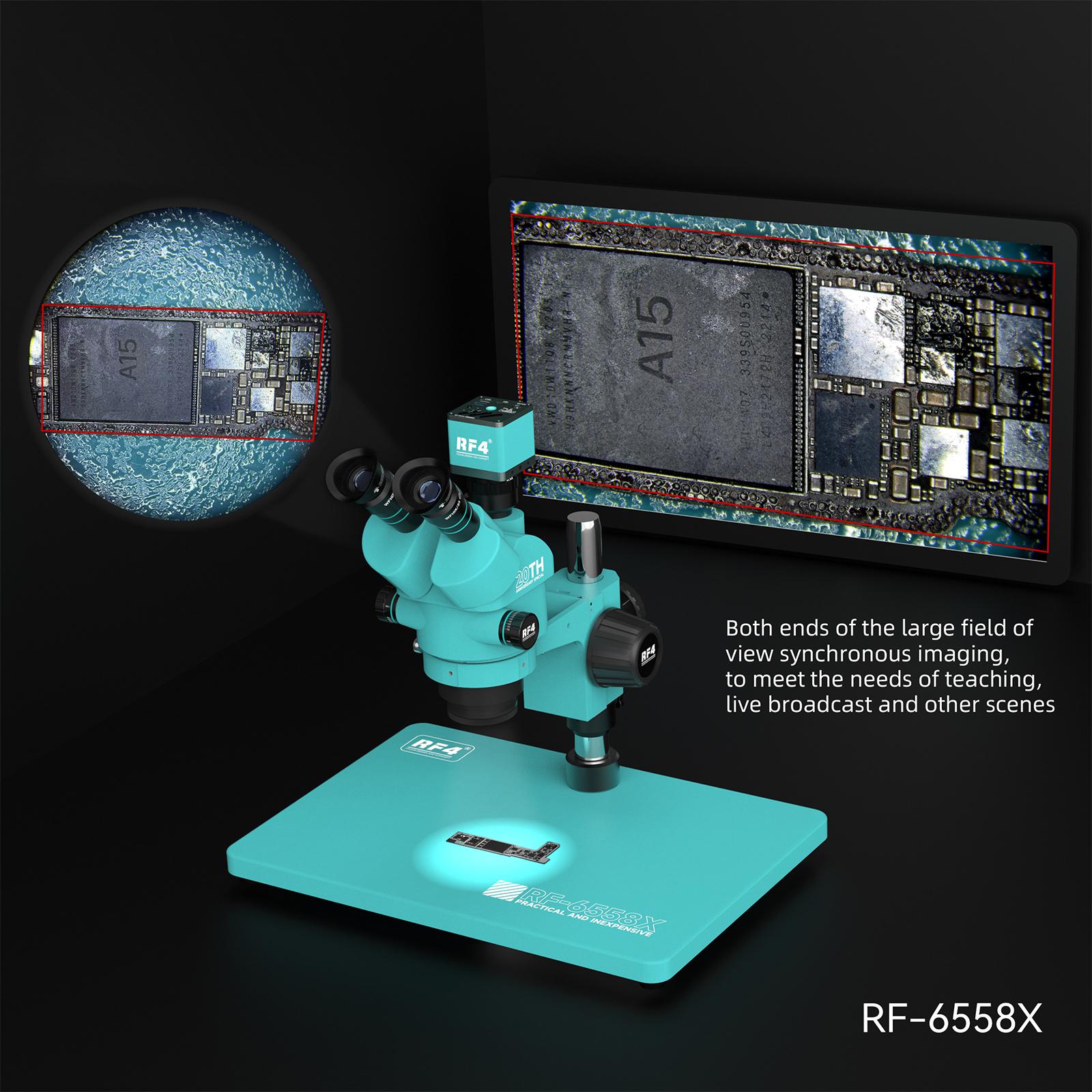

Specification: 1. Magnification: Continuous zoom 6.5X to 58X 2. Head: 45-degree inclined 360-degree swiveling trinocular 3. Eyepiece: WF10X/22MM adjustable 4. Objective: 0.65-5.8X 5. Zoom Knob: Metal knob 6. Camera Connector: 0.5X CTV (Monitor and eyepiece Synchronous zoom) 7. Accessories: 144 light dustproof lens Limit lock Leak-proof eye cup Support Parameters: 1. Column aperture: 25mm 2. Lens aperture: 76mm 3. Center distance: 155mm 4. Lifting range: 50mm 5. Base Size: 380 x 260mm Wide-Angle Eyepieces 10X/22: 1. Magnification: 10X 2. Wide field of view 22mm 3. Matching Size: 30mm 4. Applicable Models: Stereoscopic, fixed, and continuous magnification microscopes 0.5X CTV Len: 1. The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet. 2. The adapter ring can use LCD to focus, this kind of focus method is manual focus. 3. The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming. 144 LED Ring Light: 1. Input: AC 100-240V 50/60Hz 2. Output: DC 12V, Max 700mA 3. Light Color: White 4. Number of Lights: 144 LEDs 5. Inside Diameter: 60mm Package Includes: Microscope x 1 Aluminum Alloy Plate x 1 144 LED Light x 1 Dustproof Len x 1 0.5X CTV Lens x 1

Specifications

SKU

EDA009463001A

Category

Mobile Parts › Repair Tools › Microscope Magnifier Series

Weight

5.404 kg

Delivery

Standard delivery
