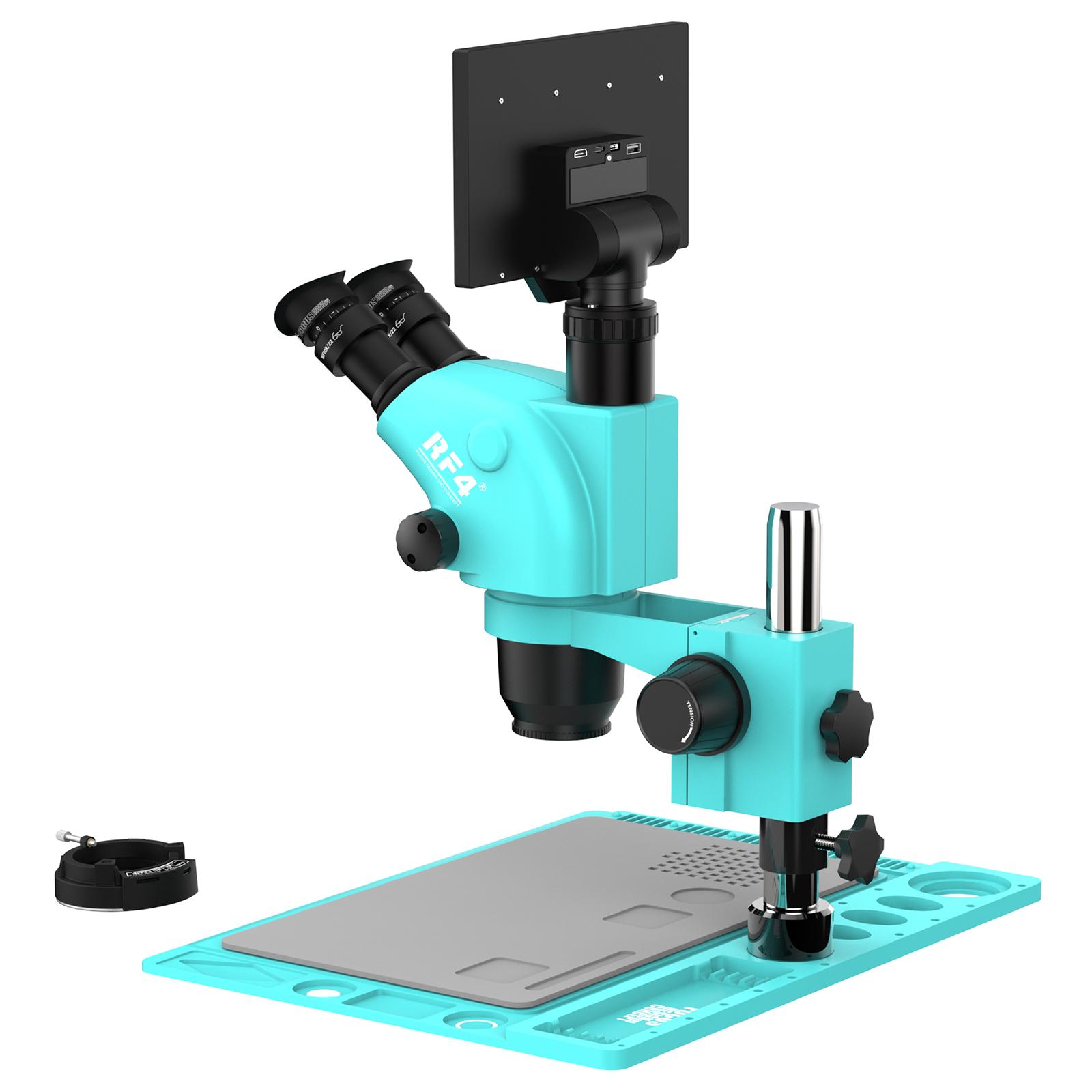

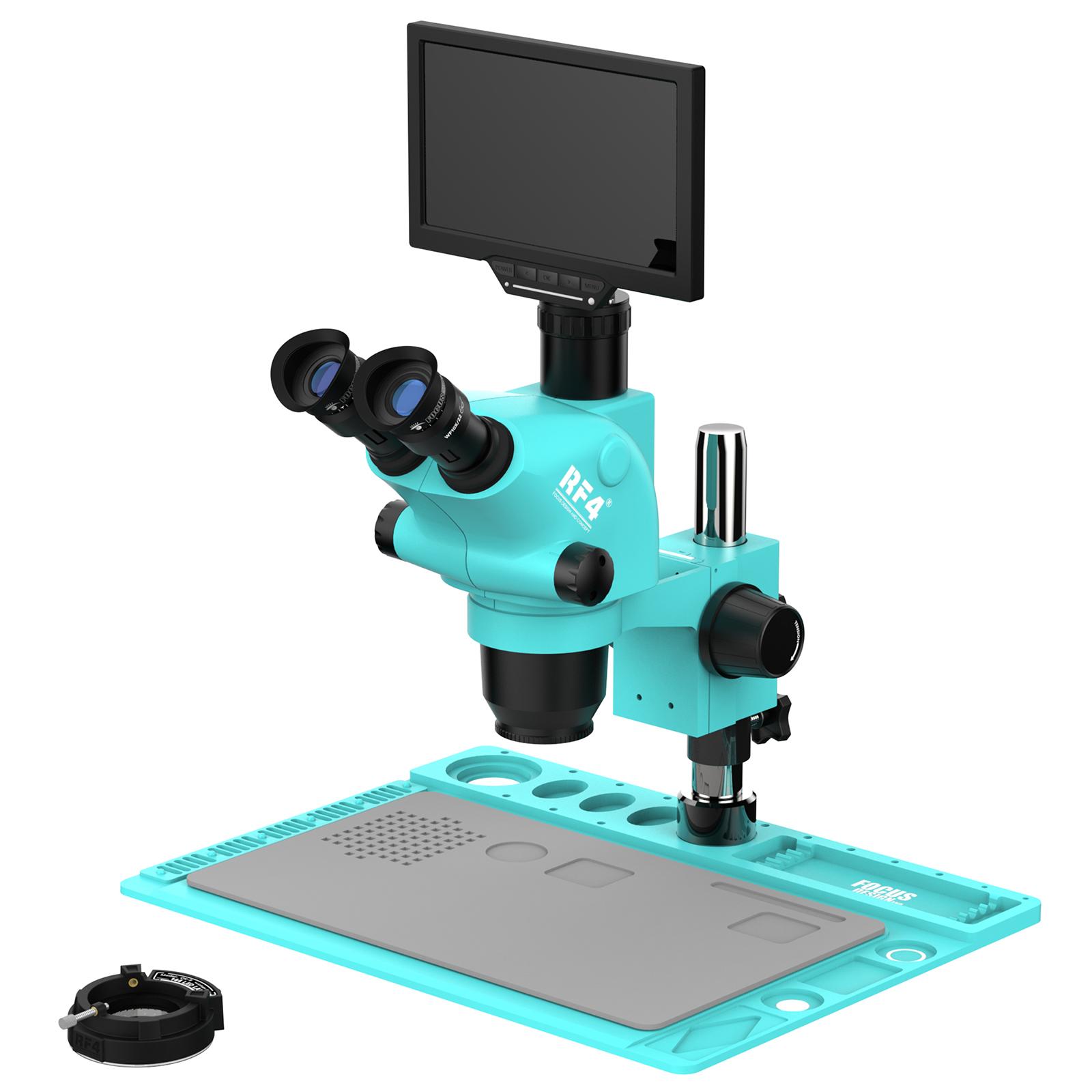

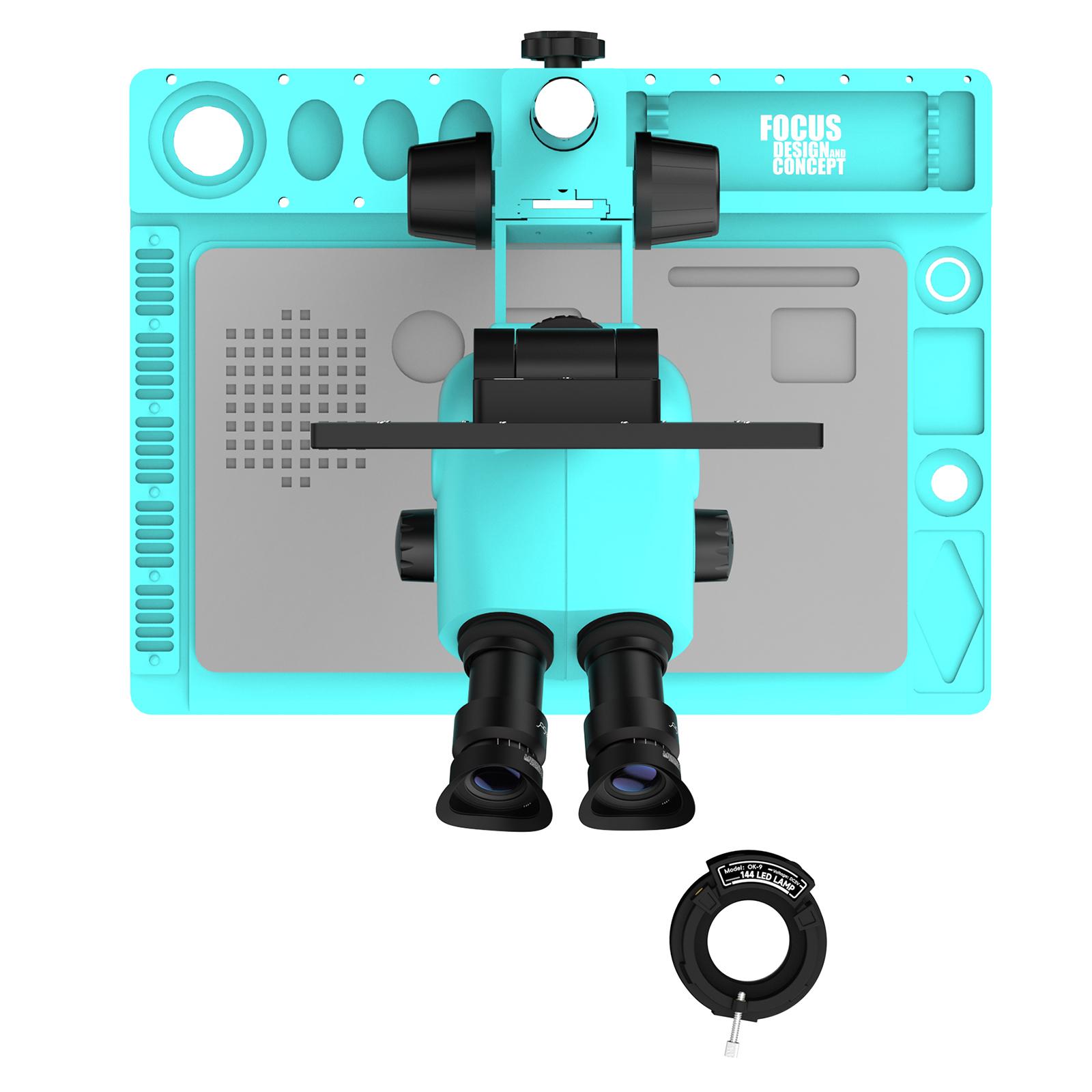

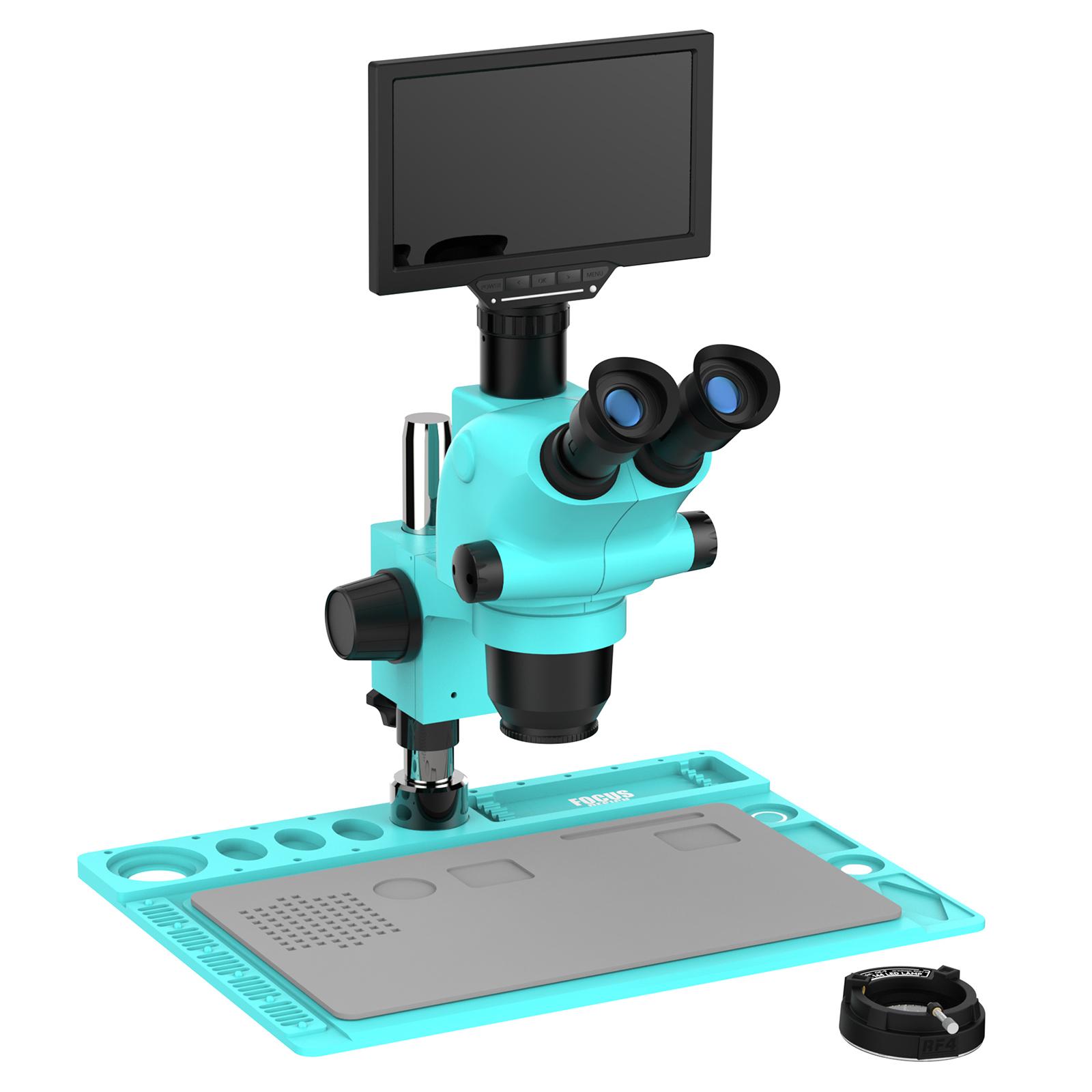

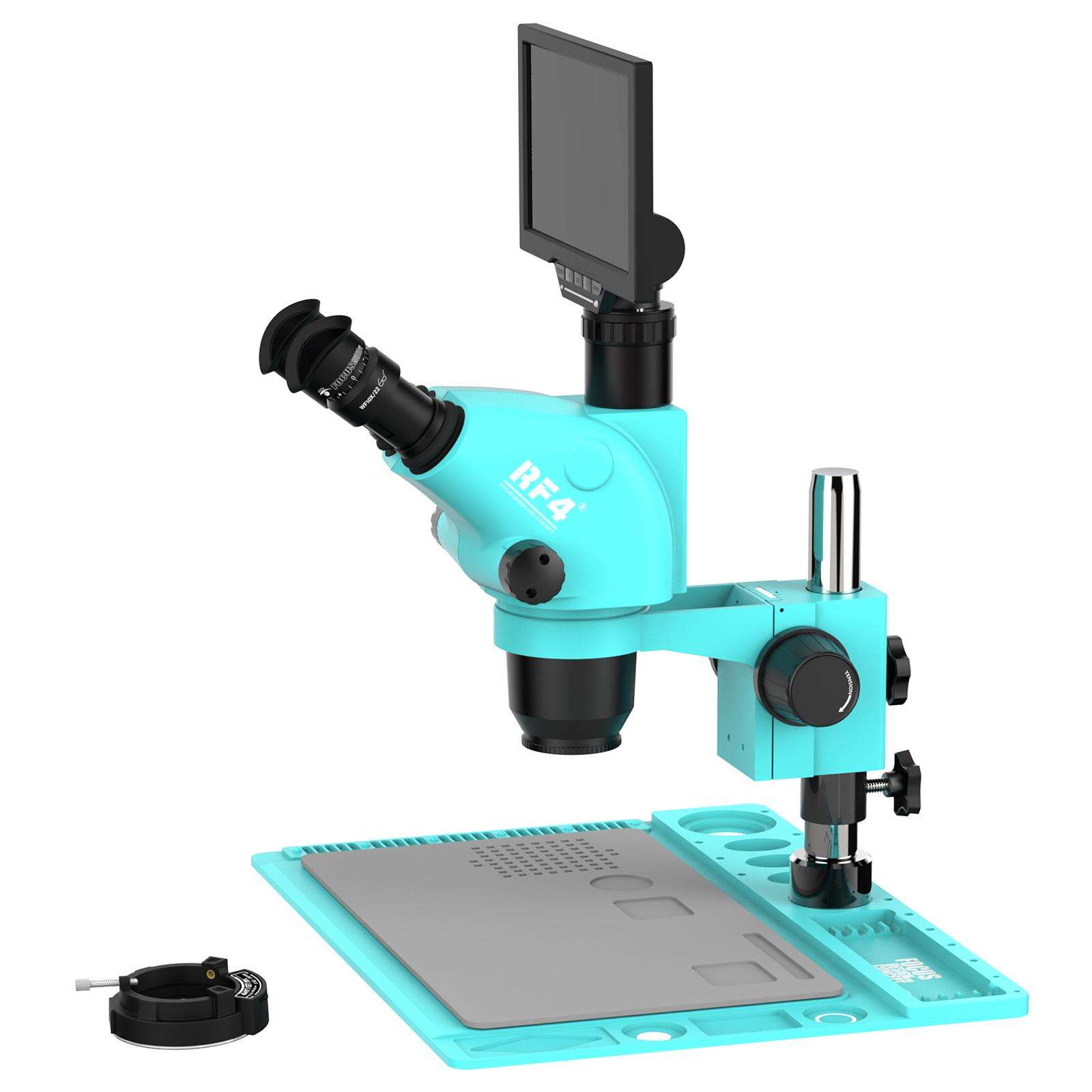

RF4 RF-6565TVD2-YS010W 6.5X-65X Synchronous Zoom Trinocular Stereo Microscope with 10-inch HD Monitor(Blue)

Product Description

Features: 1. 6.5X-65X trinocular microscope 2. 10-inch Monitor with 16MP HDMI camera 3. Multifunctional aluminum alloy repair base 4. Magnification: Big continuous zoom 6.5X to 65X 5. Head: 45-degree inclined 360-degree swiveling trinocular 6. Eyepiece: WF10X/22MM Adjust the focal 7. Barlow Lens: 0.5X & 0.7&2.0X(optional) 8. Objective: 0.65-6.5X 9. Camera connector：1/2CTV 10. Monitor and eyepiece. Synchronous zoom 11. Camera: Different models optional 12. Boom Stand: 250mm φ32mm pillar, 200mmx255mm base with White/Black Round Plastic Plate 13. Accessories: 144 adjustable LED light & dustproof Lens Specification: 1. Magnification: Continuous zoom 6.5X to 65X 2. Head: 45-degree inclined 360-degree swiveling trinocular 3. Eyepiece: WF10X/22MM 4. Objective: 0.65-6.5X 5. Camera connector: 0.5X 6. Monitor and eyepiece: Synchronous zoom 7. Stand: 410x300mm 8. Accessories: 144 adjustable led lights & dust proof Lens Support parameters: 1. Column aperture: 32mm 2. Lens aperture: 76mm 3. Center distance: 155mm 4. Lifting range: 50mm The base parameters: 1. Base size: 410x300mm 2. Pillar: 240mm φ32mm 3. Silicone pad size: 330x198mm Wide-angle Eyepieces 10X/22: 1. Magnification: 10X 2. Wide field of view 22mm 3. Matching size: 30mm 4. Applicable models: Stereoscopic, fixed, and continuous magnification microscopes 0.5X CTV: 1. The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet 2. The adapter ring can use LCD to focus, this kind of focus method is manual focus 3. The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming LED Ring Light: 1. Input: AC 100~240V 50/60Hz 2. Output: DC 12V, Max 700mA 3. Light color: White 4. Number of lights: 144 LEDs 5. Inside diameter: 60mm Package includes: 1. Microscope x 1 2. Aluminum alloy plate x 1 3. Silicone pad x 1 4. HD Monitor x 1 5. 144 LED light x 1 6. Dustproof len x 1 7. 0.5X CTV lens x 1

Specifications

SKU

EDA009434101A

Category

Mobile Parts › Repair Tools › Microscope Magnifier Series

Weight

8.804 kg

Delivery

Standard delivery
